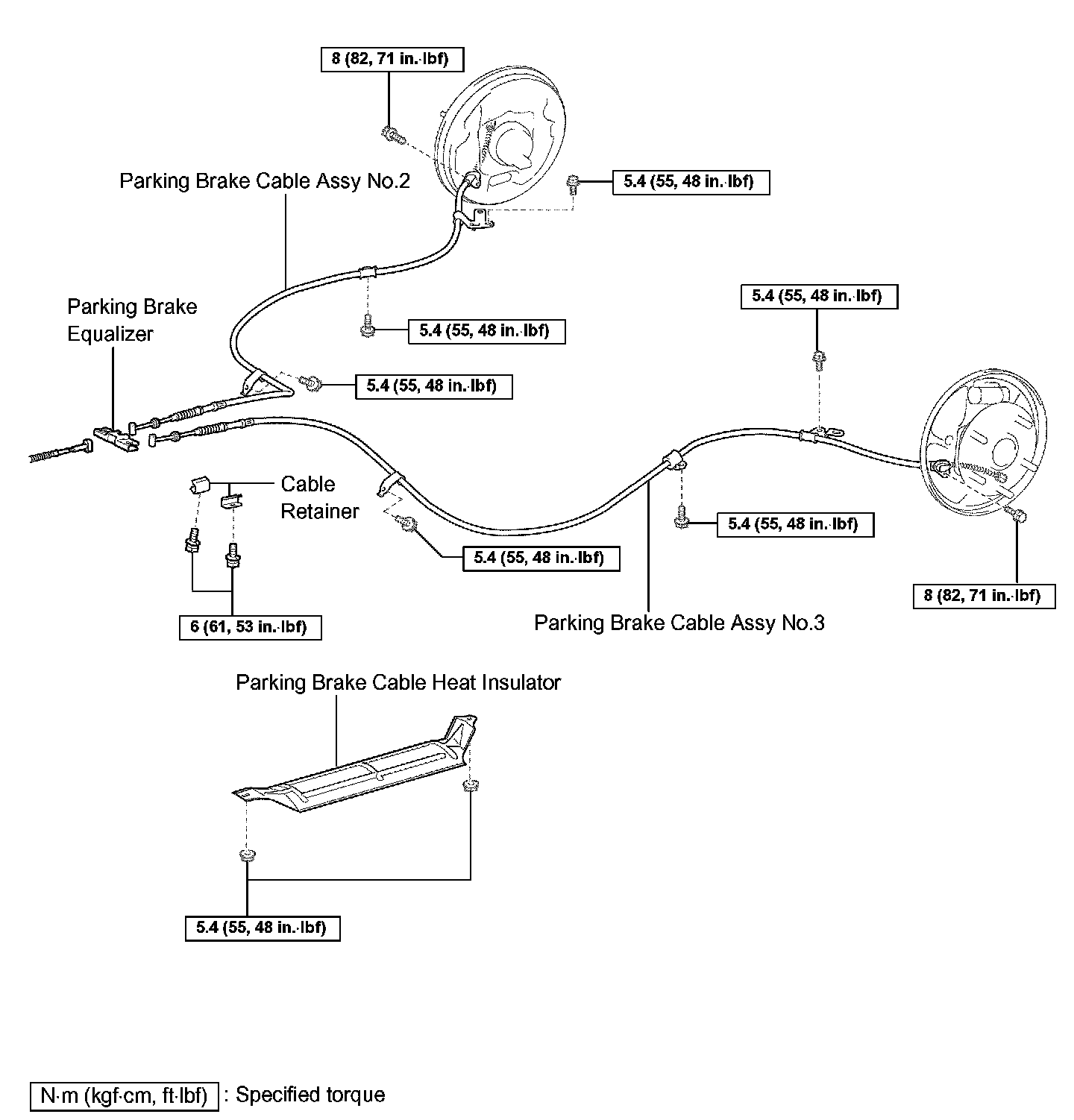

Parking Brake Cable Assembly No. 3

PARKING BRAKE CABLE ASSY NO.3
REPLACEMENT

HINT: For parking brake cable No.2, employ the same procedure to the No.3 side.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY
3. SEPARATE PARKING BRAKE SHOE STRUT SET LH
SST 09703-30010
4. REMOVE FRONT BRAKE SHOE
SST 09718-00010
5. REMOVE PARKING BRAKE SHOE STRUT SET LH
6. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH
7. REMOVE REAR BRAKE SHOE
8. REMOVE REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSY
9. REMOVE COWL SIDE TRIM BOARD RH
10. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
11. REMOVE OXYGEN SENSOR
12. REMOVE FLOOR PANEL BRACE FRONT
13. REMOVE EXHAUST PIPE ASSY FRONT
14. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
a) Remove the 2 nuts and separate the parking brake cable heat insulator.
15. REMOVE PARKING BRAKE CABLE ASSY NO.3

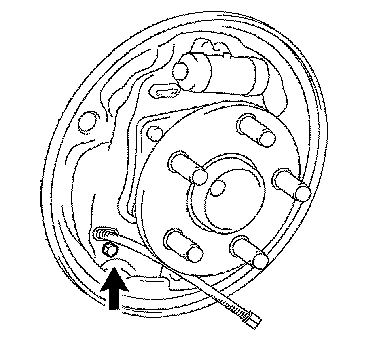

a) Remove the bolt and separate the parking brake cable assy No.3 from the backing plate.

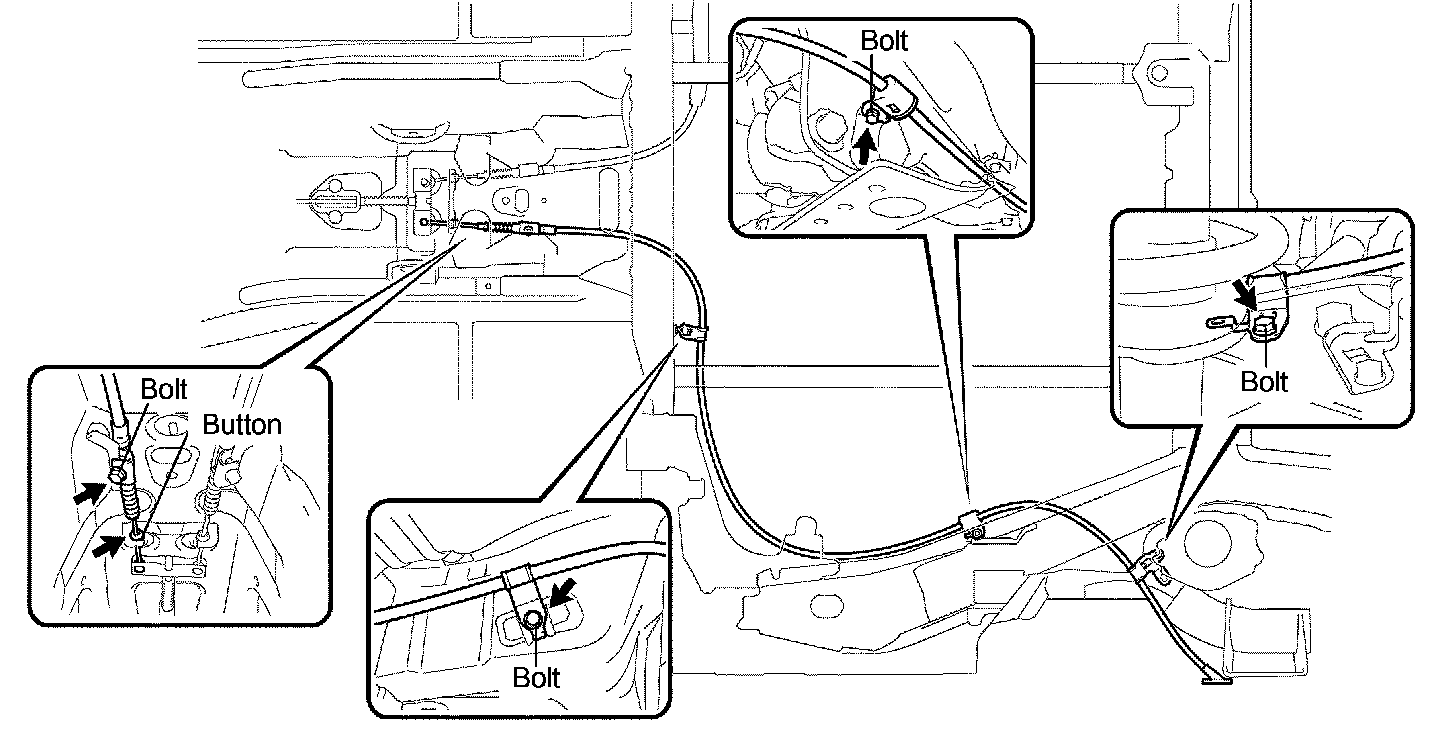

b) Remove the bolts and button as shown in the illustration. Separate the parking brake cable assy No.3.
c) Separate the parking brake cable assy No.3 from the parking brake equalizer.
16. INSTALL PARKING BRAKE CABLE ASSY NO.3
a) Connect the parking brake cable assy No.3 to the parking brake equalizer.

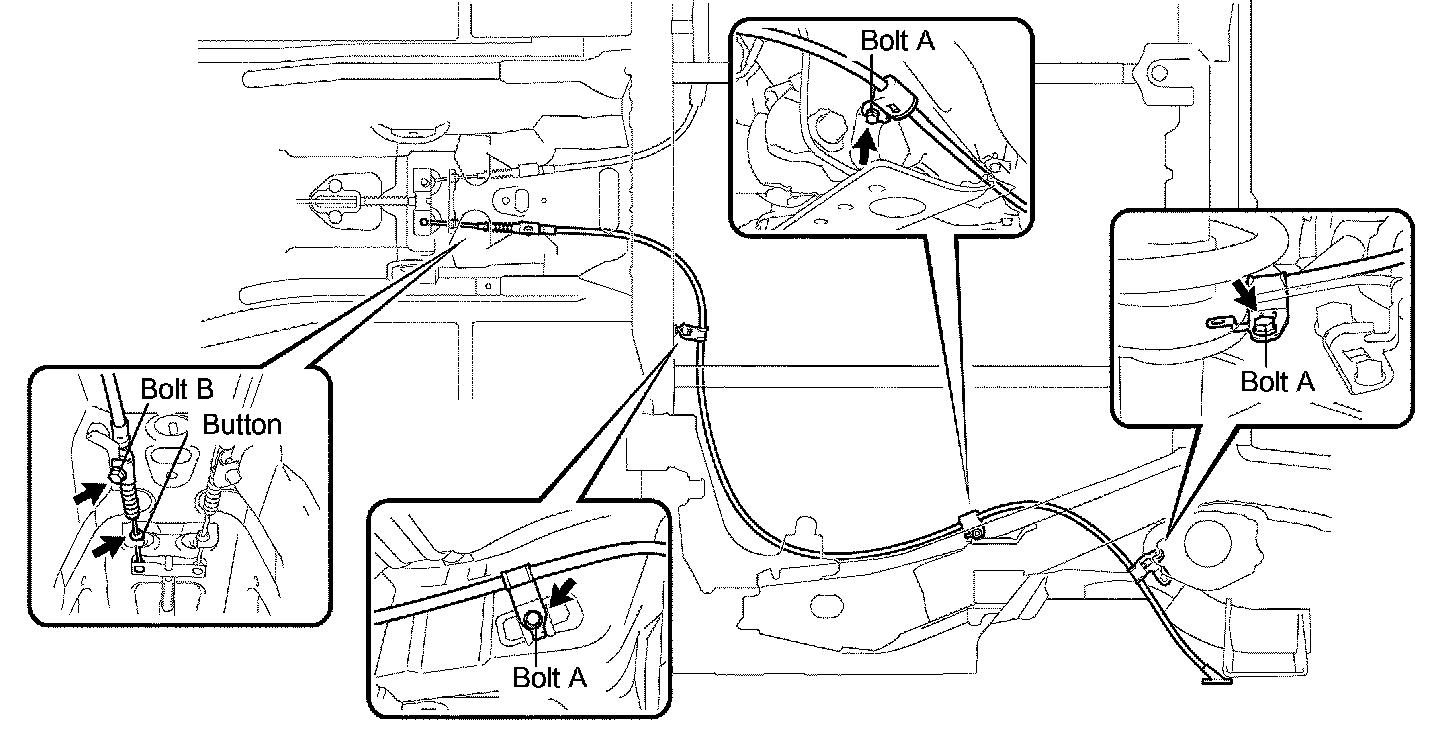

b) Install the parking brake cable assy No.3 with bolts and a button as shown in the illustration.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.) (Bolt A)
Torque: 6.0 Nm (61 kgf-cm, 53 inch lbs.) (Bolt B)

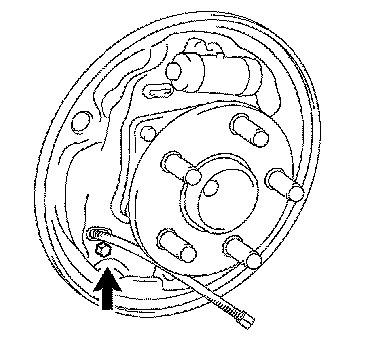

c) Connect the parking brake cable assy No.3 to the backing plate with a bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
17. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
a) Install the parking brake heat insulator with 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
18. INSTALL EXHAUST PIPE ASSY FRONT
19. INSTALL FLOOR PANEL BRACE FRONT
20. INSTALL OXYGEN SENSOR
21. APPLICATION HIGH TEMPERATURE GREASE
22. INSTALL REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSY
23. INSTALL REAR BRAKE SHOE
24. INSTALL REAR BRAKE SHOE RETURN SPRING
25. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH
26. INSTALL PARKING BRAKE SHOE STRUT SET LH
27. INSTALL FRONT BRAKE SHOE
SST 09718-00010
28. CONNECT PARKING BRAKE SHOE STRUT SET LH
SST 09703-30010
29. CHECK REAR DRUM BRAKE INSTALLATION
30. INSTALL REAR BRAKE DRUM SUB-ASSY
31. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
32. INSTALL REAR WHEEL
33. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
34. CHECK FOR EXHAUST GAS LEAKS
