Parking Brake System: Testing and Inspection

PARKING BRAKE SYSTEM

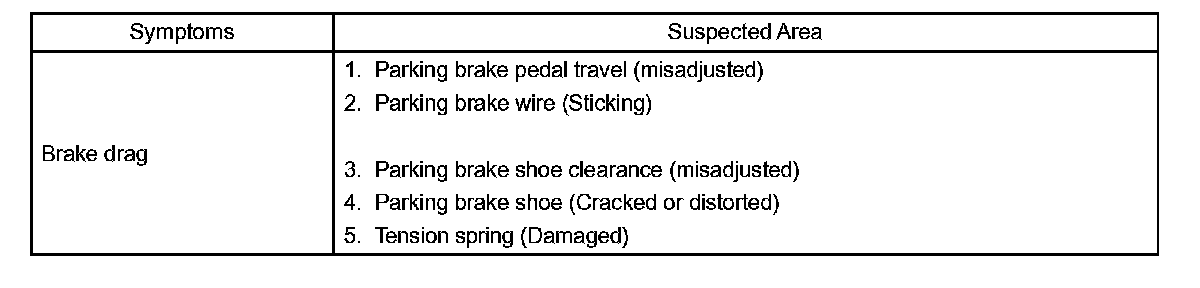

PROBLEM SYMPTOMS TABLE





Use the table below to help find the cause of the problem. The likely causes are displayed in numerical order. Check each part in order and replace each part if necessary.
