Brakes and Traction Control: Testing and Inspection

BRAKE SYSTEM

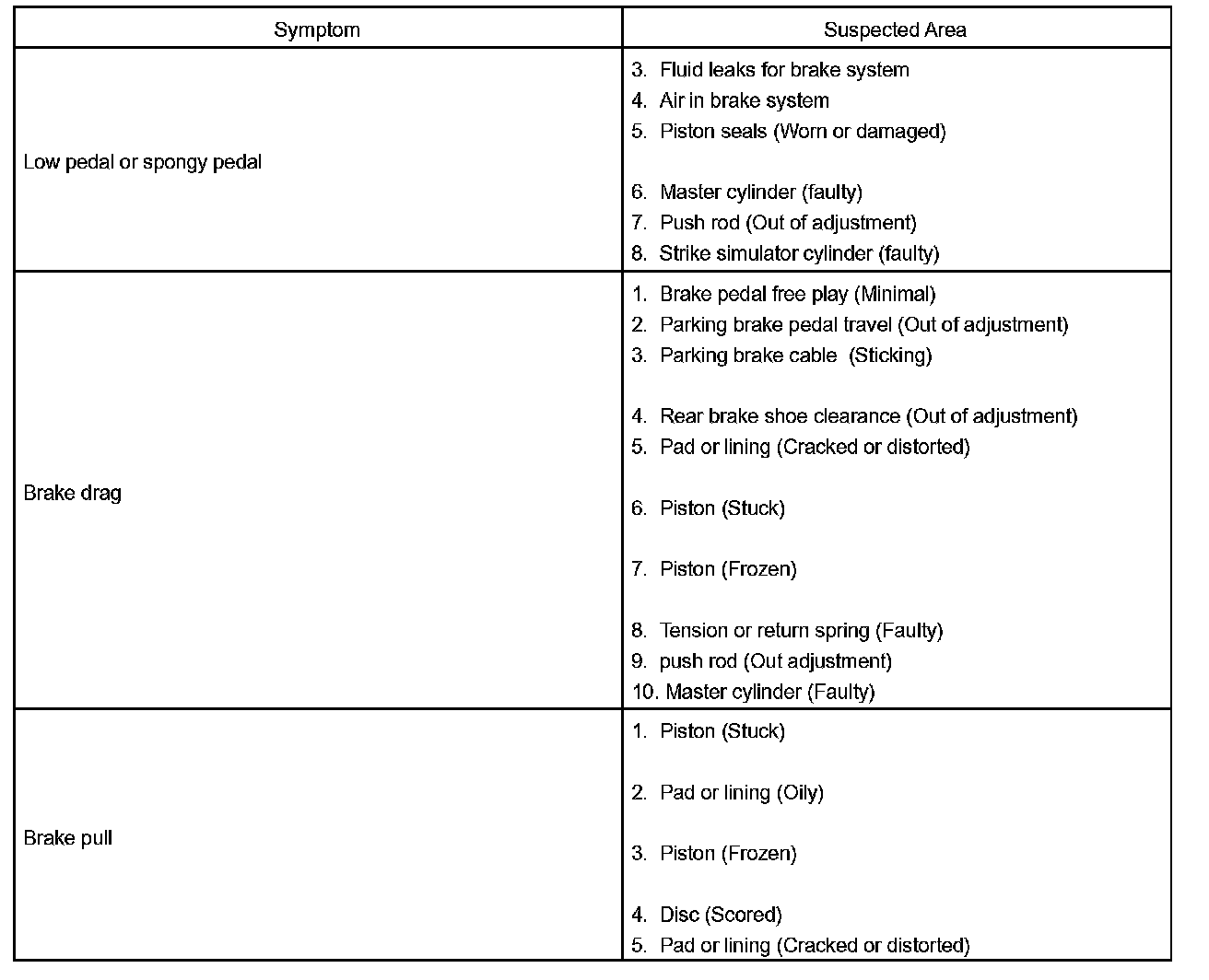

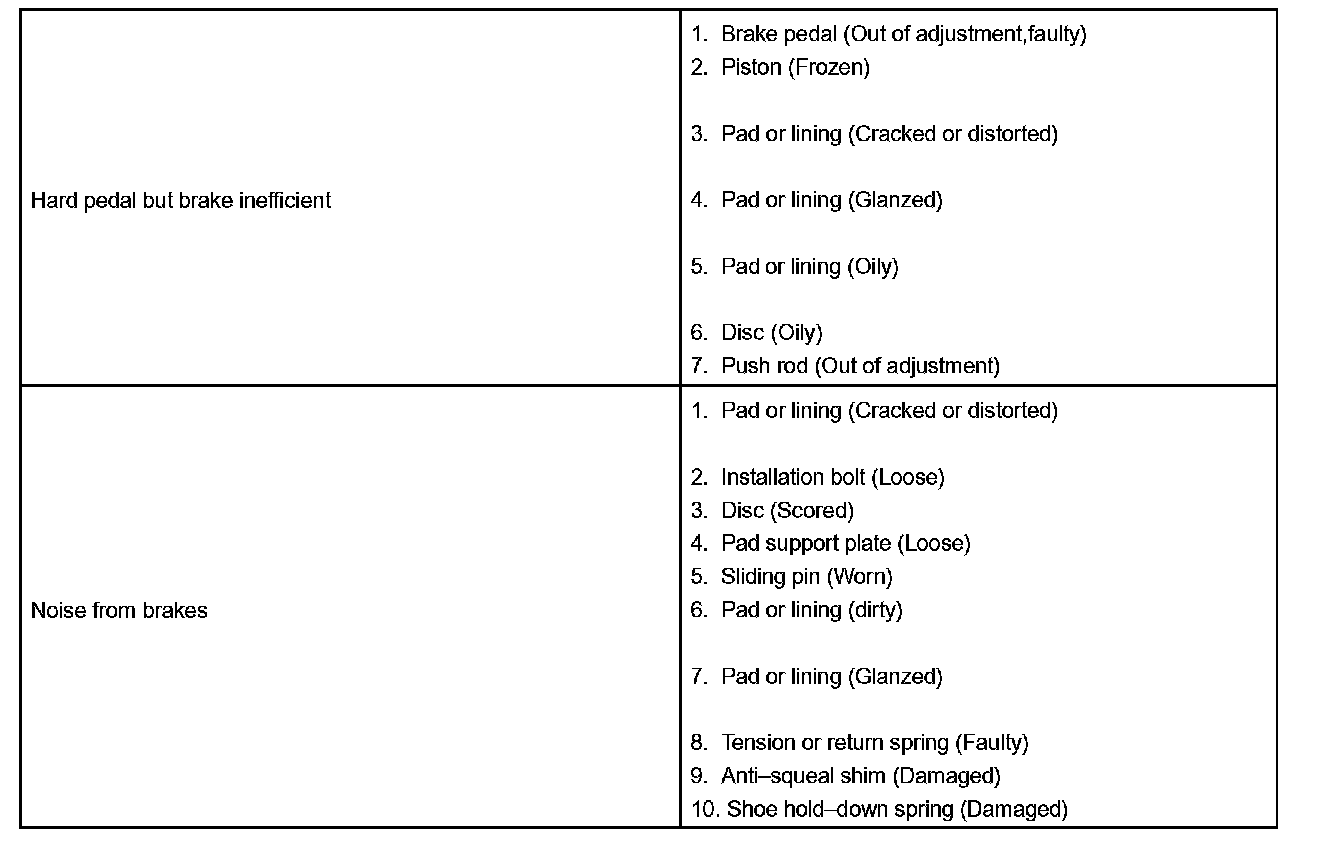

PROBLEM SYMPTOMS TABLE

Part 1 Of 2:

Part 2 Of 2:

Use the table to help find the cause of the problem. The numbers indicate the probability of the problems in descending order. Check each part in order. If necessary, replace these parts.
