Check Cruise Control Indicator

CHECK THE INDICATOR




a. Turn the power switch on (IG).

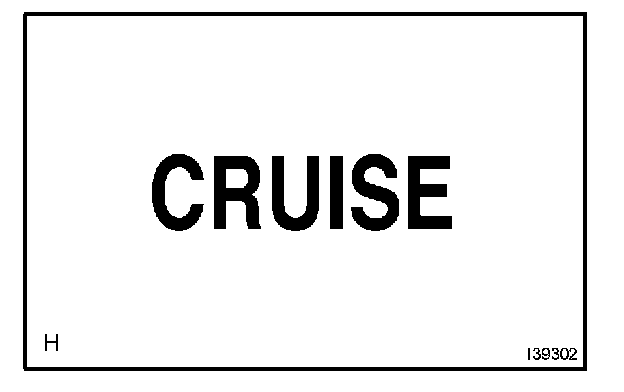

b. Check that the CRUISE main indicator light comes on when the cruise control main switch ON-OFF button is pushed on, and that the indicator light goes off when the ON-OFF button is pushed off.

HINT:
- If there is a problem with the indicator light, inspect the cruise main indicator light circuit.
- If a malfunction occurs in the vehicle speed sensor, stop lamp switch assy or other related parts while driving with cruise control, and the hybrid vehicle control ECU activates AUTO CANCEL of the cruise control and then the CRUISE main indicator light starts to blink, informing the driver of the malfunction. At the same time, data of the malfunction is stored as a DTC.
