Problem Symptom Confirmation (Road Test)

ROAD TEST

PROBLEM SYMPTOM CONFIRMATION

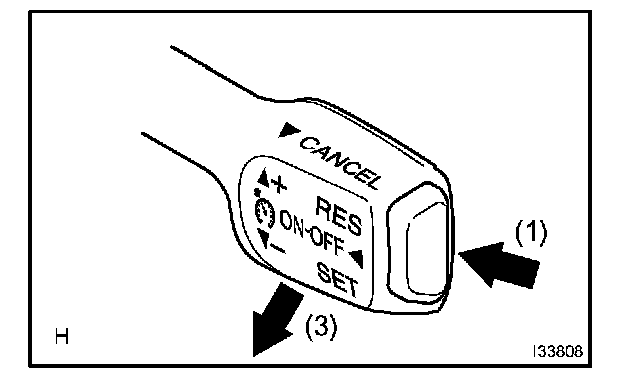

a. Inspect the SET function.
1. Push the ON-OFF button "on".
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. Check that the vehicle cruises at the set speed after releasing the switch.

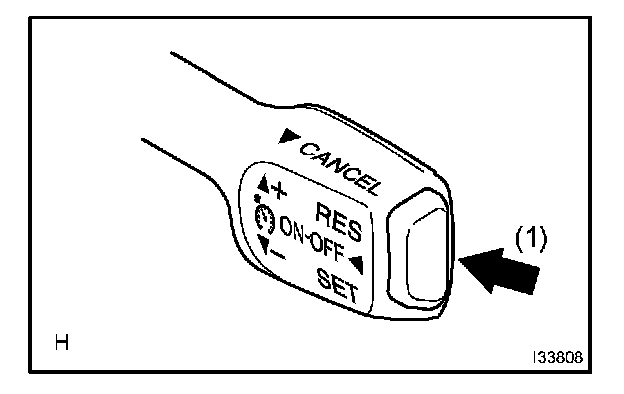

b. Inspect the "+ (ACCEL)" function.
1. Push the ON-OFF button "on".
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. Check that vehicle speed increases while the cruise control main switch is pushed to +/RES, and that the vehicle cruises at the newly set speed when the switch is released.
5. Momentarily push the cruise control main switch to +/RES and then immediately release it. Check that vehicle speed increases by approximately 1.6 km/h (1.0 mph). (Tap-up function)

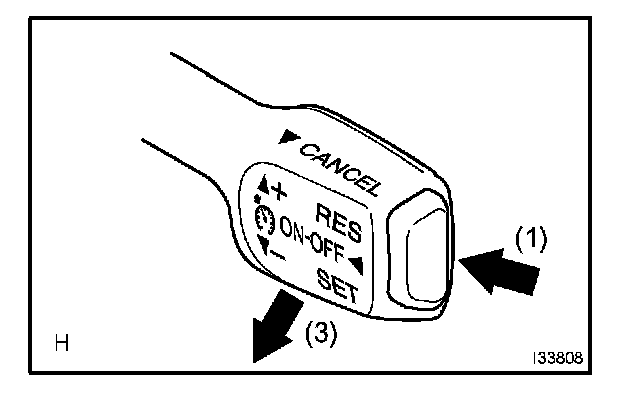

c. Inspect the "- (COAST)" function.
1. Push the ON-OFF button "on".
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. Check that vehicle speed decreases while the cruise control main switch is pushed to -/SET, and that the vehicle cruises at the newly set speed when the switch is released.
5. Momentarily push the cruise control main switch to -/SET and then immediately release it. Check that vehicle speed decreases by approximately 1.6 km/h (1.0 mph). (Tap-down function)

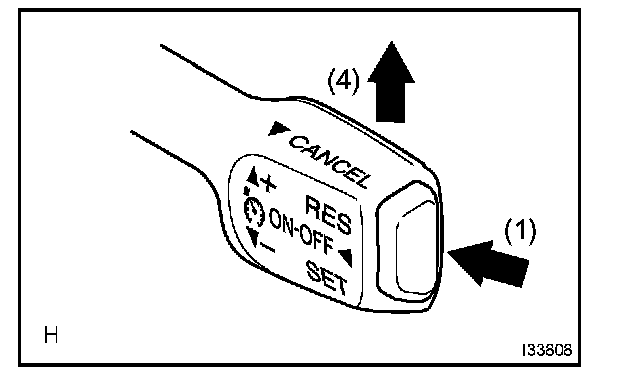

d. Inspect the CANCEL function.
1. Push the ON-OFF button "on".
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. When doing one or more of the following, check that the cruise control system is cancelled and that the normal driving mode is reset:
- Depressing the brake pedal
- Shifting into any position except D
- Pushing the ON-OFF button "off"
- Pulling the cruise control main switch to CANCEL

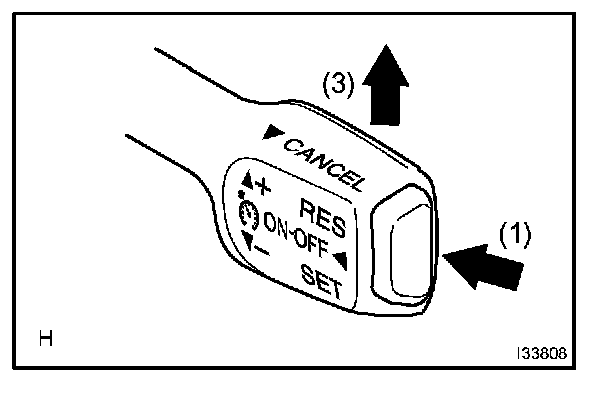

e. Inspect the RES (RESUME) function.
1. Push the ON-OFF button "on".
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push the cruise control main switch to -/SET.
4. When doing one or more of the following, check that the cruise control system is cancelled and that the normal driving mode is reset:
- Depressing the brake pedal
- Shifting into any position except D
- Pulling the cruise control main switch to CANCEL
5. After pushing the cruise control main switch to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed which was maintained before cancellation.
