With Manufacturer's Scan Tool

CHECK FOR DTCs




a. Using the hand-held tester, check for DTCs.

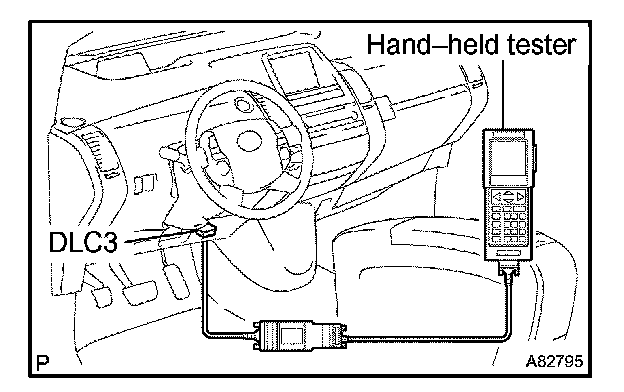

1. Connect the hand-held tester to the DLC3.
2. Turn the power switch on (IG).
3. Read the DTCs on the tester screen.

HINT: The hand-held tester has a "Snapshot" function which records the monitored data.
Refer to the hand-held tester operator's manual for further details.
