Symptom Related Diagnostic Procedures

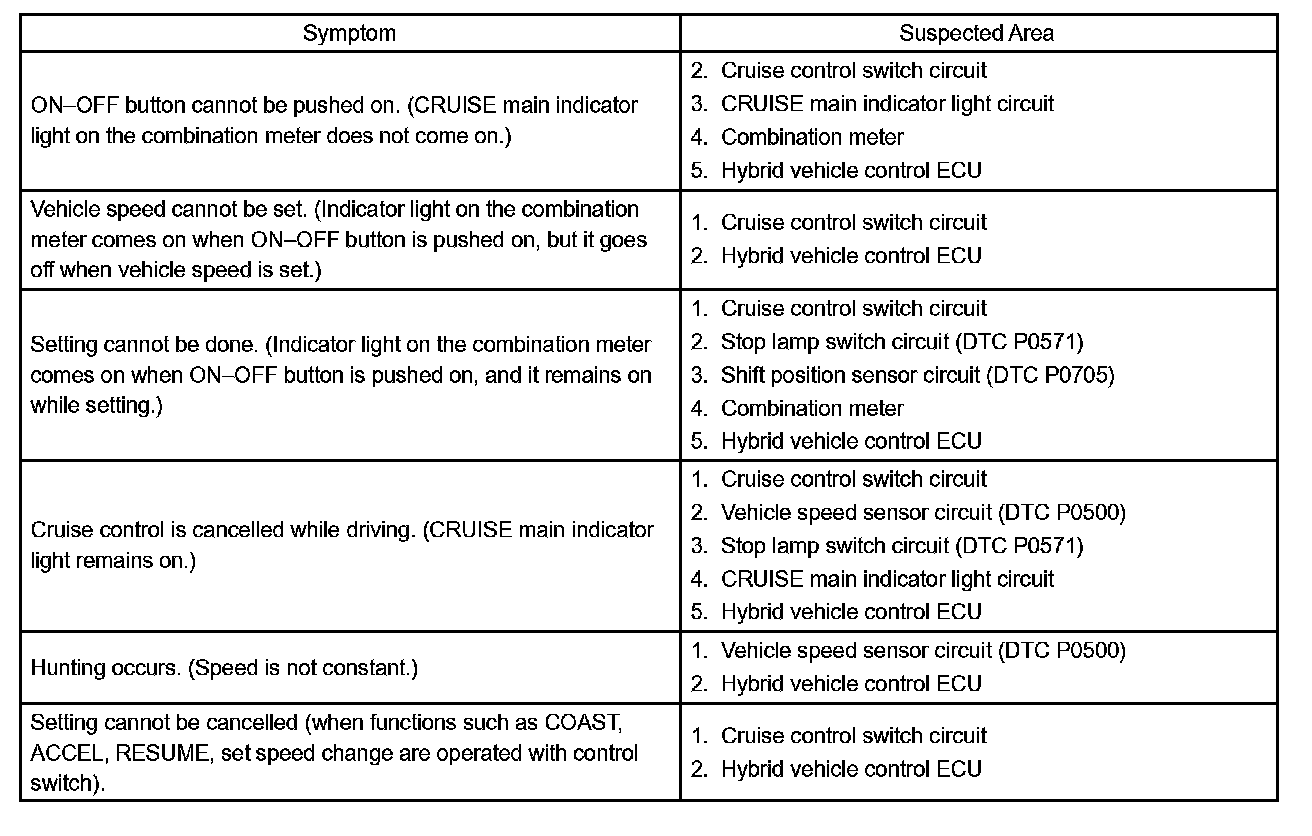

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table:

If a normal system code is displayed during the DTC check but a problem still occurs, check each circuit and component for the problem symptom in the order shown in the table.

HINT: Inspect the fuses and relays before confirming the suspected areas which are shown in the chart below. Inspect the relevant circuits and component in numerical order. If the problem still exists even after inspecting all the circuits and components and confirming that they are all normal, replace the hybrid vehicle control ECU.
