Relay Box

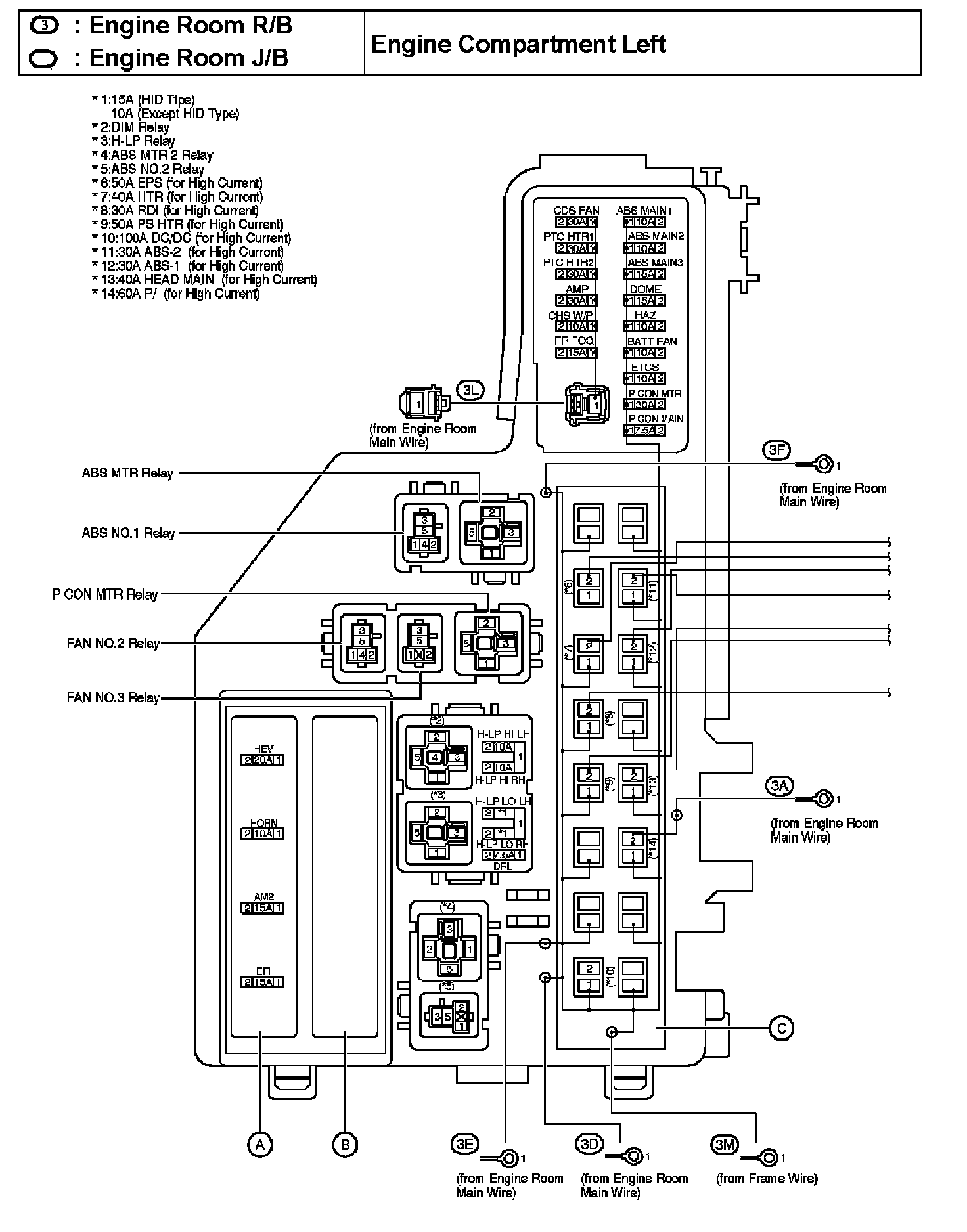

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

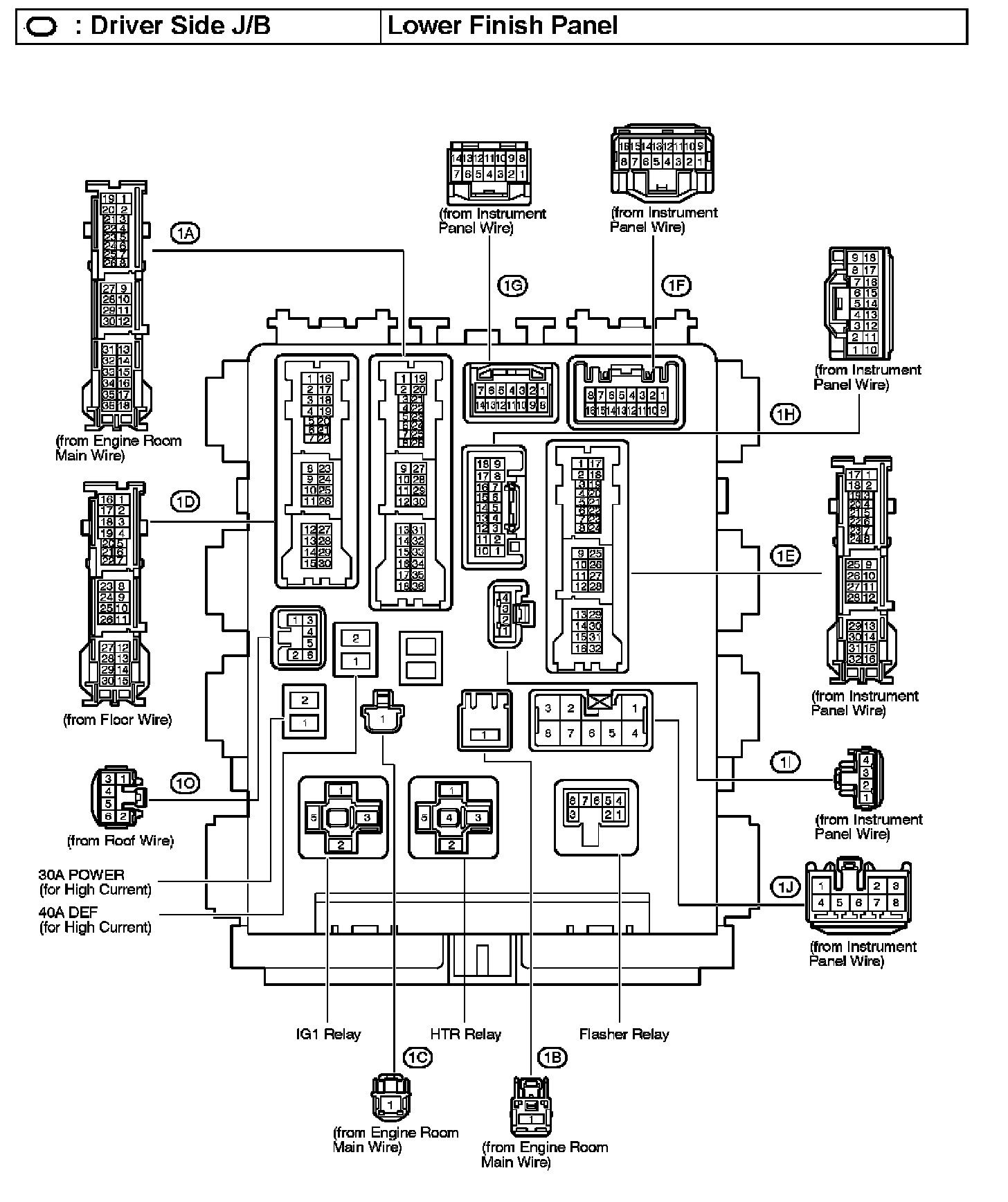

Drive Side J/B - Lower Finish Panel:

Drive Side J/B - Lower Finish Pan:

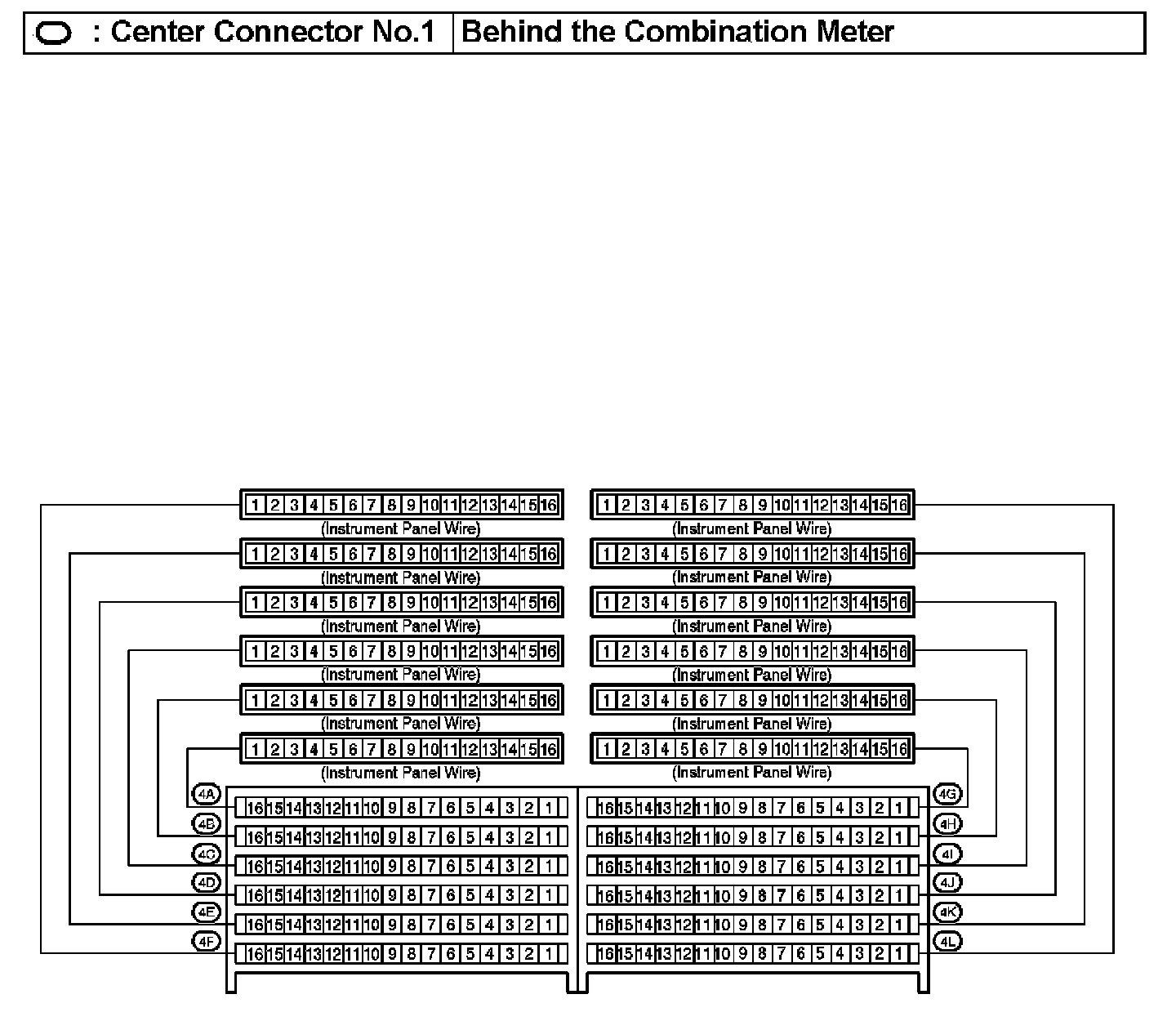

Center Connector No.1 - Behind The Combination Meter:

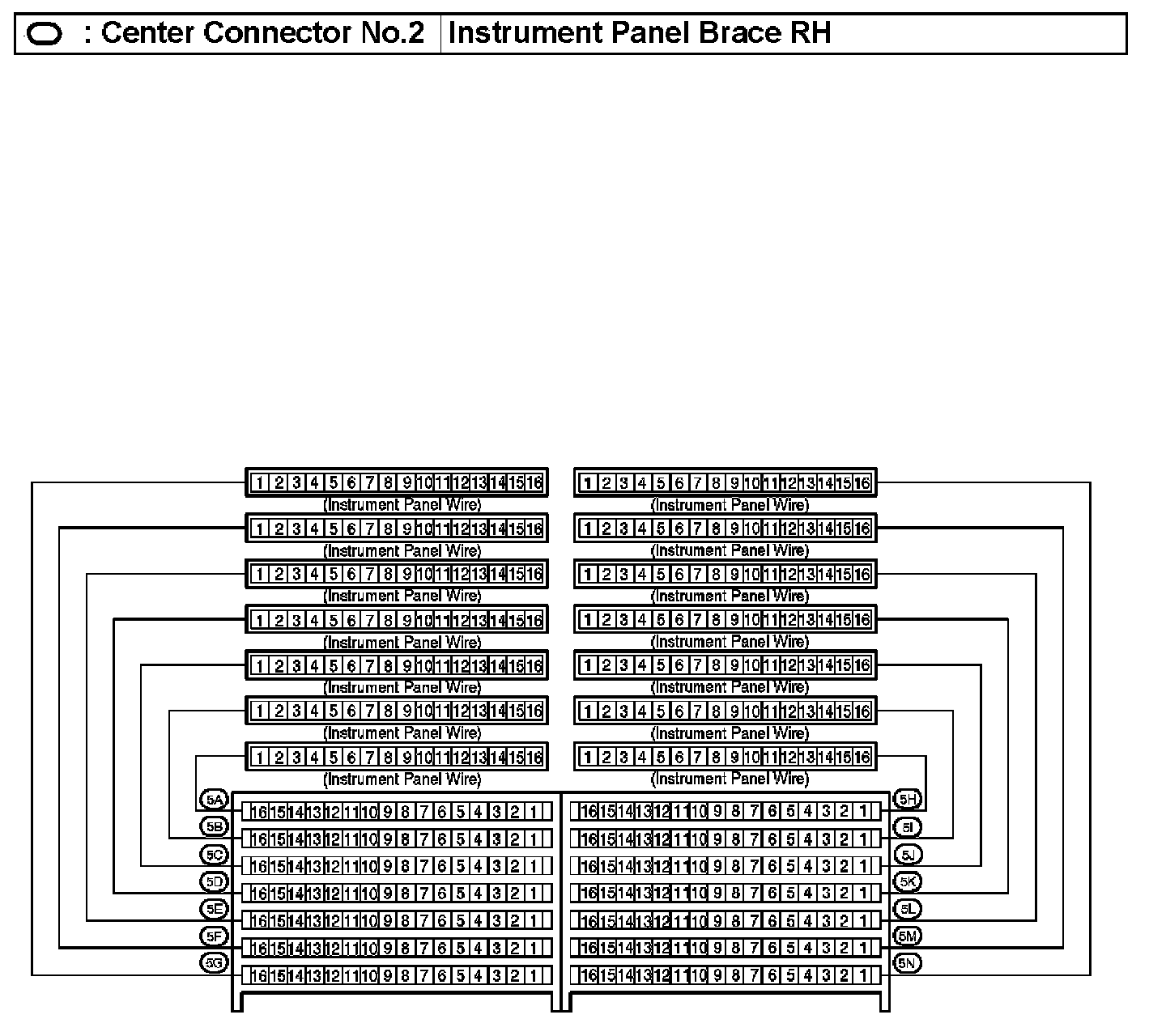

Center Connector No.2 - Instrument Panel Brace RH:
