Hybrid Systems

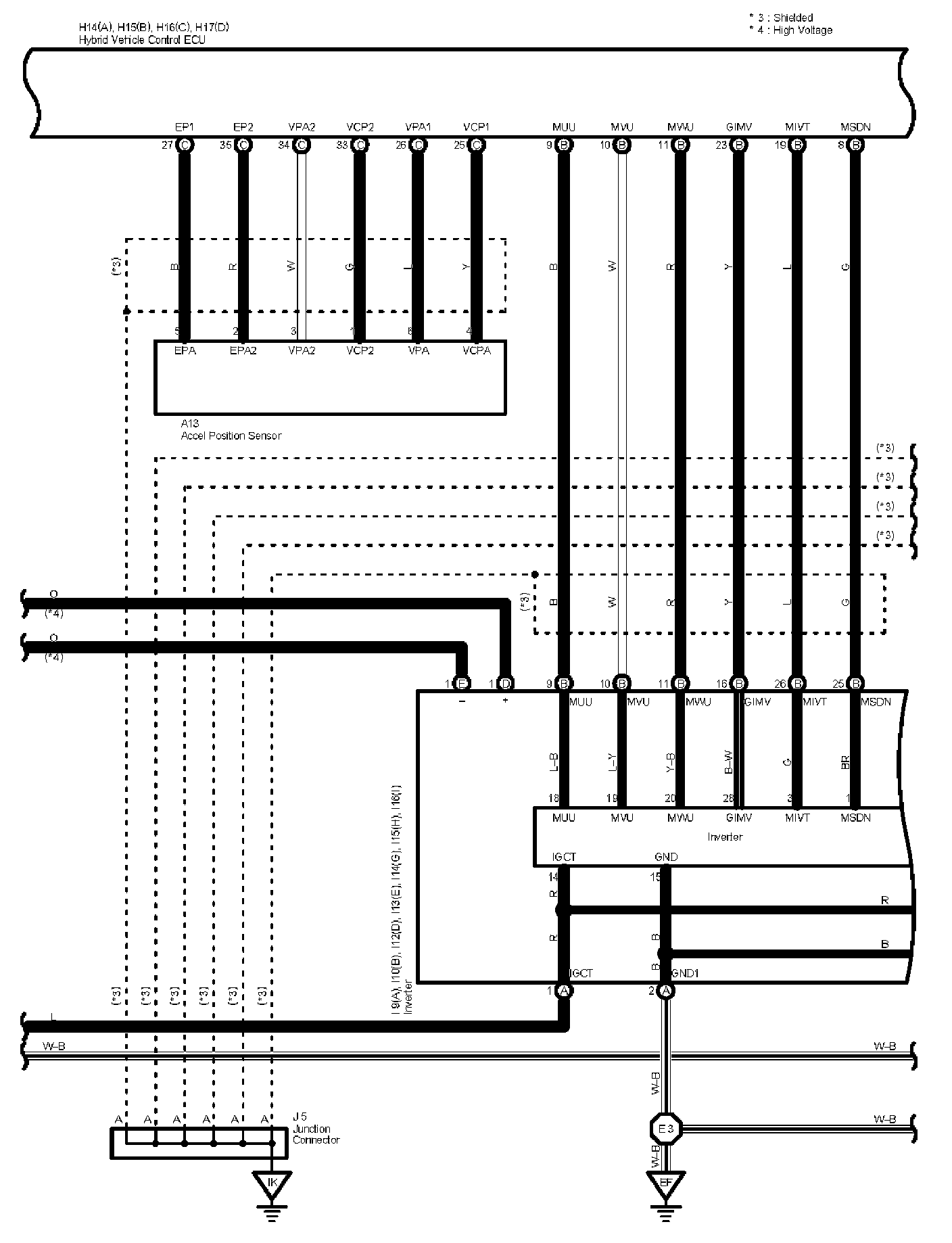

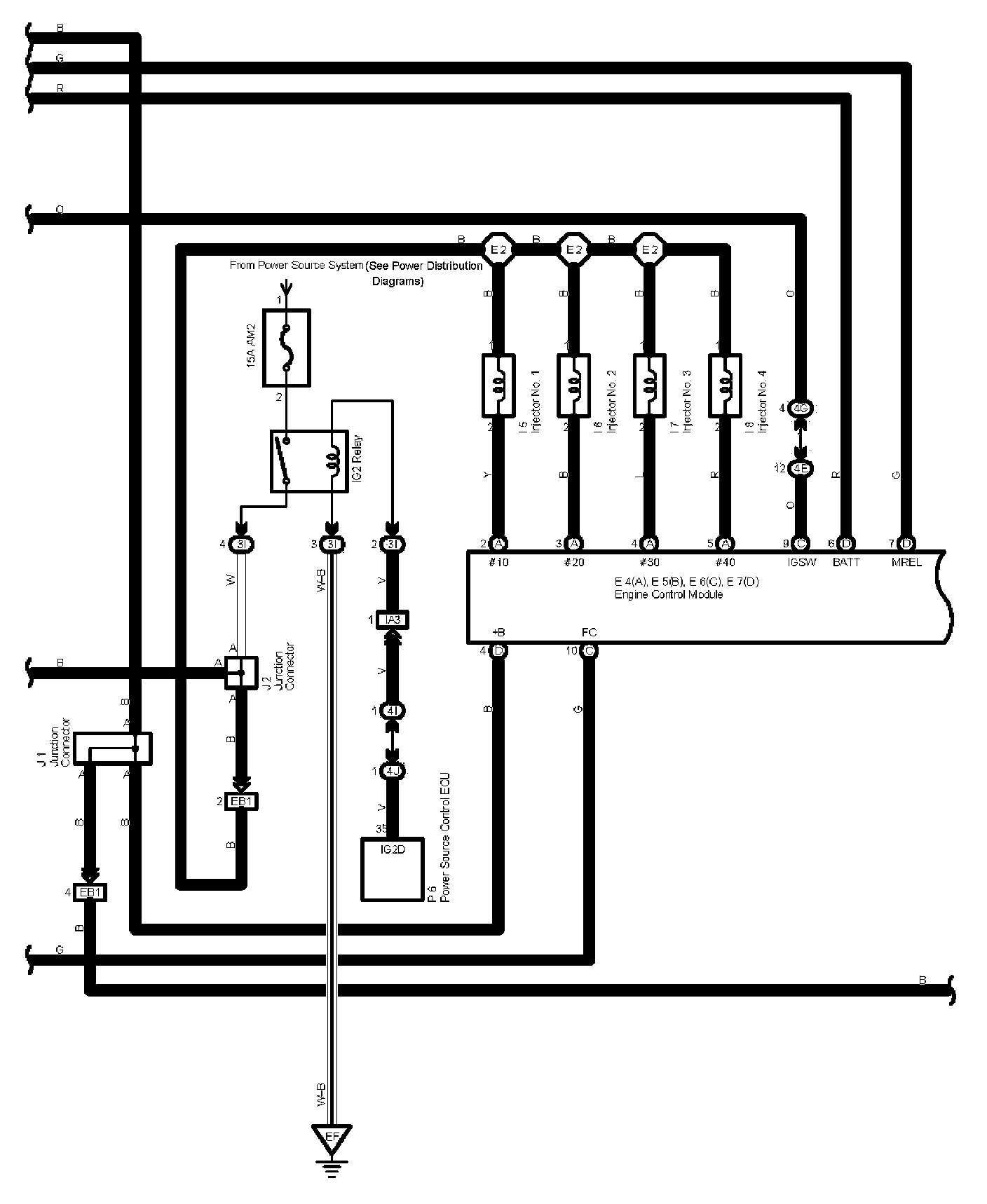

TOYOTA Hybrid System Part 1:

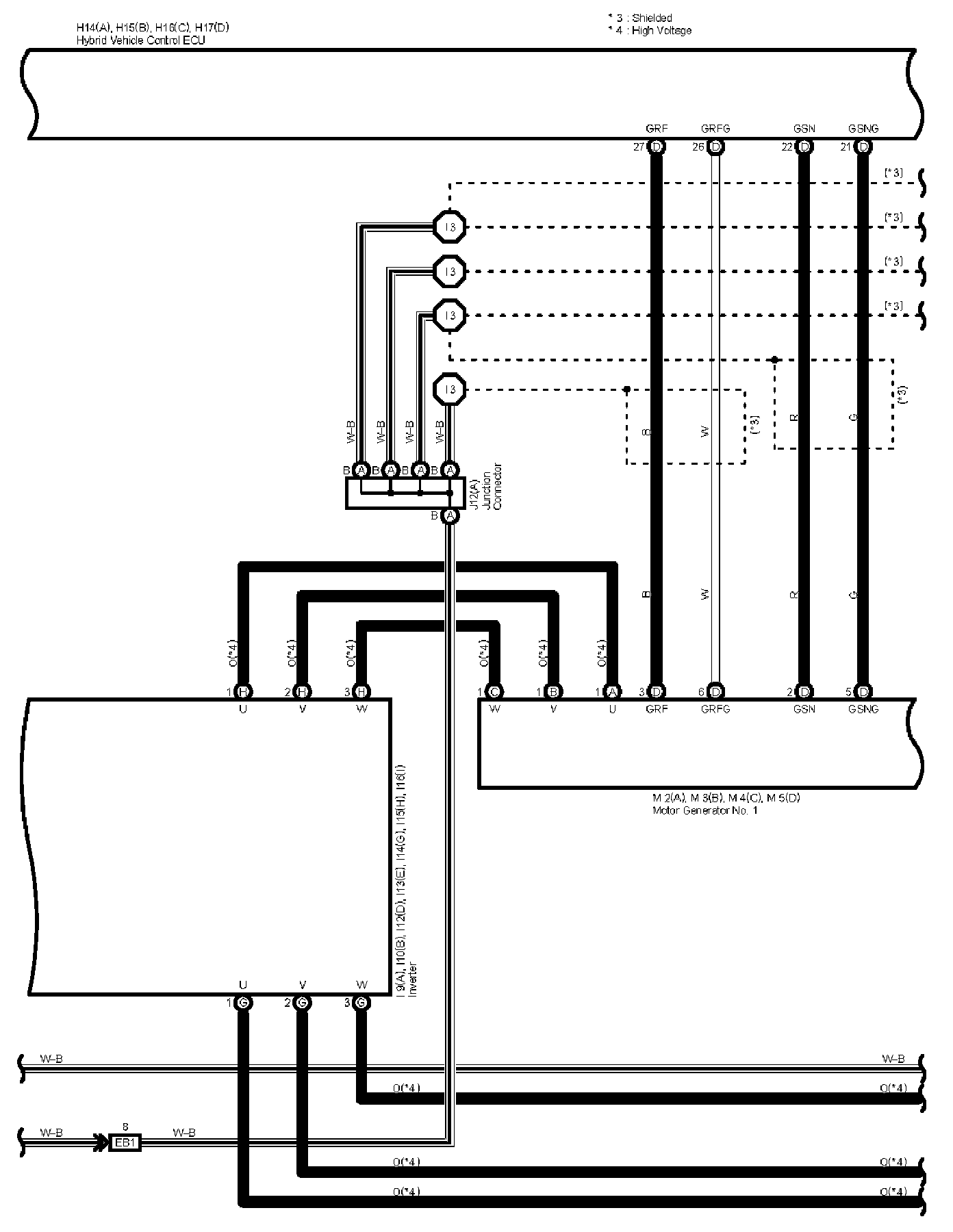

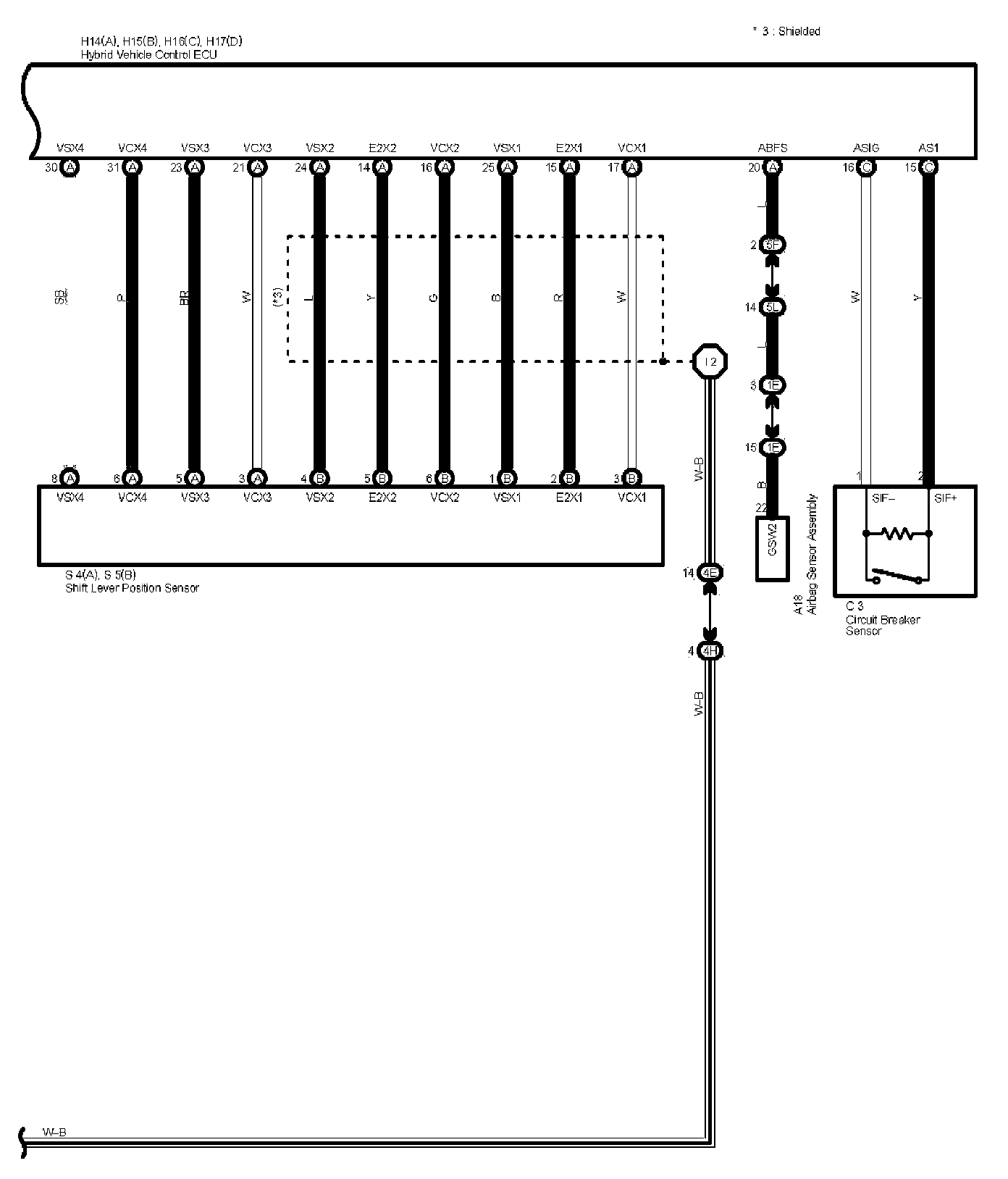

TOYOTA Hybrid System Part 2:

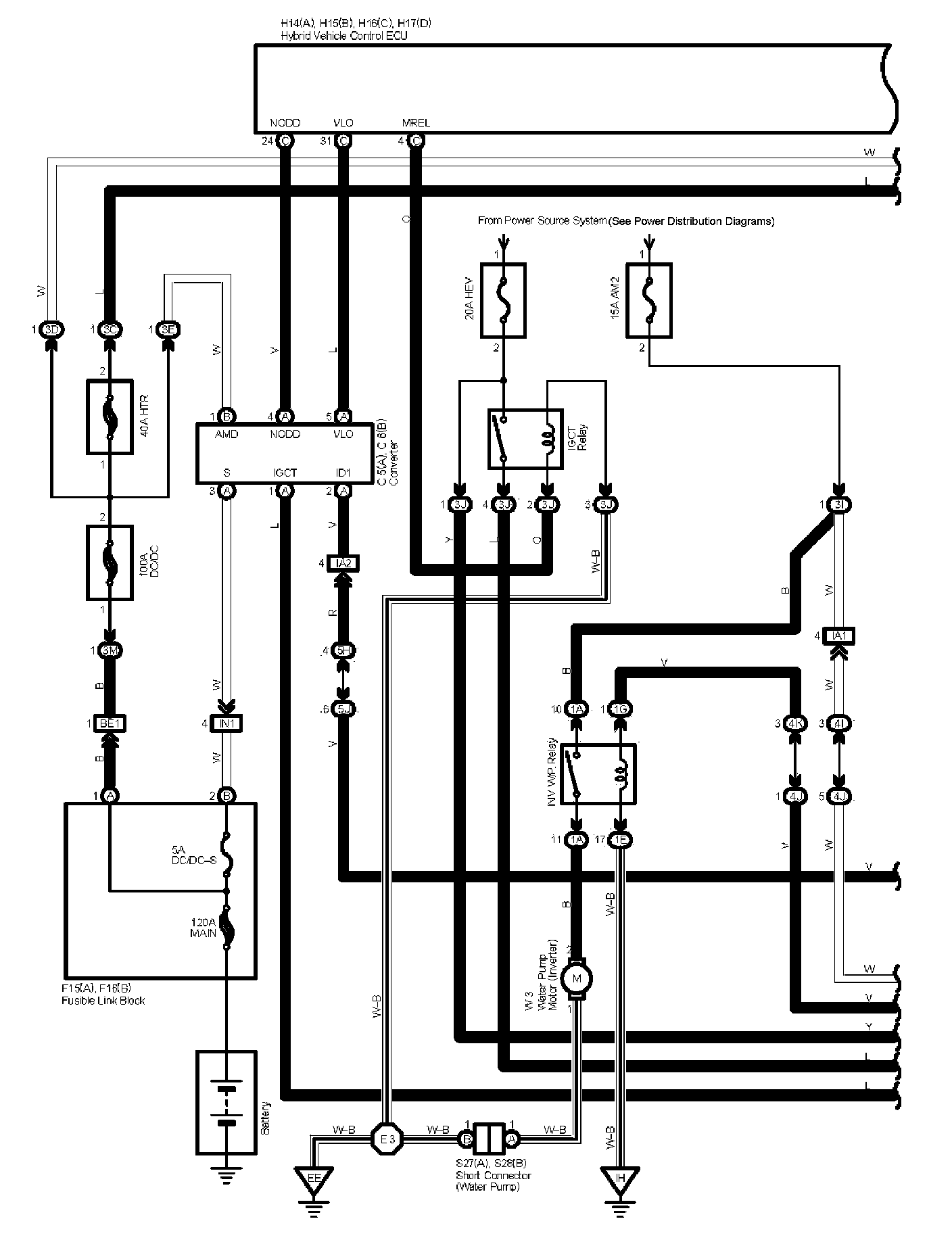

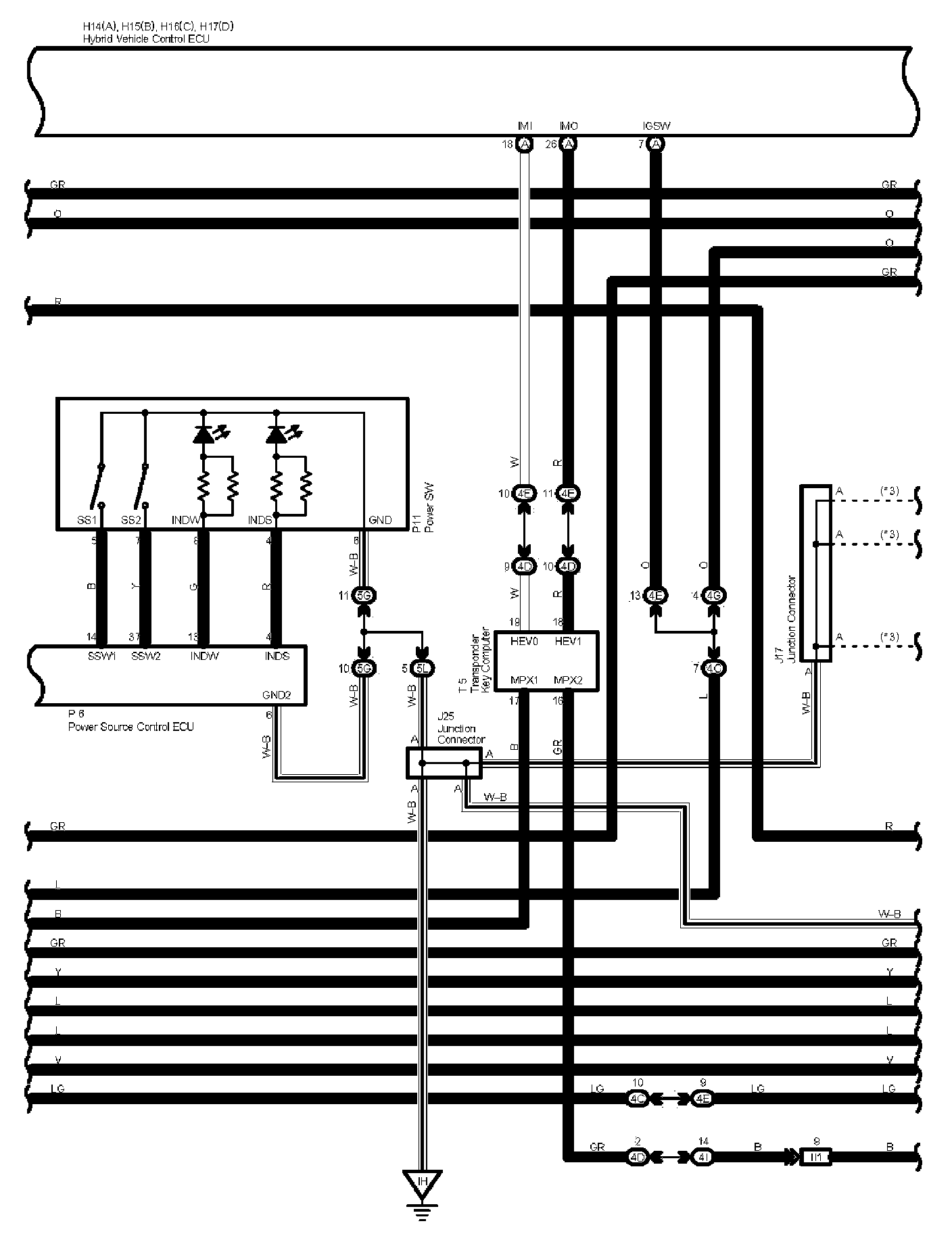

TOYOTA Hybrid System Part 3:

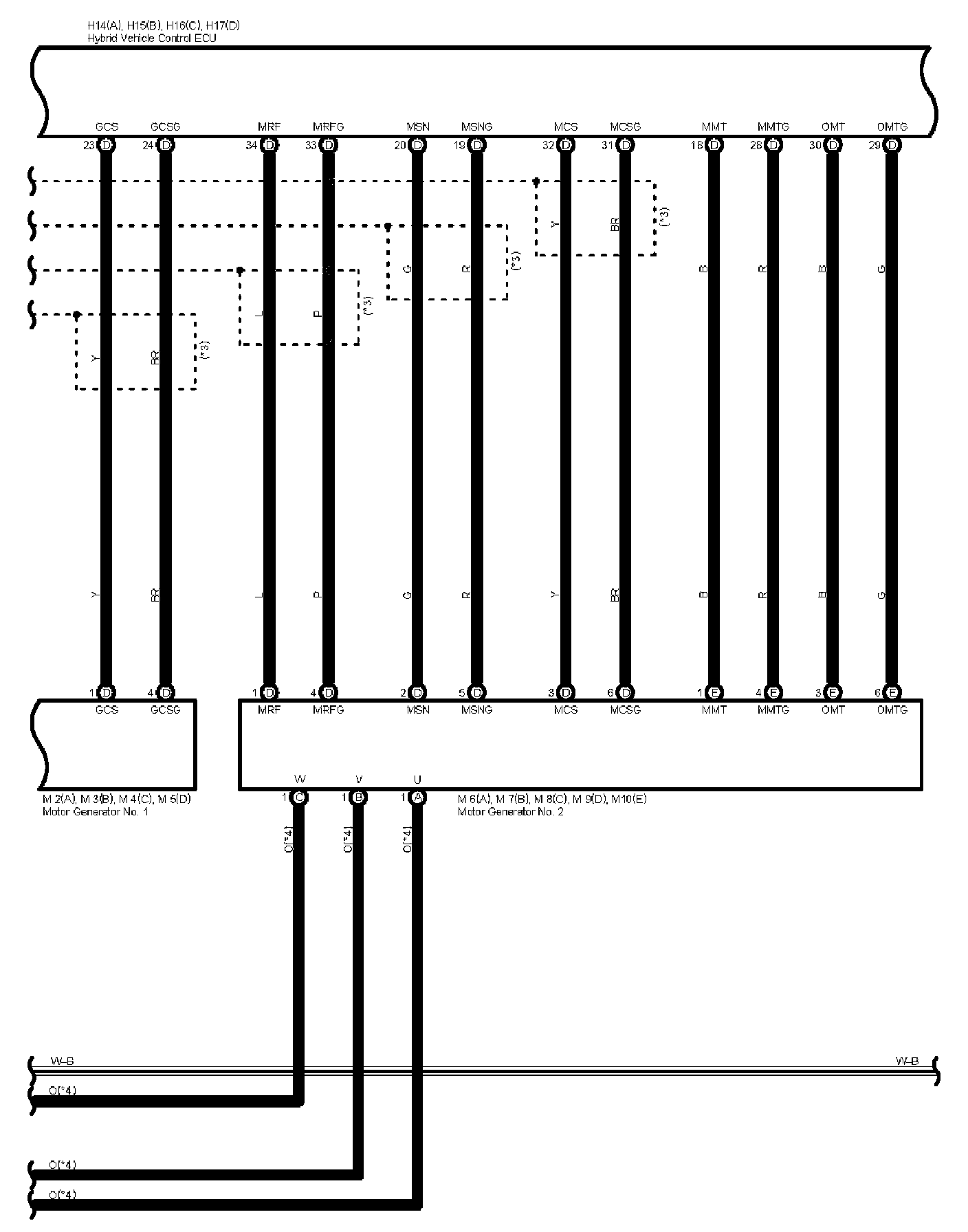

TOYOTA Hybrid System Part 4:

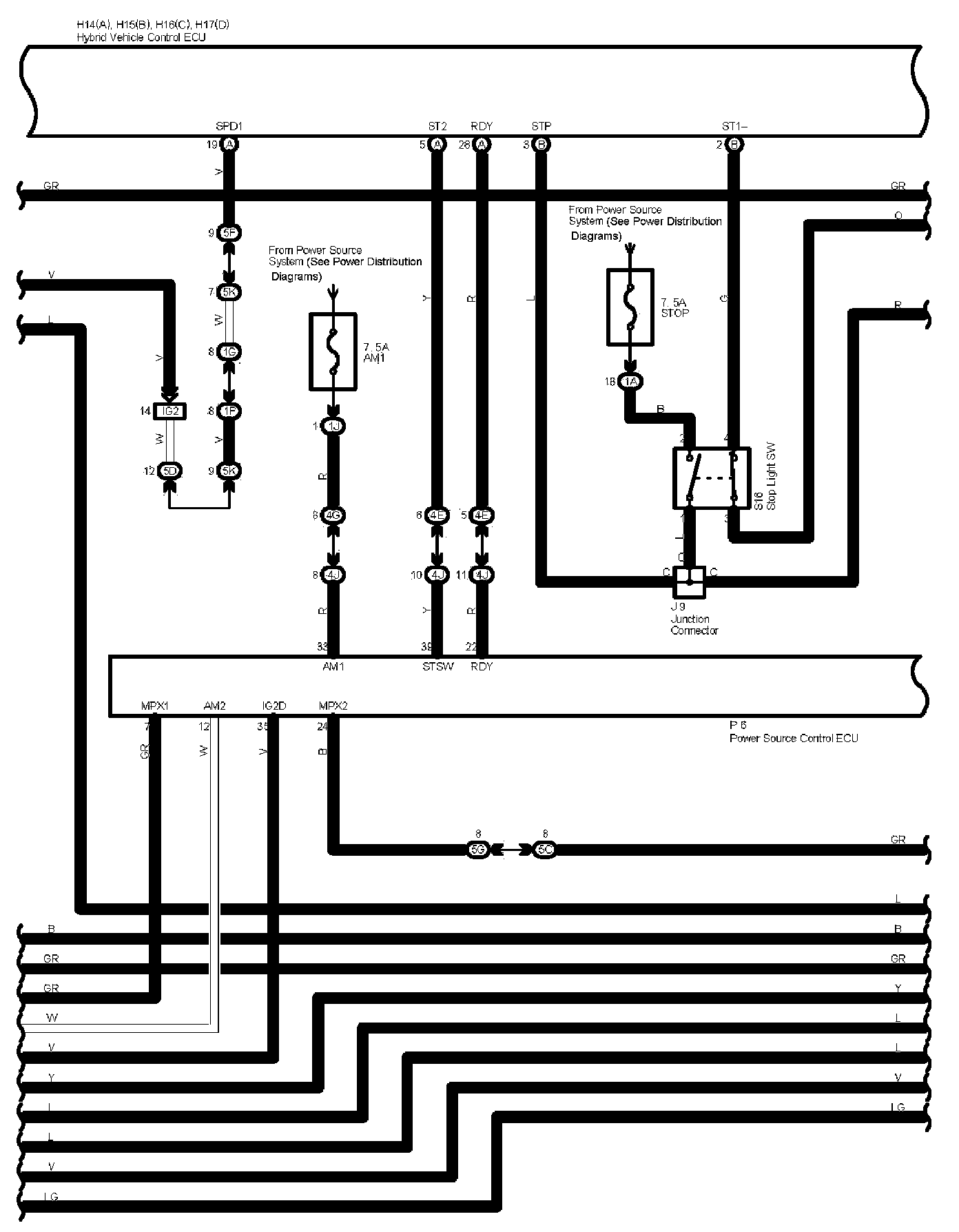

TOYOTA Hybrid System Part 5:

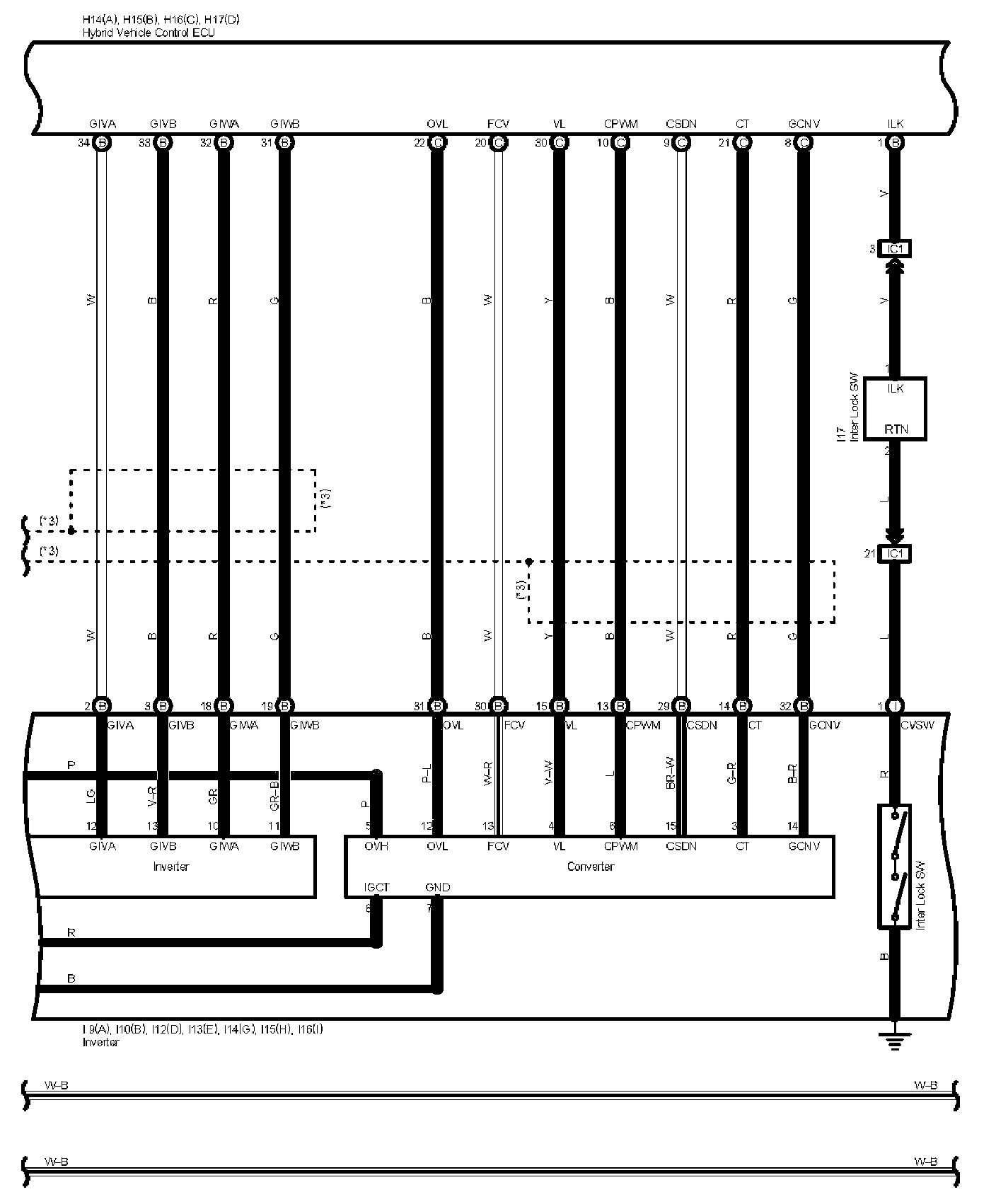

TOYOTA Hybrid System Part 6:

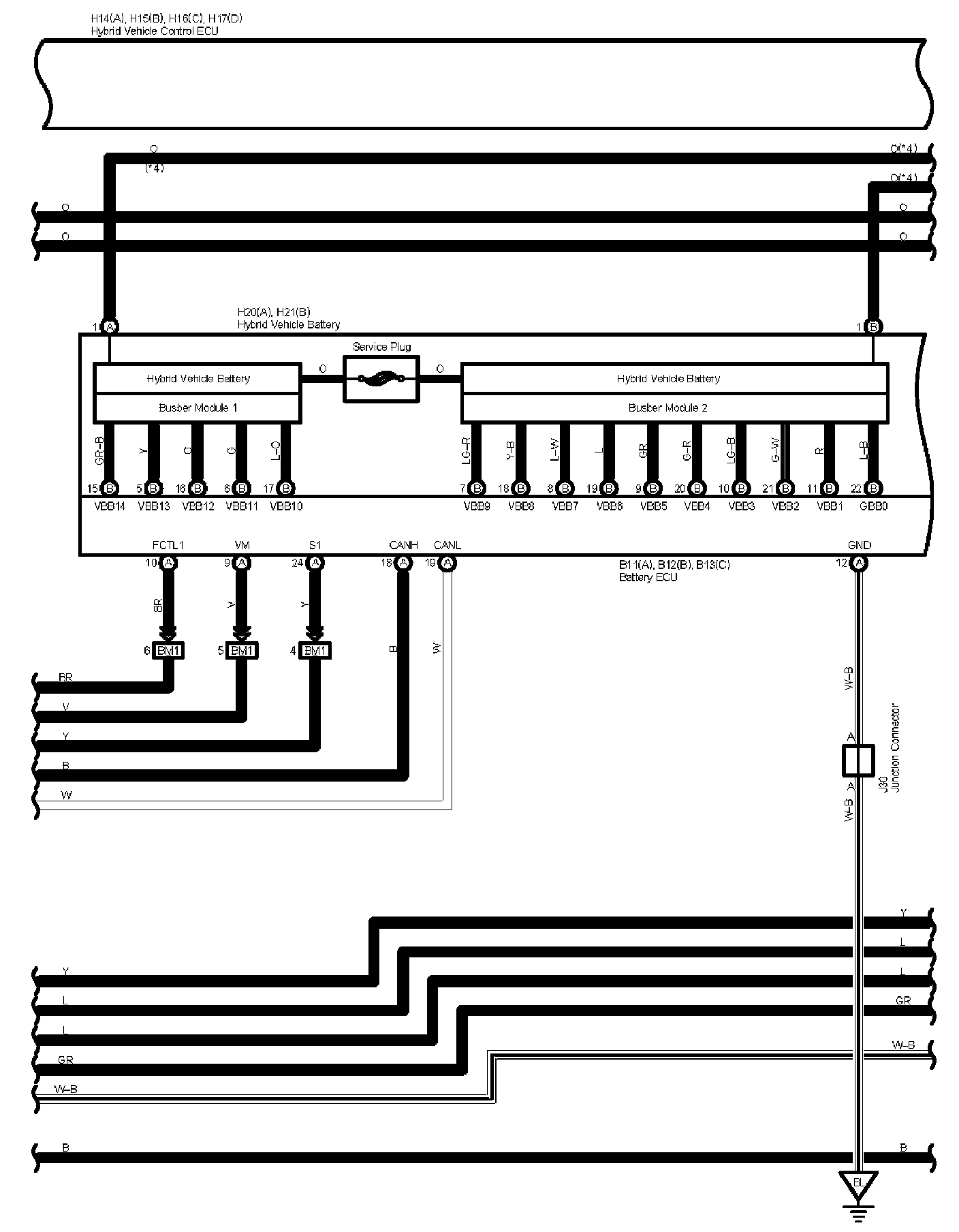

TOYOTA Hybrid System Part 7:

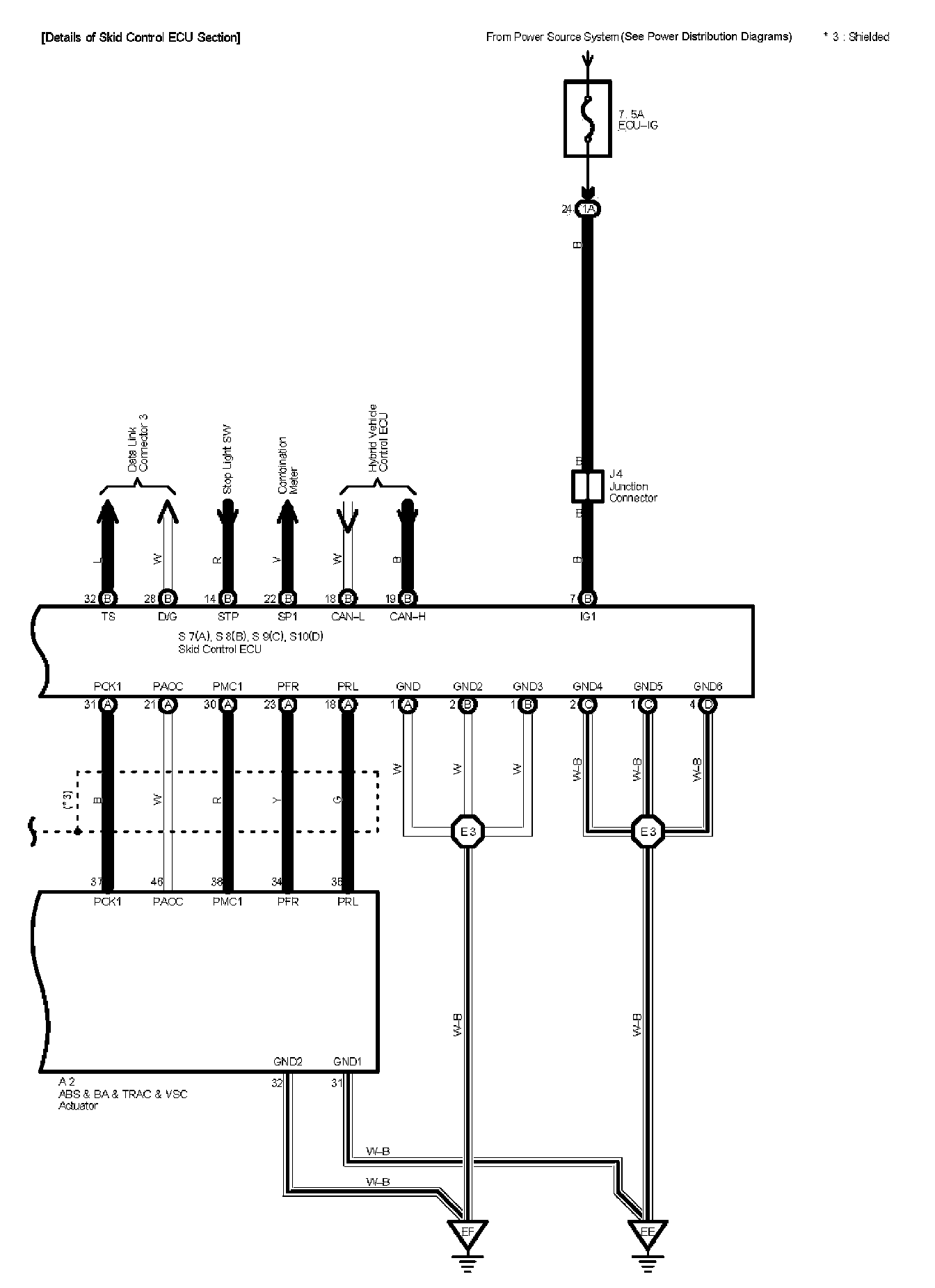

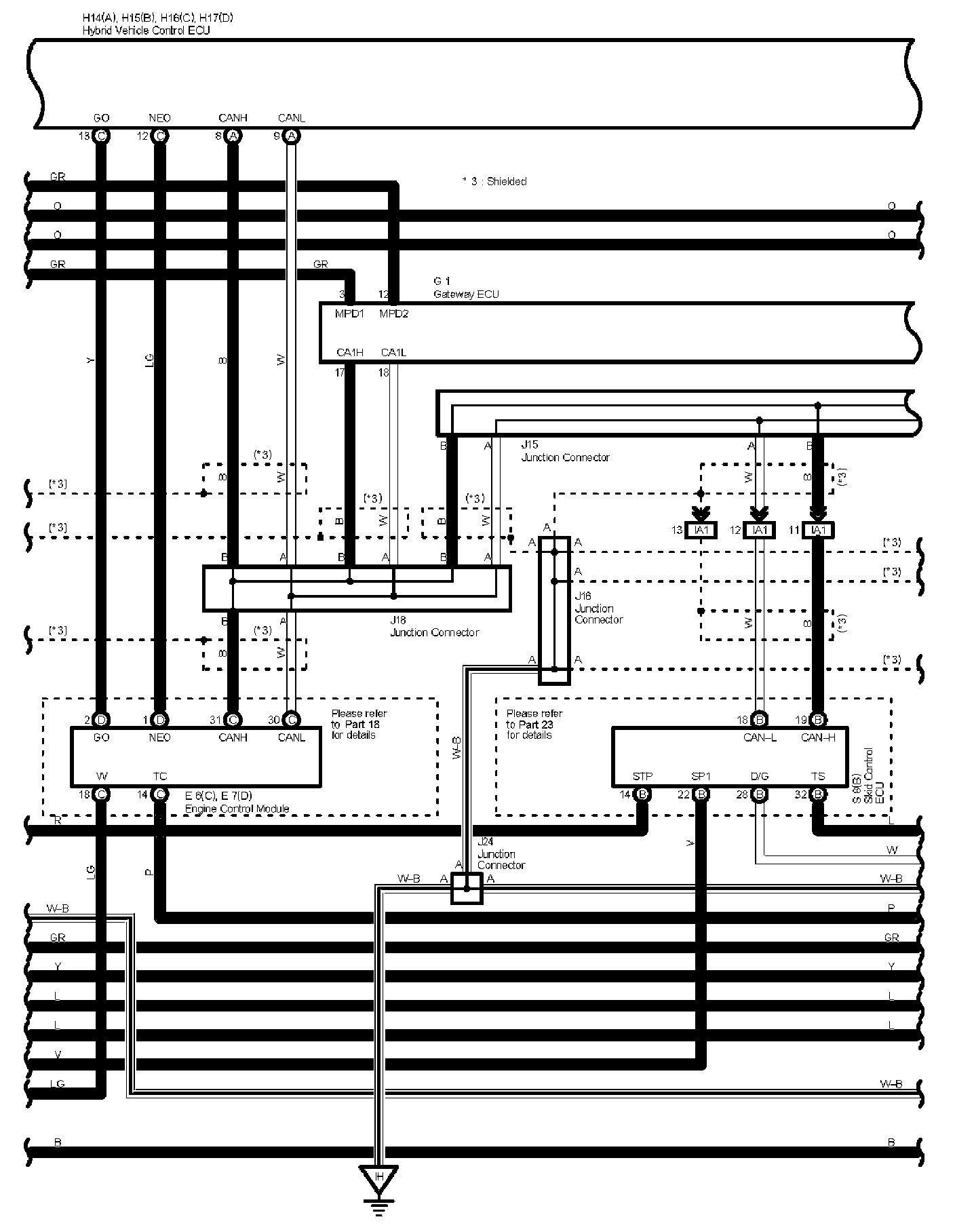

TOYOTA Hybrid System Part 8:

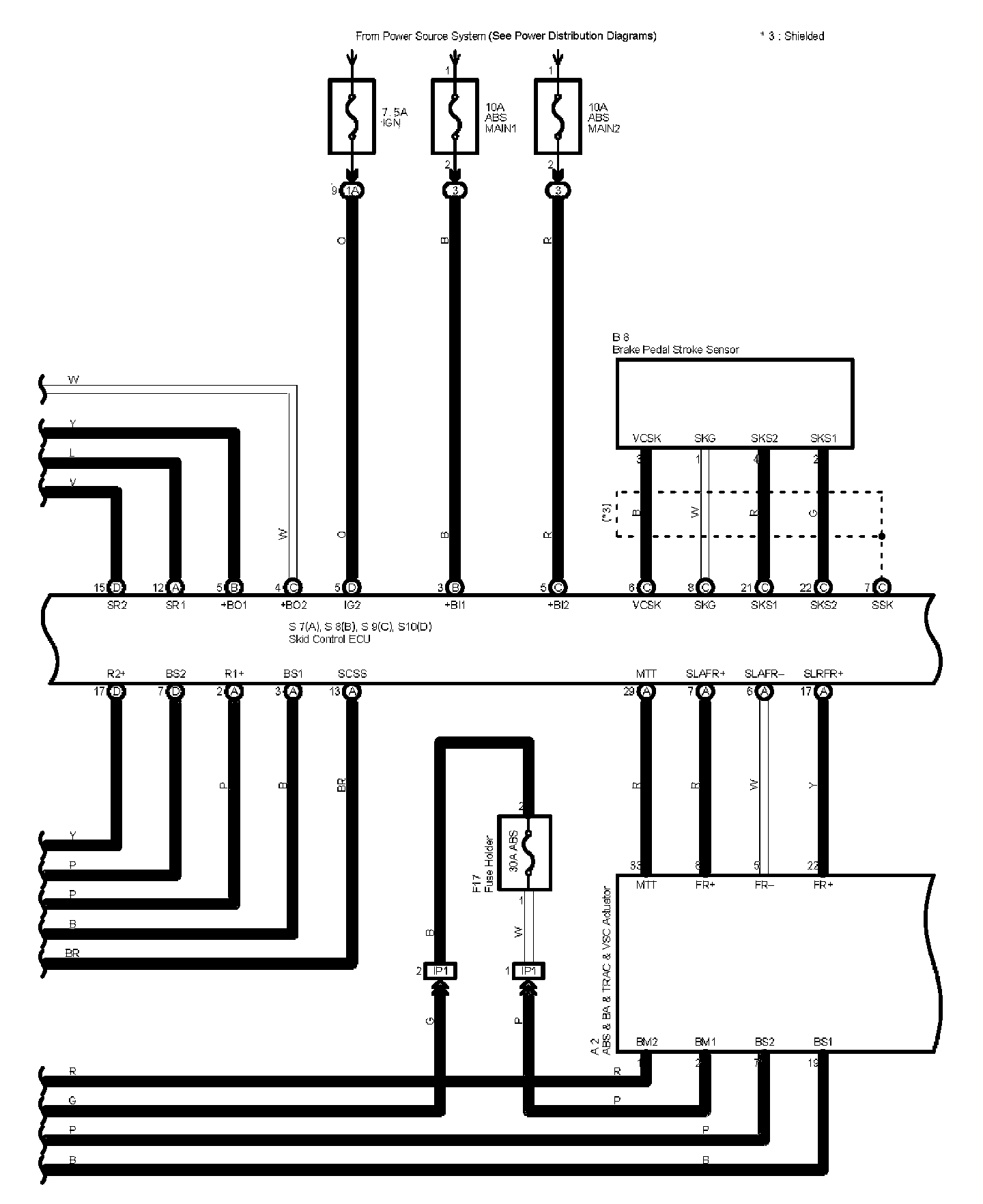

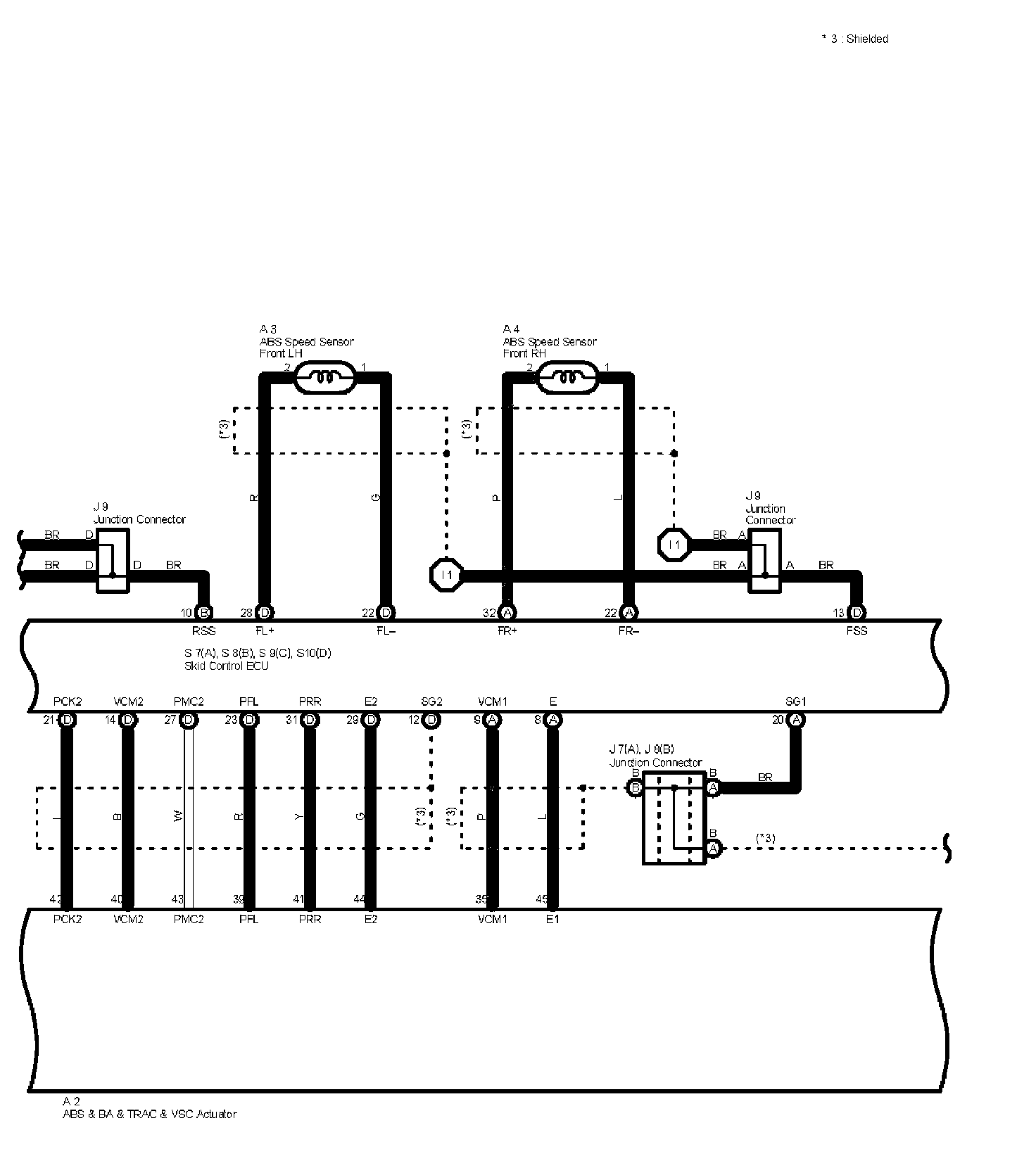

TOYOTA Hybrid System Part 9:

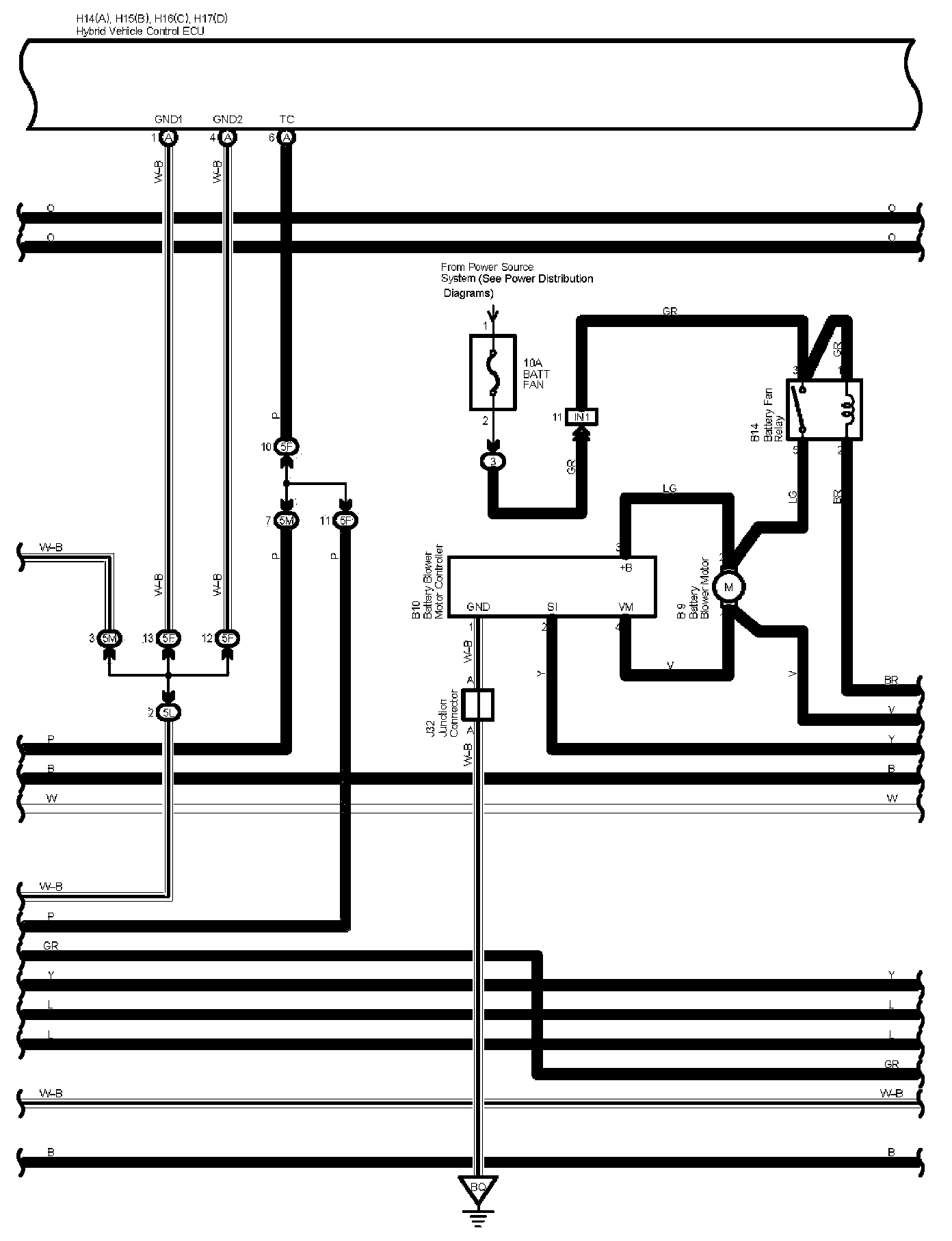

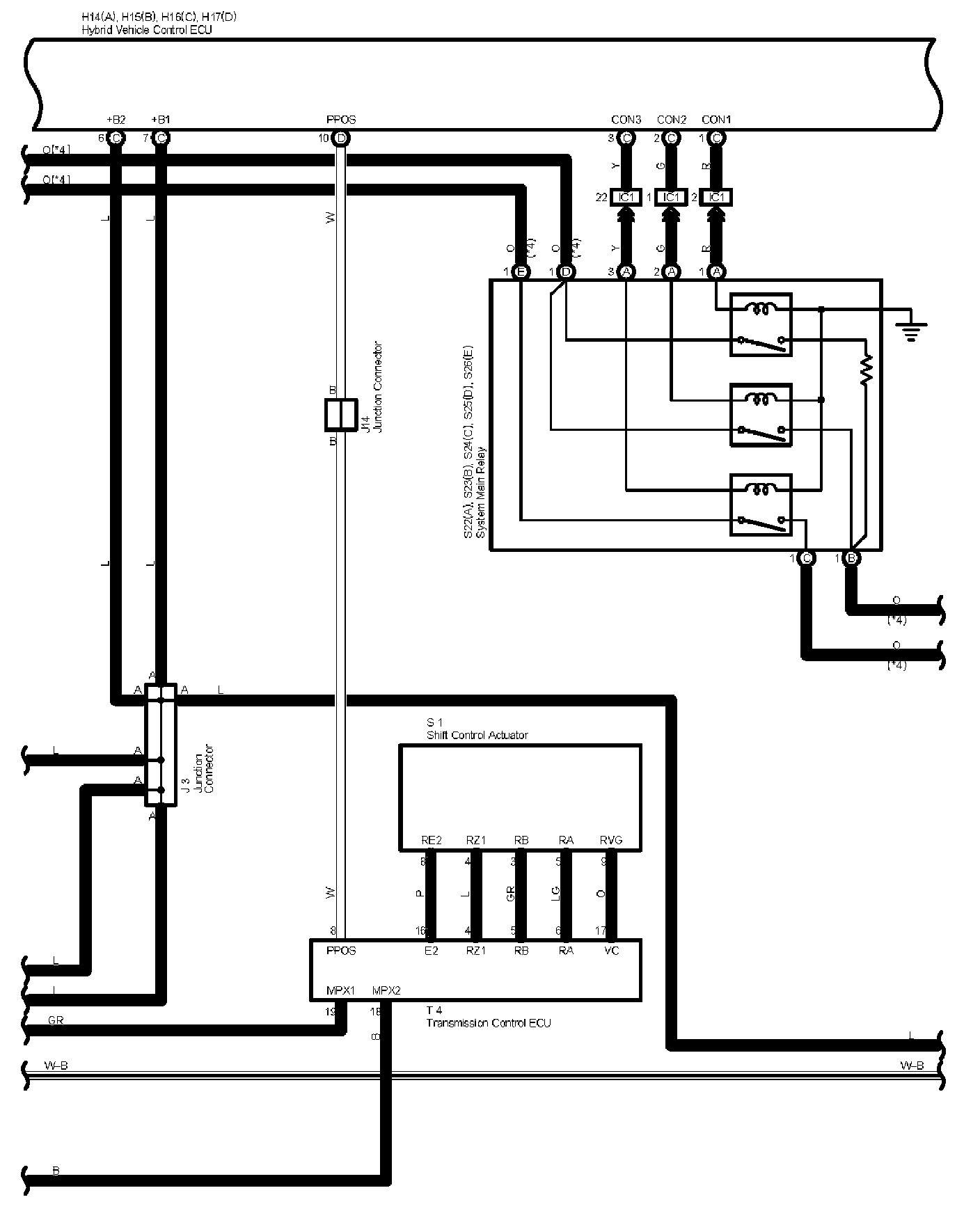

TOYOTA Hybrid System Part 10:

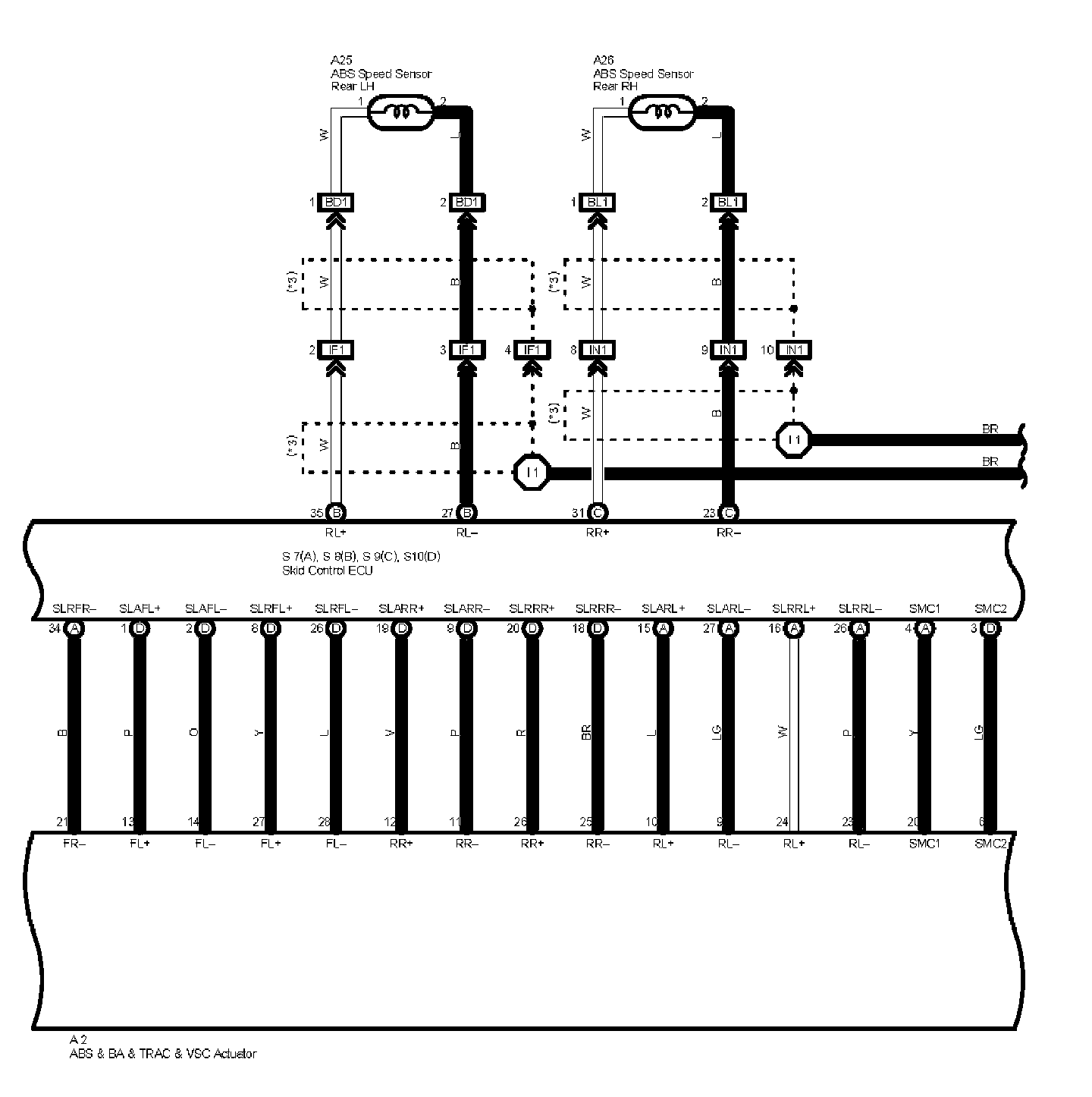

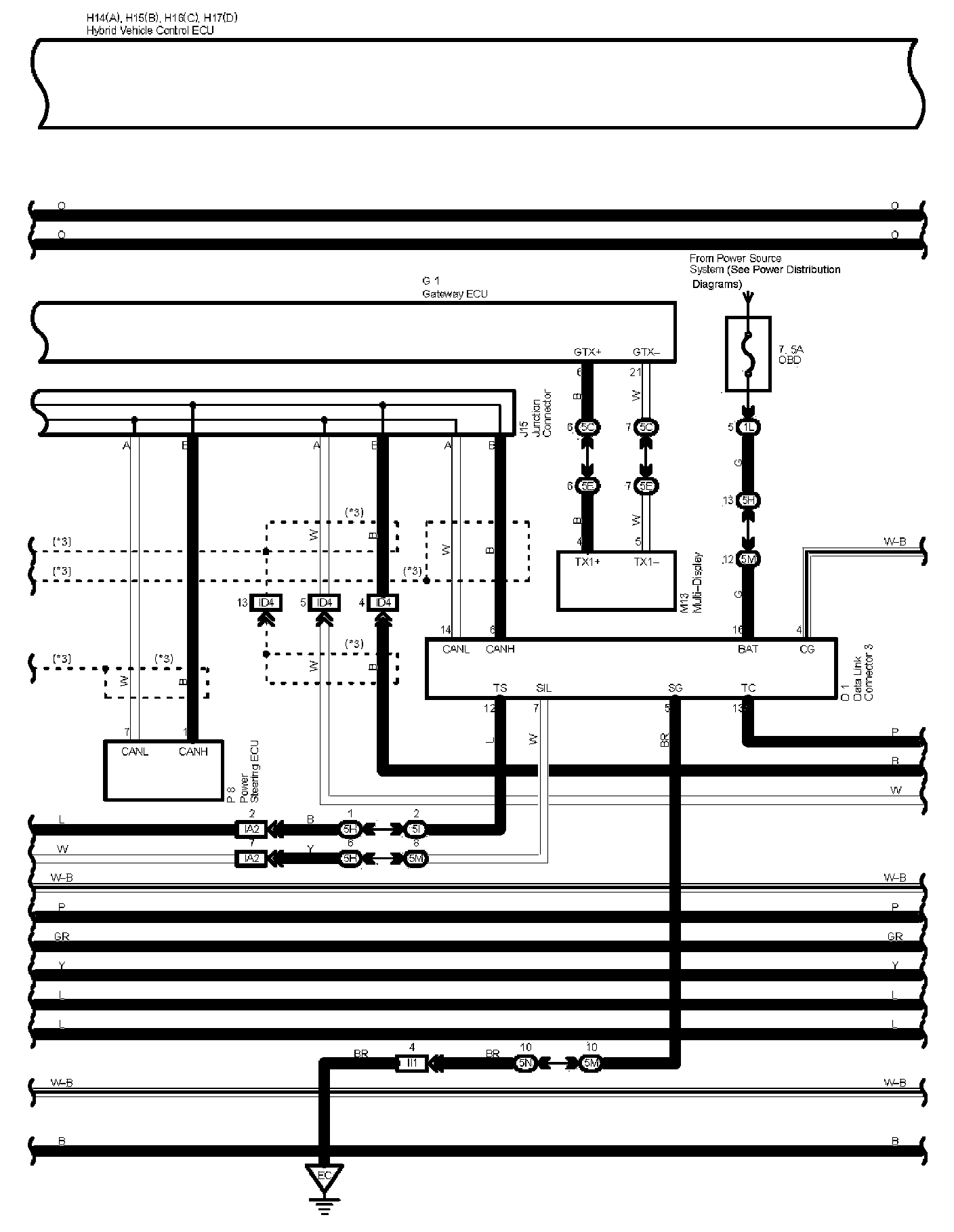

TOYOTA Hybrid System Part 11:

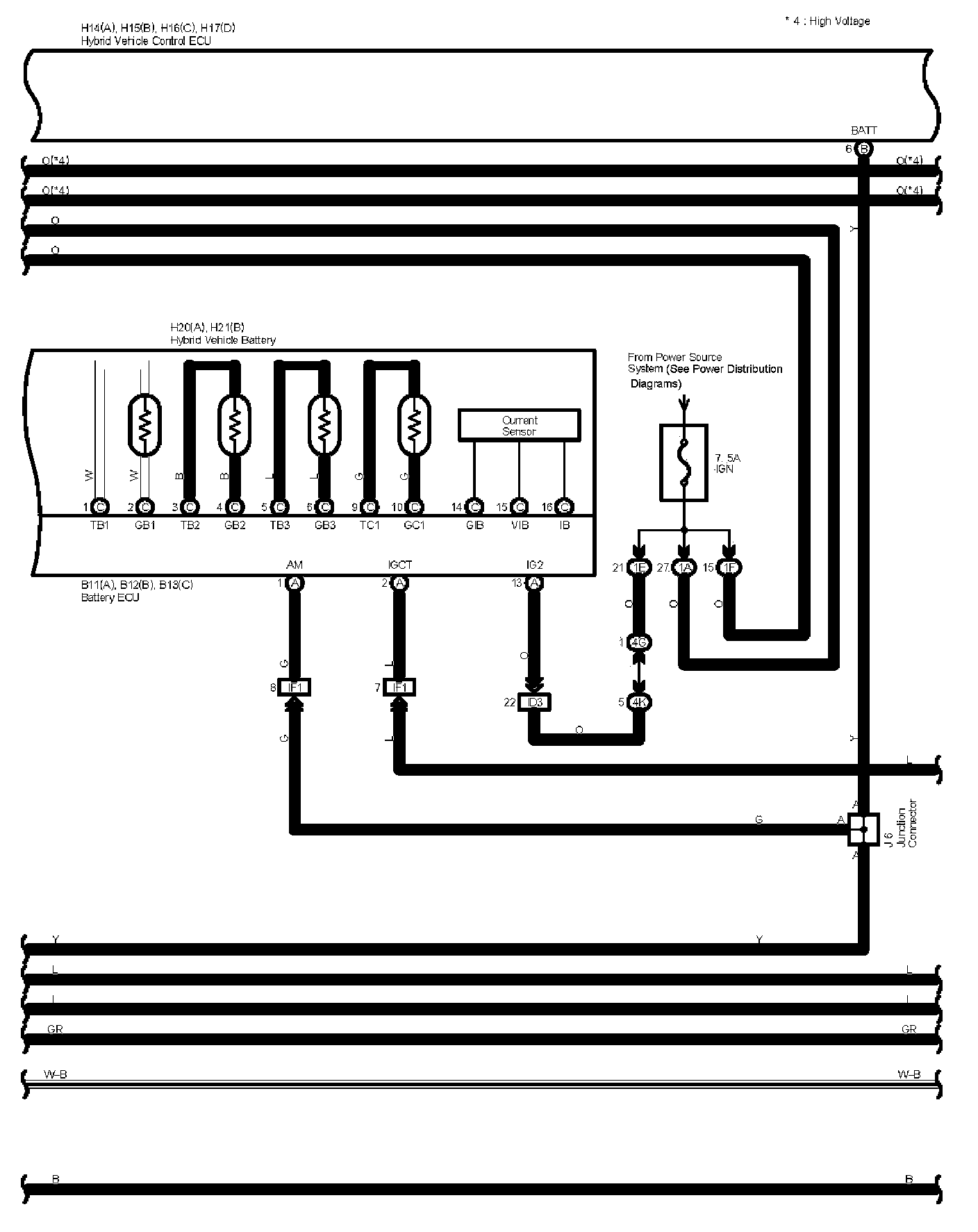

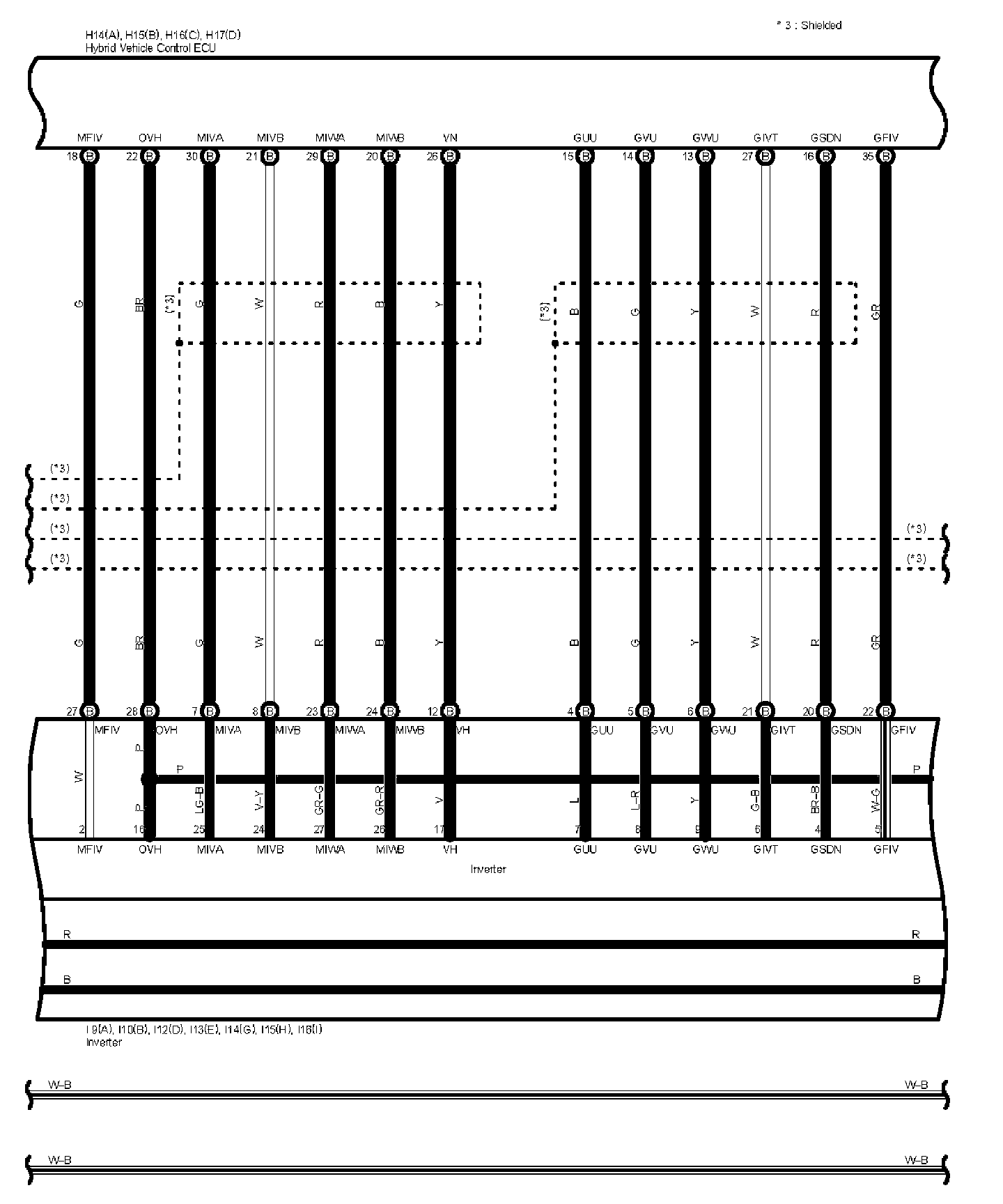

TOYOTA Hybrid System Part 12:

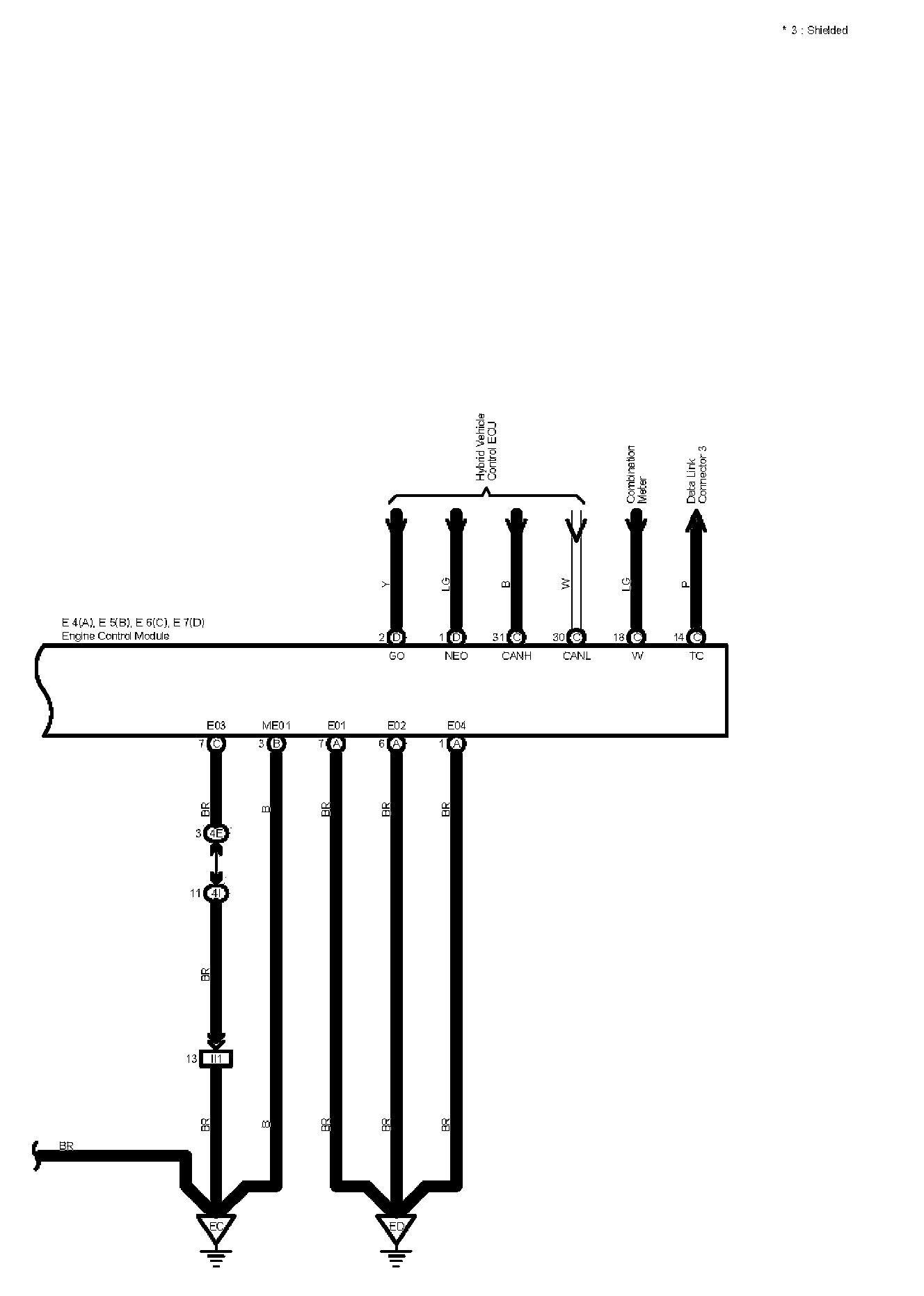

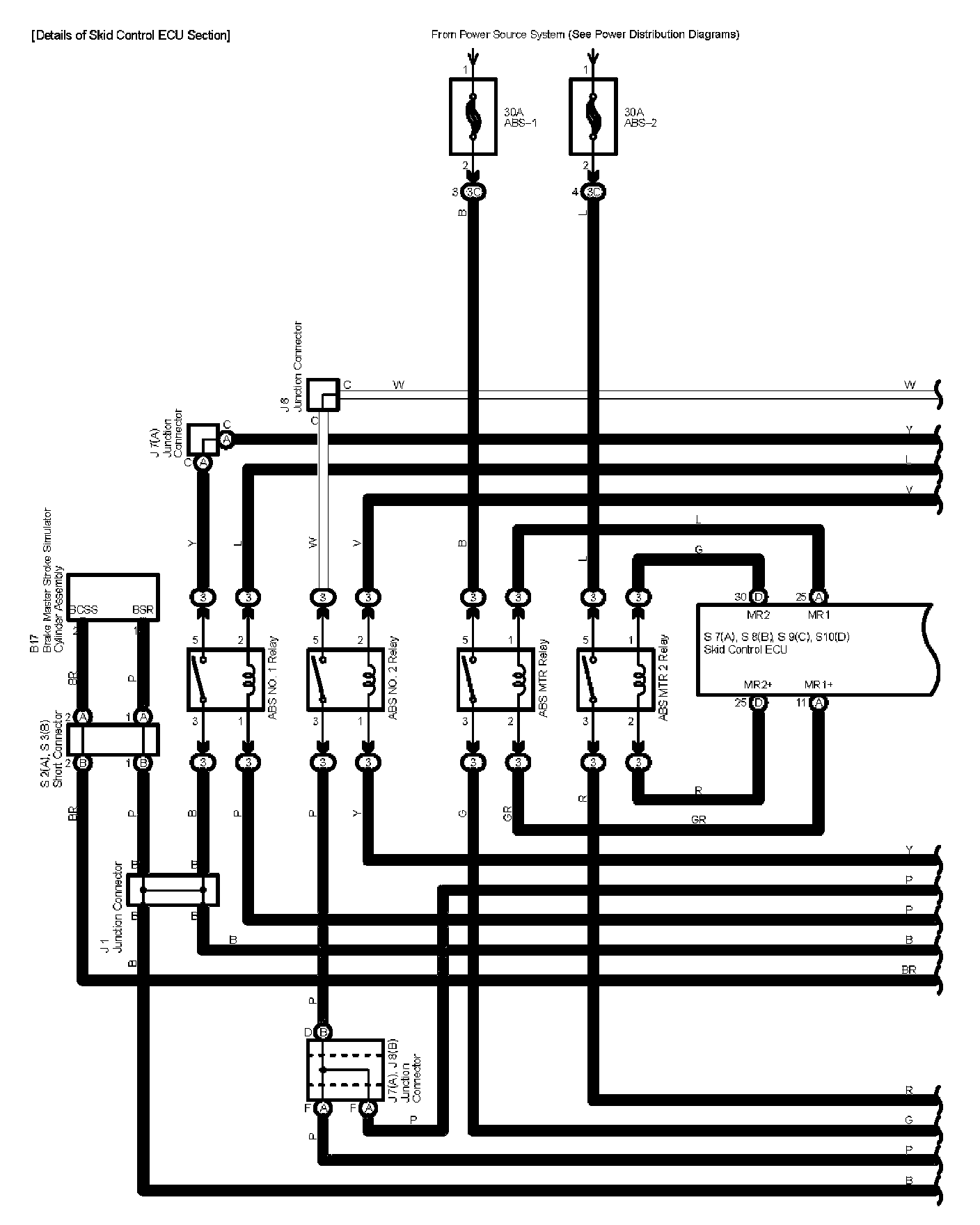

TOYOTA Hybrid System Part 13:

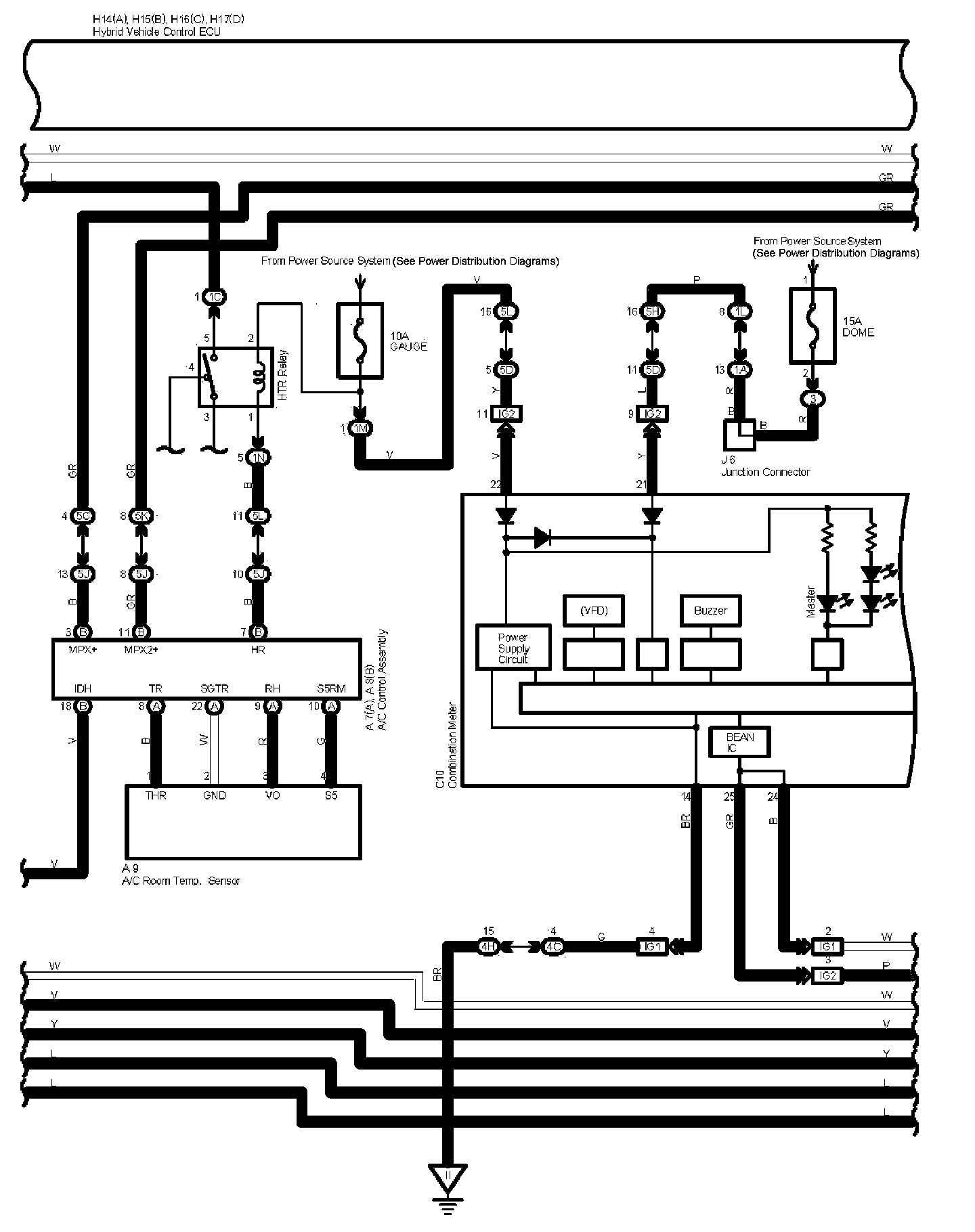

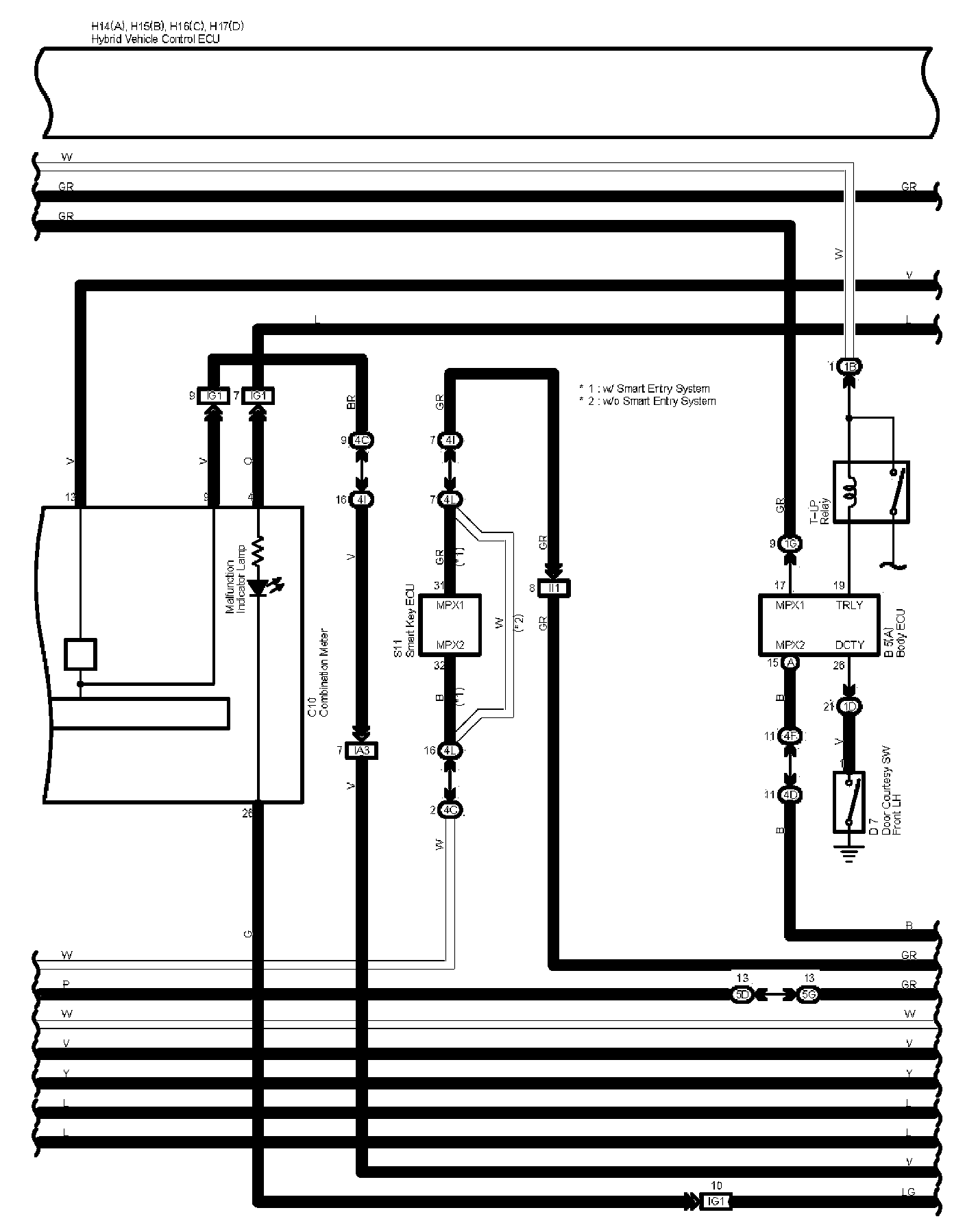

TOYOTA Hybrid System Part 14:

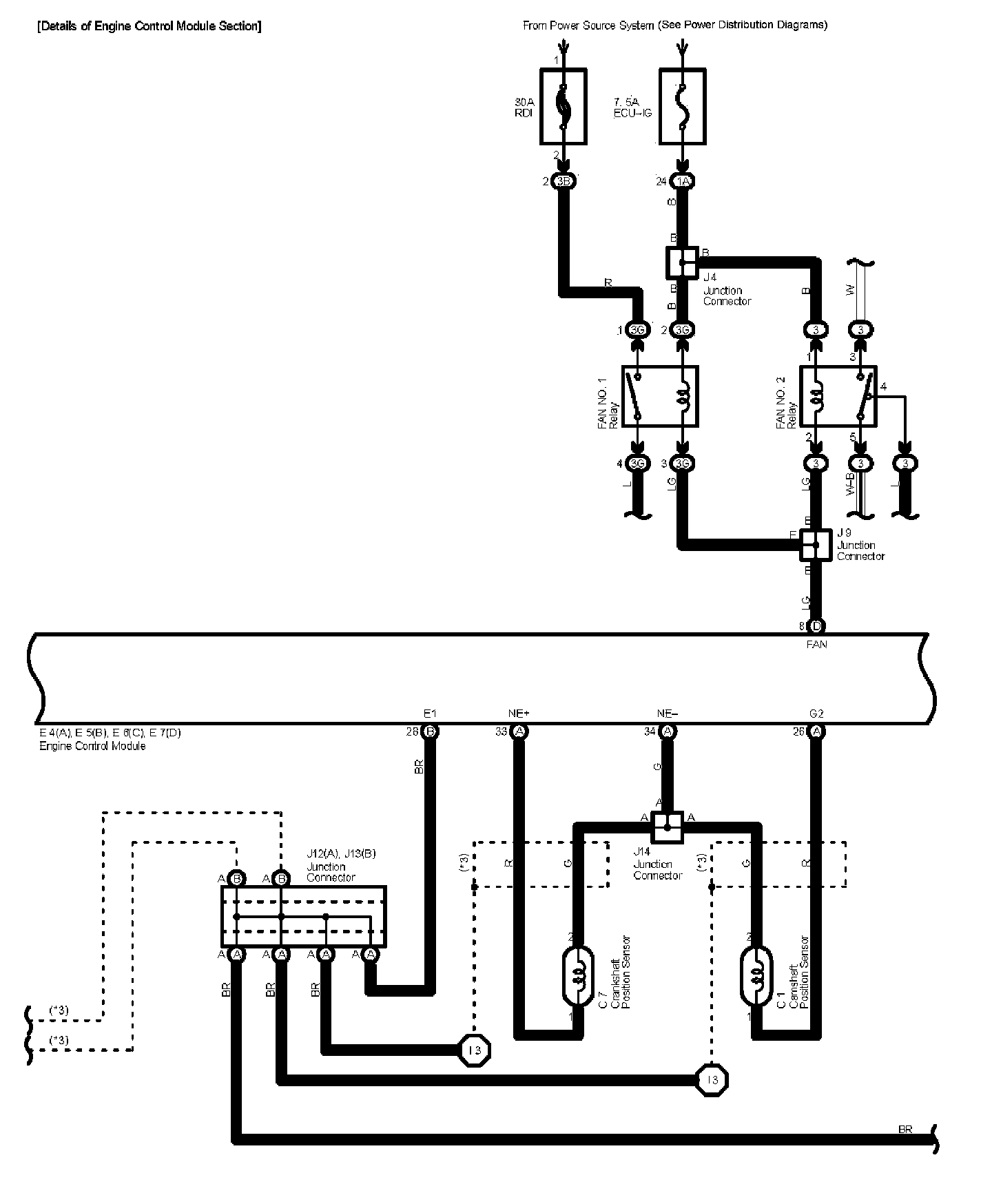

TOYOTA Hybrid System Part 15:

TOYOTA Hybrid System Part 16:

TOYOTA Hybrid System Part 17:

TOYOTA Hybrid System Part 18:

TOYOTA Hybrid System Part 19:

TOYOTA Hybrid System Part 20:

TOYOTA Hybrid System Part 21:

TOYOTA Hybrid System Part 22:

TOYOTA Hybrid System Part 23:

TOYOTA Hybrid System Part 24:

TOYOTA Hybrid System Part 25:

TOYOTA Hybrid System Part 26:

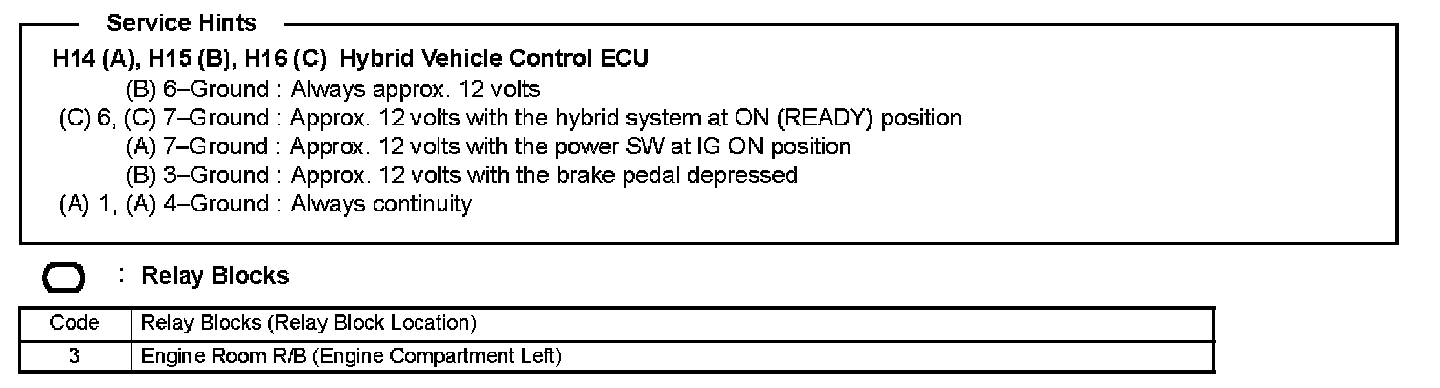

TOYOTA Hybrid System Part 27:

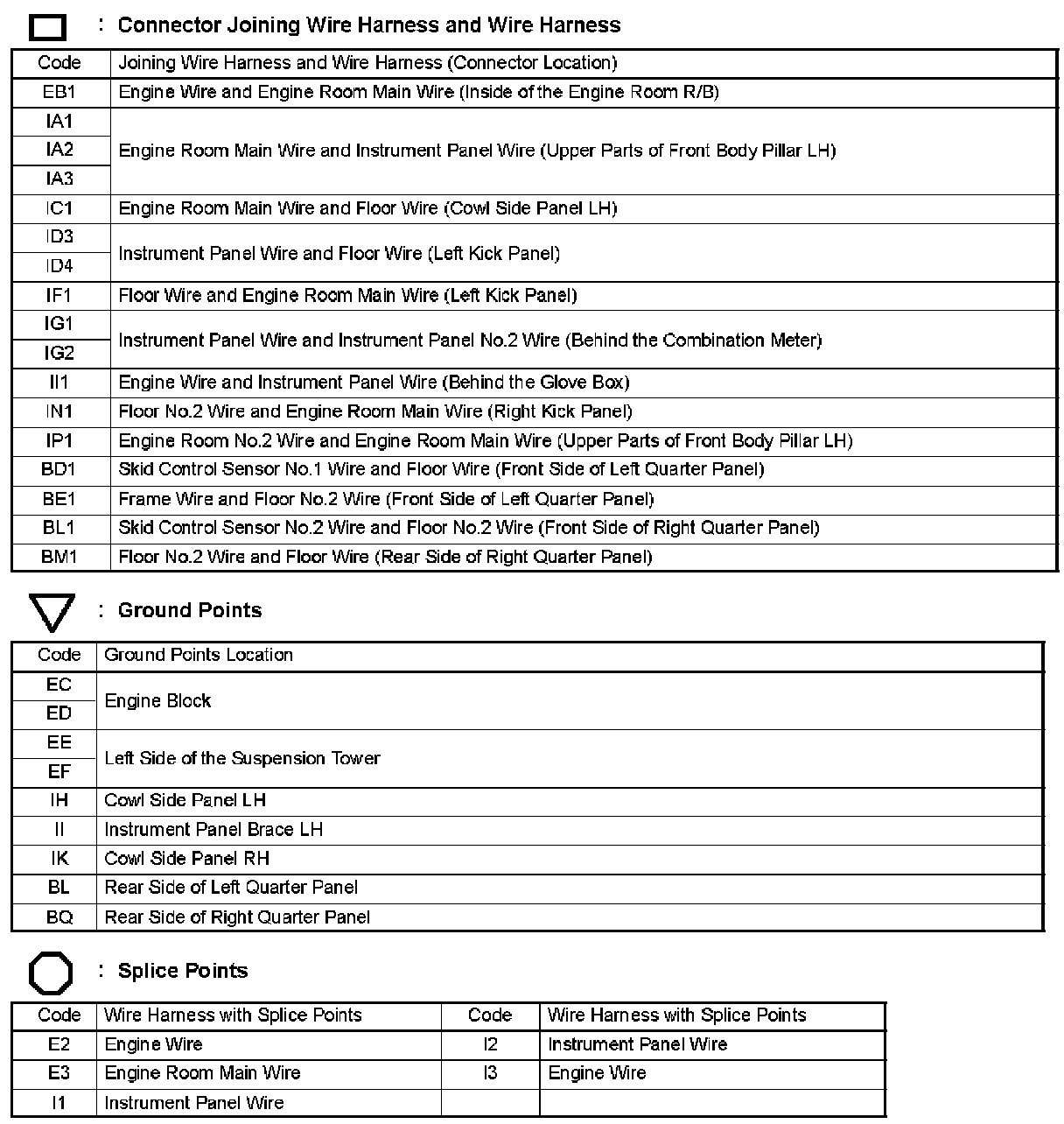

Diagram Legend Part 1:

Diagram Legend Part 2:

Diagram Legend Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
