Relay Box

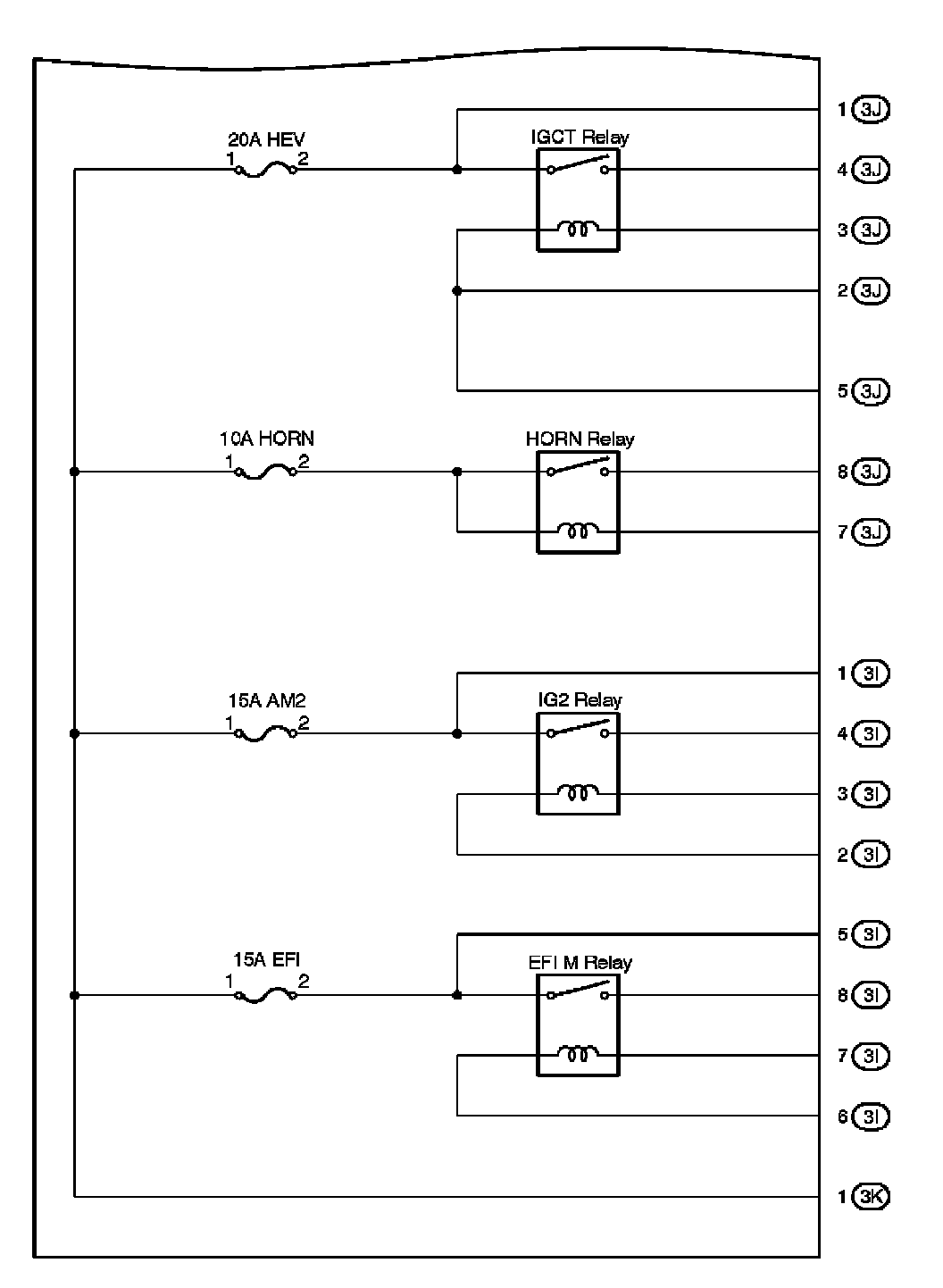

Engine Room J/B Inner Circuit:

Engine Room J/B Inner Circuit:

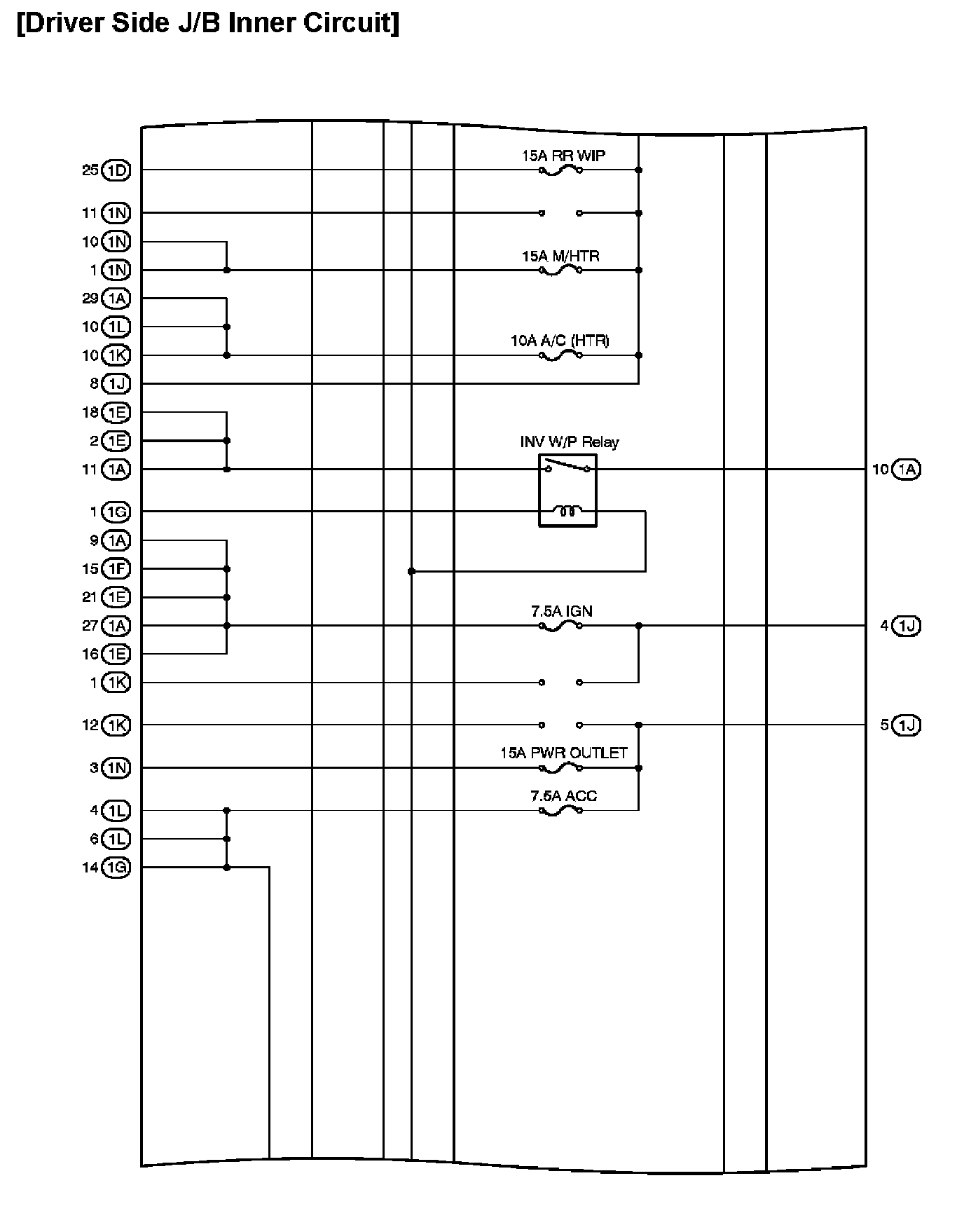

Driver Side J/B Inner Circuit:

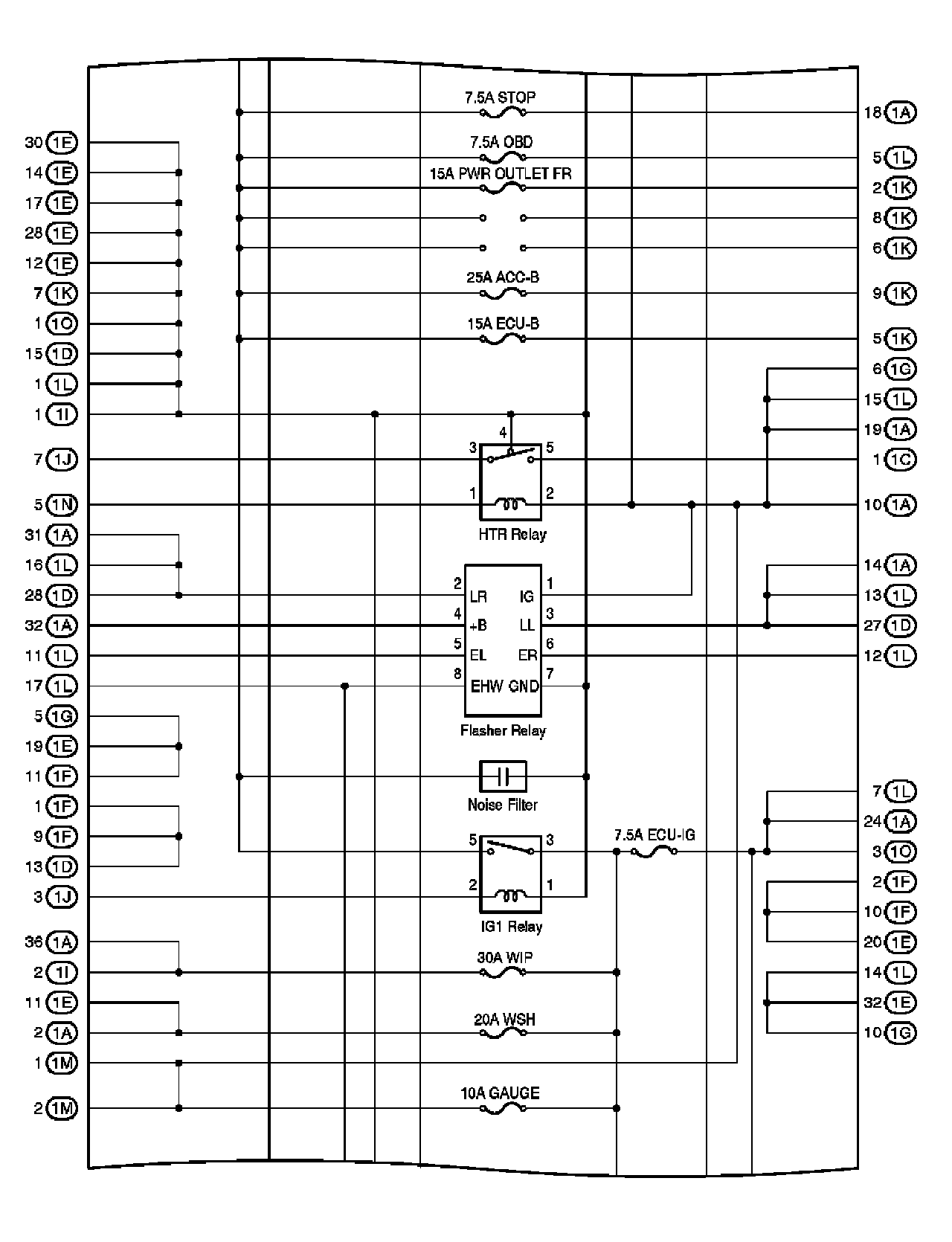

Driver Side J/B Inner Circuit:

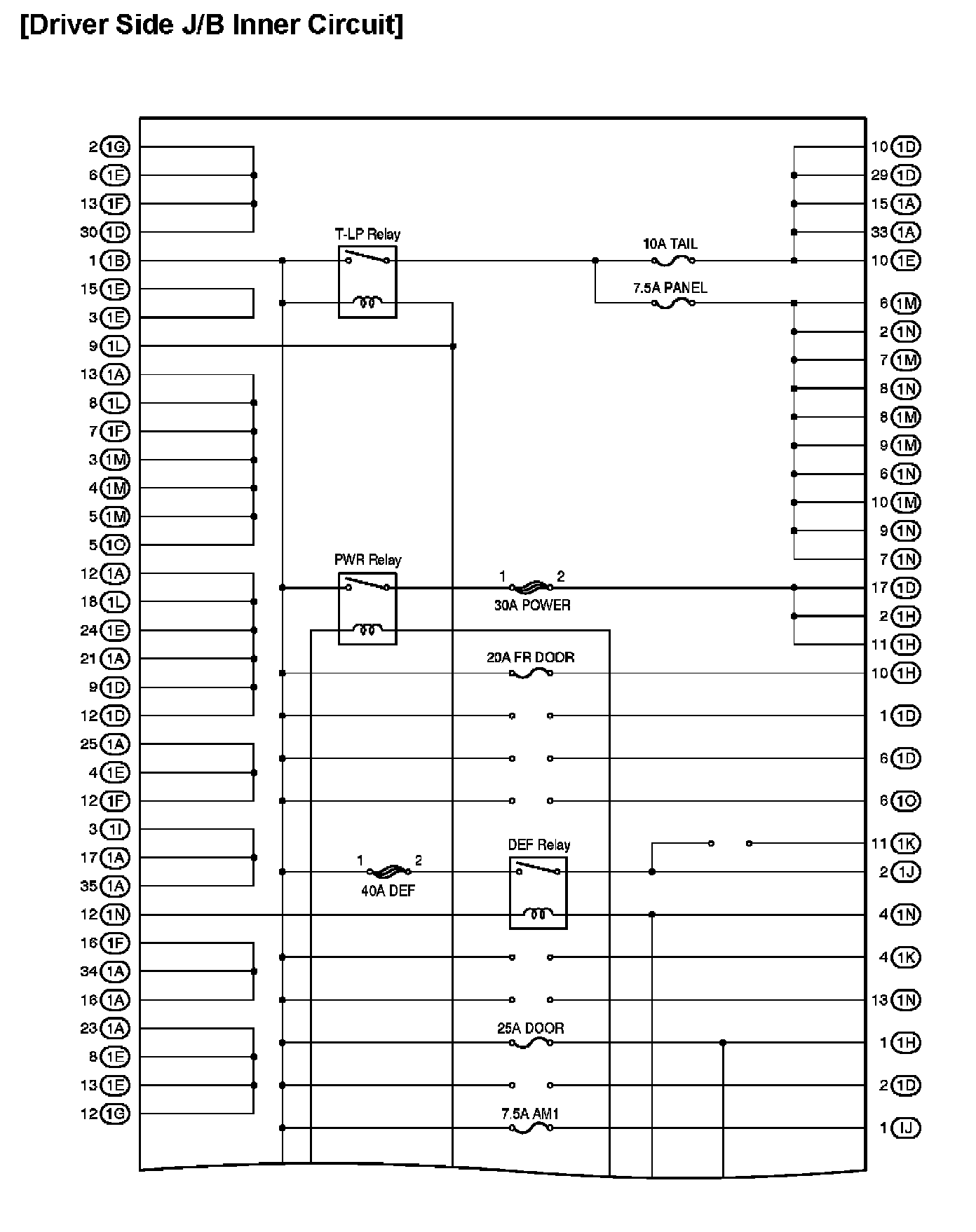

Driver Side J/B Inner Circuit:

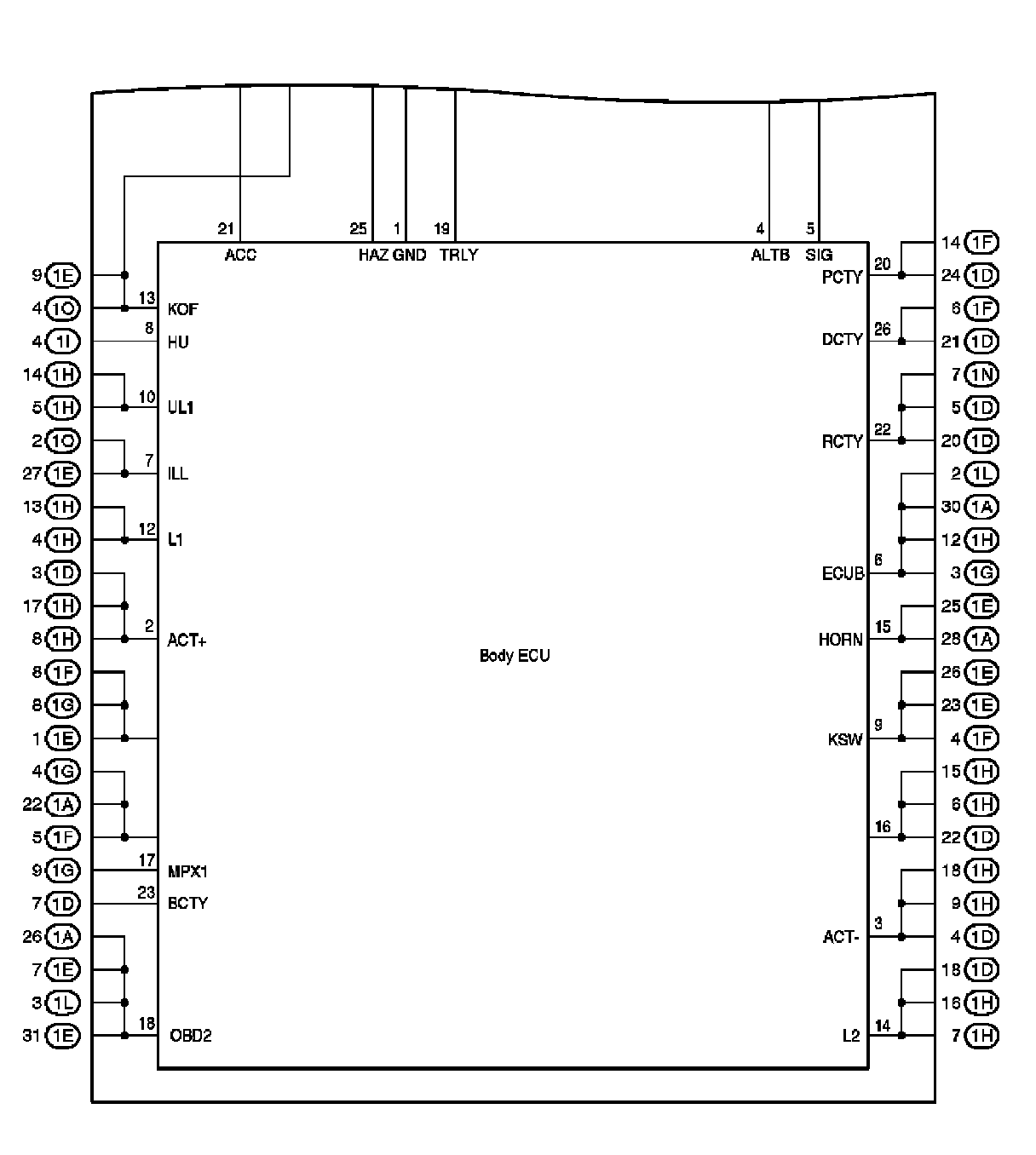

Driver Side J/B Inner Circuit:

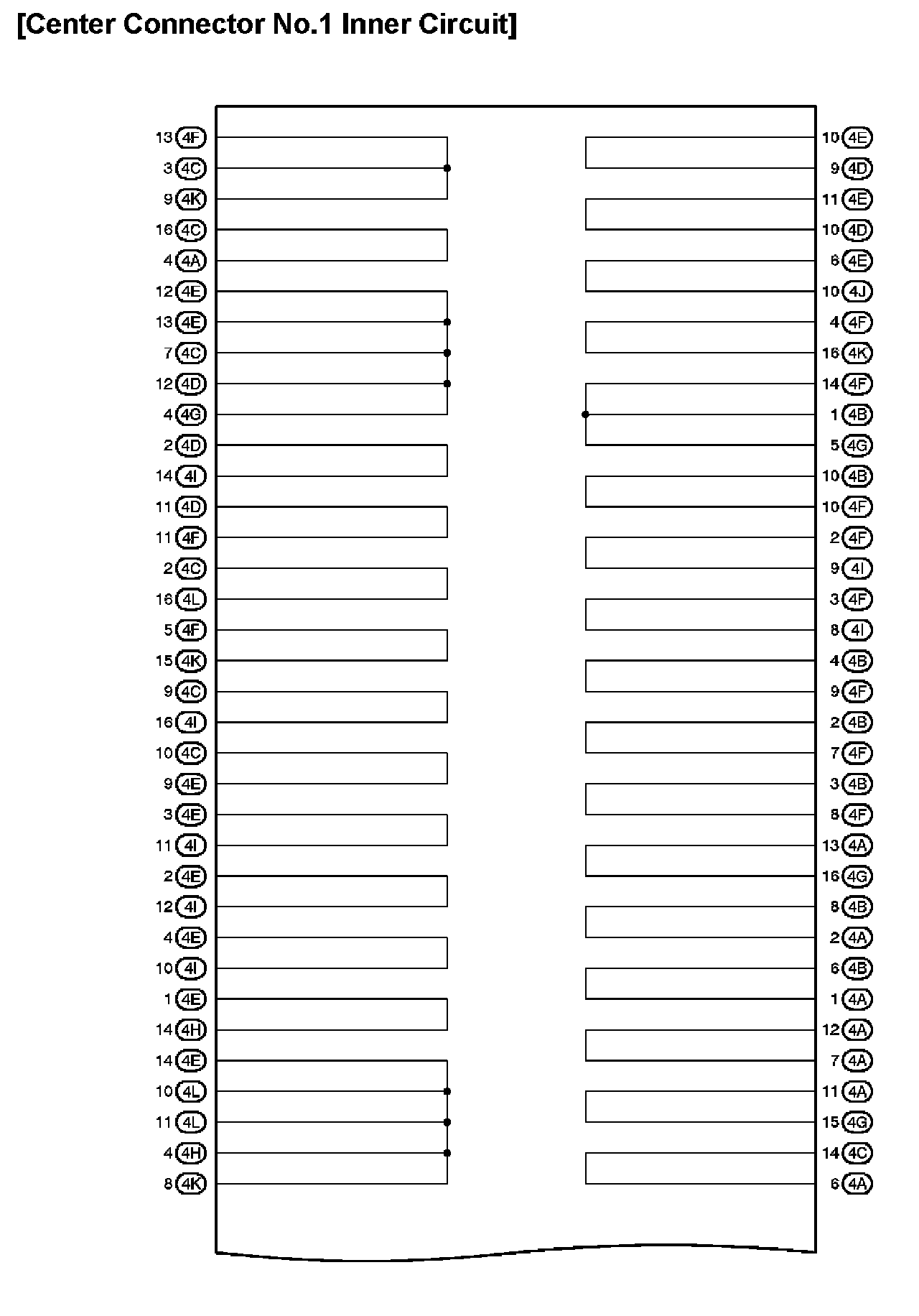

Center Connector No.1 Inner Circuit:

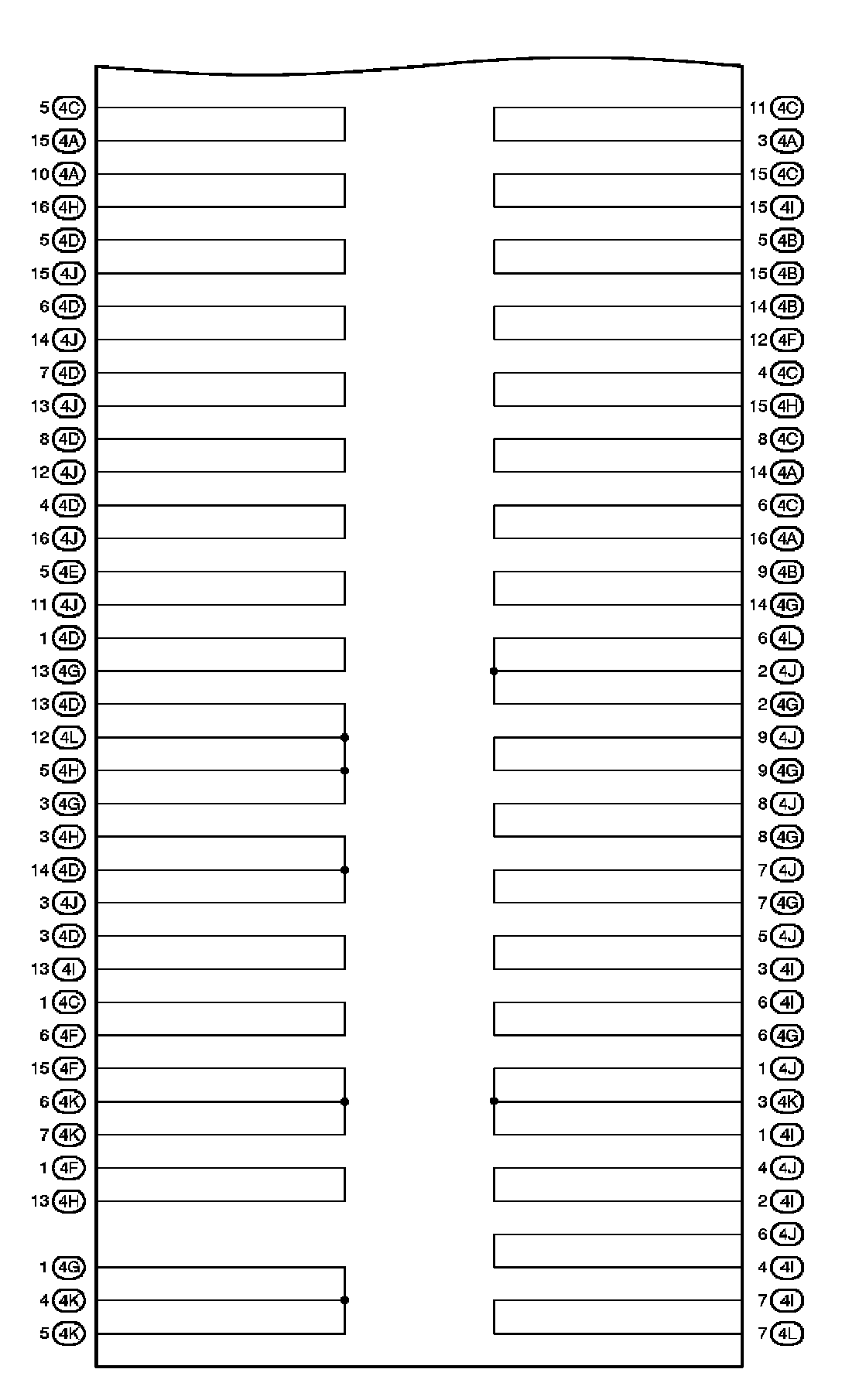

Center Connector No.1 Inner Circuit:

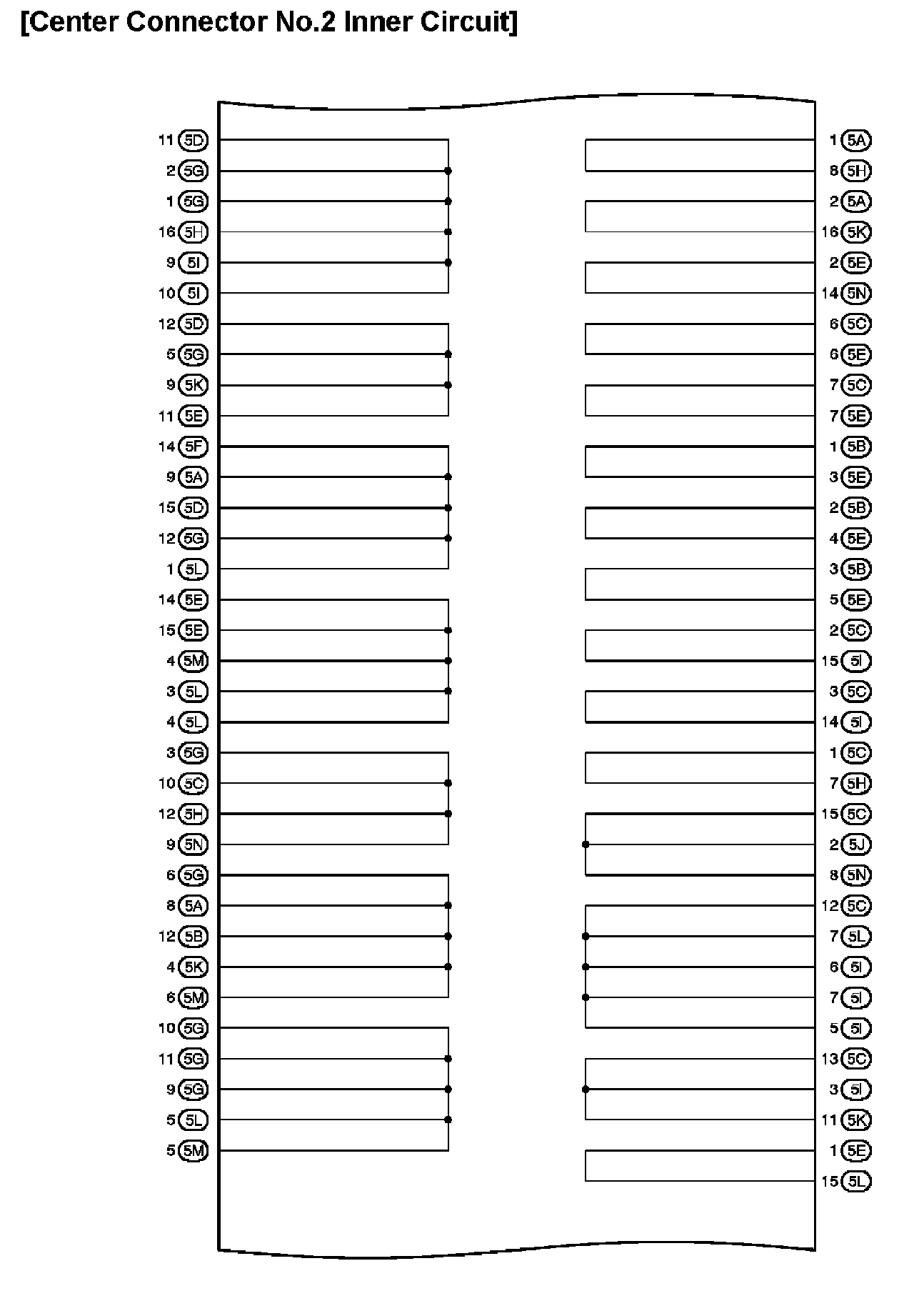

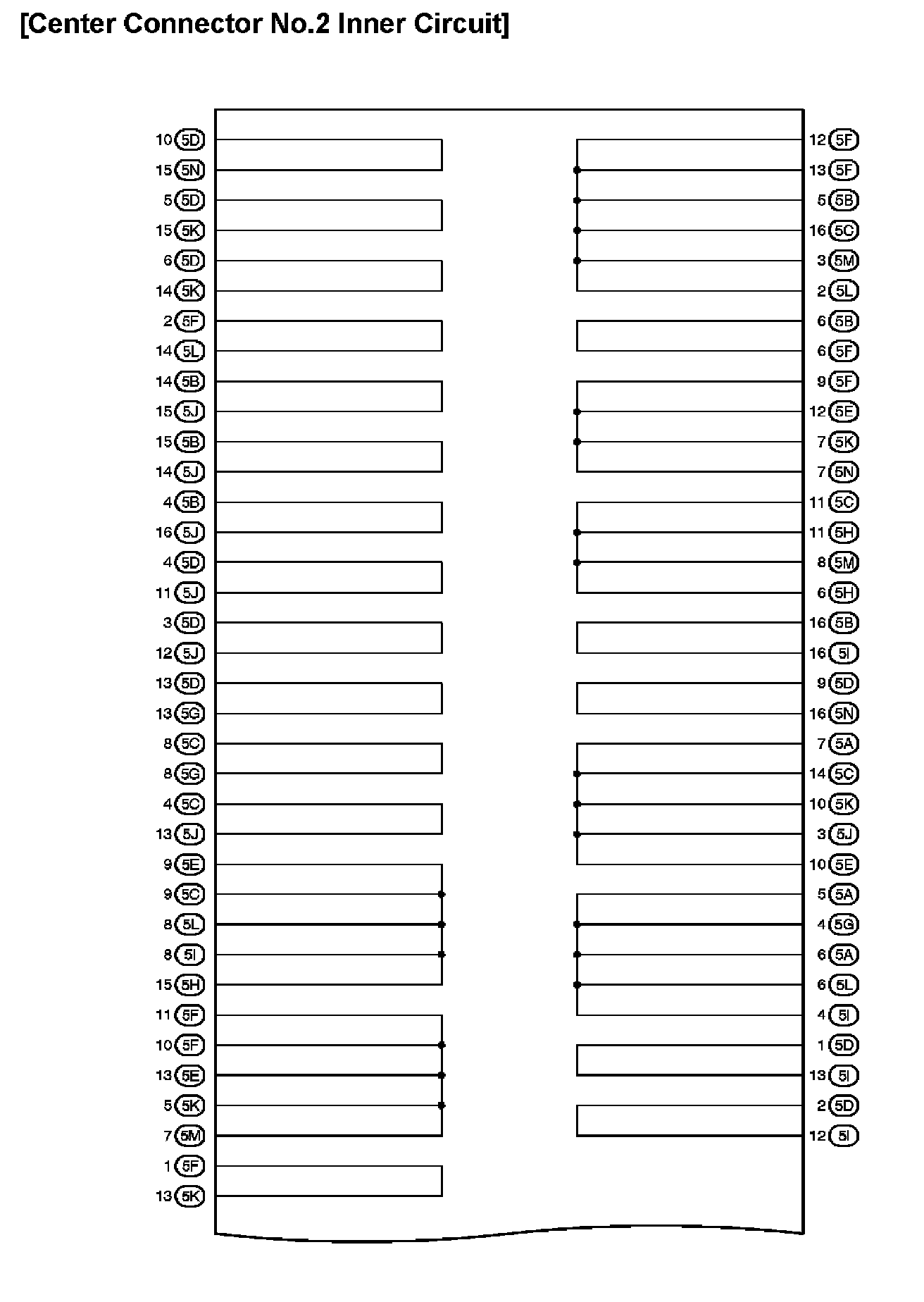

Center Connector No.2 Inner Circuit:

Center Connector No.2 Inner Circuit:

Center Connector No.2 Inner Circuit:
