Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Air Bag
Air Bag

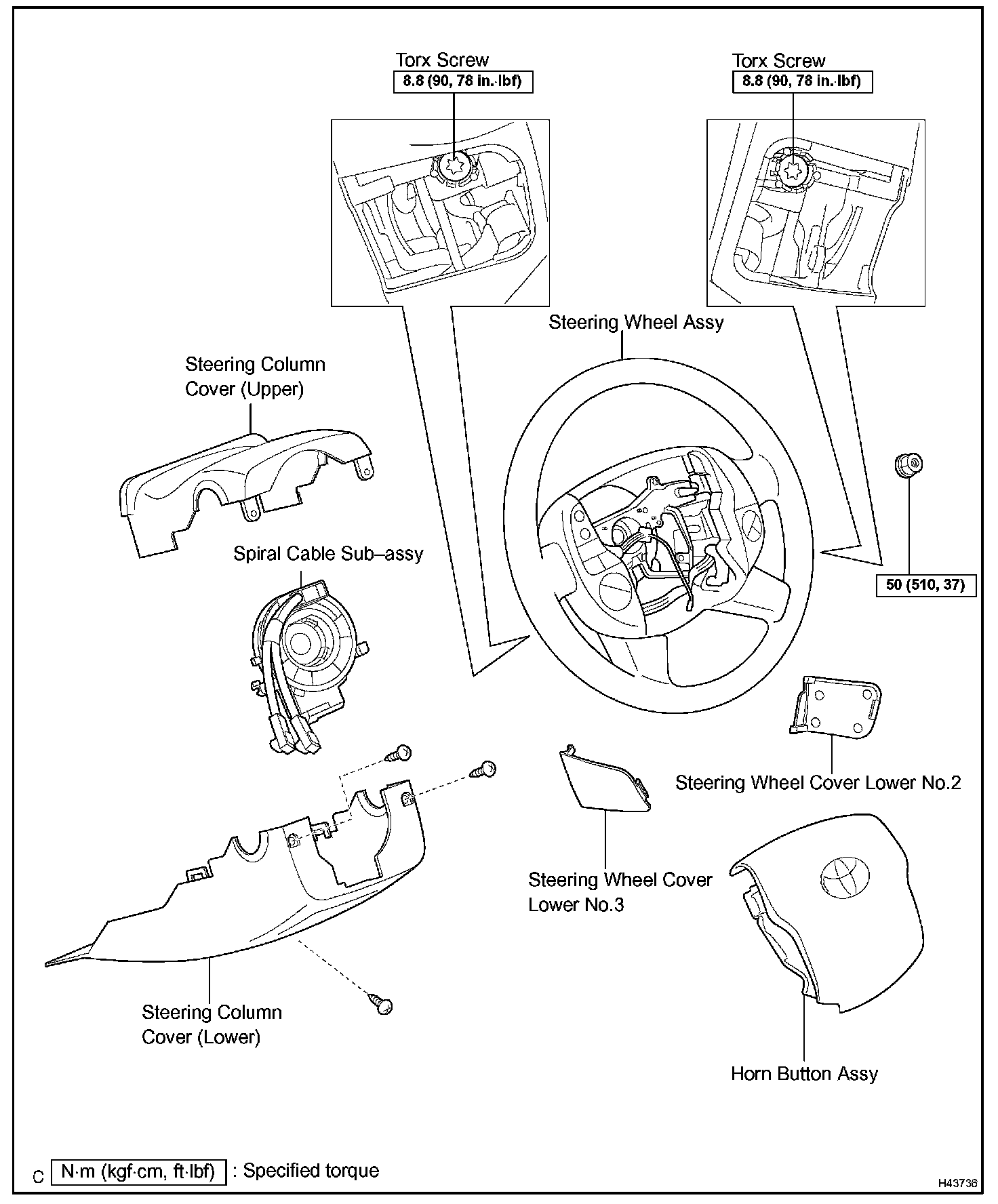

Horn Button Assy:

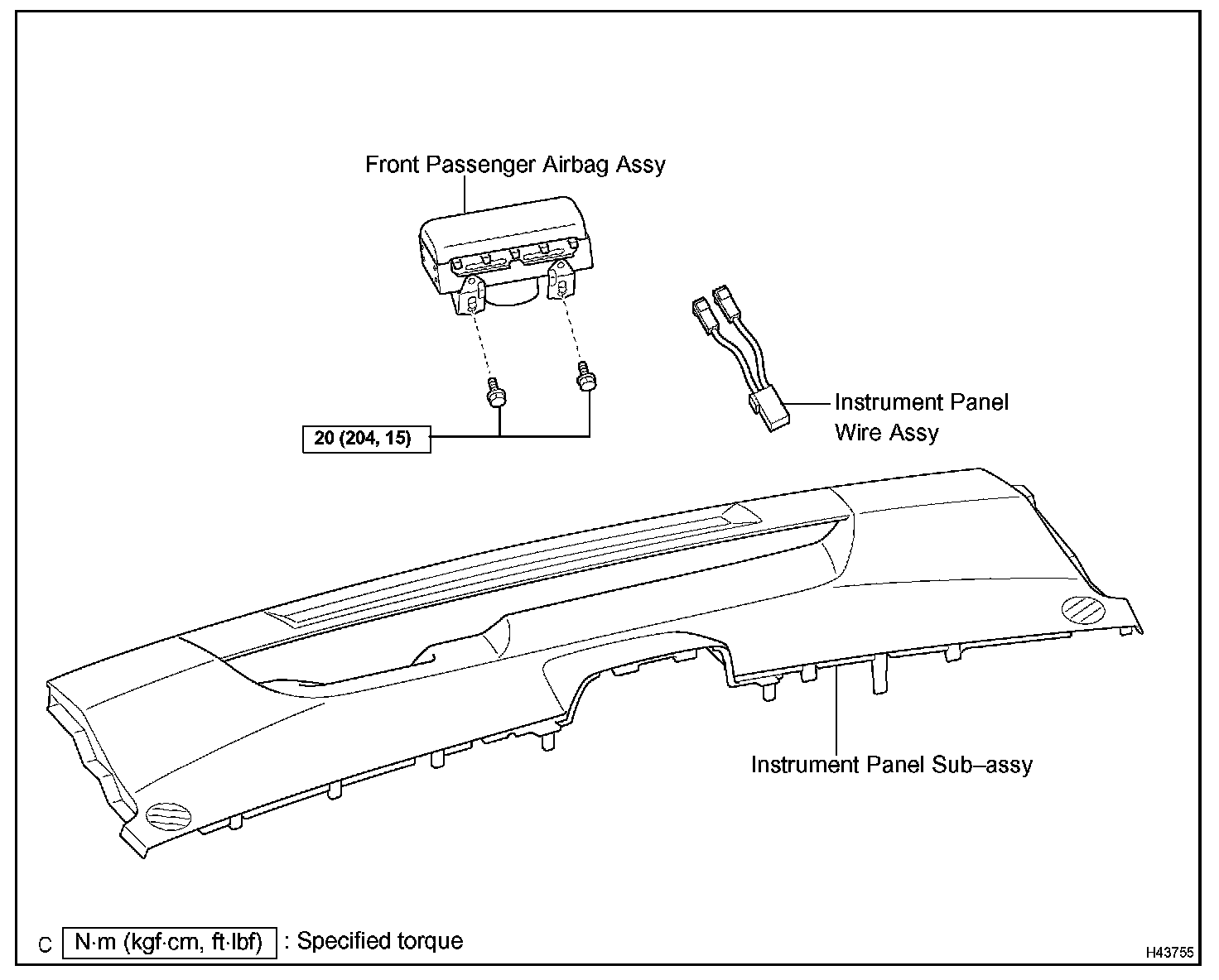

Front Passenger Airbag Assy:

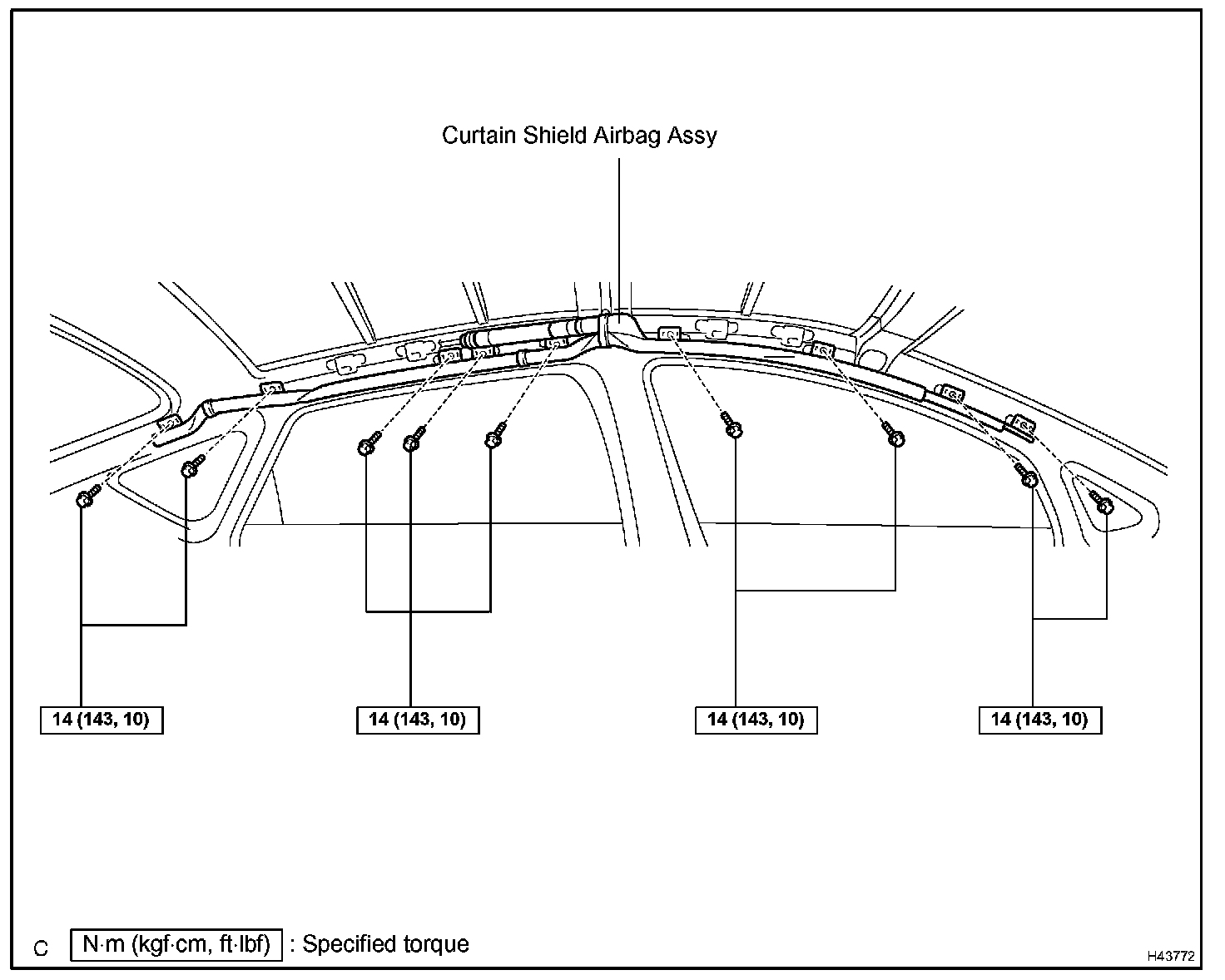

Curtain Shield Airbag Assy:
