Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>

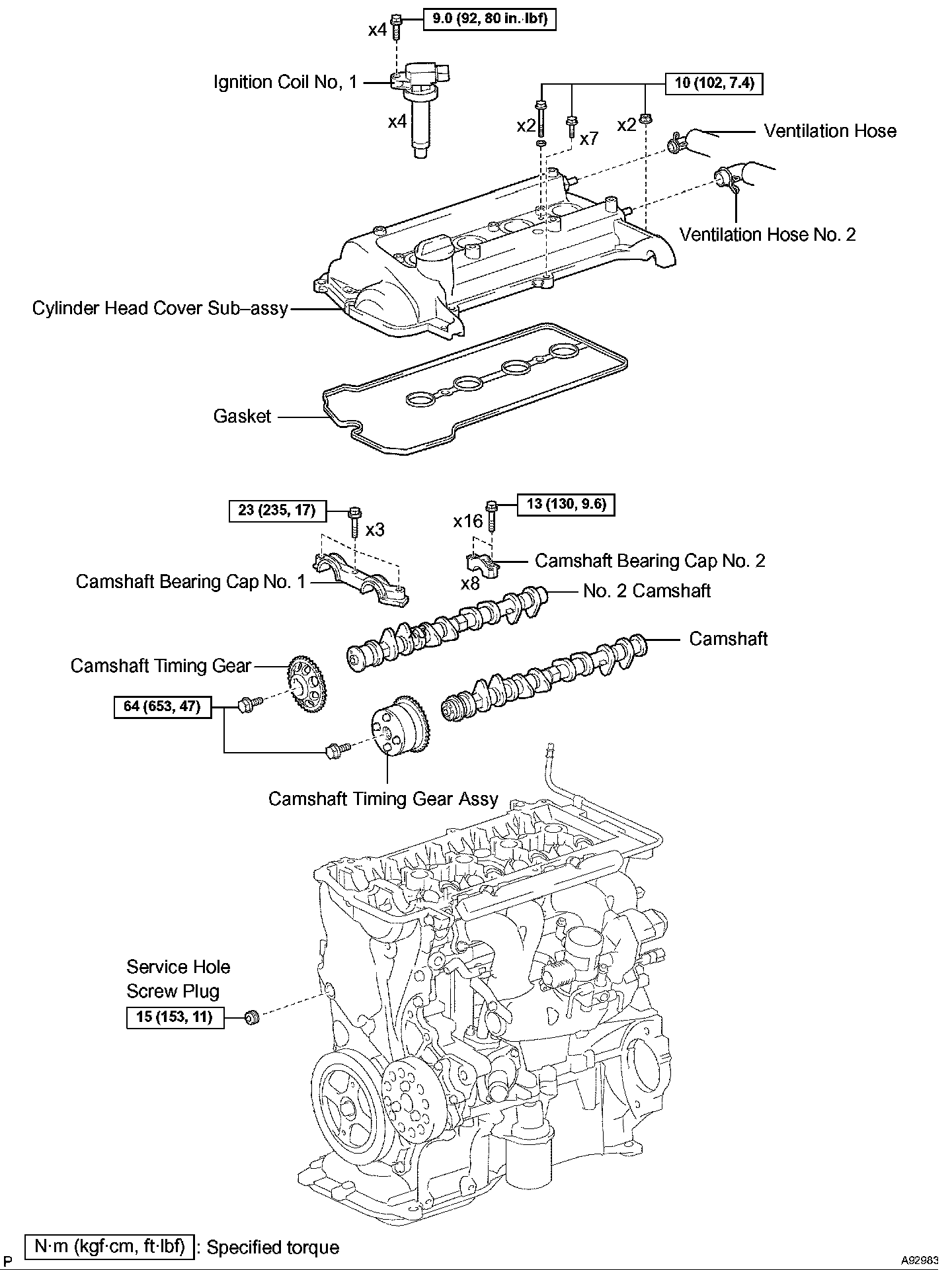

Camshaft, Engine
Camshaft, Engine
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
