Compressor HVAC: Service and Repair
ELECTRIC INVERTER COMPRESSOR ASSYREPLACEMENT
1. REMOVE REAR FLOOR BOARD NO.2
2. REMOVE DECK FLOOR BOX REAR
3. REMOVE REAR FLOOR BOARD NO.3
4. DISCONNECT BATTERY NEGATIVE TERMINAL
5. REMOVE SERVICE PLUG GRIP
6. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
7. DISCONNECT DISCHARGE HOSE SUB-ASSY
a. Remove the bolt and disconnect the discharge hose sub-assy.
b. Remove the O-ring from the discharge hose sub-assy.
NOTE: Seal the openings of the disconnected parts of the discharge hose and the compressor assy with the electric inverter compressor assy using vinyl tape to prevent moisture and foreign matter from entering.

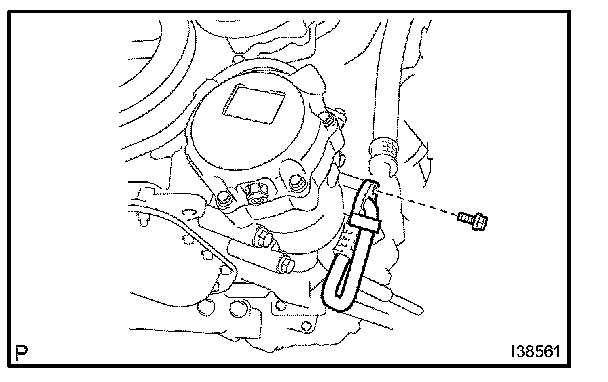

8. DISCONNECT SUCTION HOSE SUB-ASSY
a. Remove the bolt and disconnect the suction hose sub-assy.
b. Remove the O-ring from the suction hose sub-assy.
NOTE: Seal the openings of the disconnected parts of the suction hose and the compressor assy with the electric inverter compressor assy using vinyl tape to prevent moisture and foreign matter from entering.
9. REMOVE ELECTRIC INVERTER COMPRESSOR ASSY

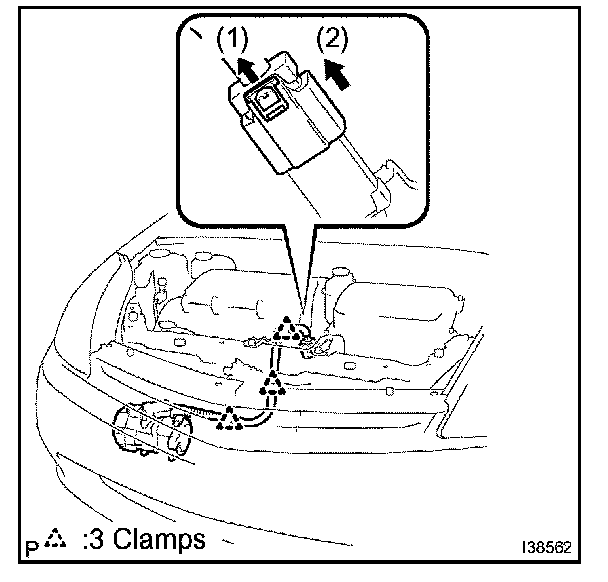

a. Release the green-colored lock. (1)
b. Disconnect the connector. (2)
c. Remove the 3 clamps and disconnect the wire harness.
NOTE:
- Wear insulated gloves when performing the procedures.
- Insulate the connector by sealing it with tape.

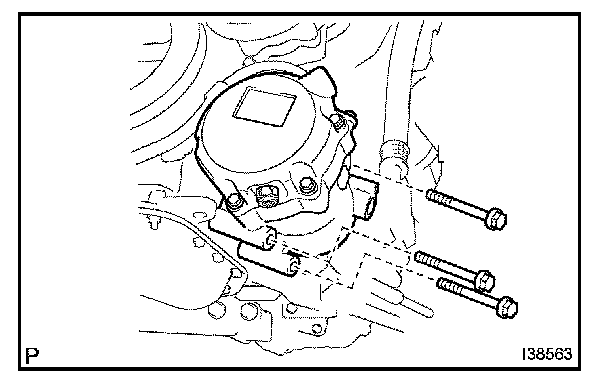

d. Remove the 3 bolts and then the electric inverter compressor assy.
10. INSPECT COMPRESSOR OIL

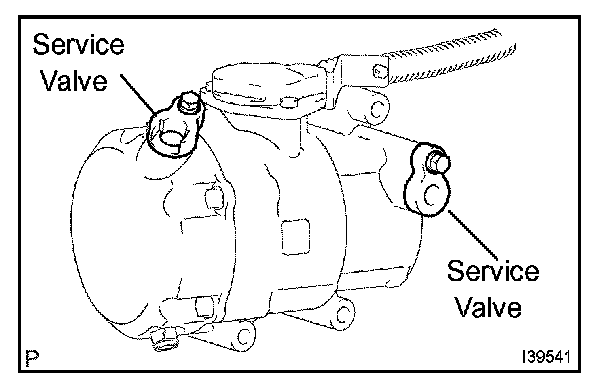

a. Gradually discharge inert gas (helium) from the service valve when replacing the electric inverter compressor assy with the inverter compressor assy with a new one.
Drain the following amount of oil from the new electric inverter compressor before installation.
Standard:
(Oil capacity inside new electric inverter compressor 100 (+ 15 mL)) - (Remaining oil amount in the removed compressor assy with the motor (w/ motor compressor assy)) = (Oil amount to be removed before installation)
NOTE:
- Observe the precautions on the cooler removal/installation procedures when checking the amount of compressor oil.
- Because compressor oil remains in the pipes of the vehicle, if a new cooler compressor assy is installed without removing the oil inside, the amount of oil becomes too great, preventing heat exchange in the refrigerant cycles and causing refrigerant failure and/or abnormal vibration.
- Check for oil leakage if the remaining oil amount in the removed compressor is too low.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

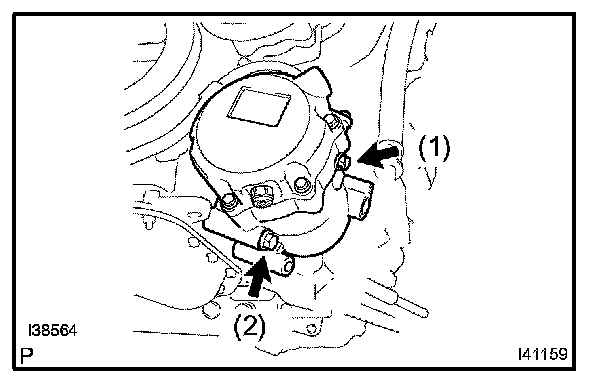

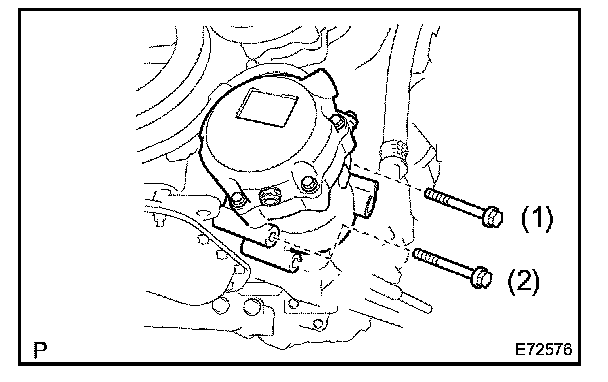

11. TEMPORARILY TIGHTEN ELECTRIC INVERTER COMPRESSOR ASSY
a. Temporarily tighten the electric inverter compressor assy with the 2 bolts.
NOTE: Tighten them in the order indicated in the illustration.
12. FULLY TIGHTEN ELECTRIC INVERTER COMPRESSOR ASSY
a. Fully tighten the electric inverter compressor assy with the 2 bolts.
Torque: 25 Nm (255 kgf.cm, 18 ft.lbf)
NOTE: Tighten them in the order indicated in the illustration.
b. Fully tighten the electric inverter compressor assy with the bolt.
Torque: 25 Nm (255 kgf.cm, 18 ft.lbf)

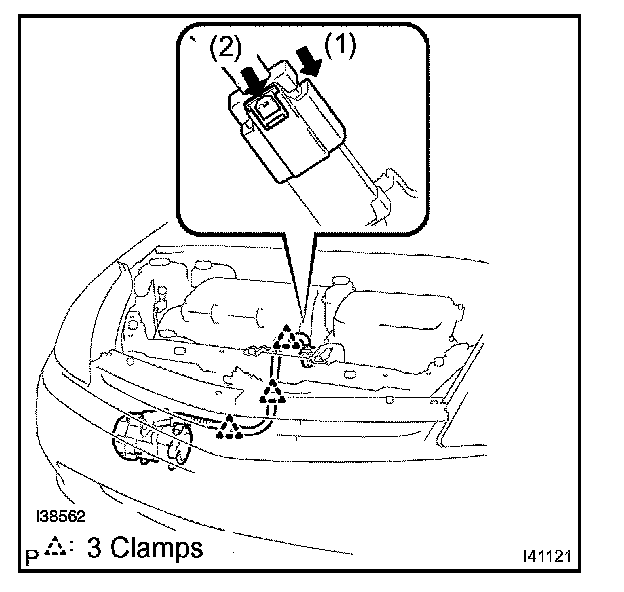

c. Connect the wire harness.
NOTE: Wear insulated gloves when performing the procedures.
1. Connect the wire harness 3 clamps.
2. Connect the connector. (1)
3. Lock the green-colored lock. (2)

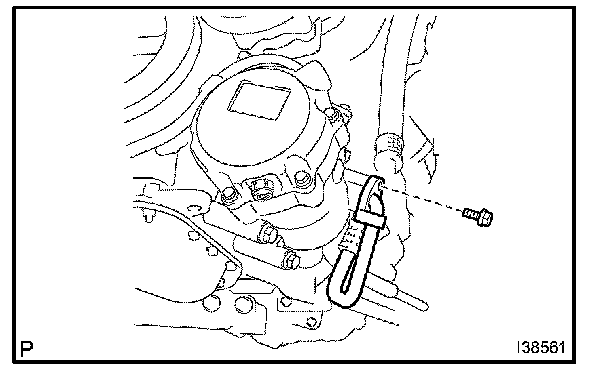

13. INSTALL SUCTION HOSE SUB-ASSY
a. Sufficiently apply compressor oil to a new O-ring and fitting surface of the electric inverter compressor assy.
Compressor oil: ND-OIL 11 or equivalent
NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
b. Install the O-ring to the suction hose sub-assy.
c. Install the suction hose sub-assy with the bolt.
Torque: 9.8 Nm (100 kgf.cm, 87 in.lbf)

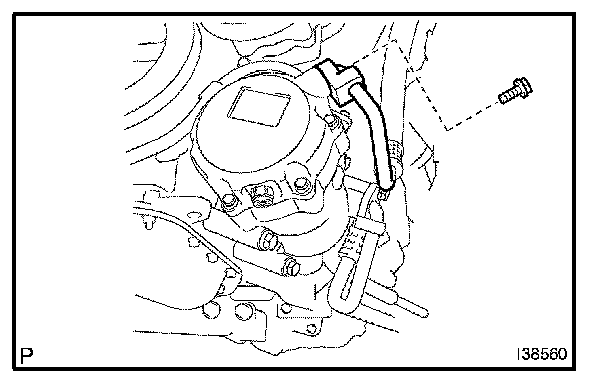

14. INSTALL DISCHARGE HOSE SUB-ASSY
a. Sufficiently apply compressor oil to a new O-ring and fitting surface of the electric inverter compressor assy.
Compressor oil: ND-OIL 11 or equivalent
NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
b. Install the O-ring to the discharge hose.
c. Install the discharge hose with the bolt.
Torque: 9.8 Nm (100 kgf.cm, 87 in.lbf)
15. INSTALL SERVICE PLUG GRIP
16. CONNECT BATTERY NEGATIVE TERMINAL
17. INSTALL REAR FLOOR BOARD NO.3
18. INSTALL DECK FLOOR BOX REAR
19. INSTALL REAR FLOOR BOARD NO.2
20. CHARGE REFRIGERANT
SST 07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
Specified amount: 450 ± 30 g (15.87 ± 1.05 oz.)
21. WARM UP COMPRESSOR
22. INSPECT LEAKAGE OF REFRIGERANT
