Condenser HVAC: Service and Repair

W/ Receiver Condenser Assy:

W/ RECEIVER CONDENSER ASSY

OVERHAUL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)

2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER
5. REMOVE INVERTER BRACKET NO.1




6. DISCONNECT DISCHARGE HOSE SUB-ASSY

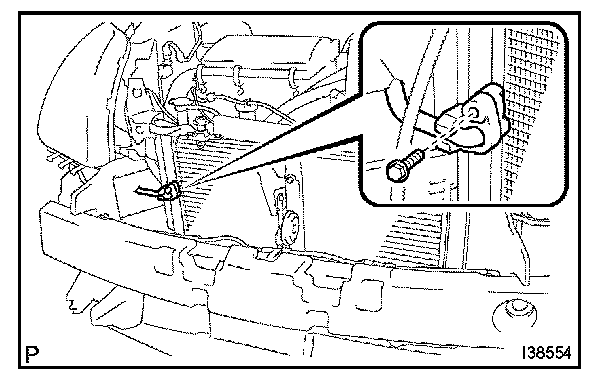

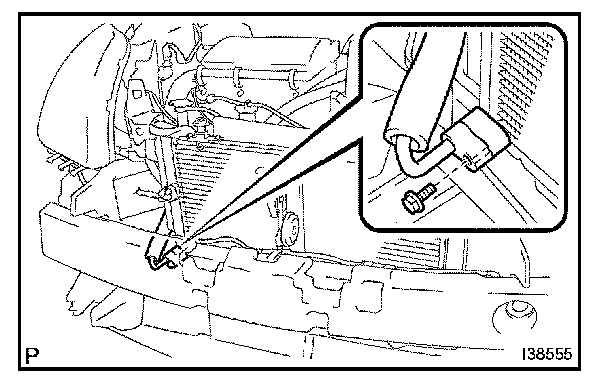

a. Remove the bolt and disconnect the discharge hose sub-assy from the condenser assy (w/ receiver).
b. Remove the O-ring from the discharge hose sub-assy.

NOTE: Seal the openings of the disconnected parts of the discharge hose and the condenser assy using vinyl tape to prevent moisture and foreign matter from entering.




7. DISCONNECT COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)

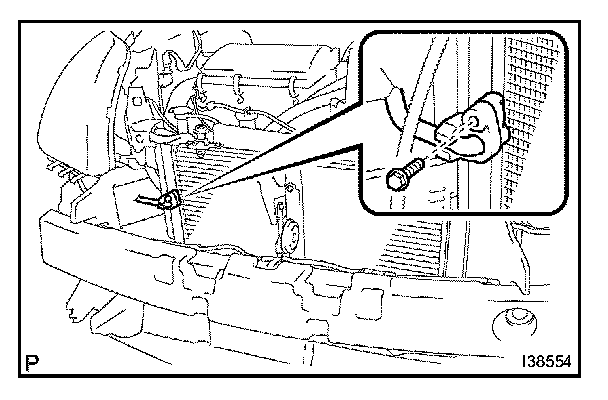

a. Remove the bolt and disconnect the cooler unit refrigerant liquid pipe E from the condenser assy (w/ receiver).
b. Remove the O-ring from the cooler refrigerant liquid pipe E.

NOTE: Seal the openings of the disconnected parts of the cooler unit refrigerant liquid pipe E and the condenser assy using vinyl tape to prevent moisture and foreign matter from entering.




8. REMOVE RADIATOR SUPPORT SUB-ASSY UPPER RH

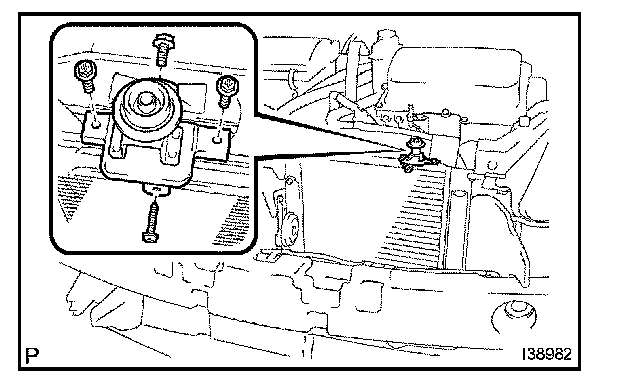

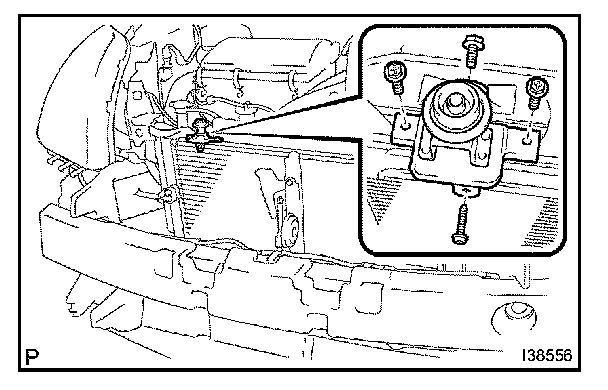

a. Remove the 4 bolts and then the radiator support sub-assy upper RH.




9. REMOVE RADIATOR SUPPORT SUB-ASSY UPPER LH
a. Remove the 4 bolts and then the radiator support sub-assy upper LH.




10. REMOVE W/RECEIVER CONDENSER ASSY

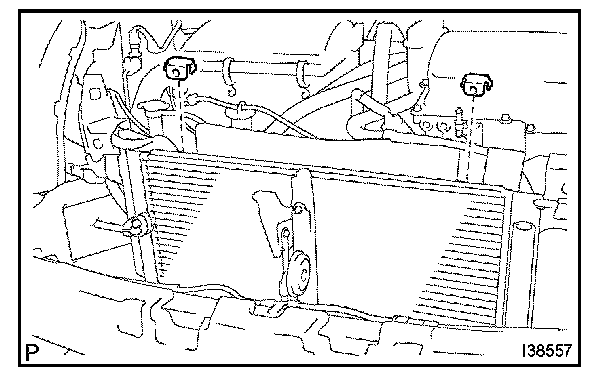

a. Remove the 2 angles.

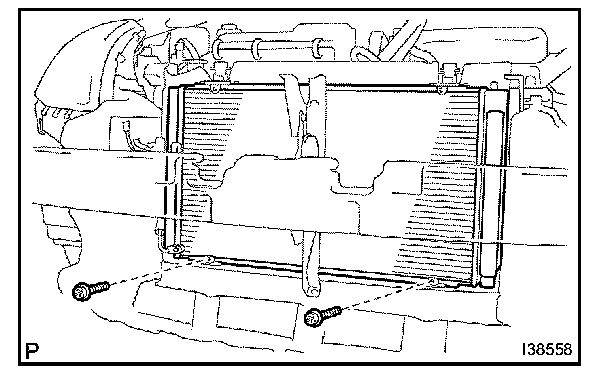

b. Remove the 2 bolts and then the condenser assy (w/ receiver).




11. REMOVE COOLER DRYER

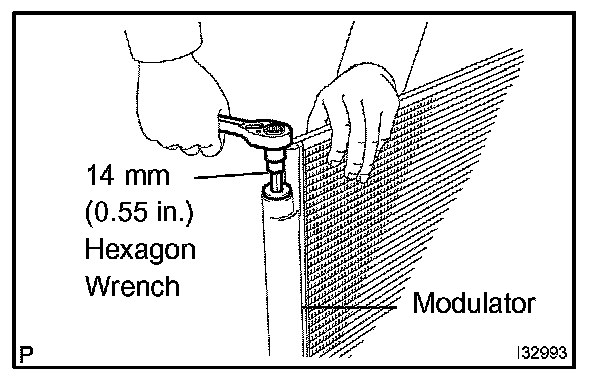

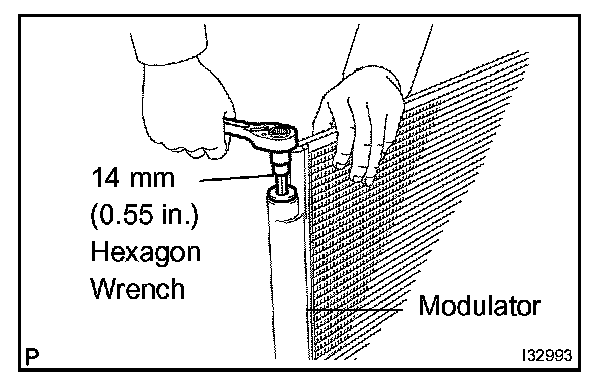

a. Using the straight hexagon wrench 14 mm (0.55 in.), remove the cap from the modulator.




b. Remove the O-ring from the cap.

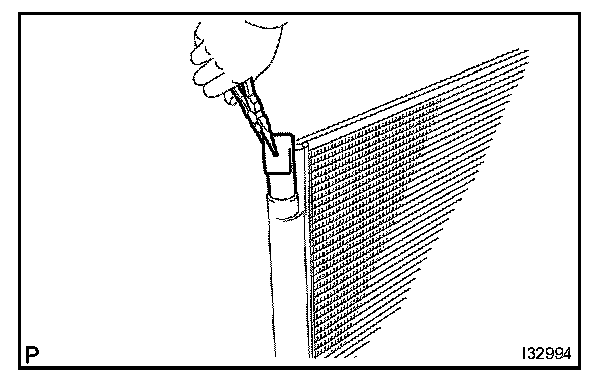

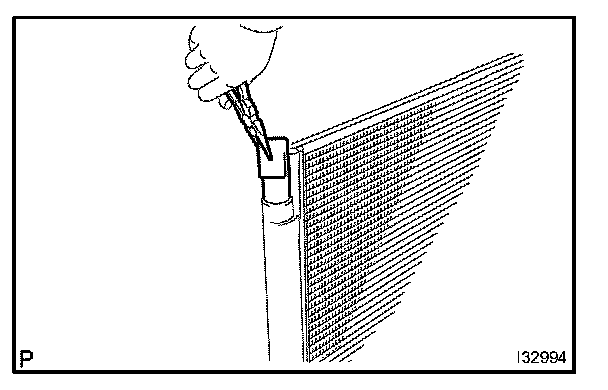

c. Using pliers, remove the cooler dryer.




12. INSTALL COOLER DRYER
a. Using pliers, install the cooler dryer to the modulator.

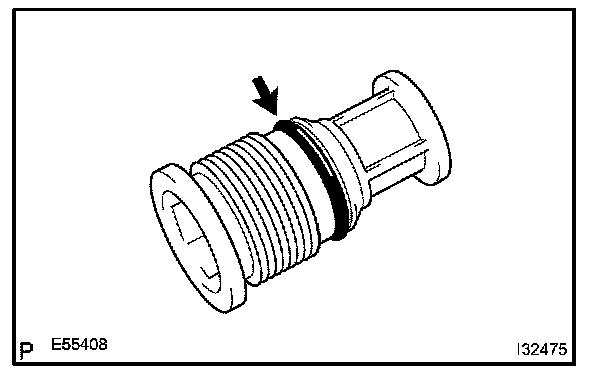

b. Install a new O-ring to the cap.

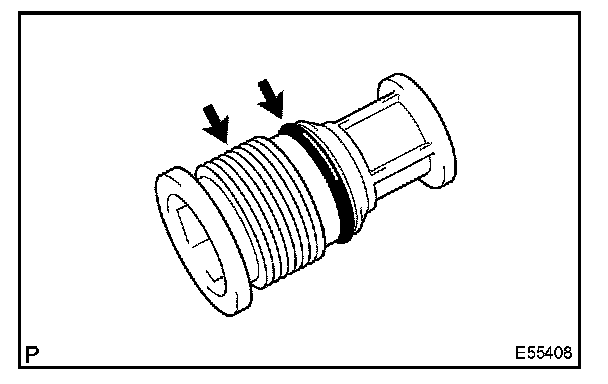

c. Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and cap fitting surface.

Compressor oil: ND-OIL 11 or equivalent

NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.




d. Using a straight hexagon wrench 14 mm (0.55 in.), install the cap to the cooler condenser core .

Torque: 2.9 Nm (30 kgf.cm, 25 in.lbf)




13. INSTALL W/RECEIVER CONDENSER ASSY
a. Install the condenser assy (w/ receiver) with 2 bolts.

Torque: 3.9 Nm (40 kgf.cm, 35 in.lbf)




b. Install the 2 angles to the condenser assy (w/ receiver).




14. INSTALL RADIATOR SUPPORT SUB-ASSY UPPER RH

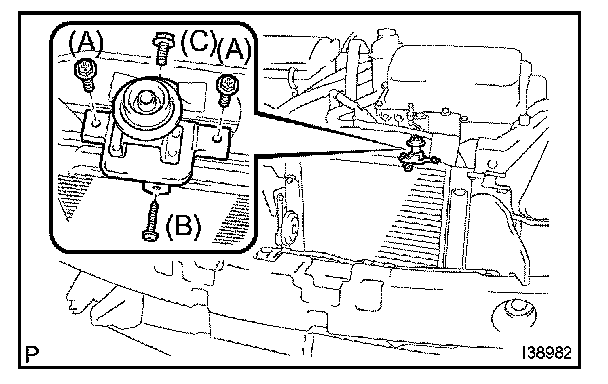

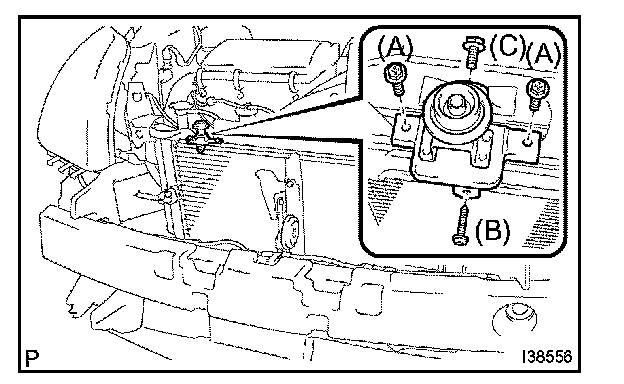

a. Install the radiator support sub-assy upper RH with the 4 bolts.

Torque:
Bolt A: 5.0 Nm (51 kgf.cm, 44 in.lbf)
Bolt B: 3.9 Nm (40 kgf.cm, 35 in.lbf)
Bolt C: 7.5 Nm (76 kgf.cm, 66 in.lbf)




15. INSTALL RADIATOR SUPPORT SUB-ASSY UPPER LH
a. Install the radiator support sub-assy upper LH with the 4 bolts.

Torque:
Bolt A: 5.0 Nm (51 kgf.cm, 44 in.lbf)
Bolt B: 3.9 Nm (40 kgf.cm, 35 in.lbf)
Bolt C: 7.5 Nm (76 kgf.cm, 66 in.lbf)

16. INSTALL COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
a. Remove the attached vinyl tape from the disconnected parts of the cooler refrigerant liquid pipe E and condenser assy (w/ receiver).
b. Install a new O-ring to the cooler refrigerant liquid pipe E.
c. Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and the cooler refrigerant liquid pipe E fitting surface.

Compressor oil: ND-OIL 11 or equivalent

NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.




d. Install the cooler refrigerant liquid pipe E to the condenser assy (w/ receiver) with the bolt.

Torque: 5.4 Nm (55 kgf.cm, 47 in.lbf)

17. INSTALL DISCHARGE HOSE SUB-ASSY
a. Remove the attached vinyl tape from the disconnected parts of the discharge hose sub-assy and the condenser assy (w/ receiver).
b. Install a new O-ring to the discharge hose sub-assy.
c. Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and the discharge hose fitting surface.

Compressor oil: ND-OIL 11 or equivalent

NOTE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

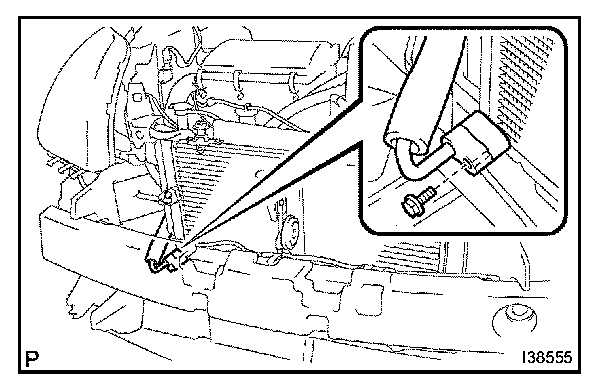

d. Install the discharge hose to the condenser assy (w/ receiver) with the bolt.

Torque: 5.4 Nm (55 kgf.cm, 47 in.lbf)

18. INSTALL INVERTER BRACKET NO.1
19. INSTALL FRONT BUMPER COVER
20. INSTALL FRONT FENDER LINER RH
21. INSTALL FRONT FENDER LINER LH
22. CHARGE REFRIGERANT

SST 07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)

Specified amount: 450 ± 30 g (15.87 ± 1.05 oz.)

23. WARM UP COMPRESSOR
24. INSPECT LEAKAGE OF REFRIGERANT
