Control Module HVAC: Service and Repair

AIR CONDITIONING AMPLIFIER ASSEMBLY

REPLACEMENT

1. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
2. REMOVE AIR DUCT REAR NO.3




3. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Disconnect the connector.

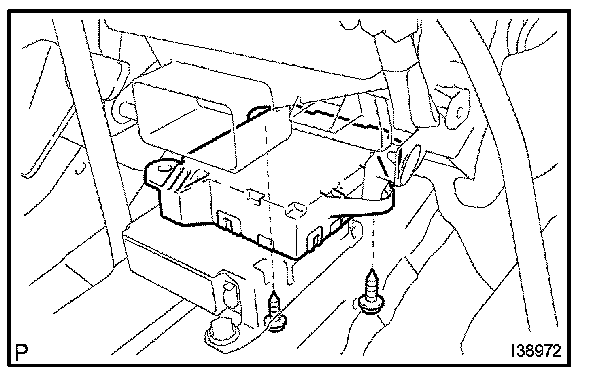

b. Remove the 2 screws and then the air conditioning amplifier assembly.
