IG Power Source Circuit

IG POWER SOURCE CIRCUIT

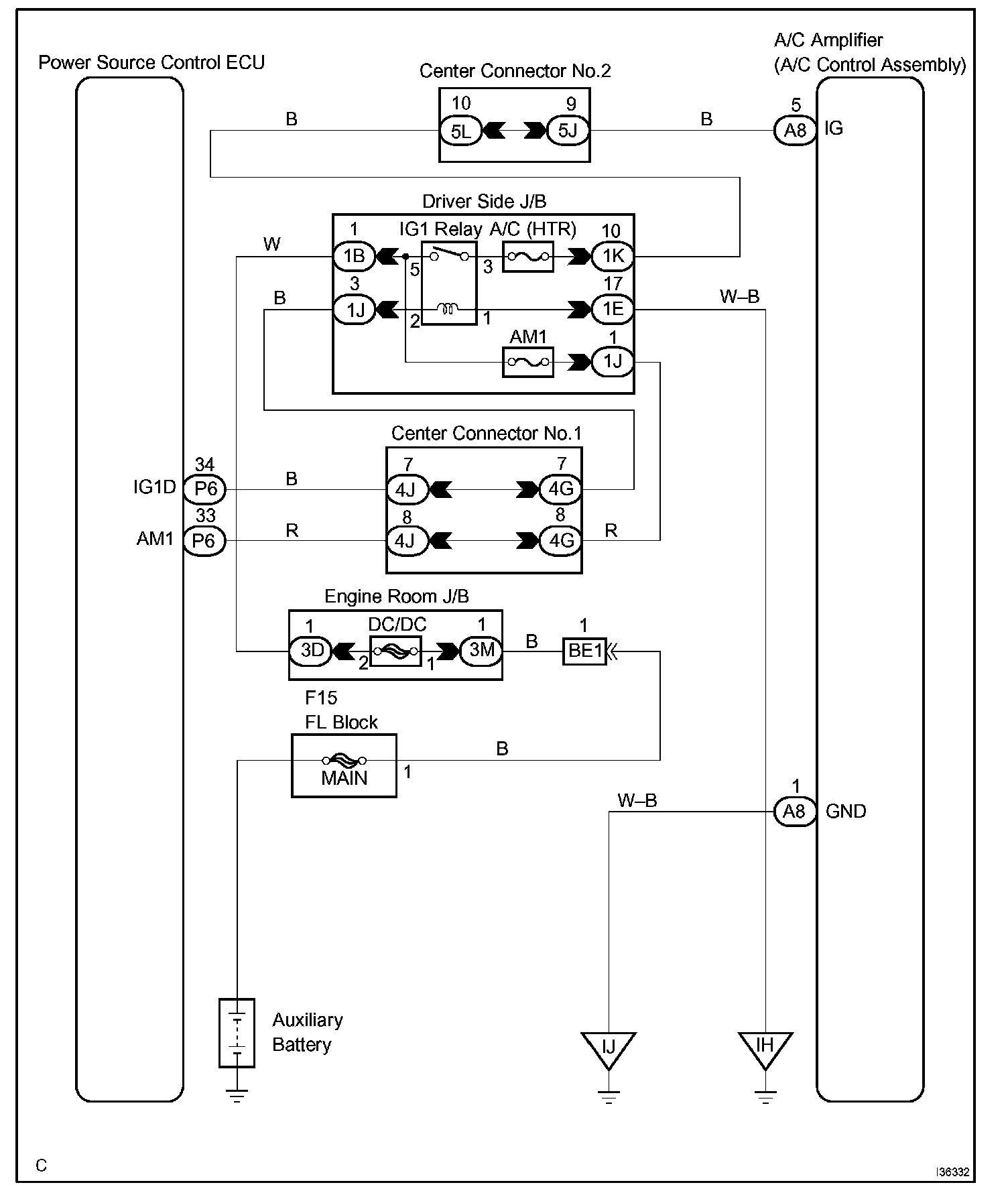

CIRCUIT DESCRIPTION

This is the main power source supplied to the A/C amplifier when the power switch is turned to the ON position. The power source supplied is used for operating the A/C amplifier and servomotor, etc.
