Check Mode Procedure

CHECK MODE PROCEDURE

LIST OF OPERATION METHODS

Check Mode Procedure:

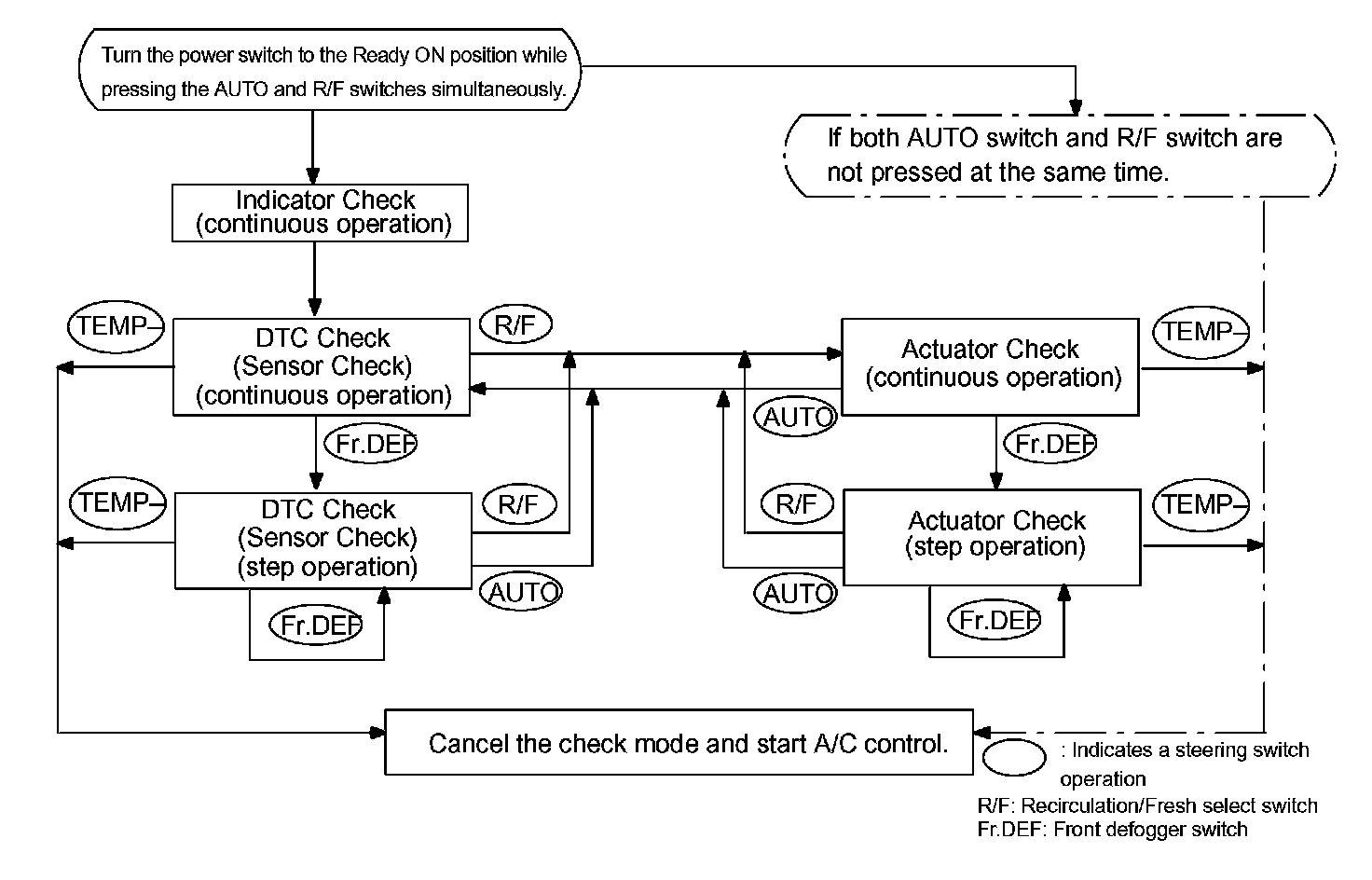

By operating each of the A/C control switches as shown in the diagram, it is possible to enter the diagnostic check mode.
