Data List

DATA LIST

HINT: From the DATA LIST displayed on the hand-held tester, you can read the value of the display, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten labor time.

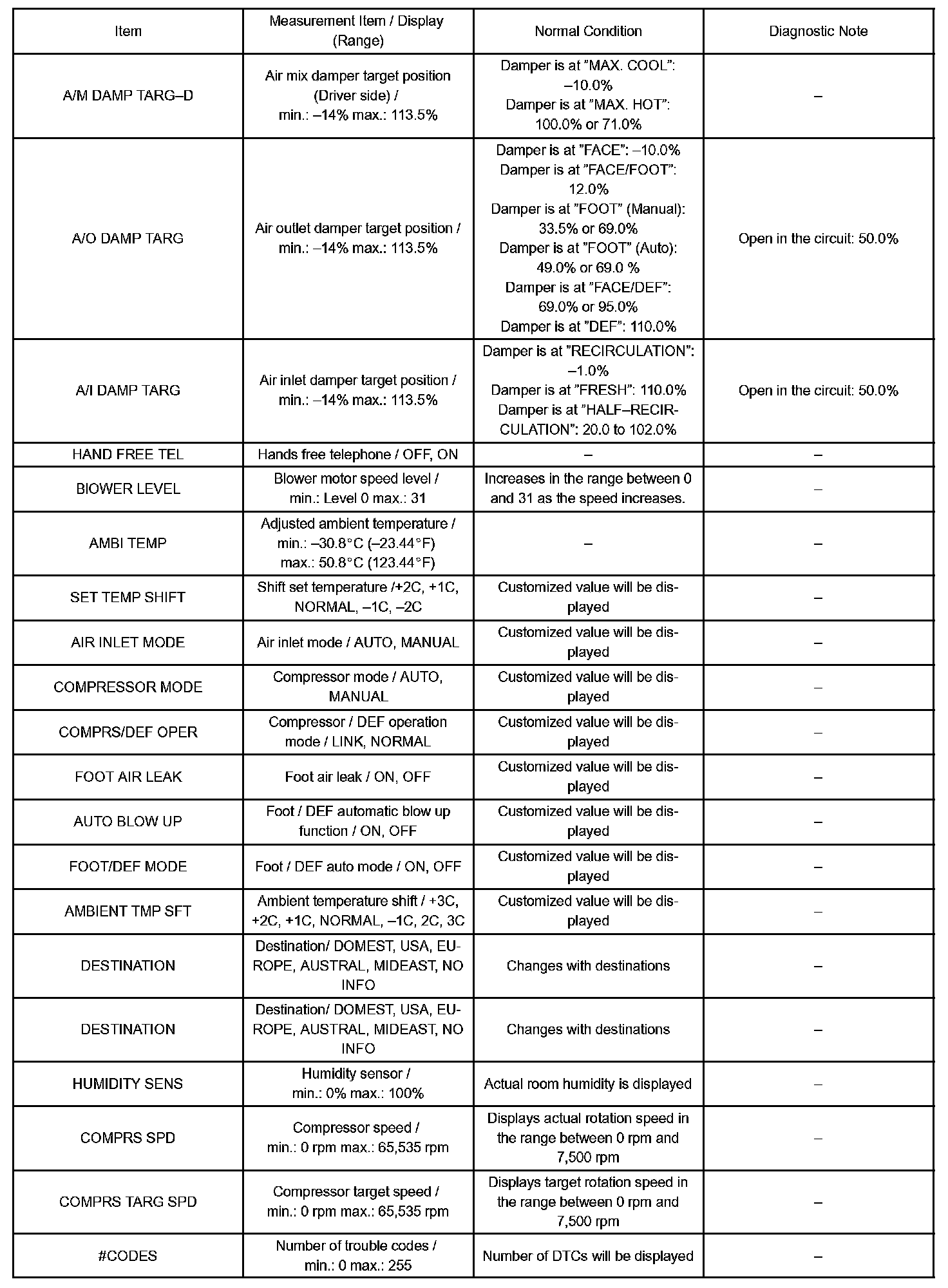

Data List / Air Conditioner Part 1:

Data List / Air Conditioner Part 2:

a. Connect the hand-held tester to the DLC3.
b. Turn the power switch to the ON position.
c. From the display on the tester, select the "DATA LIST".
