Hybrid Drive Systems: Application and ID

In appearance, the 2004 Prius is a 5-door hatchback. Exterior, interior, and engine compartment illustrations are provided to assist in identification.

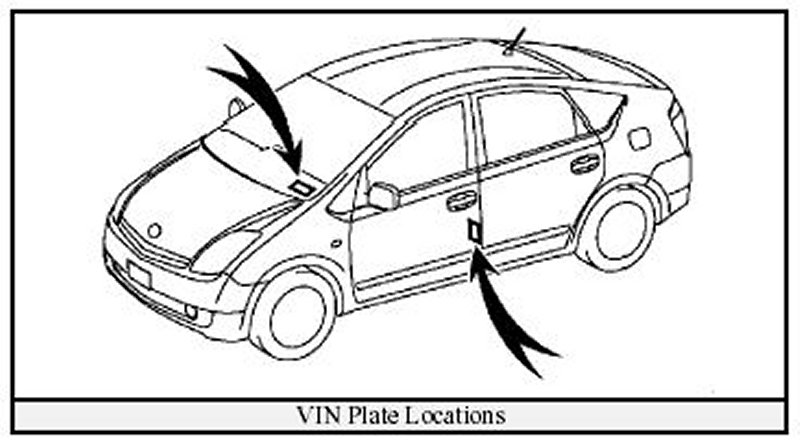

The alphanumeric 17 character Vehicle Identification Number (VIN) is provided in the front windshield cowl and driver door post.




Example VIN: JTDKB20U840020208 (A Prius is identified by the first 6 alphanumeric characters JTDKB2)

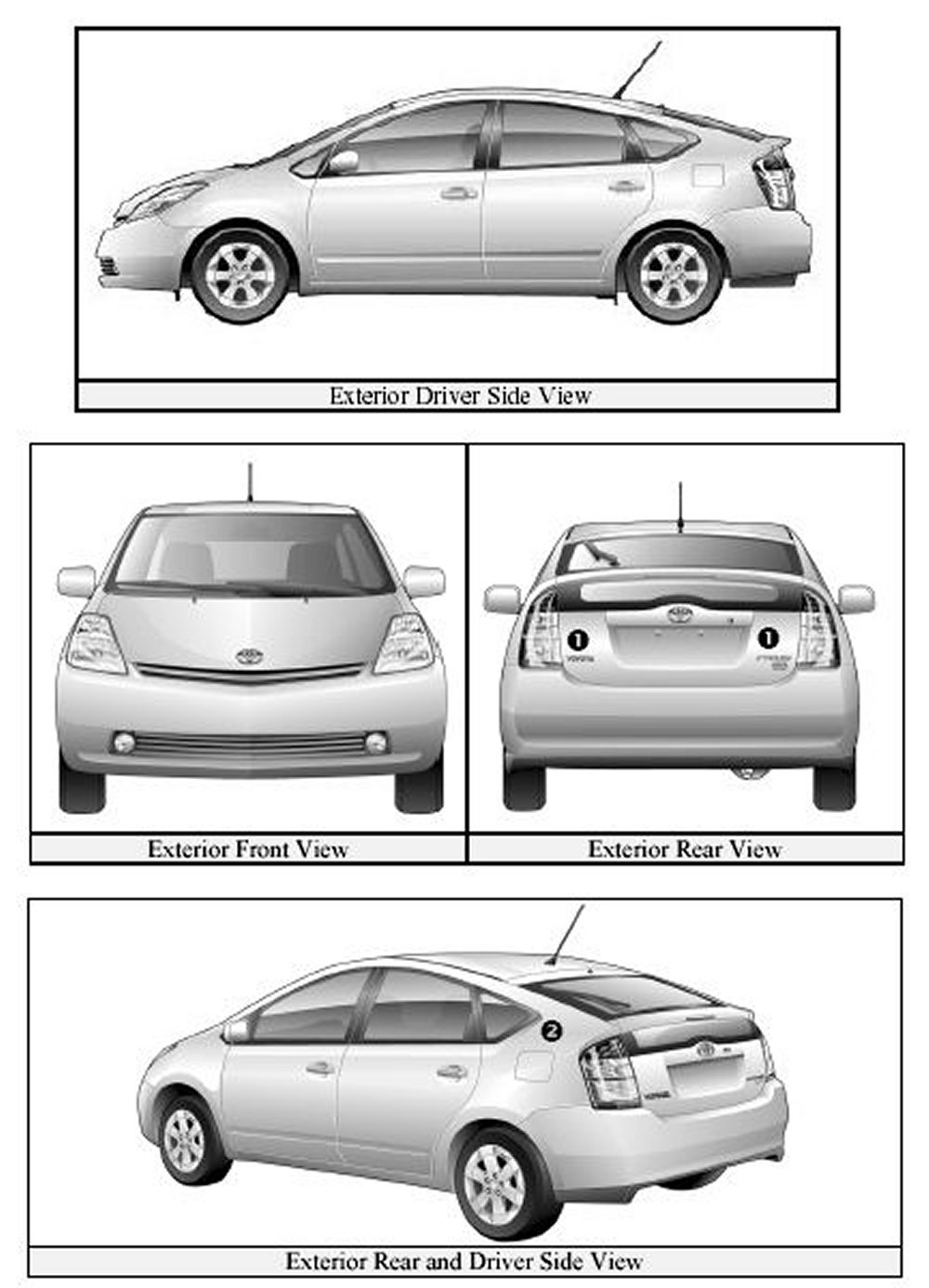

Exterior



1 TOYOTA PRIUS logos on rear hatchback door.
2 Gasoline fuel filler door located on driver side rear quarter panel.

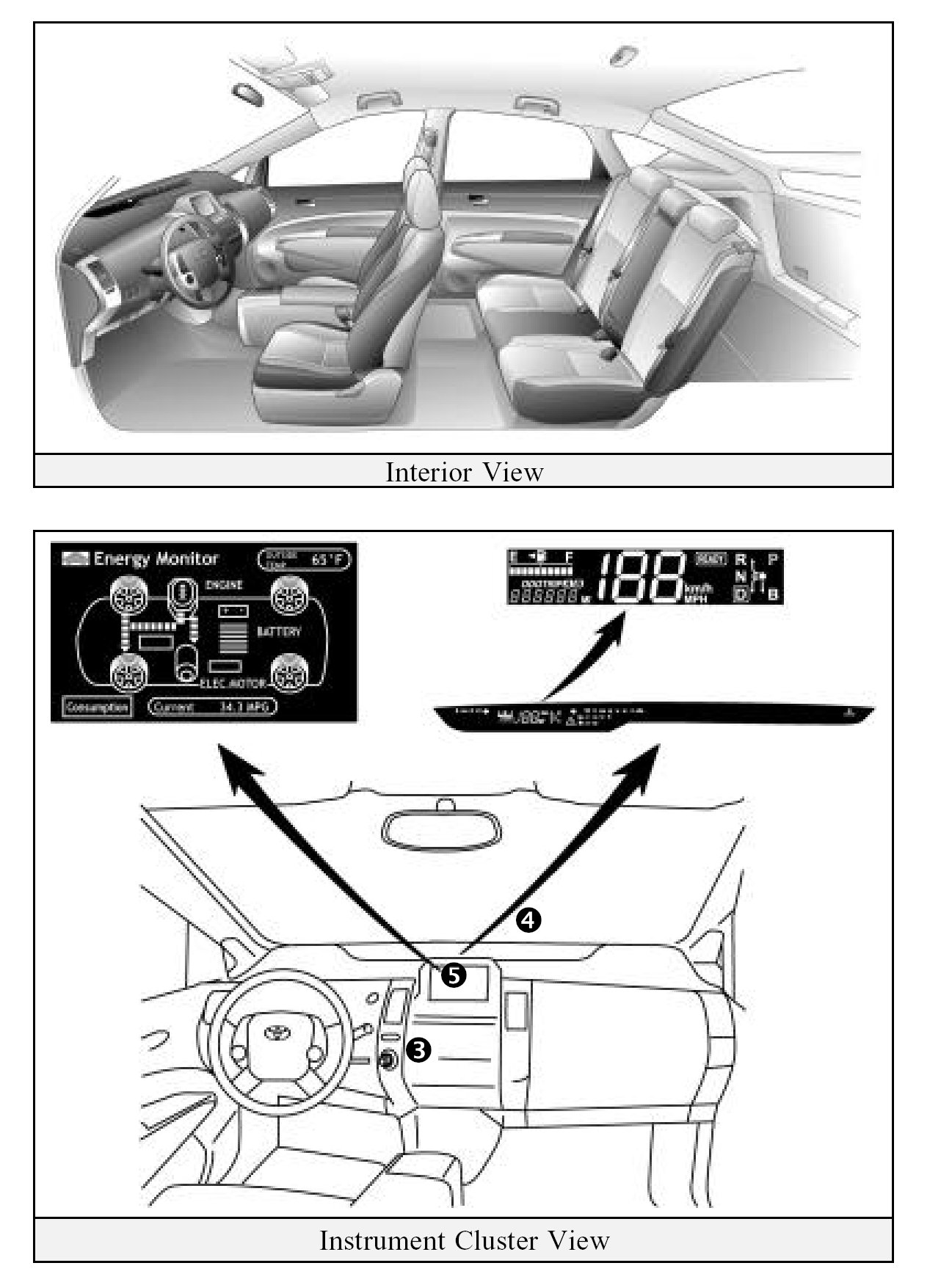

Interior



3 Dashboard mounted automatic transmission gearshift selector.
4 Instrument cluster (speedometer, fuel gauge, READY light, warning lights) located in center dash and near the base of the windshield.
5 LCD monitor (fuel consumption, energy monitor, radio controls, A/C controls) located above the center dash.

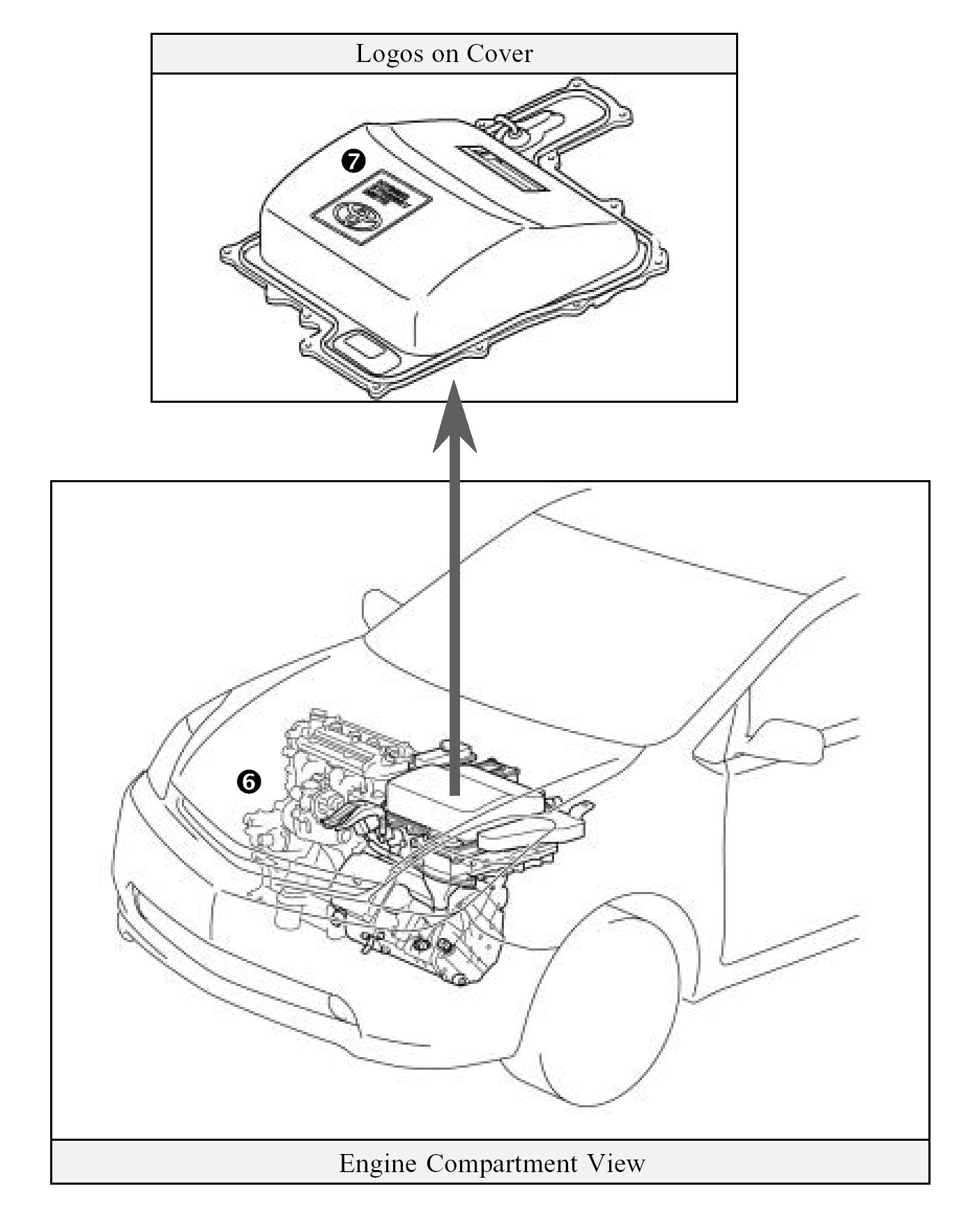

Engine Compartment



6 1.5 liter aluminum alloy gasoline engine.
7 High voltage inverter/converter assembly with the HYBRID SYNERGY DRIVE logos on the cover.
