Battery Cooling Fan: Service and Repair

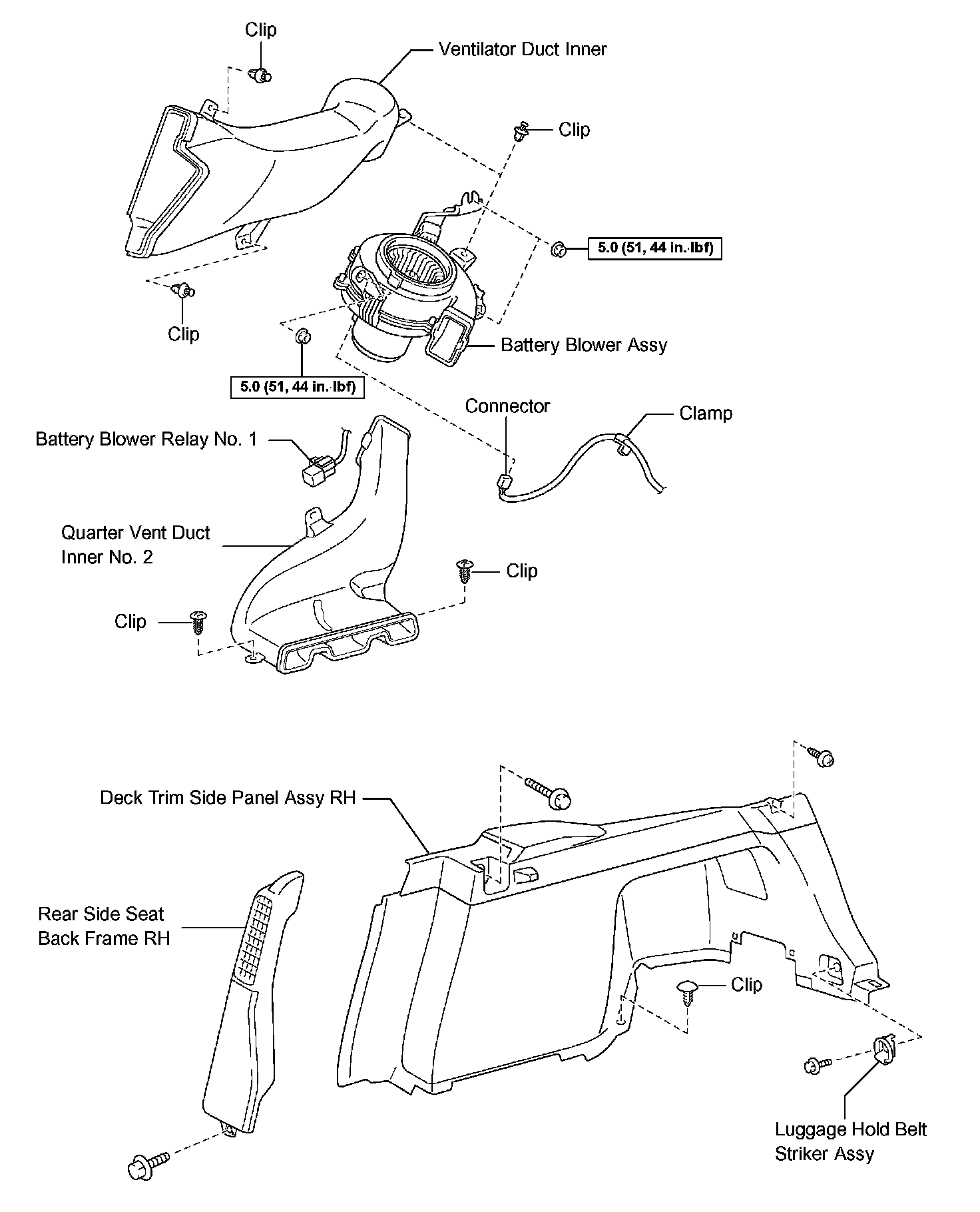

BATTERY BLOWER ASSY
REPLACEMENT

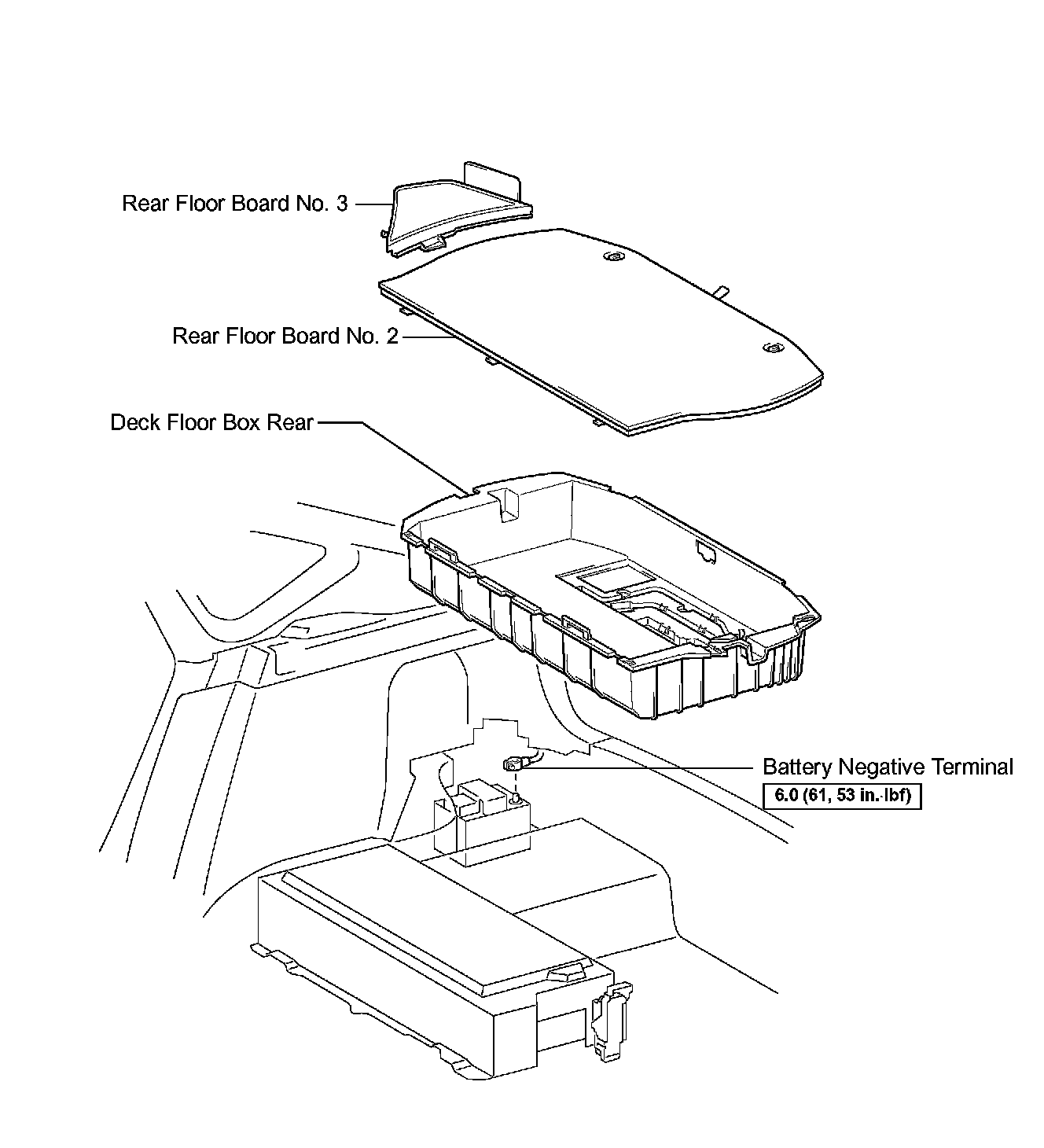

1. REMOVE REAR FLOOR BOARD NO.2
2. REMOVE DECK FLOOR BOX REAR
3. REMOVE REAR FLOOR BOARD NO.3
4. DISCONNECT BATTERY NEGATIVE TERMINAL
5. REMOVE DECK TRIM COVER REAR
6. REMOVE TONNEAU COVER ASSY
7. REMOVE REAR SEAT CUSHION ASSY
8. REMOVE REAR FLOOR BOARD NO.1
9. REMOVE REAR SIDE SEAT BACK FRAME RH
10. REMOVE DECK TRIM SIDE PANEL ASSY RH
11. REMOVE QUARTER VENT DUCT INNER NO.2





12. REMOVE VENTILATOR DUCT INNER

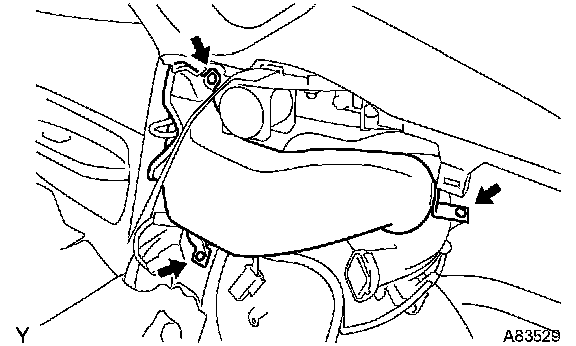

a. Remove the 3 clips and ventilator duct inner.





13. REMOVE BATTERY BLOWER ASSY

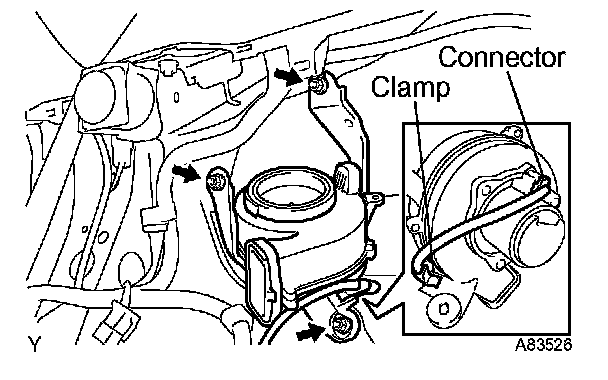

a. Remove the 3 nuts, then disconnect the battery blower assembly from the vehicle.
b. Remove the connector, clamp and battery blower assembly.





14. INSTALL BATTERY BLOWER ASSY

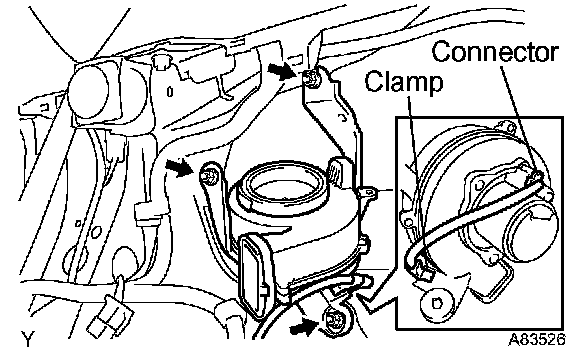

a. Connect the connector to the battery blower assembly.
b. Install the clamp on the battery blower assembly.
c. Install the battery blower assembly with the 3 nuts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
15. INSTALL VENTILATOR DUCT INNER
16. INSTALL QUARTER VENT DUCT INNER NO.2
17. INSTALL DECK TRIM SIDE PANEL ASSY RH
18. INSTALL REAR SIDE SEAT BACK FRAME RH
19. INSTALL REAR FLOOR BOARD NO.1
20. INSTALL REAR SEAT CUSHION ASSY
21. INSTALL TONNEAU COVER ASSY
22. INSTALL DECK TRIM COVER REAR
23. CONNECT BATTERY NEGATIVE TERMINAL
Torque: 6.0 Nm (61 kgf-cm, 53 inch lbs.)
24. INSTALL REAR FLOOR BOARD NO.3
25. INSTALL DECK FLOOR BOX REAR
26. INSTALL REAR FLOOR BOARD NO.2
27. POWER WINDOW CONTROL SYSTEM INITIALIZE
