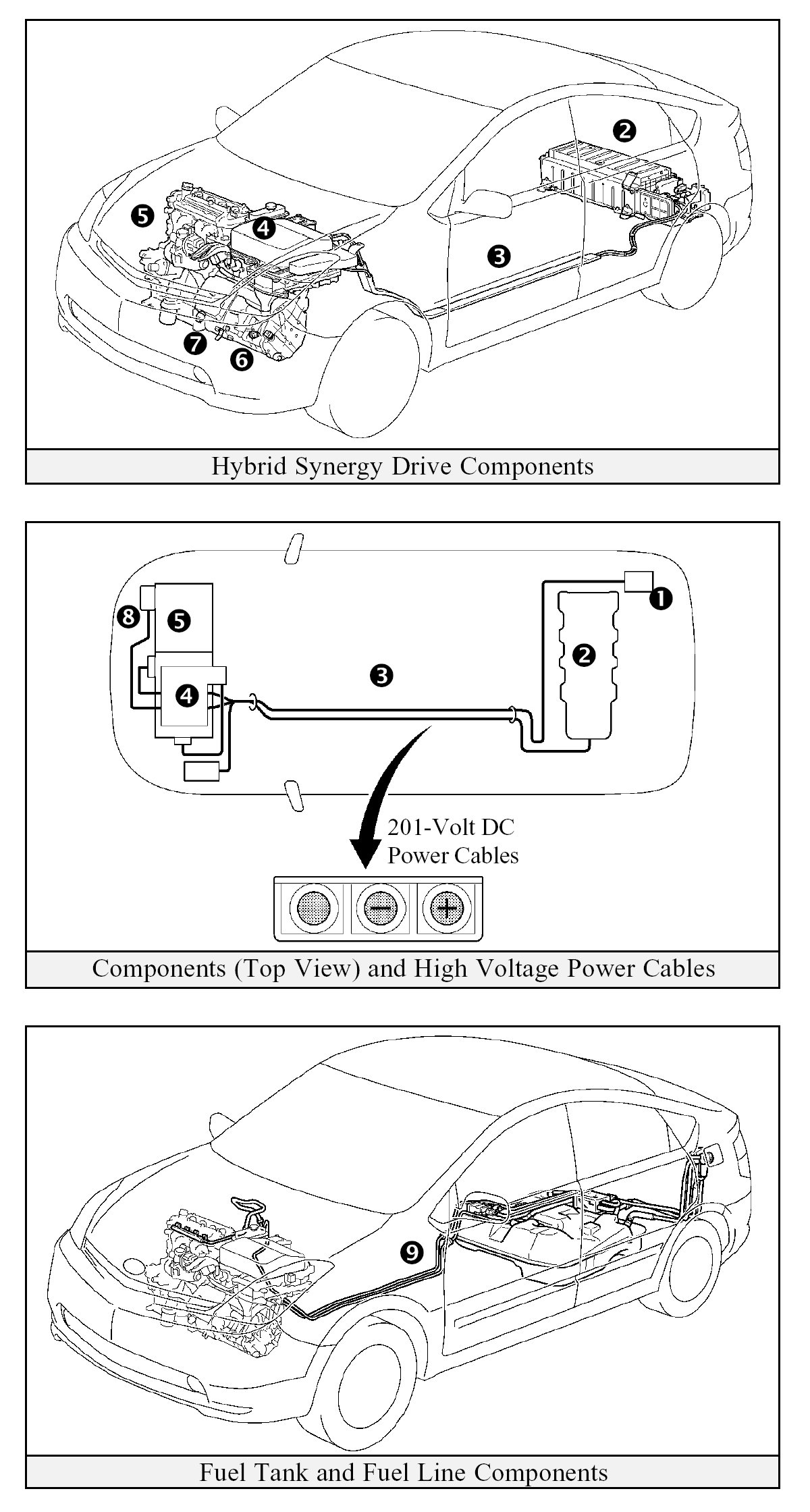

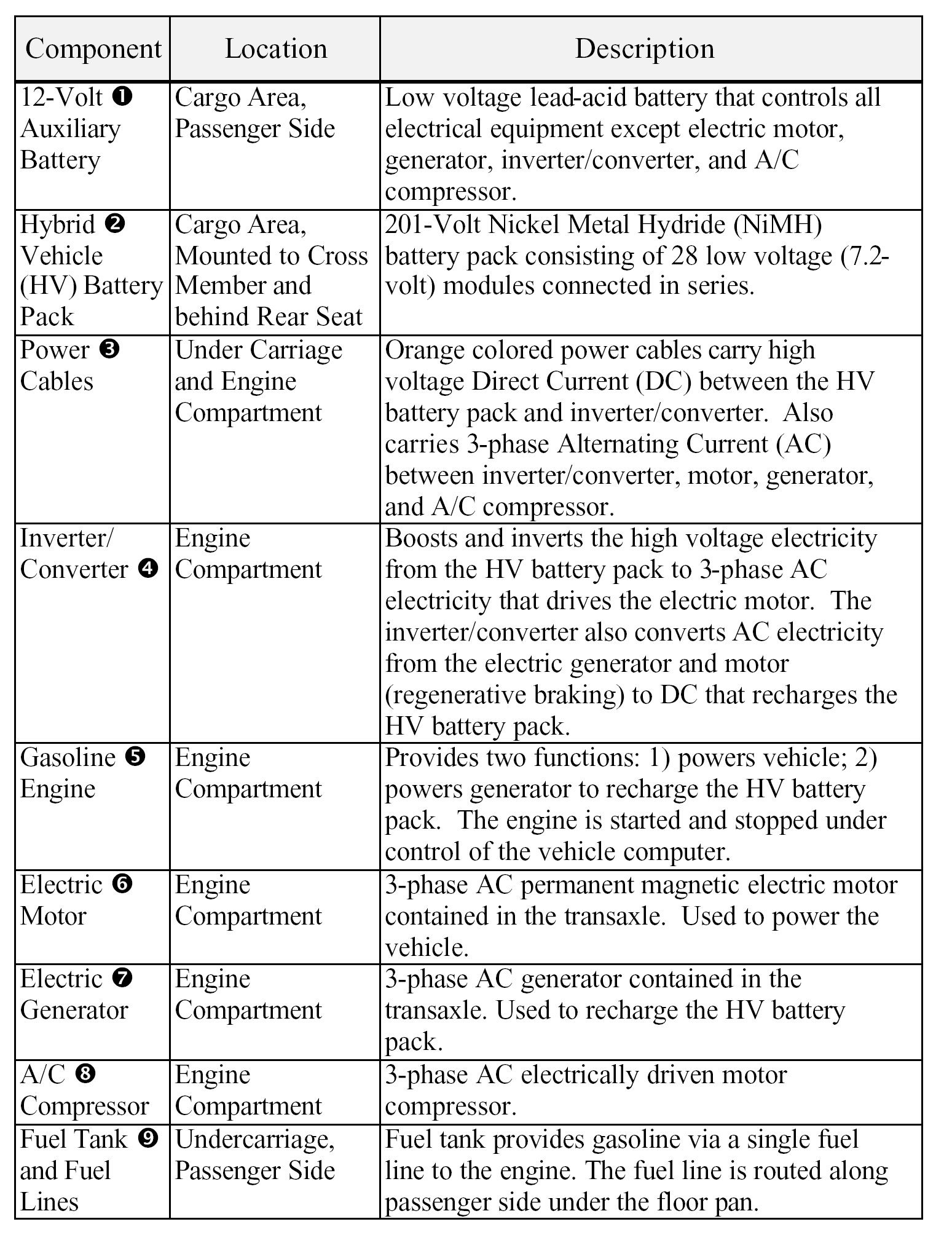

Hybrid Synergy Drive Component Locations & Descriptions

Hybrid Synergy Drive Component Locations & Descriptions

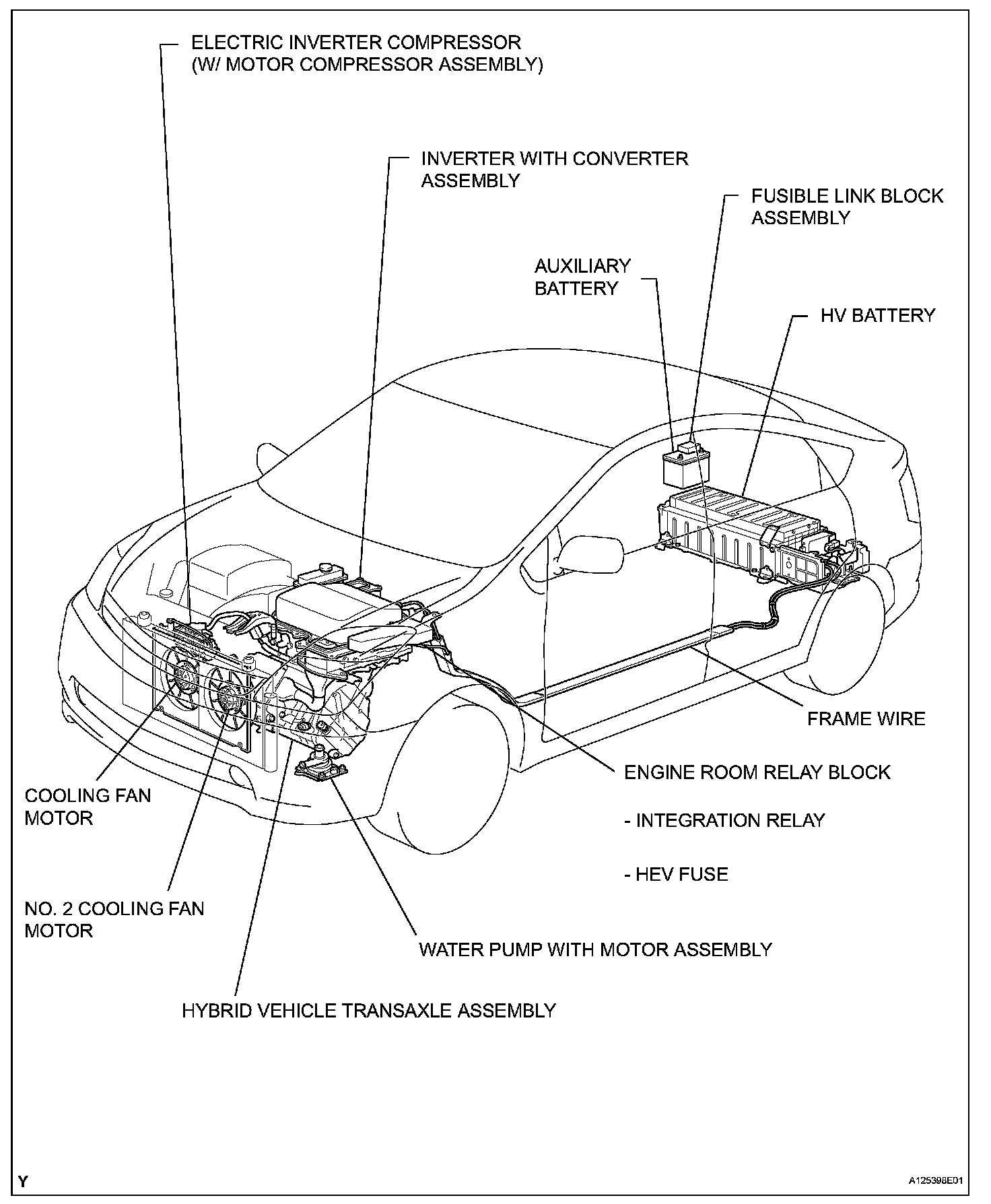

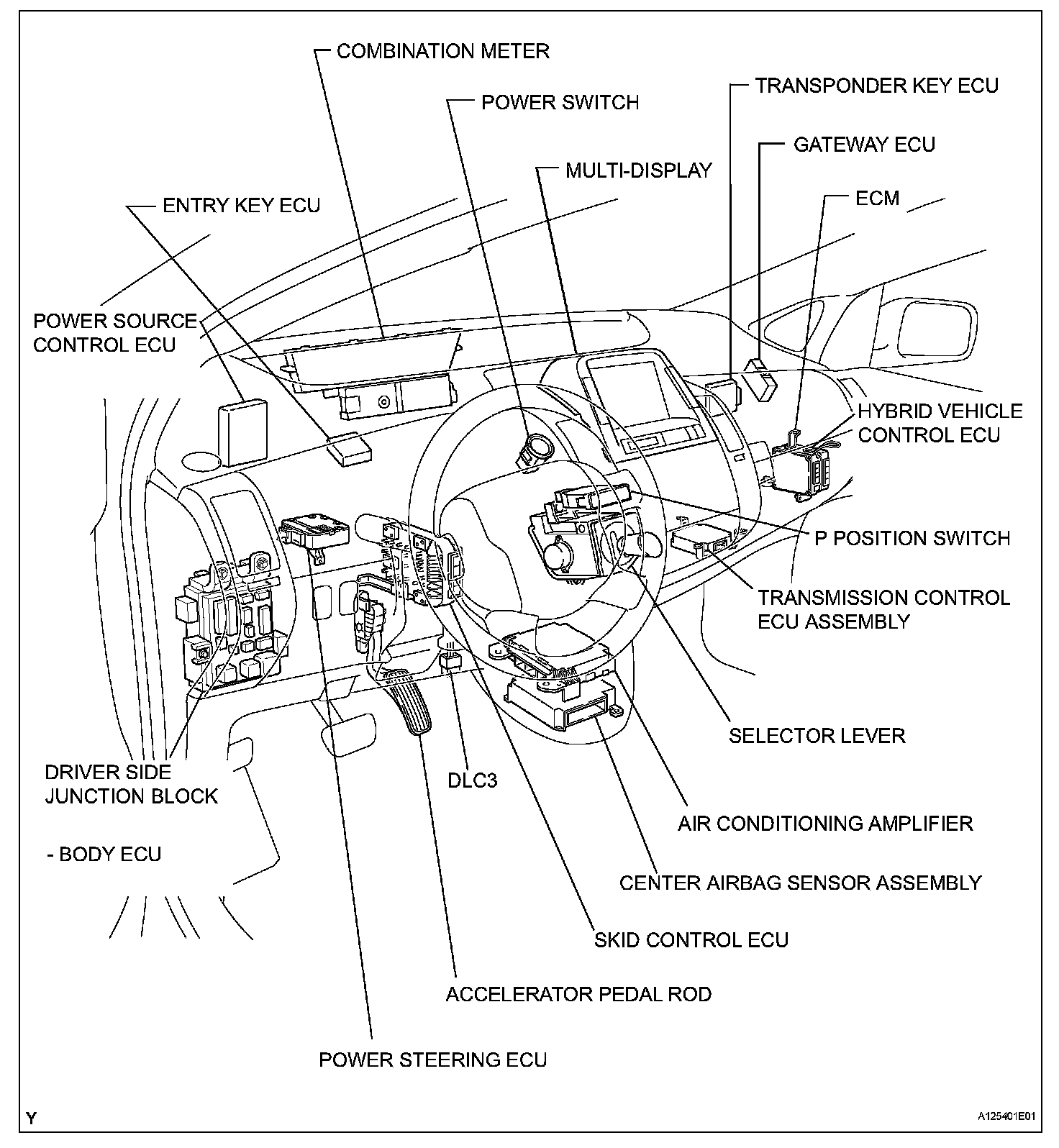

Hybrid Control System:

Key Specifications:
Gasoline Engine: 76 hp, 1.5 liter Aluminum Alloy Engine
Electric Motor: 67 hp, Permanent Magnet Motor
Transmission: Automatic Only

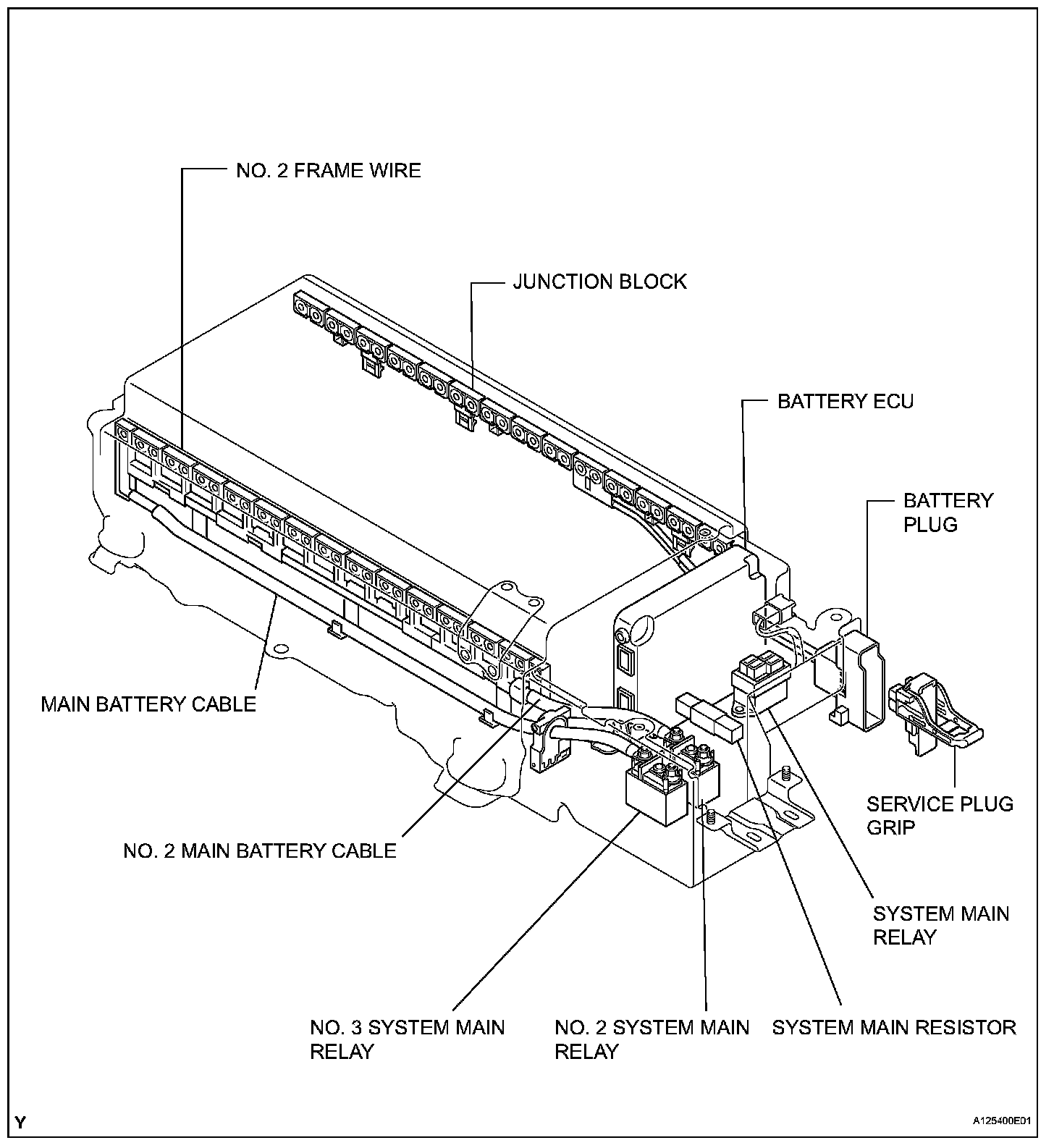

HV Battery: 201-Volt Sealed NiMH
Curb Weight: 2,890 lbs
Fuel Tank: 11.9 gals
Miles Per Gallon: 60/51 mpg (City/Hwy)
Liters/100 km: 4.0/4.2 L/100 km (City/Hwy)

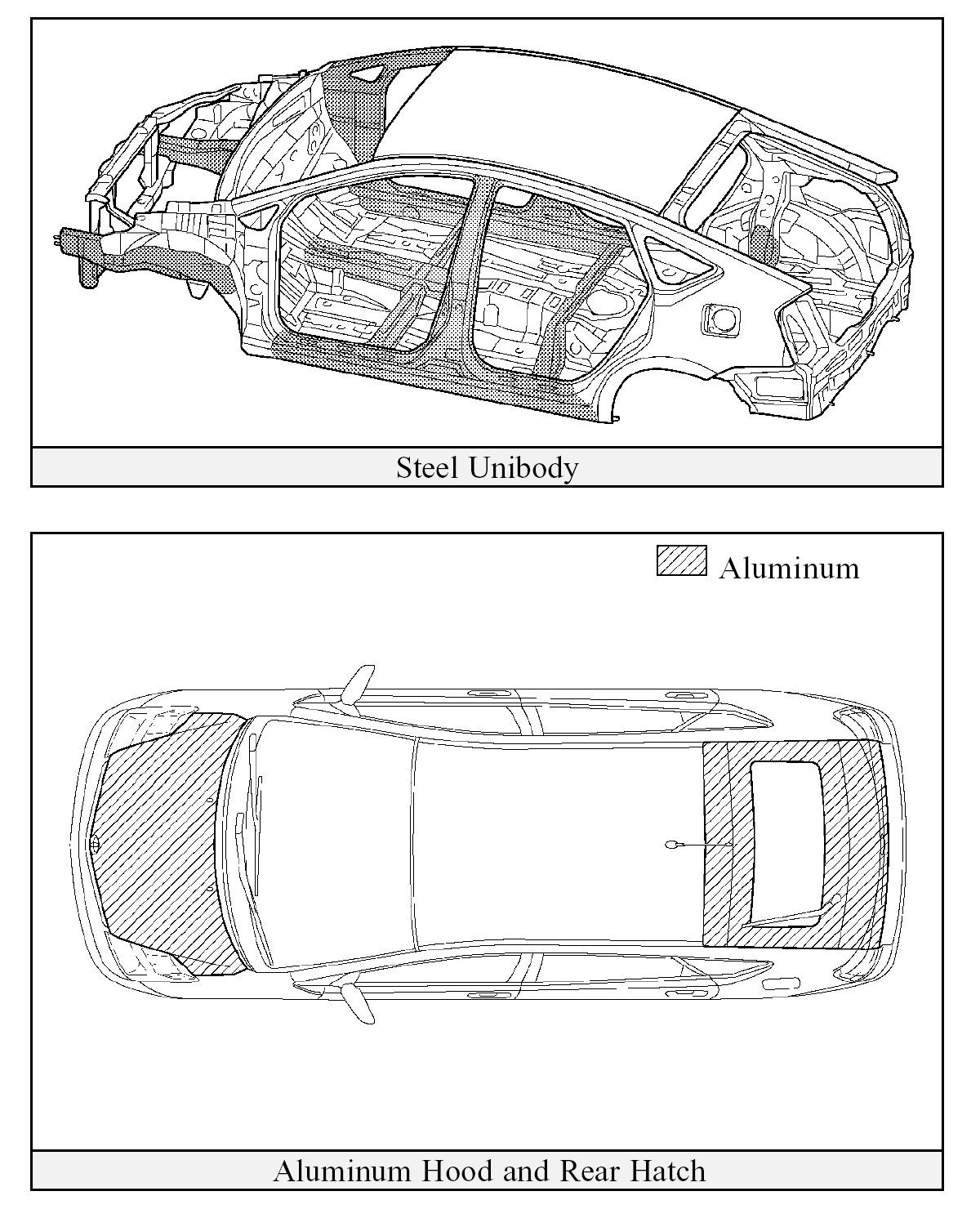

Frame Material: Steel unibody
Body Material: Steel panels except aluminum hood and rear hatch.
