Water Pump With Motor

WATER W/MOTOR & BRACKET PUMP ASSY
REPLACEMENT
1. REMOVE RADIATOR SUPPORT OPENING COVER
2. REMOVE ENGINE UNDER COVER LH
3. REMOVE ENGINE UNDER COVER RH
4. DRAIN HV COOLANT





5. REMOVE WATER W/BRACKET VALVE ASSY

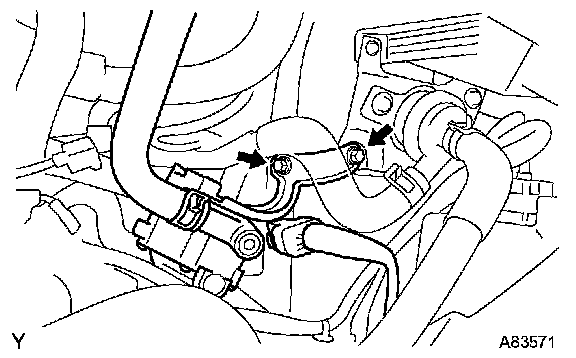

a. Remove the bolt and nut, then disconnect the water valve.
6. REMOVE WATER W/MOTOR & BRACKET PUMP ASSY

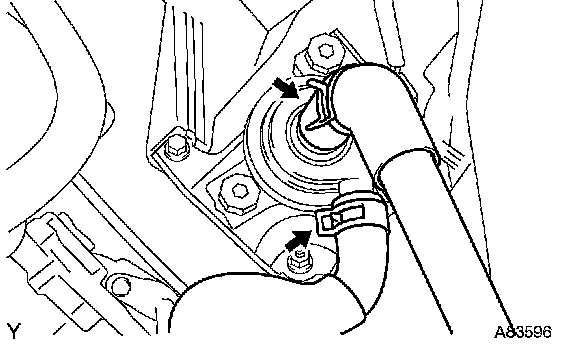

a. Disconnect the 2 inverter cooling hoses shown in the illustration.

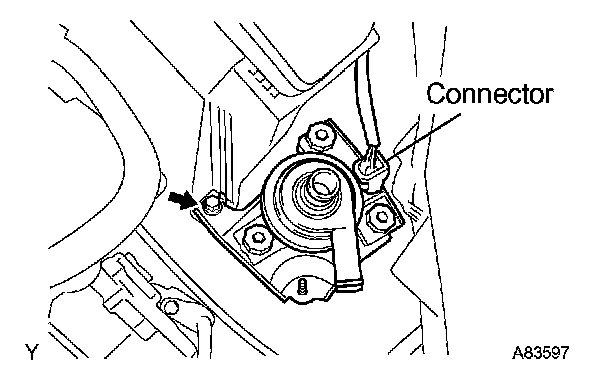

b. Remove the bolt, then disconnect the water with motor and bracket pump from the vehicle.
c. Disconnect the connector and remove the water pump with motor and bracket pump.
7. INSTALL WATER W/MOTOR & BRACKET PUMP ASSY
a. Connect the connector.
b. Install the water with motor and bracket pump with the bolt.
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
c. Connect the 2 inverter cooling hoses.
8. INSTALL WATER W/BRACKET VALVE ASSY
a. Install the water valve with the bolt and nut.
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
9. ADD HV COOLANT
10. CHECK FOR ENGINE COOLANT LEAKS
11. INSTALL ENGINE UNDER COVER RH
12. INSTALL ENGINE UNDER COVER LH
13. INSTALL RADIATOR SUPPORT OPENING COVER
