Hybrid Vehicle Control System

Hybrid Vehicle Control System:




Hybrid Vehicle Control System:

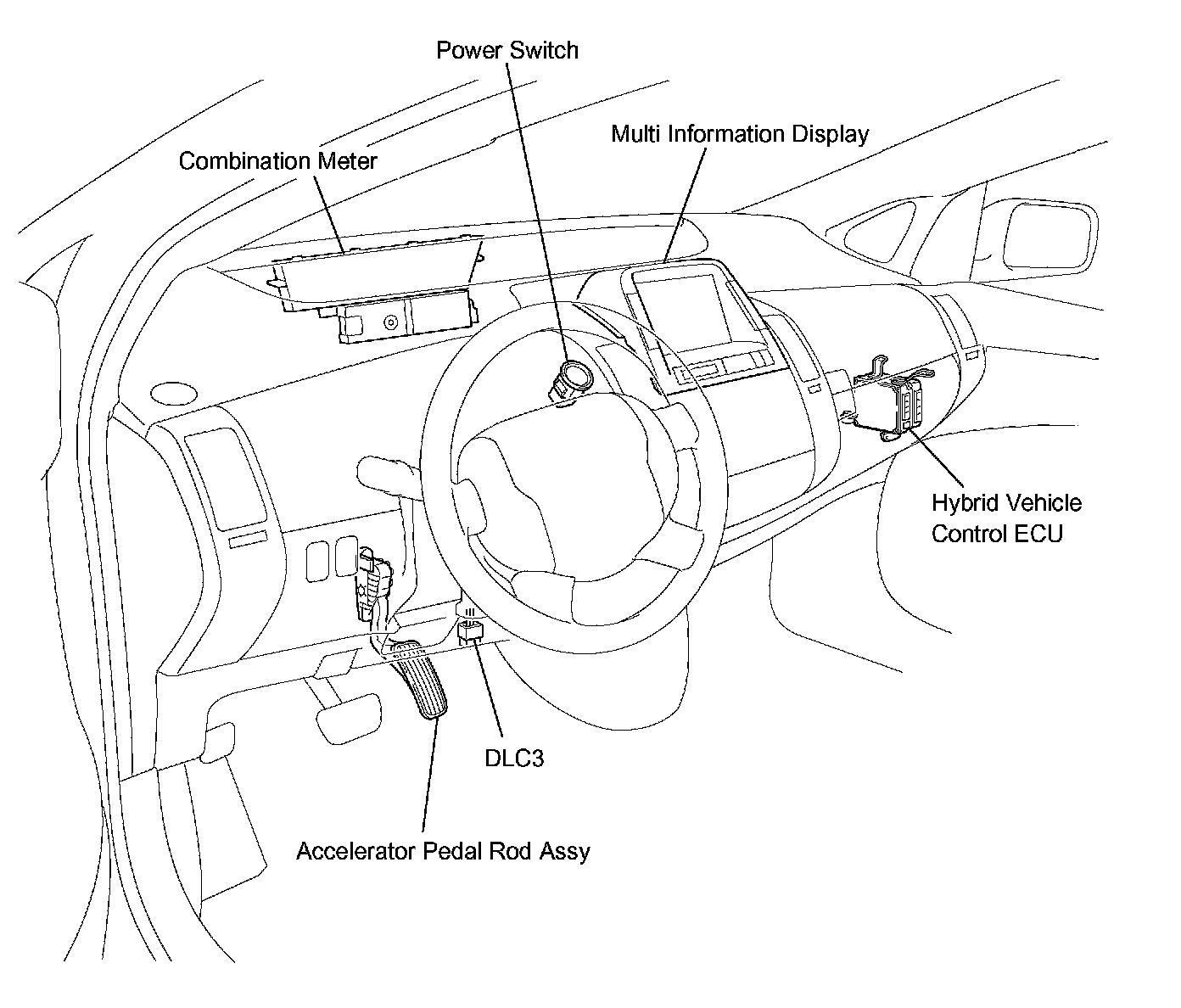

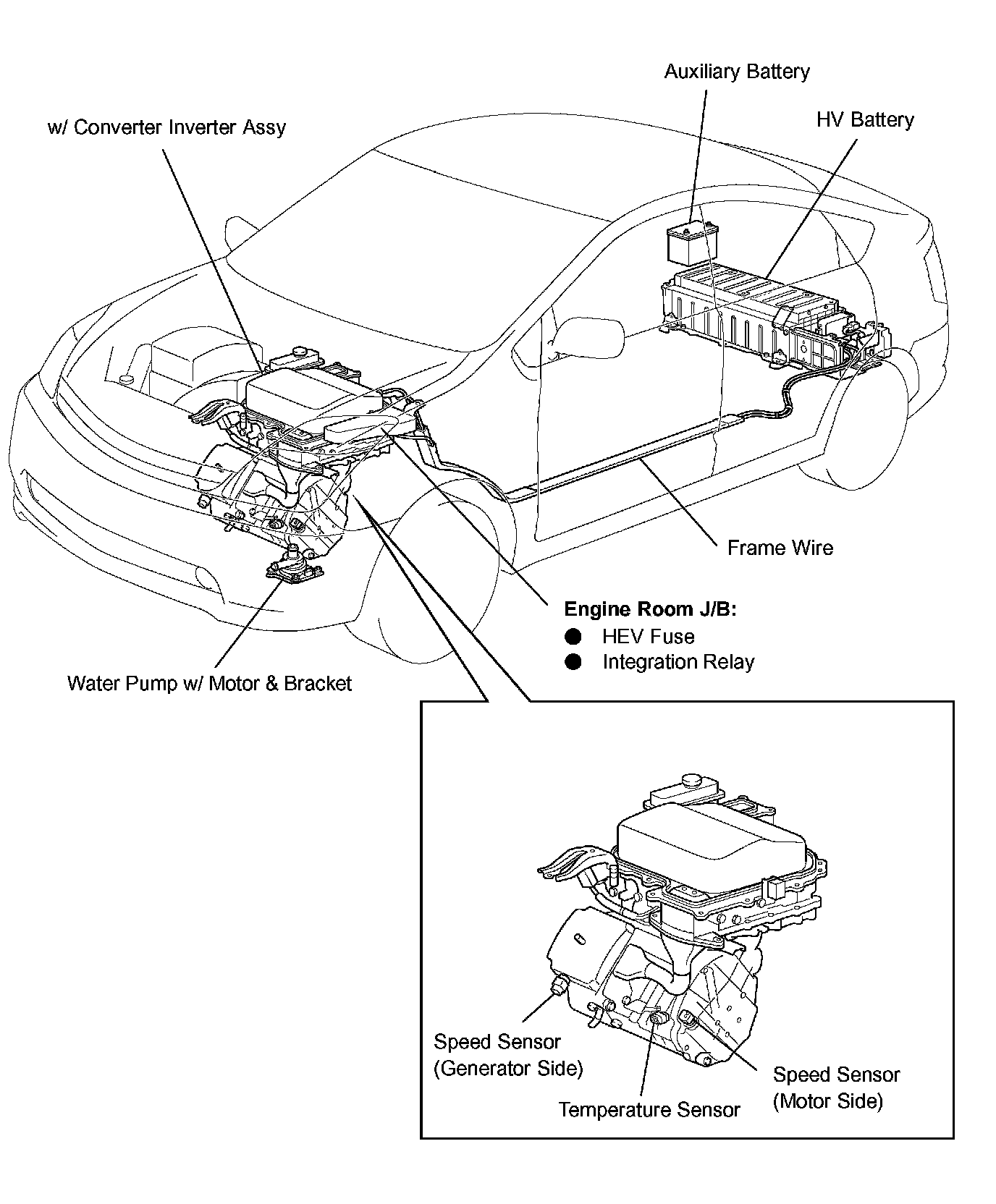

HYBRID CONTROL SYSTEM LOCATION
