Fail-Safe Chart
Fail-Safe Chart

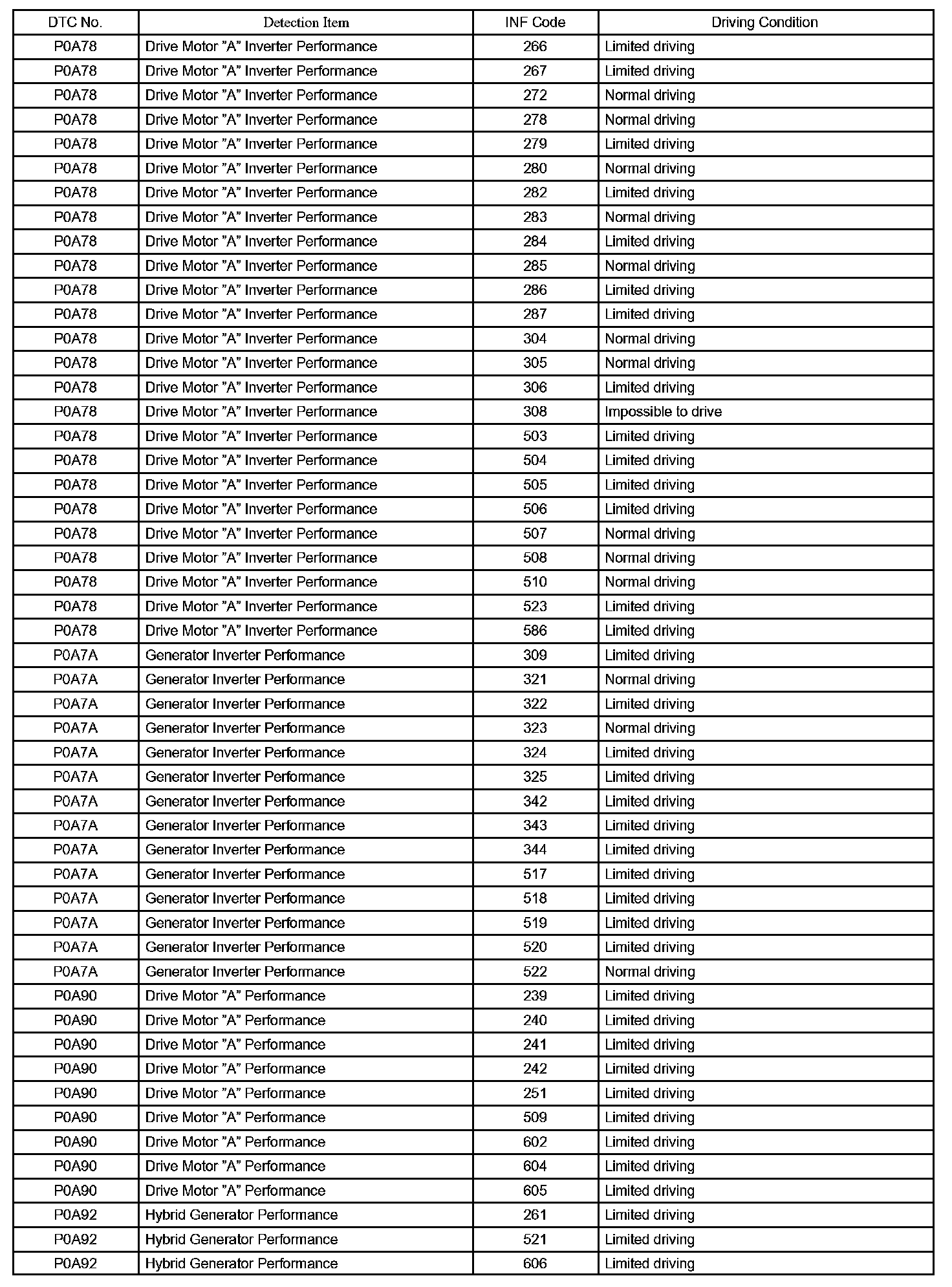

Fail-Safe Chart Part 1:

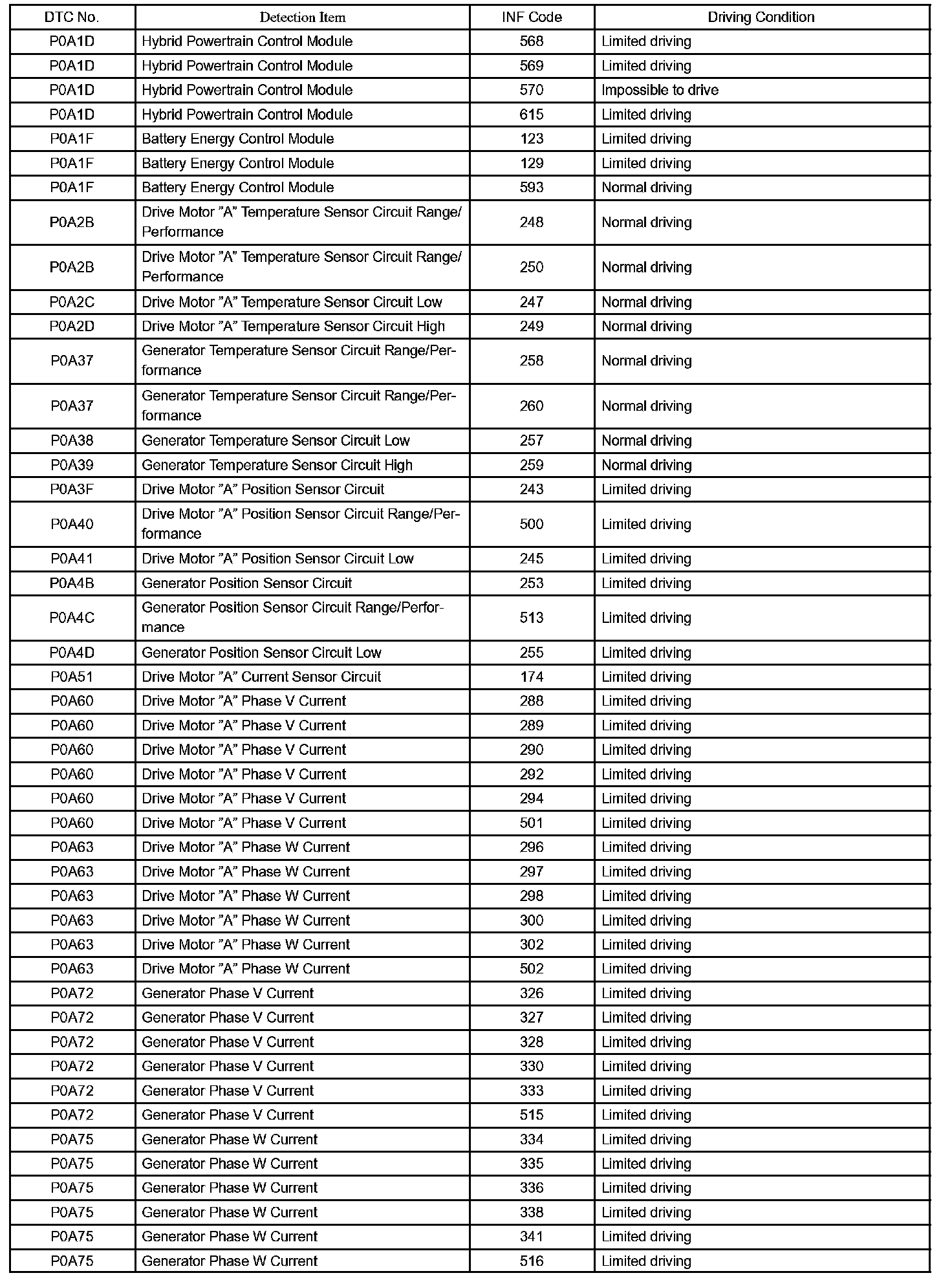

Fail-Safe Chart Part 2:

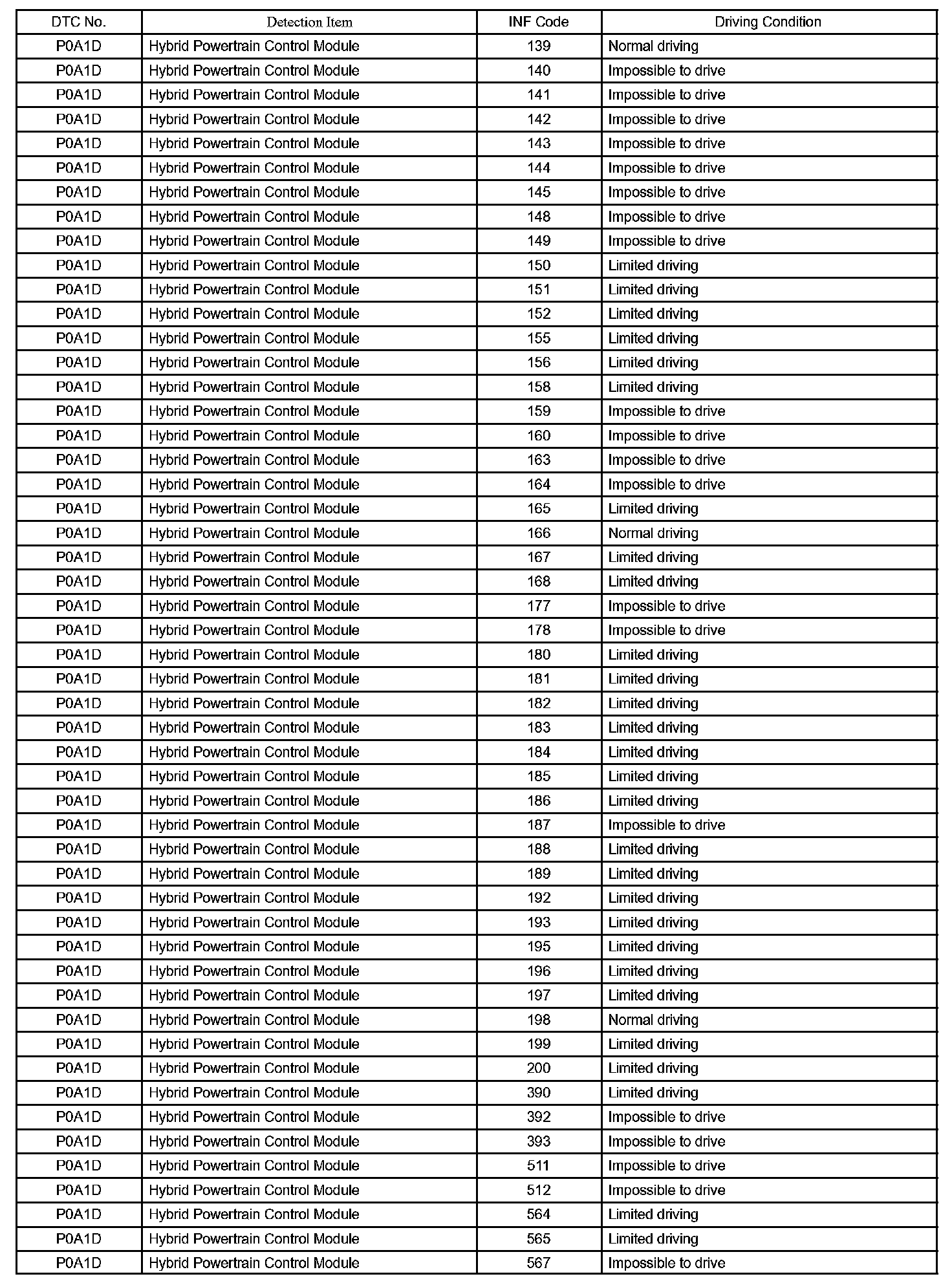

Fail-Safe Chart Part 3:

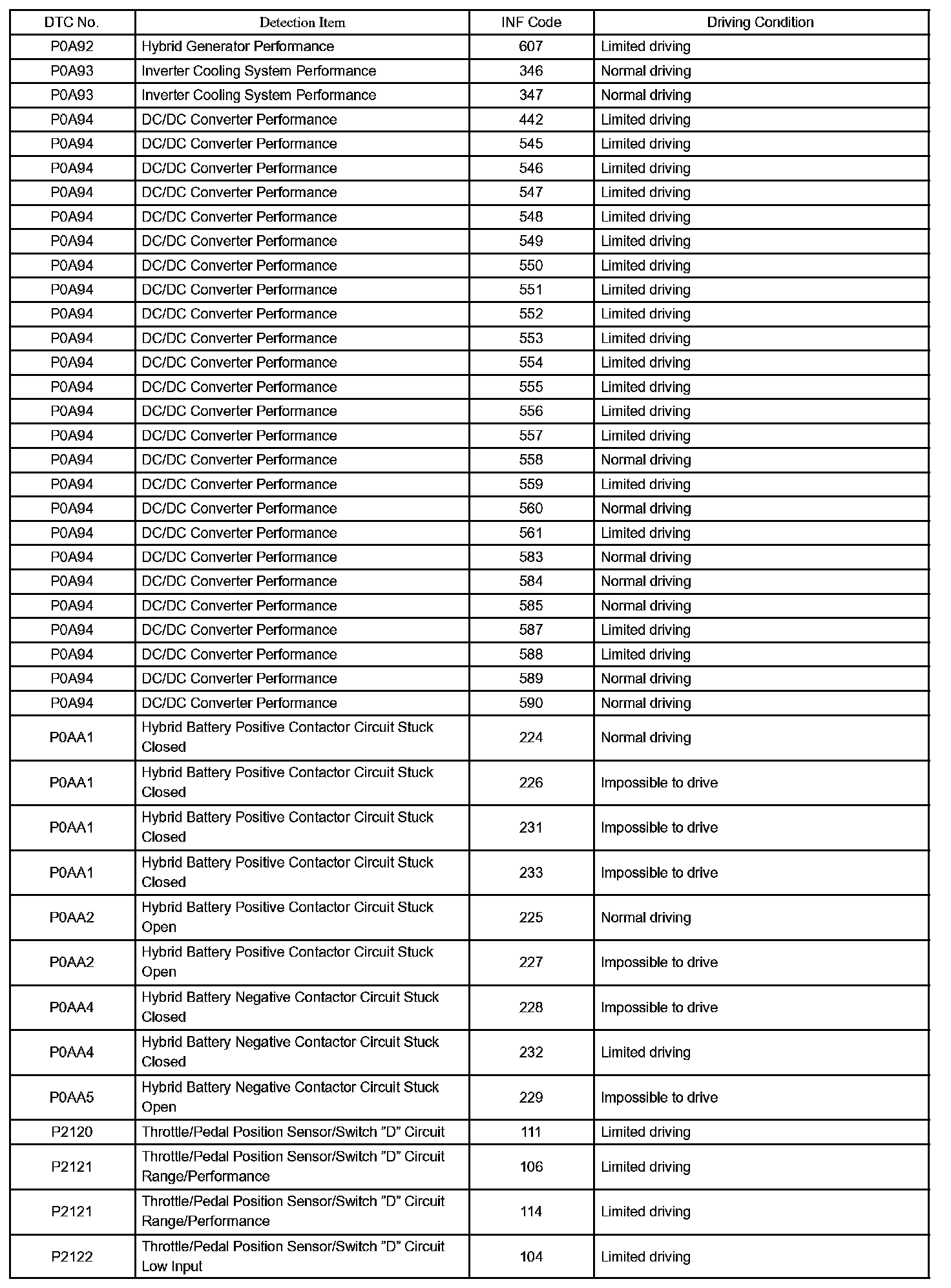

Fail-Safe Chart Part 4:

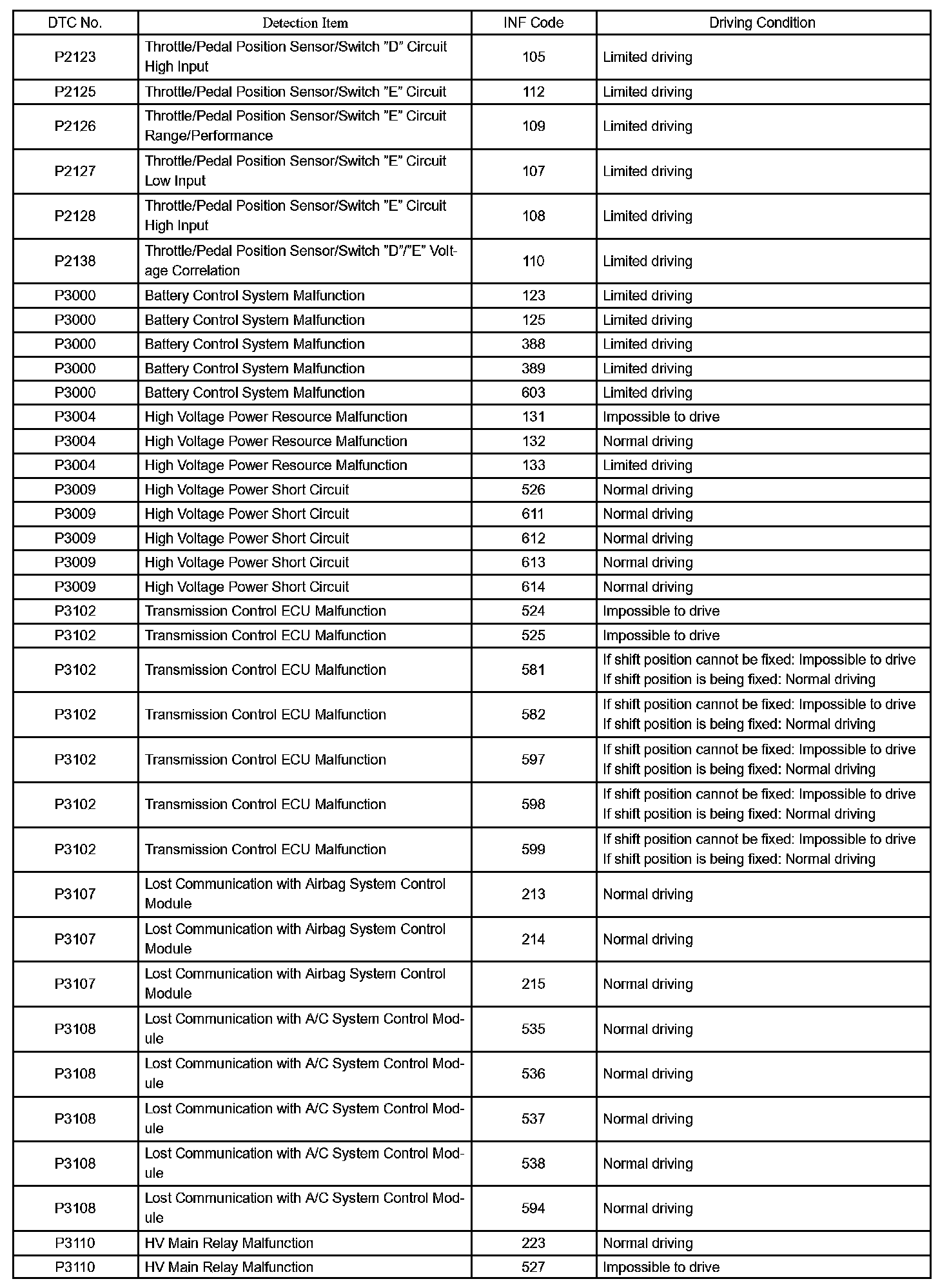

Fail-Safe Chart Part 5:

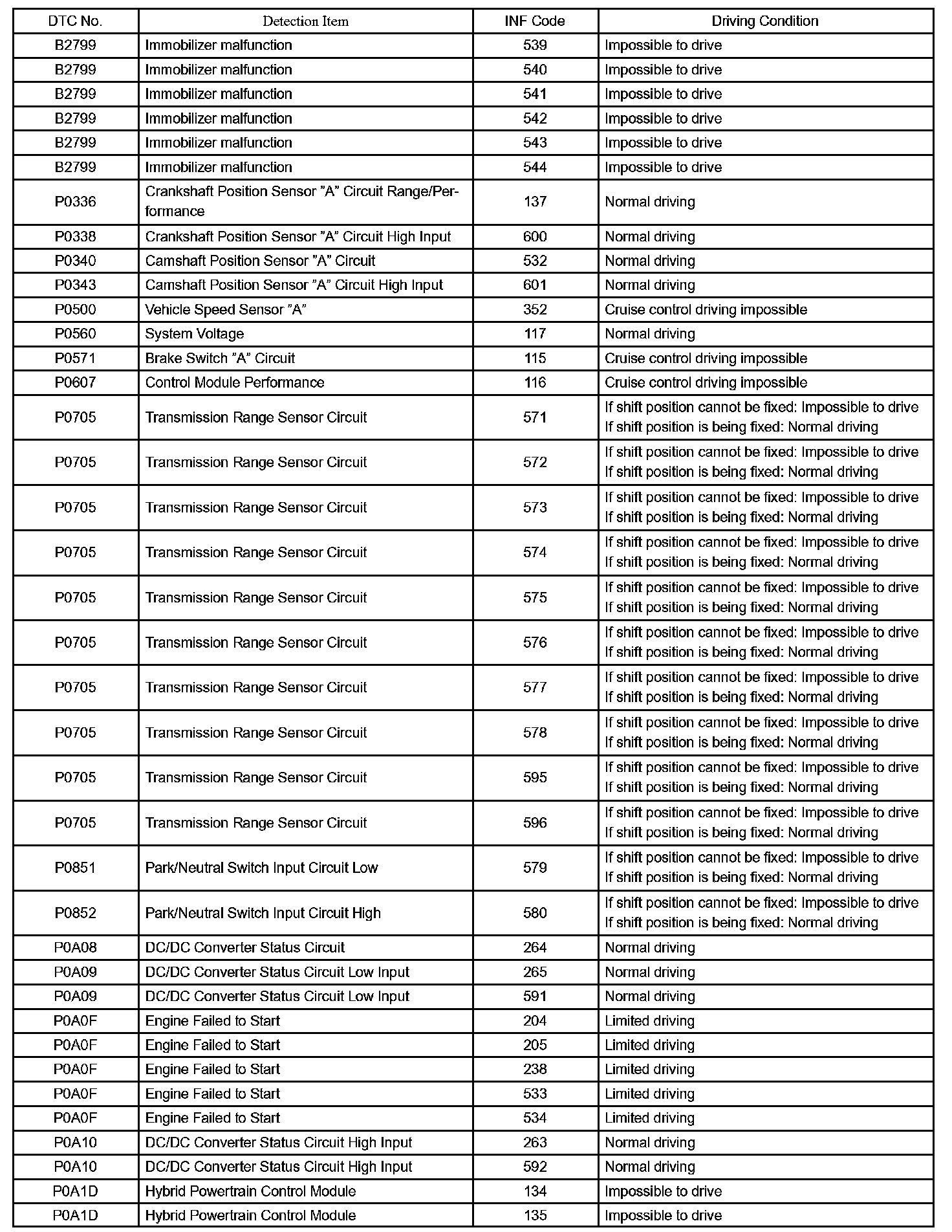

Fail-Safe Chart Part 6:

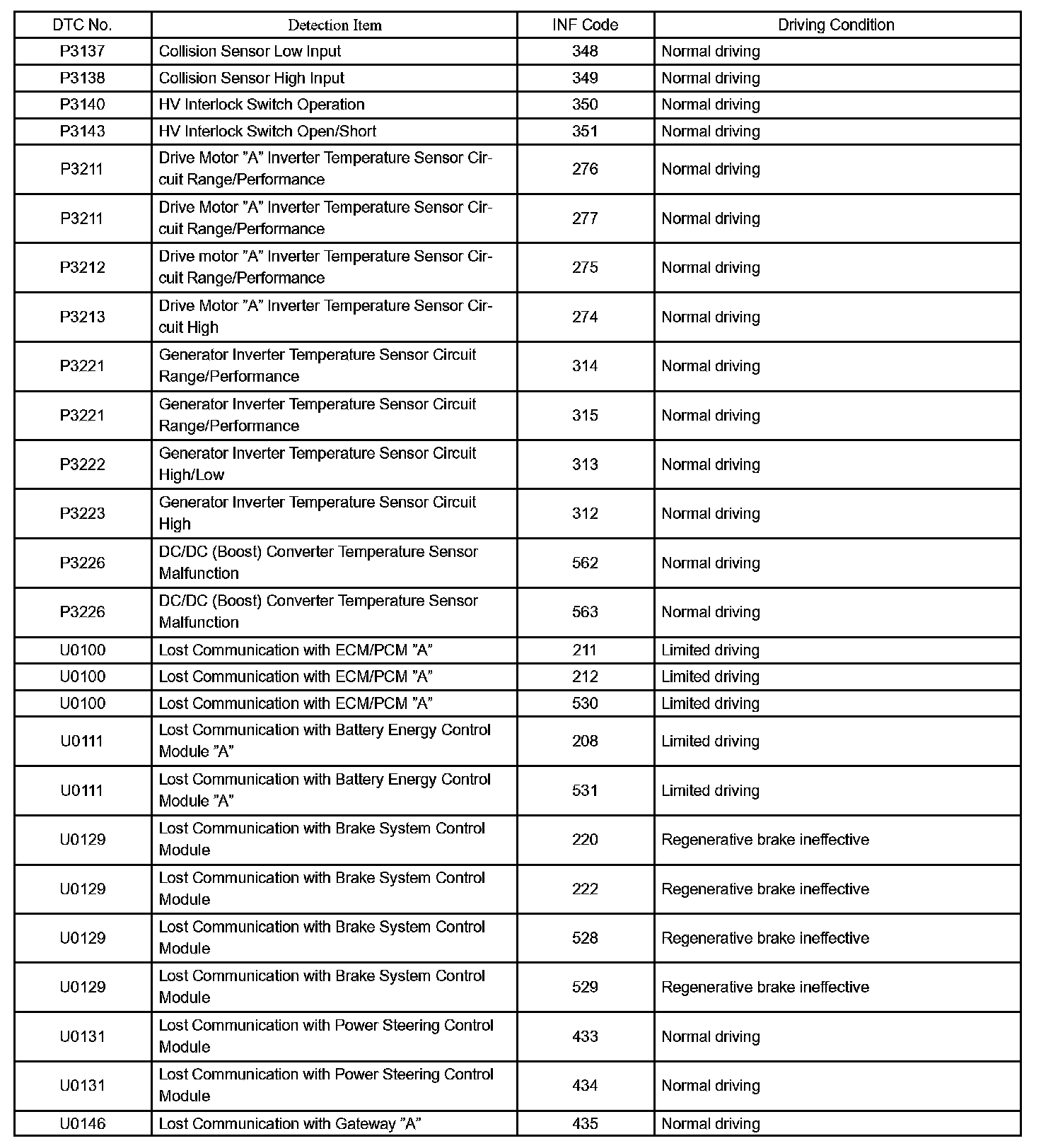

Fail-Safe Chart Part 7:
