Hv Battery Control System

TERMINALS OF ECU

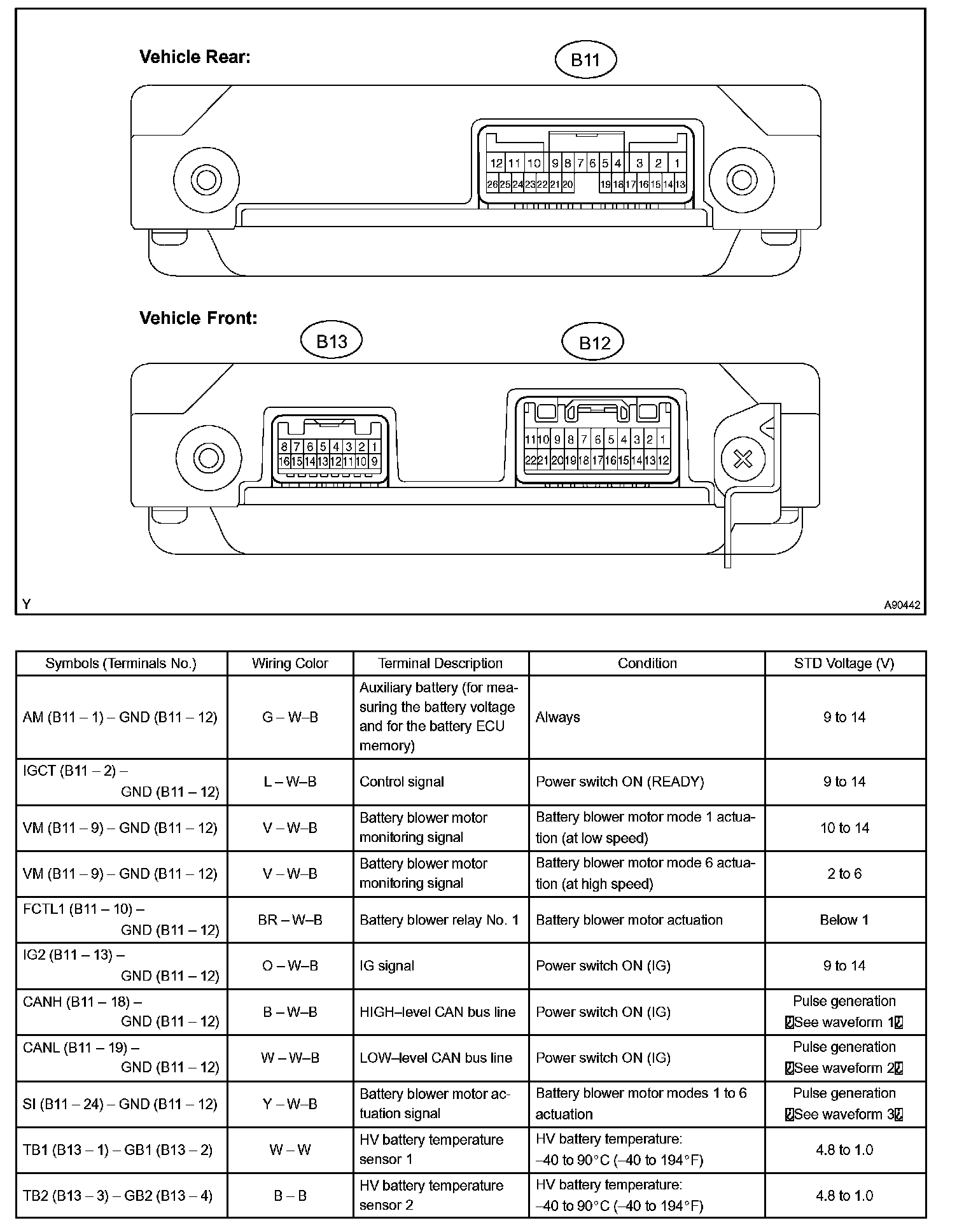

Terminals Of ECU/Pinouts Part 1:

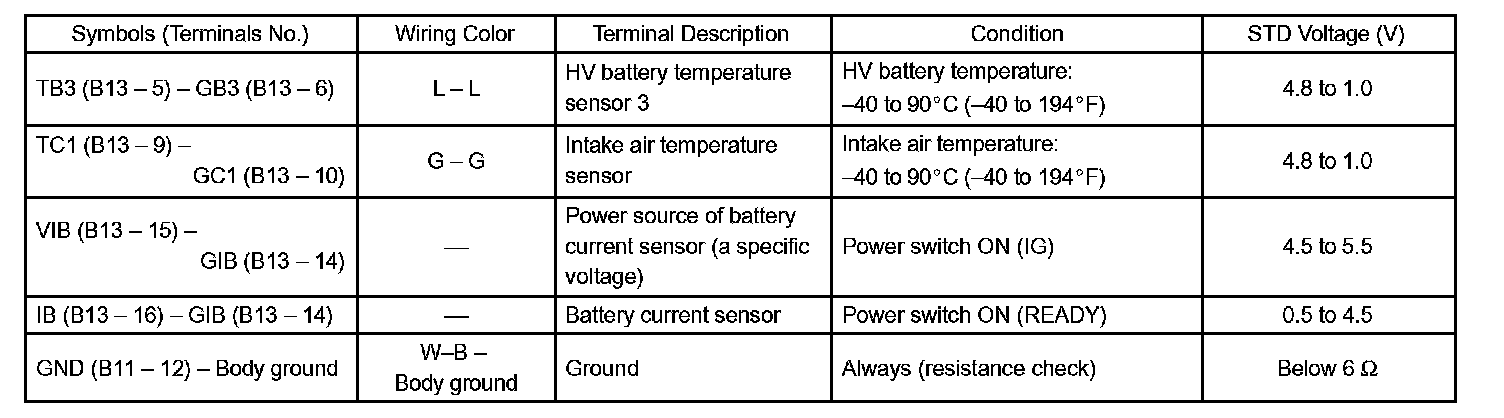

Terminals Of ECU/Pinouts Part 2:






Oscilloscope waveforms

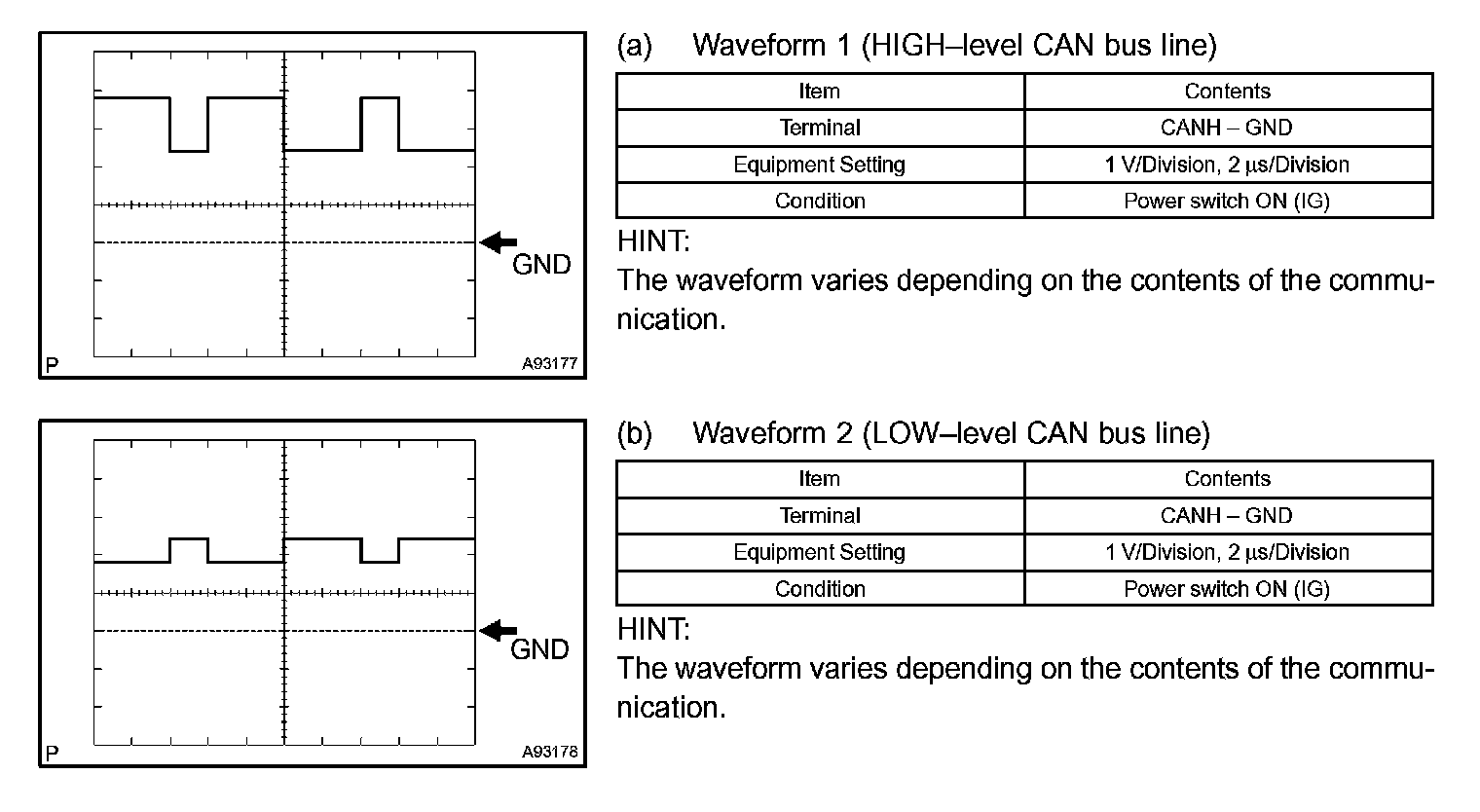

Oscilloscope Waveforms Part 1:

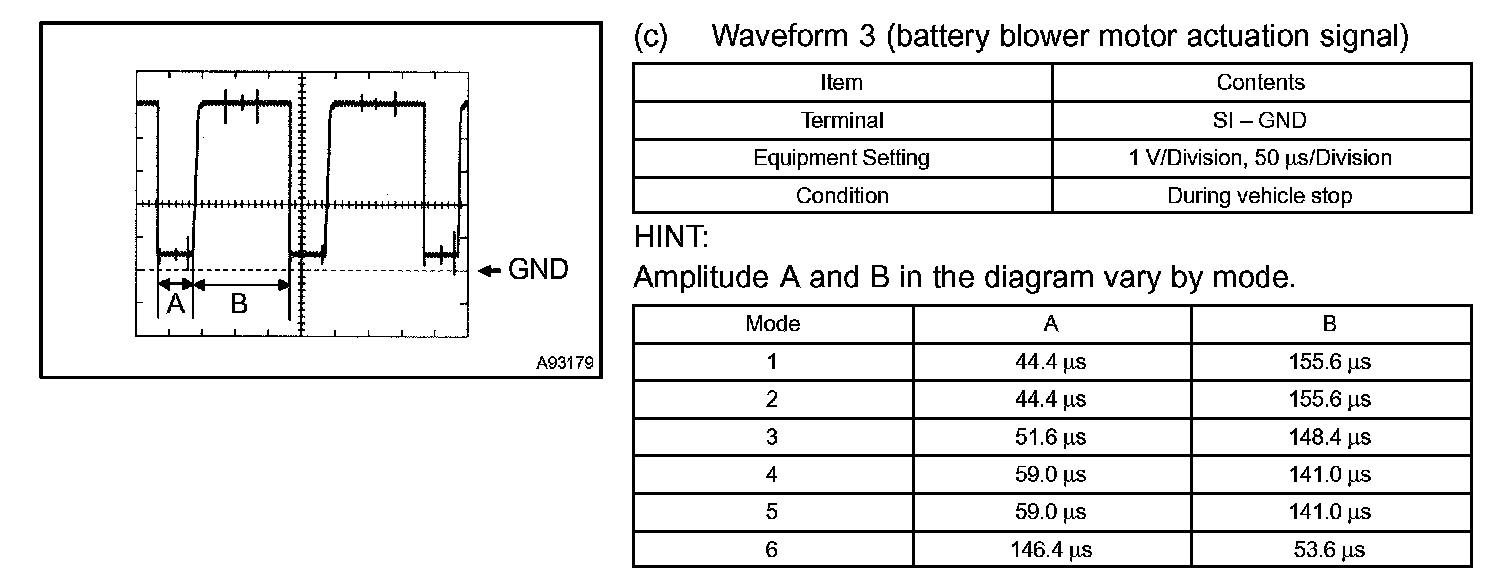

Oscilloscope Waveforms Part 2:






HINT: The waveforms are provided for informational purposes. Noise and fluttering waveforms have been omitted.
