Push Button Start System
TERMINALS OF ECUTerminals Of ECU/Pinouts:
1. CHECK POWER SOURCE CONTROL ECU

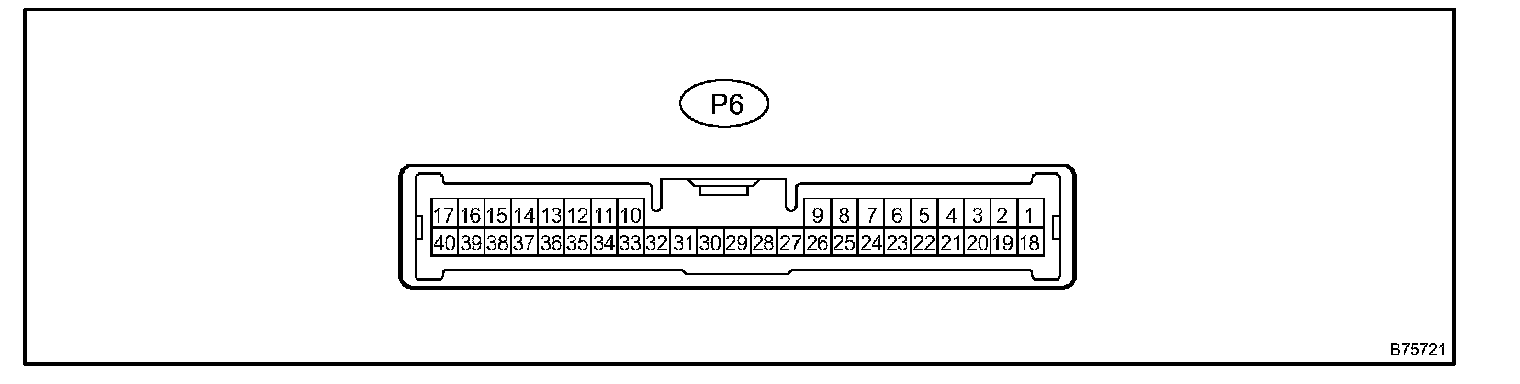

a. Disconnect the P6 ECU connector.
b. Measure the resistance and voltage of each terminal of the wire harness side connector.

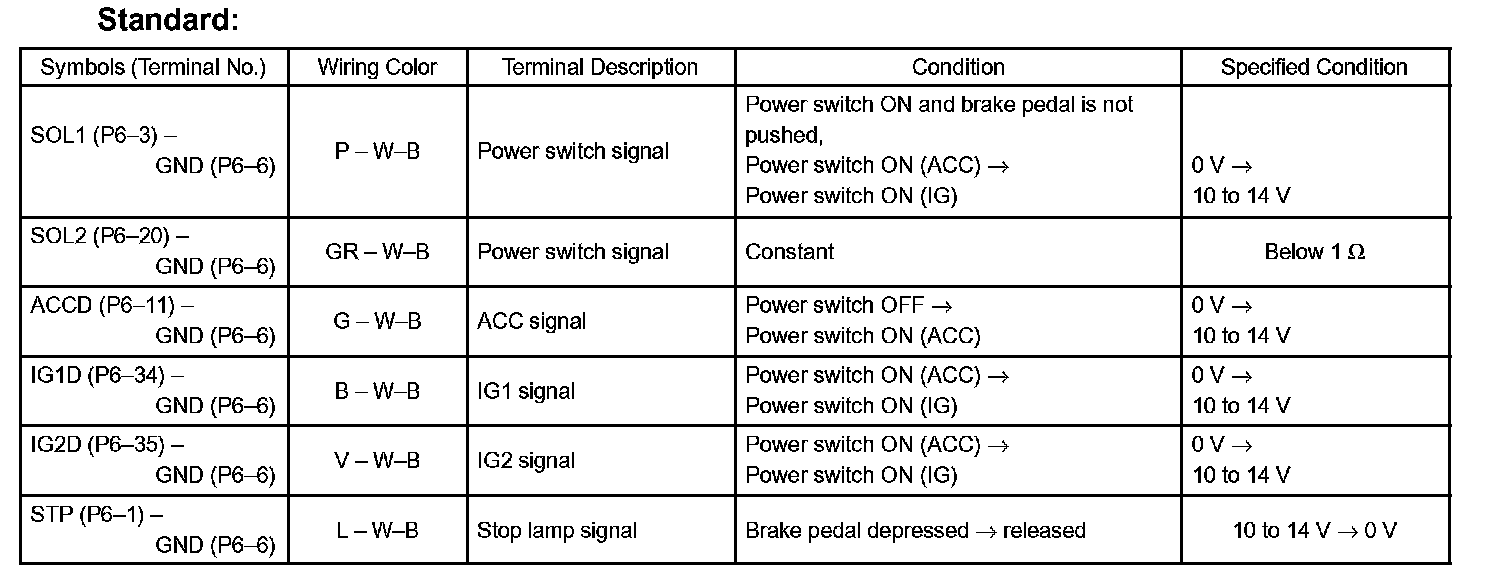

Standard:
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the P6 ECU connector.
d. Measure the resistance and voltage of each terminal of the connector.
Standard:
If the result is not as specified, the ECU may have a malfunction.
Terminals Of ECU/Pinouts:
2. CHECK TRANSPONDER KEY ECU ASSY

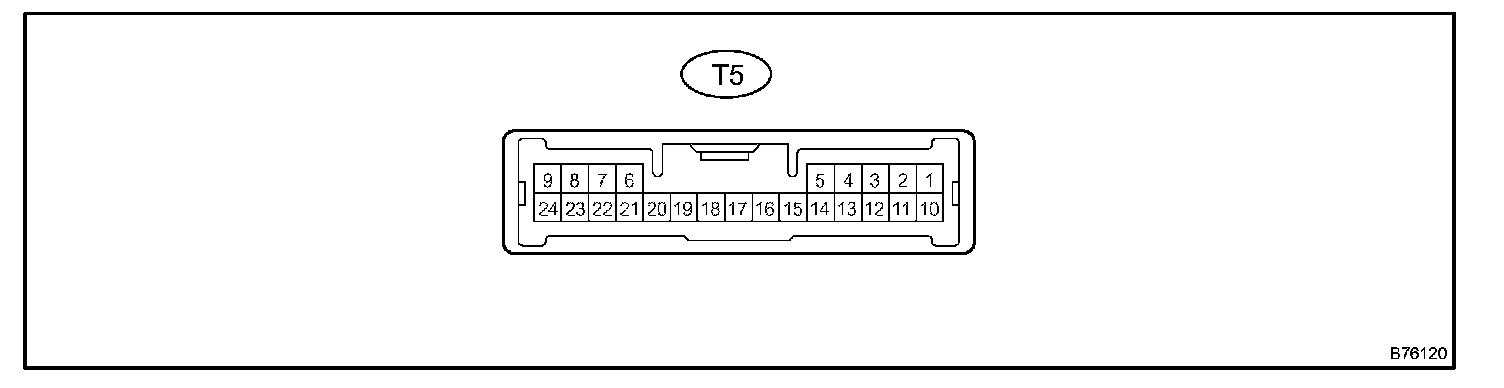

a. Disconnect the T5 ECU connector.
b. Measure the resistance and voltage between each terminal of the wire harness side connector.

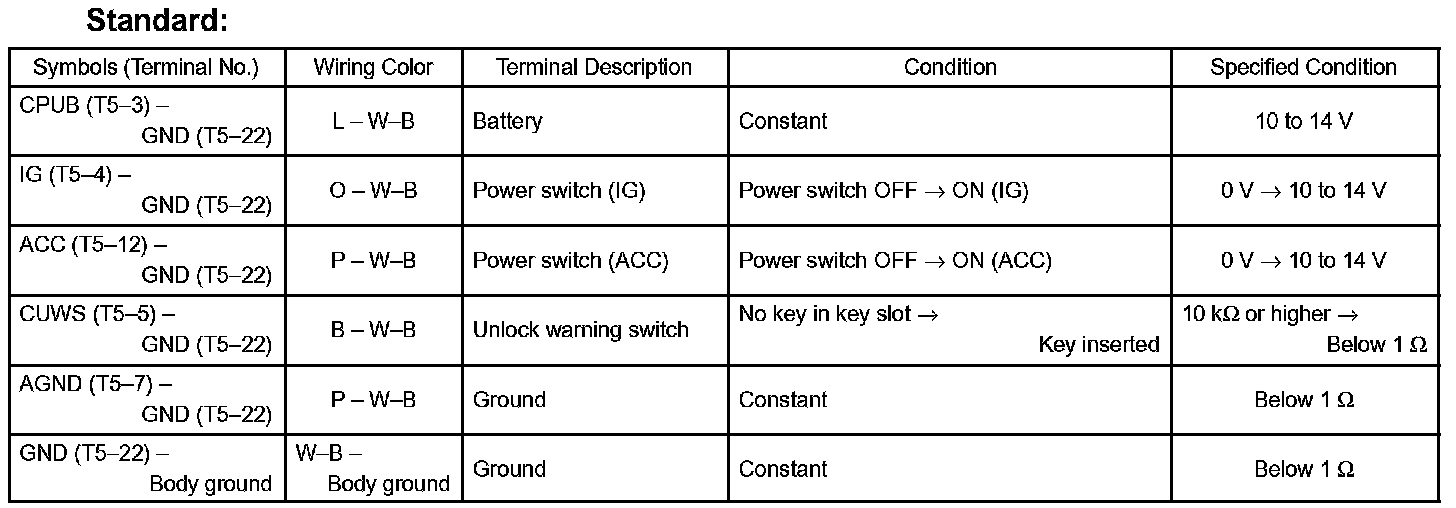

Standard:
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the T5 ECU connector.
d. Measure the voltage of each terminal of the connector.

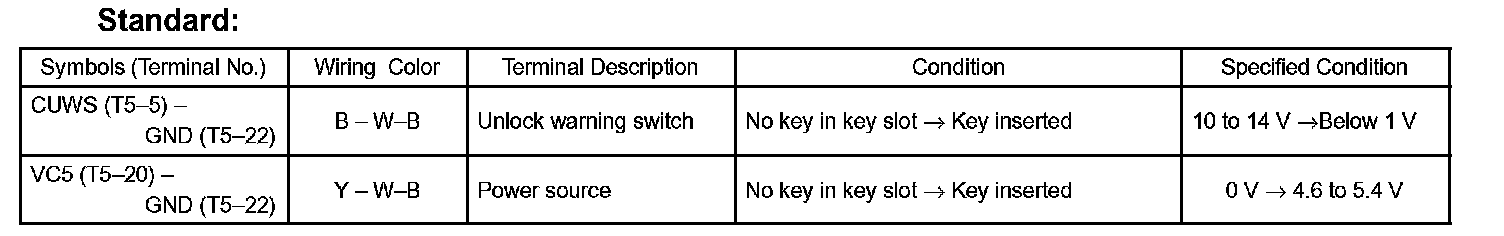

Standard:
If the result is not as specified, the ECU may have a malfunction.
Terminals Of ECU/Pinouts:
3. CHECK HYBRID VEHICLE CONTROL ECU

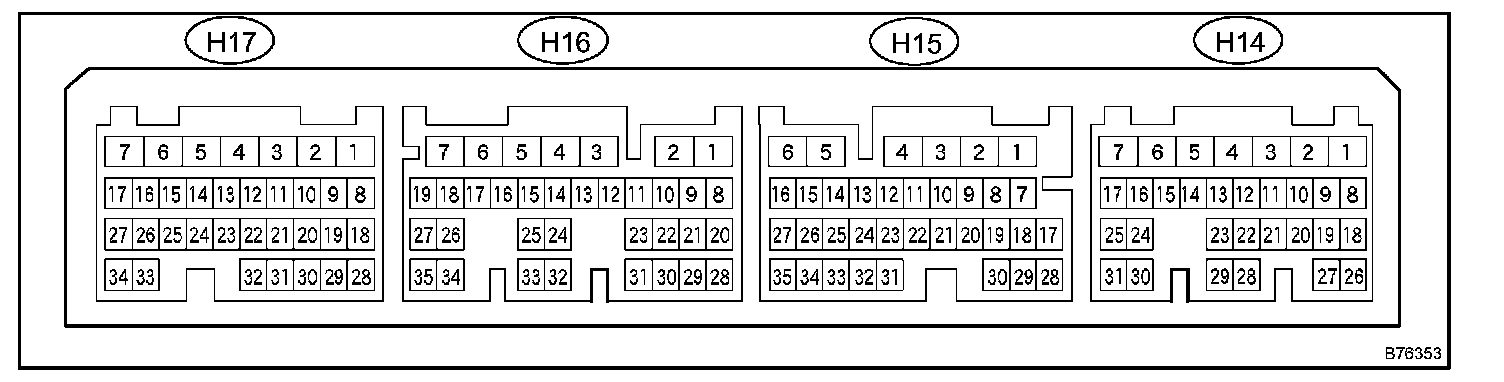

a. Disconnect the H14, H15, H16 and H17 ECU connectors.
b. Measure the resistance and voltage between each terminal of the connectors.

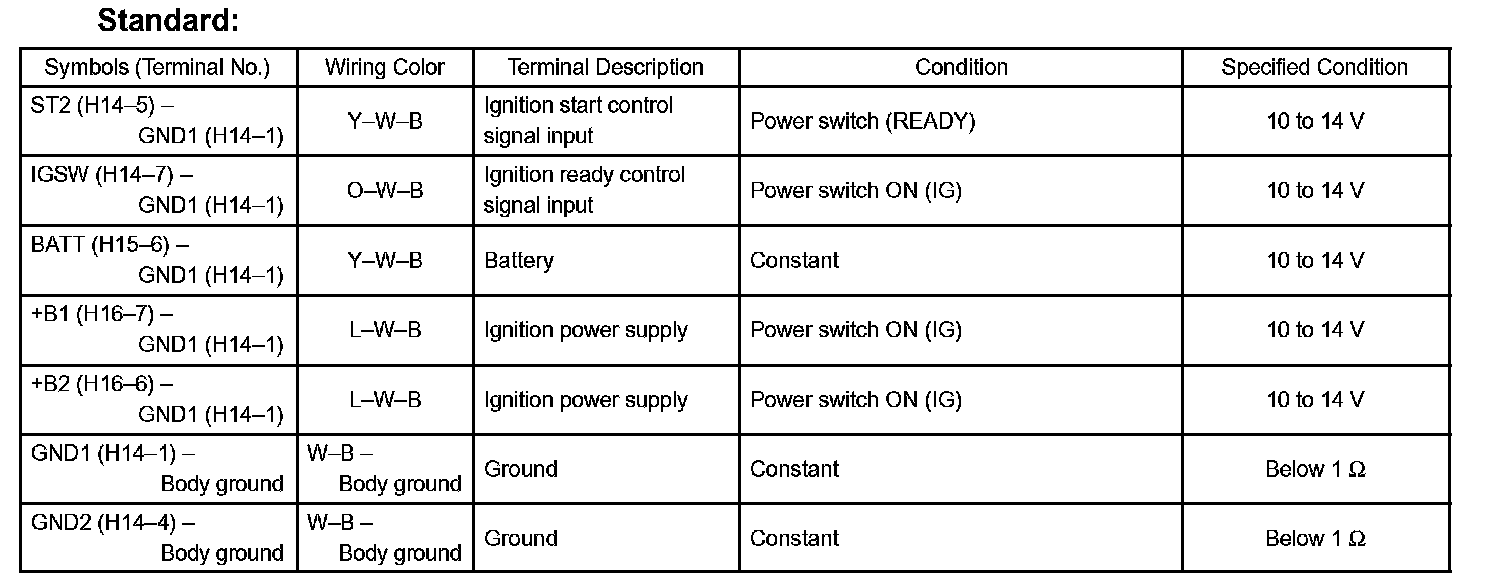

Standard:
If the result is not as specified, the ECU may have a malfunction.
Terminals Of ECU/Pinouts:
4. CHECK TRANSMISSION CONTROL ECU

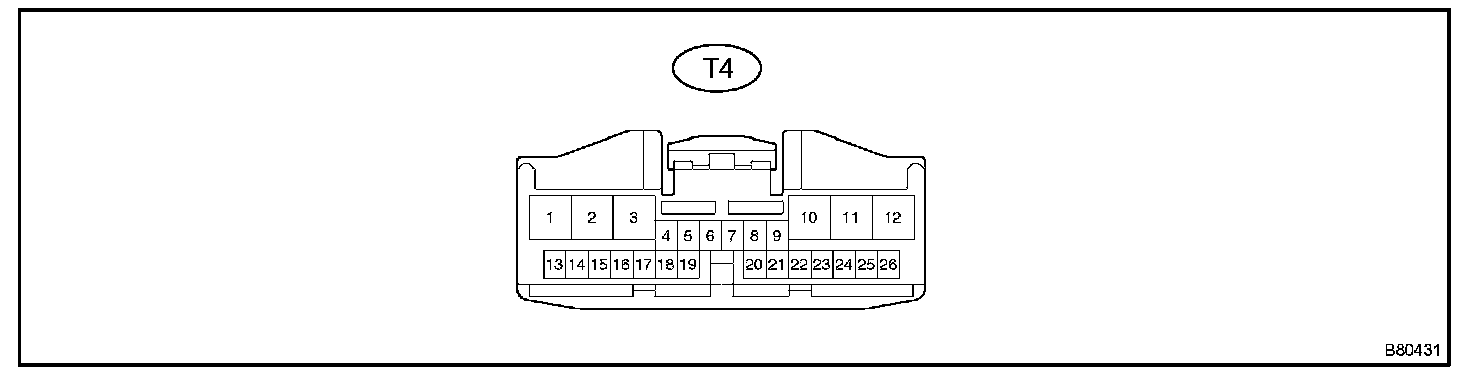

a. Disconnect the T4 ECU connector.
b. Measure the resistance and voltage of each terminal of the wire harness side connector.

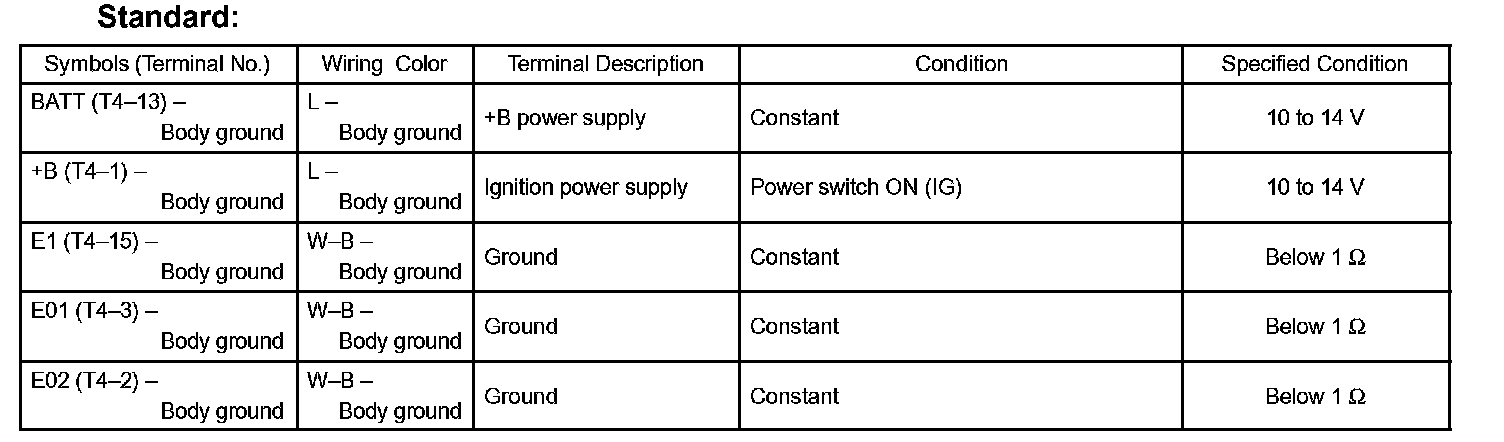

Standard:
If the result is not as specified, the ECU may have a malfunction.
