Freeze Frame Data

CHECK FREEZE FRAME DATA AND INFORMATION




a. If a DTC is present, select that DTC in order to display its freeze frame data.




b. Read freeze frame data recorded when the DTC was set.

NOTE: An information code (INF code) is displayed in one of the INFORMATION lines 1 to 5. Check the details by following the procedures in the following steps.

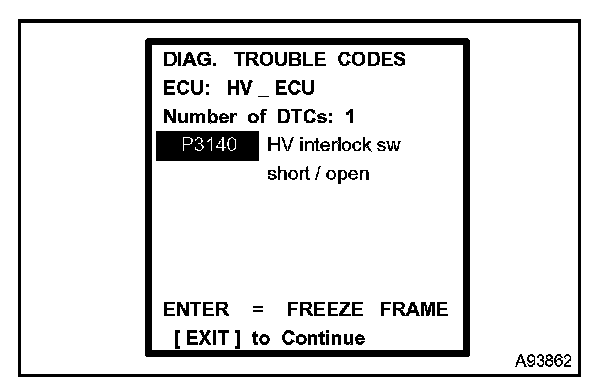

HINT: In the case shown in the illustration, refer to troubleshooting for DTC P3140 and INF code 350.




c. Read the information.

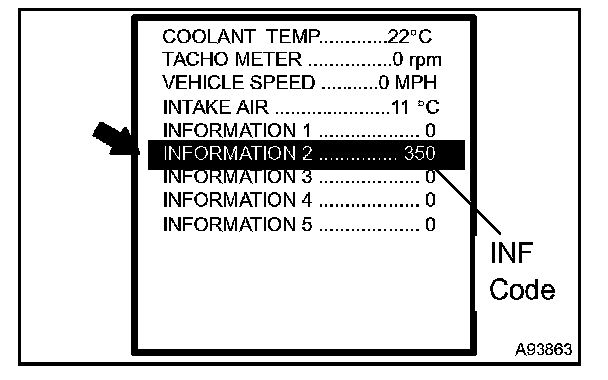

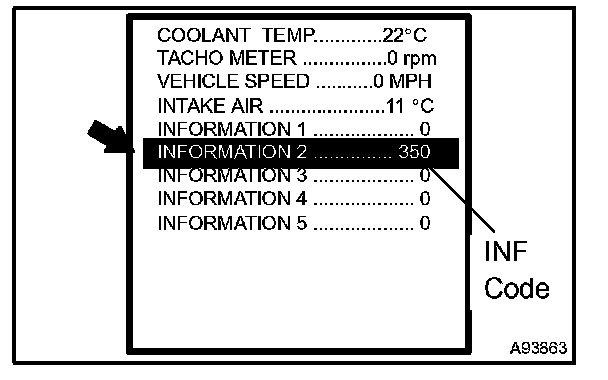

1. Select the item that has an INF code from among INFORMATION 1 to 5 on the freeze frame data screen.
2. Press ENTER.

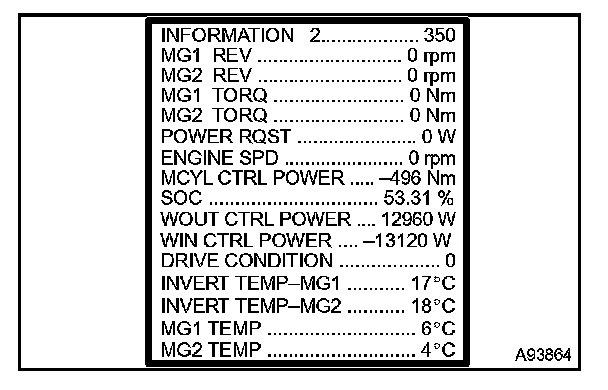

3. Information is displayed as shown in the illustration.

INFORMATION/FREEZE FRAME DATA

1. FREEZE FRAME DATA

HINT: The freeze frame data record the driving conditions when the DTC was set. It is used for estimating or simulating the condition of the vehicle when the malfunction occurred. To check the details of the hybrid vehicle control system, check the detailed information for the DTC (Information).

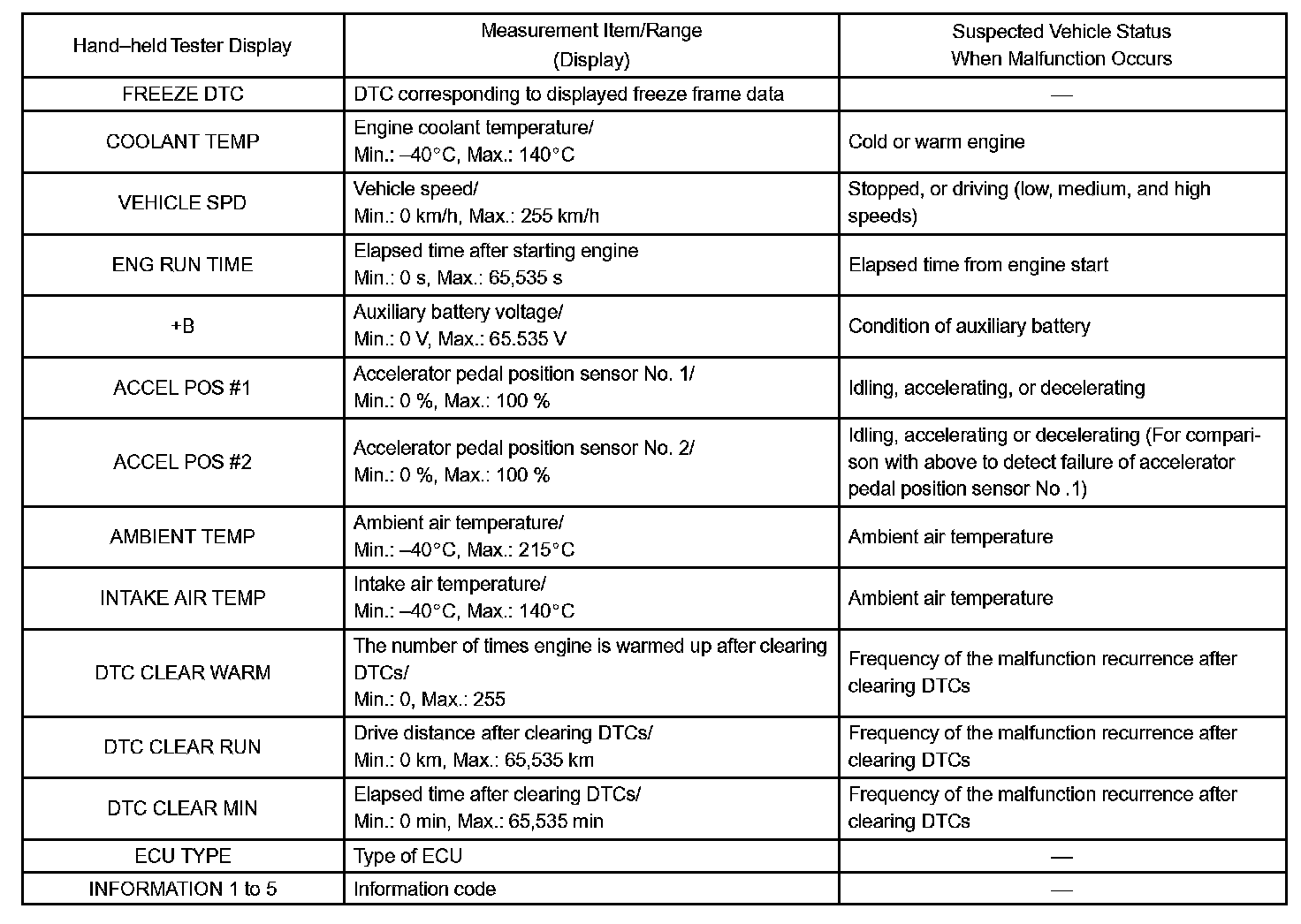

Freeze Frame Data:

a. Connect the hand-held tester to the DLC3.
b. Turn the power switch ON (IG).
c. Turn the hand-held tester ON.
d. Select the following menu items: DIAGNOSIS / OBD/MOBD / HV ECU / DTC INFO / CURRENT CODES.
e. Select a DTC in order to display its freeze frame data.
f. Check the freeze frame data of the DTC that has been detected.
g. Check information of the DTC.


2. INFORMATION

HINT: Similar to freeze frame data, information records operating condition of the HV system and components at the time of detection of a DTC.

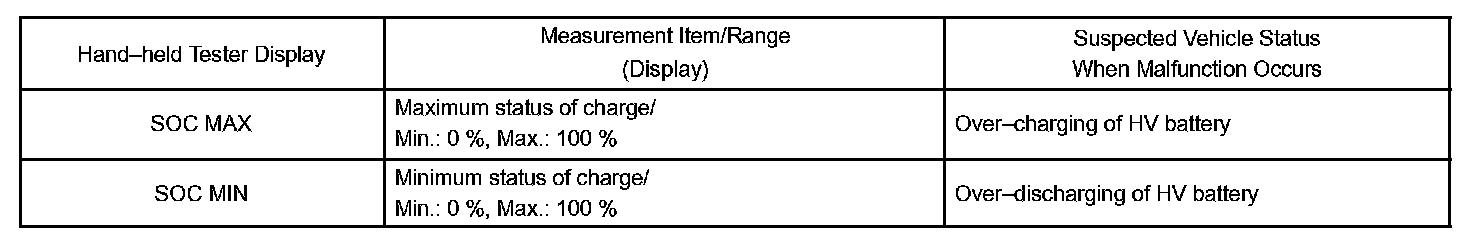

Part 1:

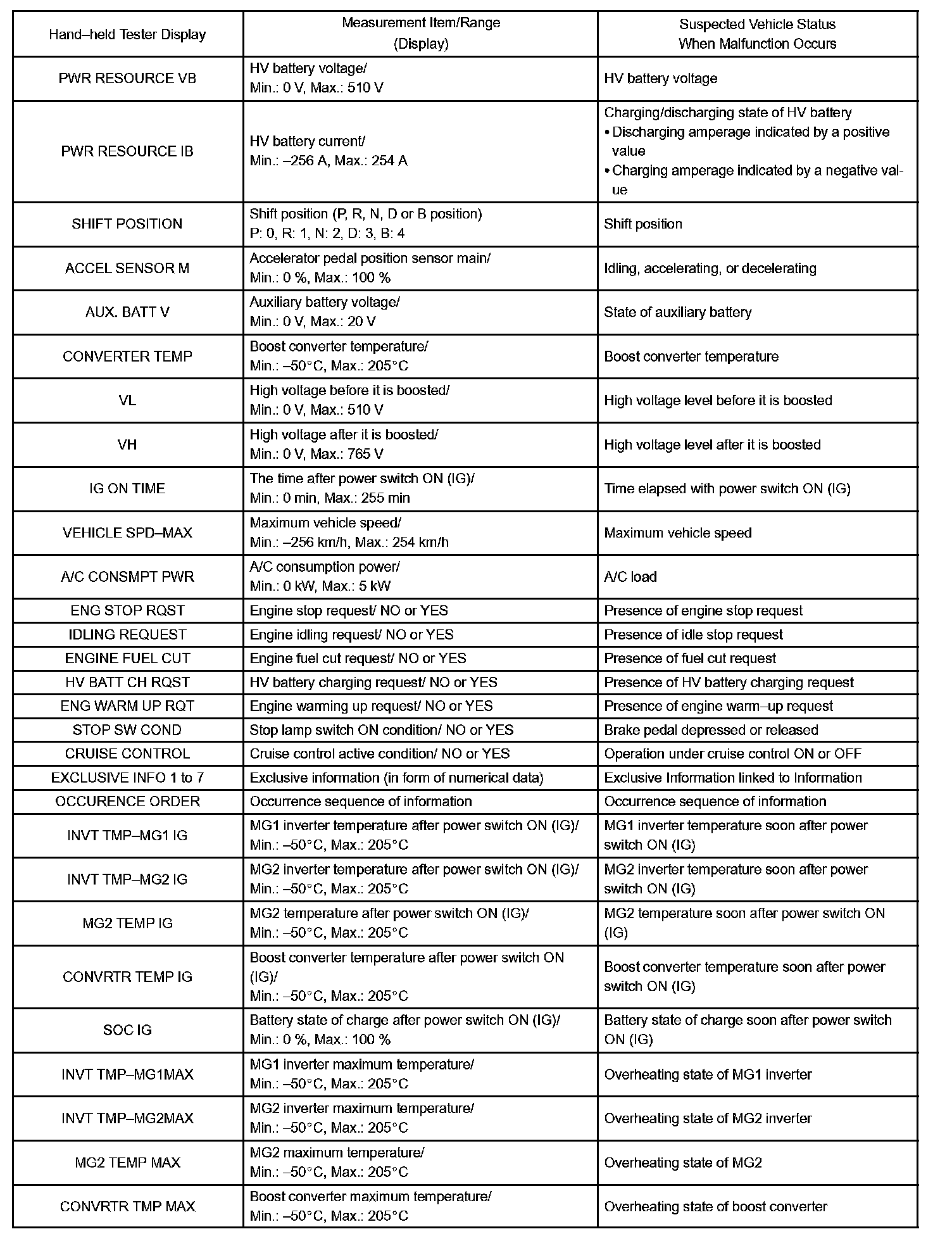

Part 2:

Part 3:

a. Select one which has an INF code from among INFORMATION 1 to 5.
b. Check the information of the DTC.
