Operation History Data

OPERATION HISTORY DATA

HINT: The operation history data records the special operations performed by the driver and the number of abnormal conditions that have been input into the HV control ECU.

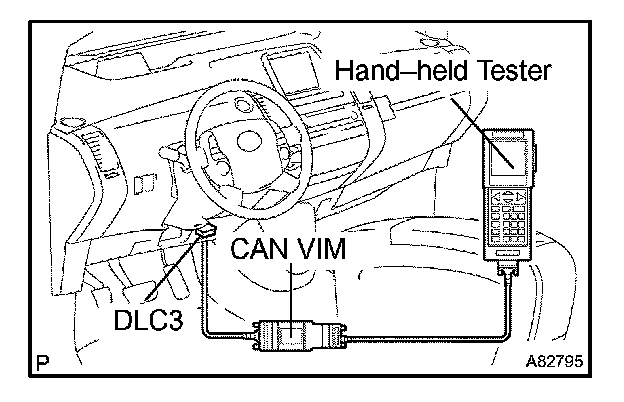

a. Connect the hand-held tester to the DLC3.
b. Turn the power switch ON (IG).
c. Turn the hand-held tester ON.
d. On the hand-held tester, enter the following menus:
DIAGNOSIS / OBD/MOBD / HV ECU / DATA LIST.
e. Select the menu to view the number of special operations or controls that have been effected.

HINT:
- LATEST OPER: Among the past occurrences, the number of special operations or controls that have been effected during the most recent 1 trip detection.
- LATEST TRIP: The number of trips after the occurrence of LATEST OPER.
- BEF LATST OPER: The number of occurrences 1 previously from the LATEST OPER.
- BEF LATST TRIP: The number of trips after the occurrence of BEF LATST OPER.

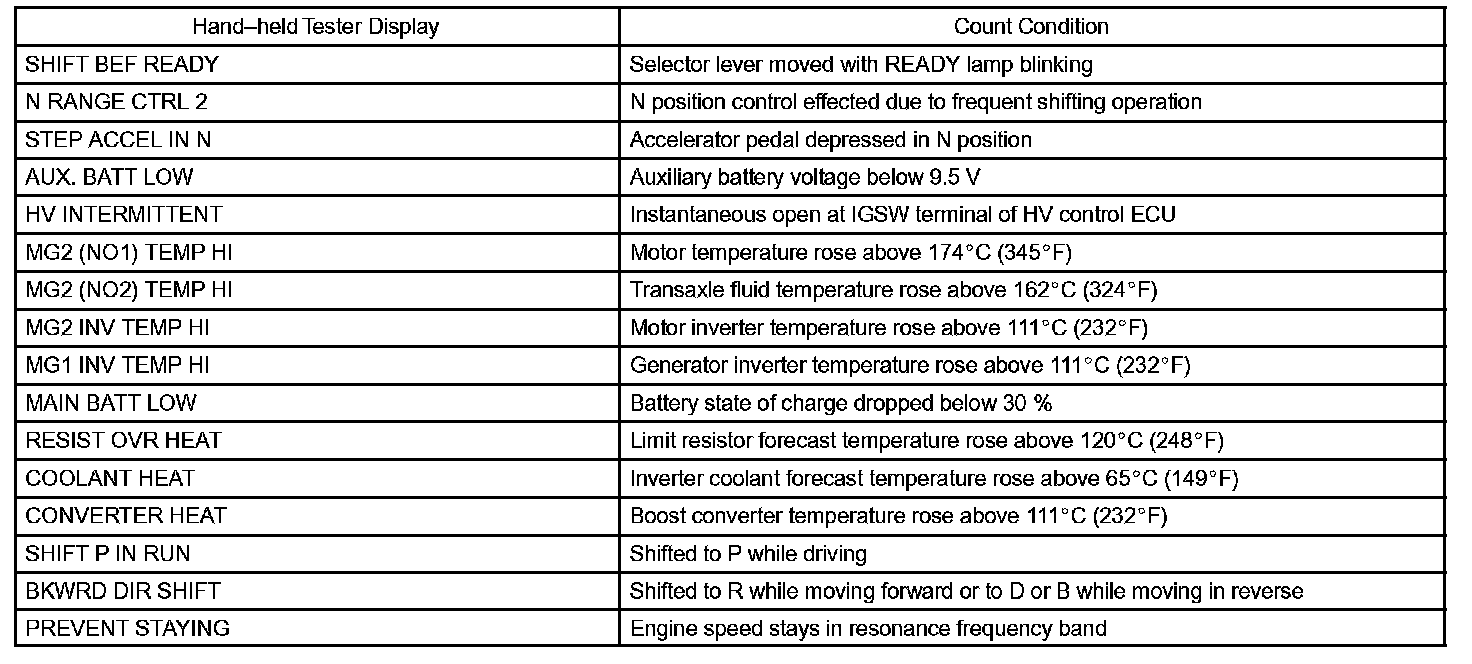

Operation history data
