Component Inspection

INSPECTION

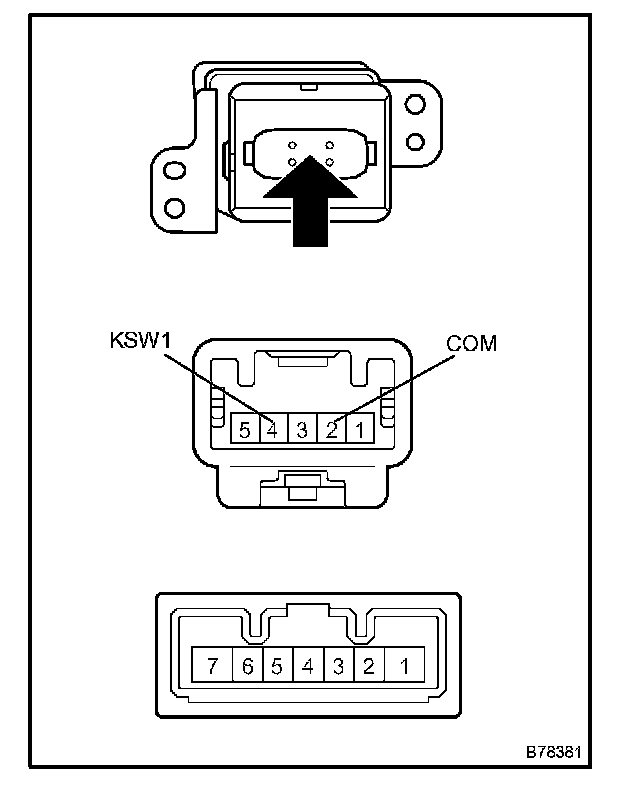

1. INSPECT KEY SLOT ASSY
a. Remove the key slot assy.
b. Measure the resistance of the slot.

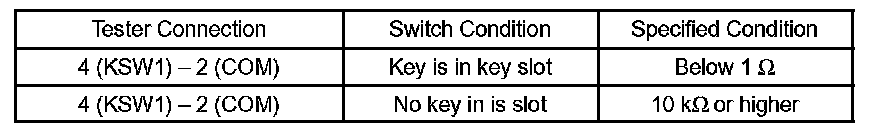

Standard:
If the result is not as specified, replace the slot assy.

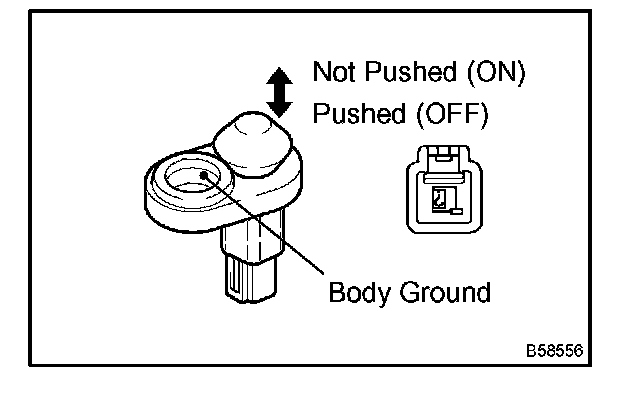

2. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
a. Remove the courtesy lamp switch.
b. Measure the switch resistance.

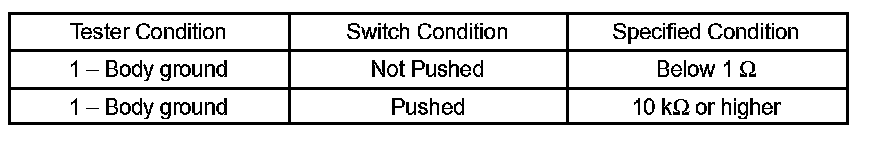

Standard:
