Data List

DATA LIST

HINT: Using the hand-held tester DATA LIST allows switch, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.




a. Connect the hand-held tester (with CAN VIN) to the DLC3.
b. Change the power switch's power mode to ON (IG) by pushing the power switch.

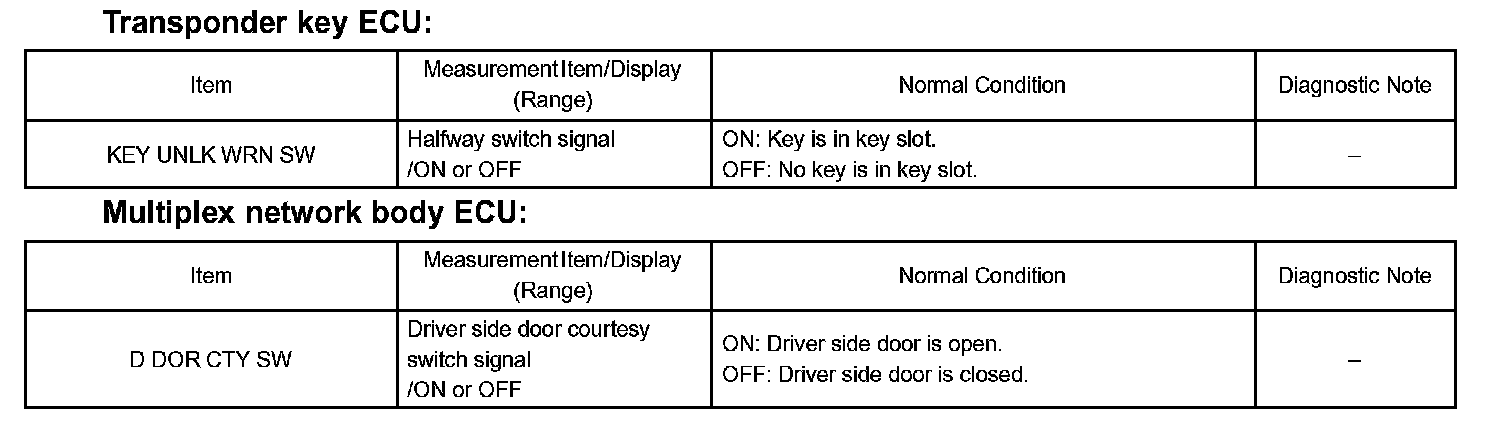

c. Read the DATA LIST according to display on the tester.
