Clock: Service and Repair

Instrument Panel/Meter:

CLOCK ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER
4. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3
5. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.4
6. REMOVE MULTI-DISPLAY ASSY




7. REMOVE CLOCK ASSY

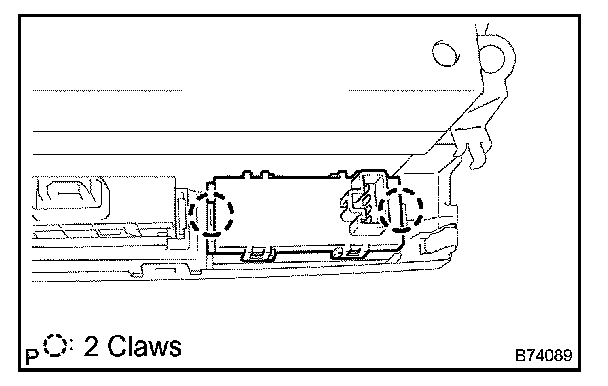

a. Disengage the 2 claws and then remove the clock assy.
