Pinout Values and Diagnostic Parameters

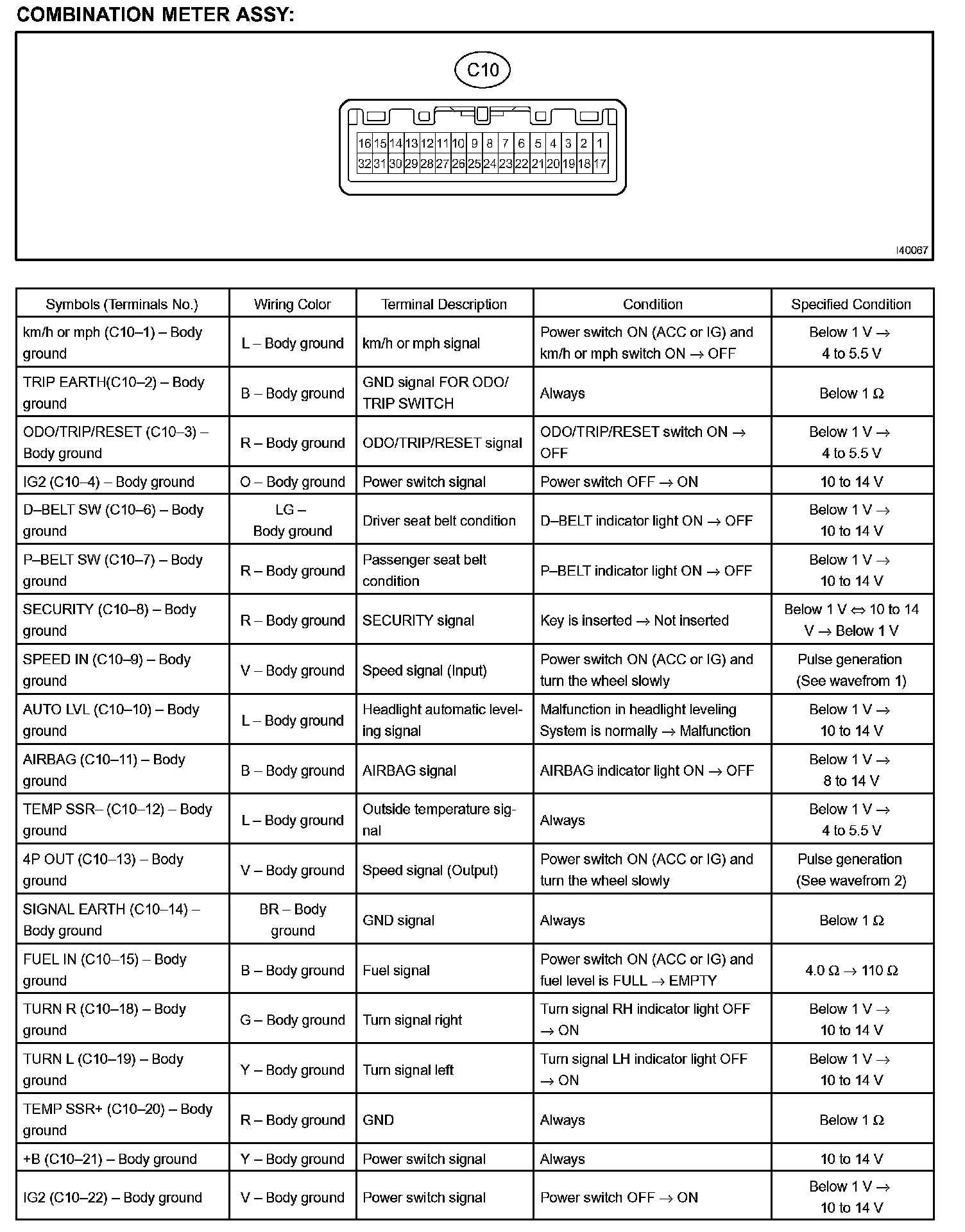

Terminals Of ECU/Pinouts - Combination Meter Assy Part 1:

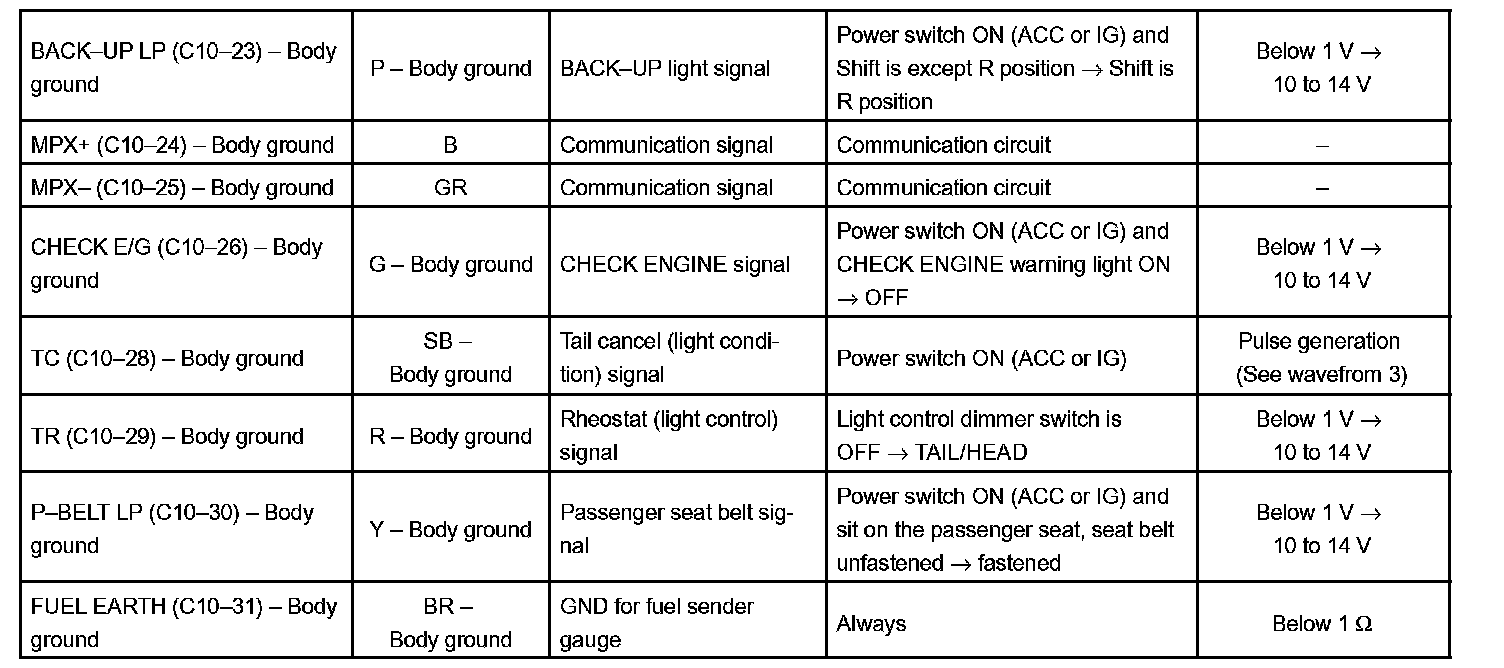

Terminals Of ECU/Pinouts - Combination Meter Assy Part 2:

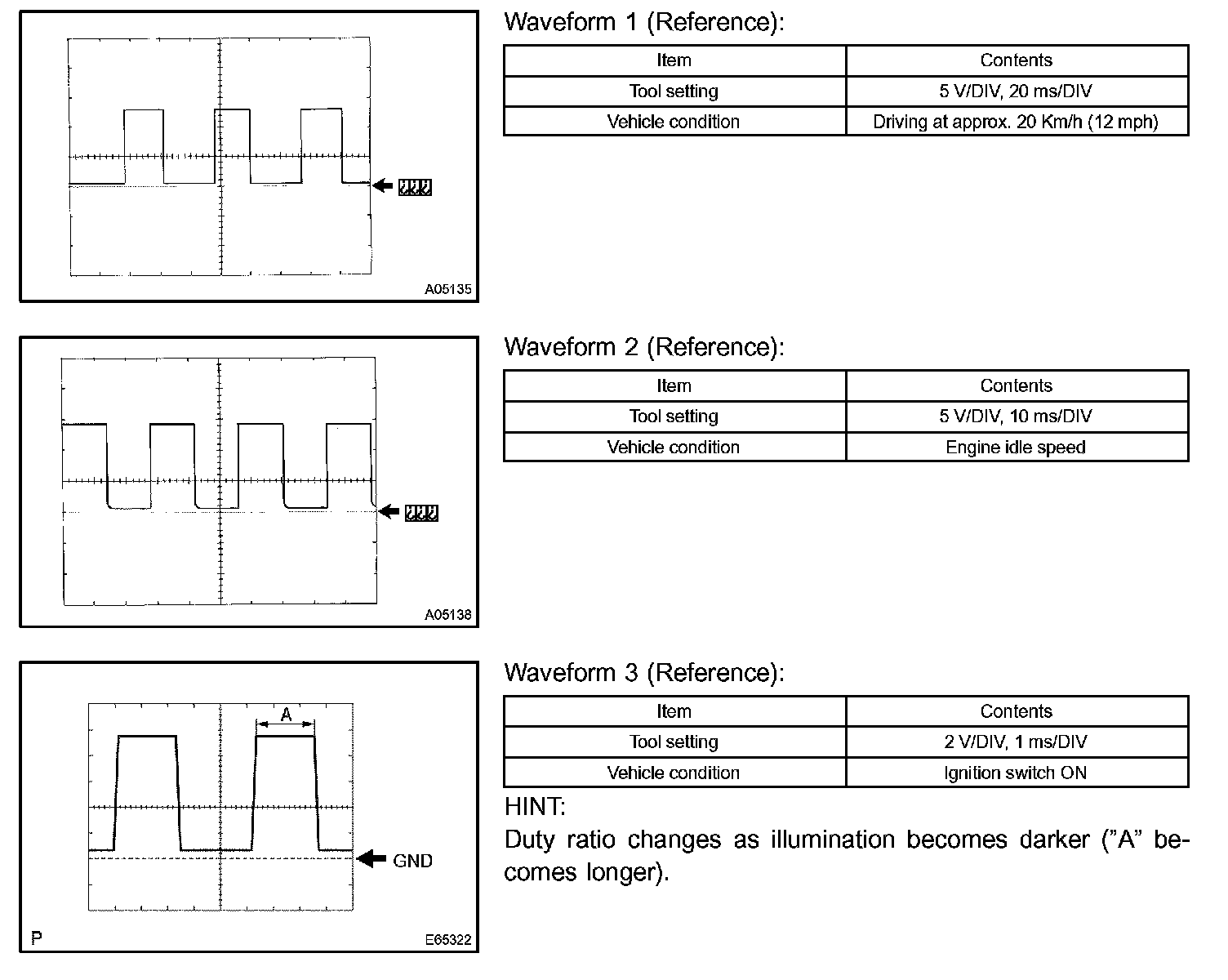

Oscilloscope Waveforms:

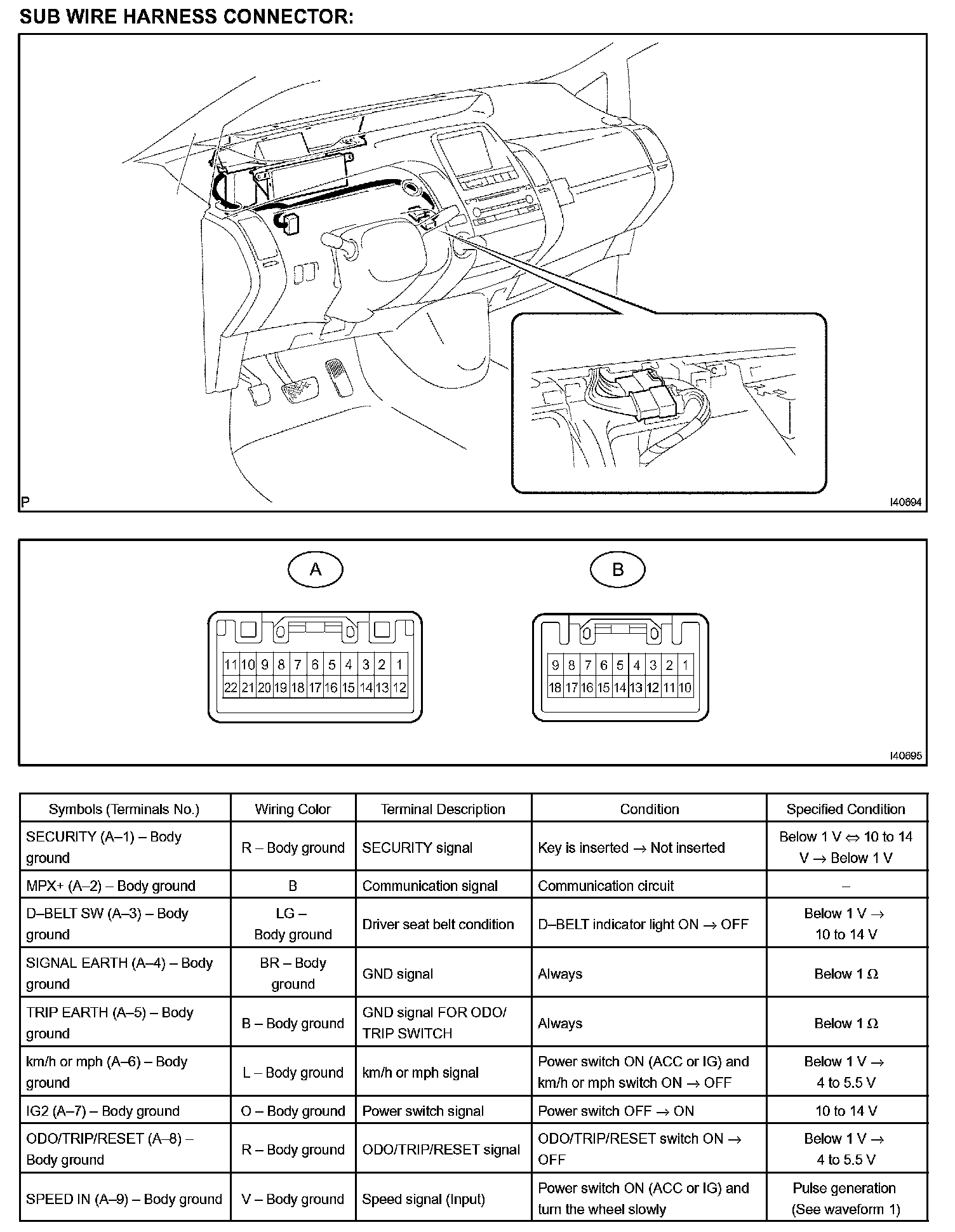

Terminals Of ECU/Pinouts - Sub Wire Harness Connector Part 1:

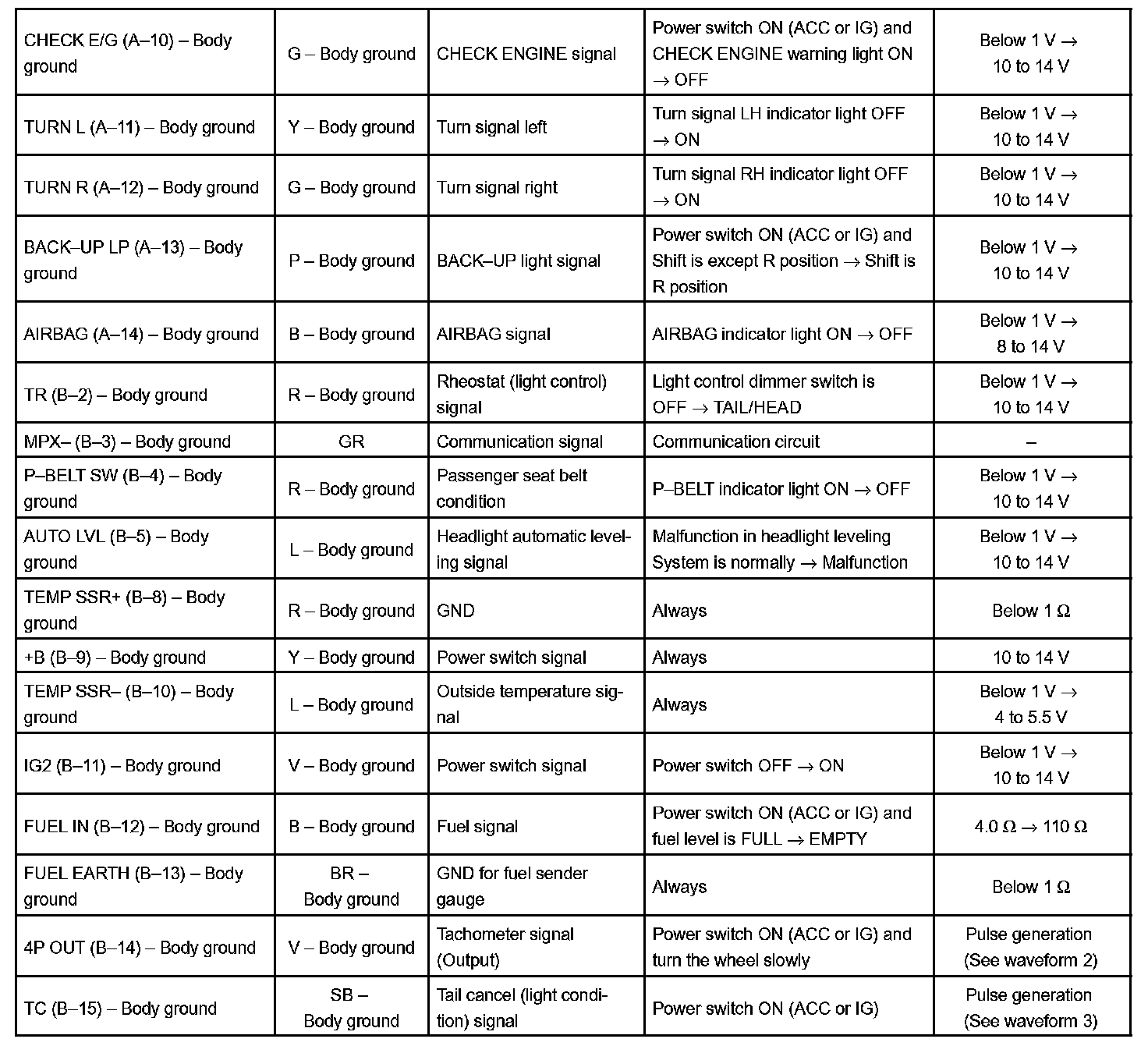

Terminals Of ECU/Pinouts - Sub Wire Harness Connector Part 2:

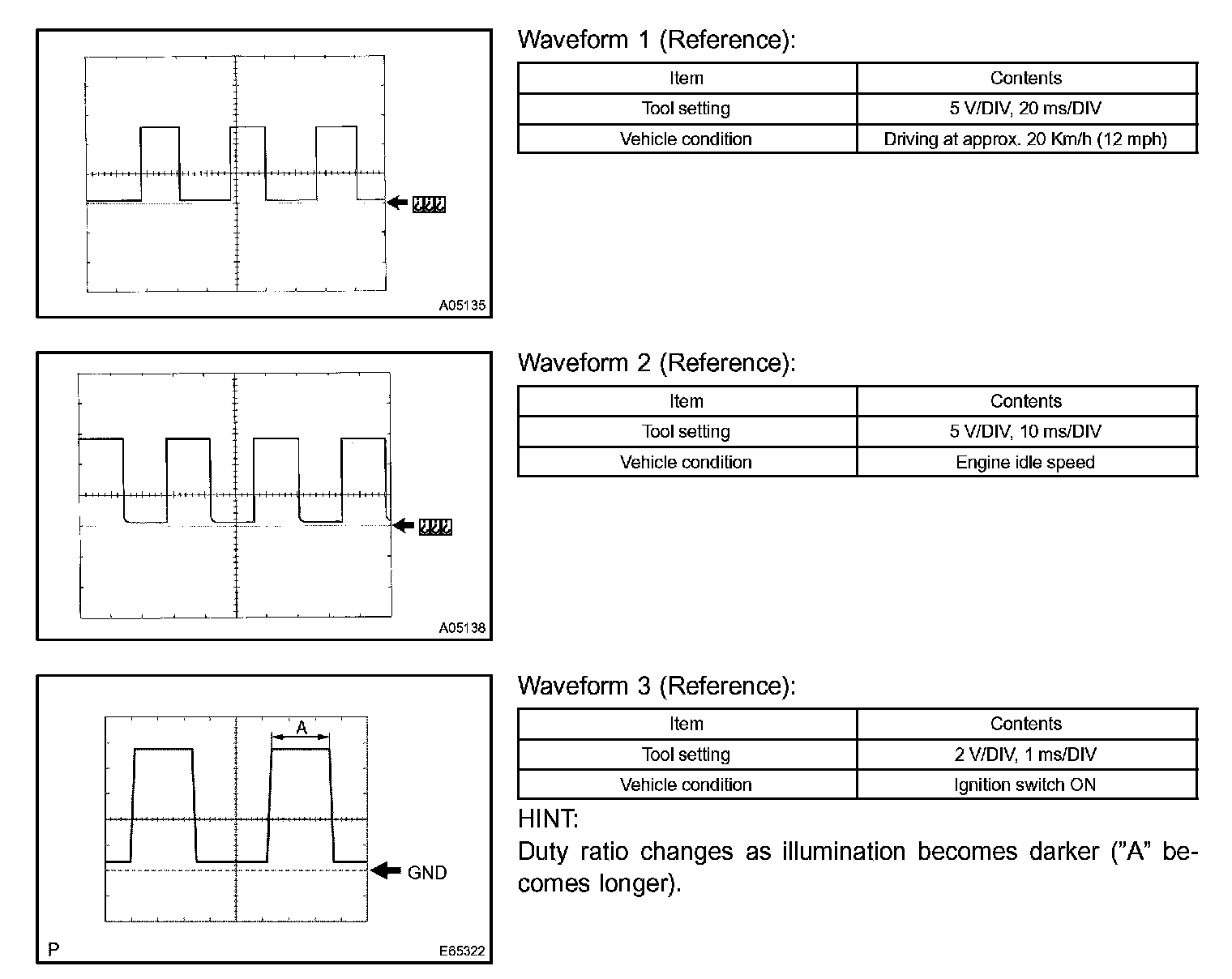

Oscilloscope Waveforms:
