Entire Combination Meter Does Not Operate
ENTIRE COMBINATION METER DOES NOT OPERATE

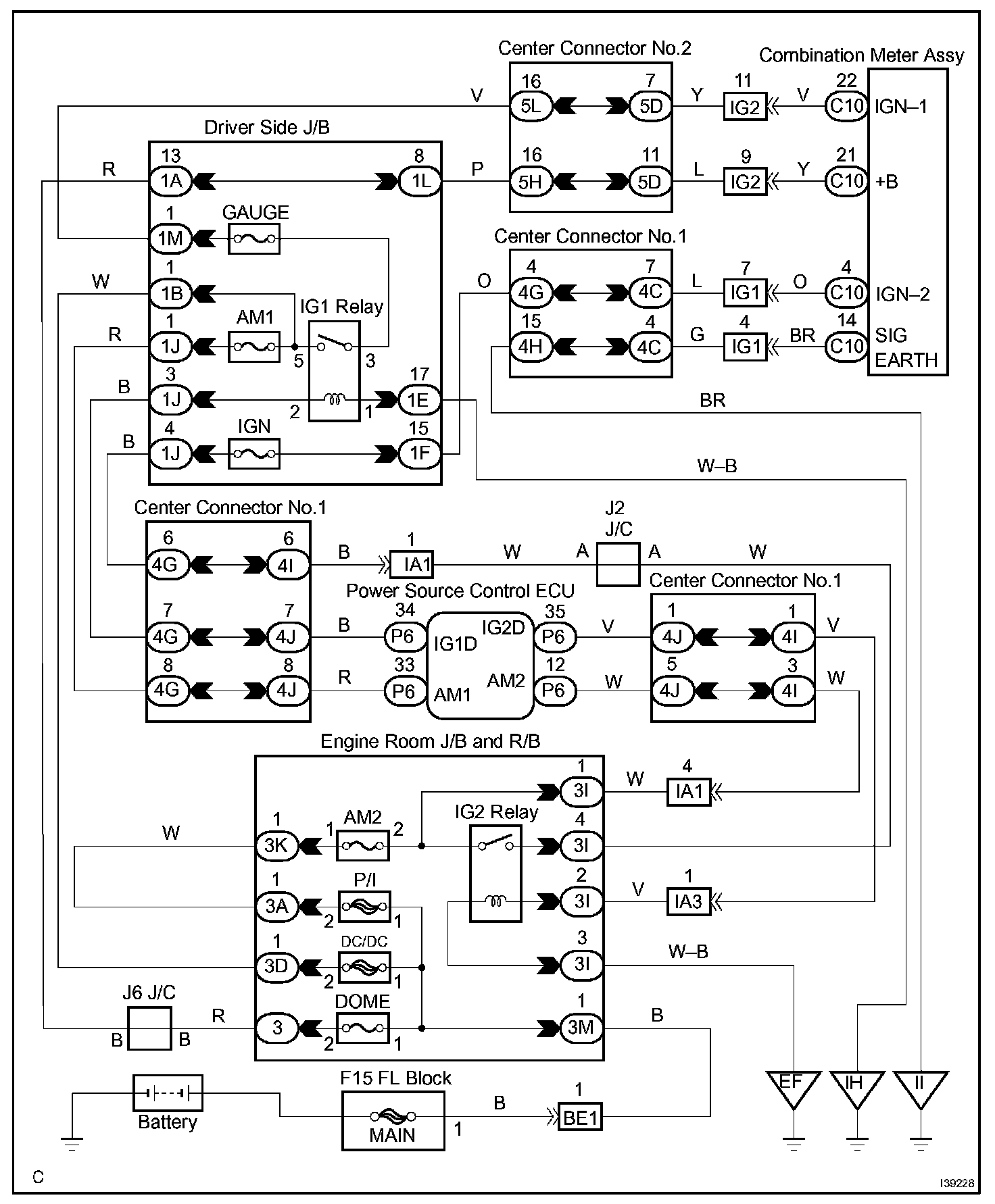

Wiring Diagram:

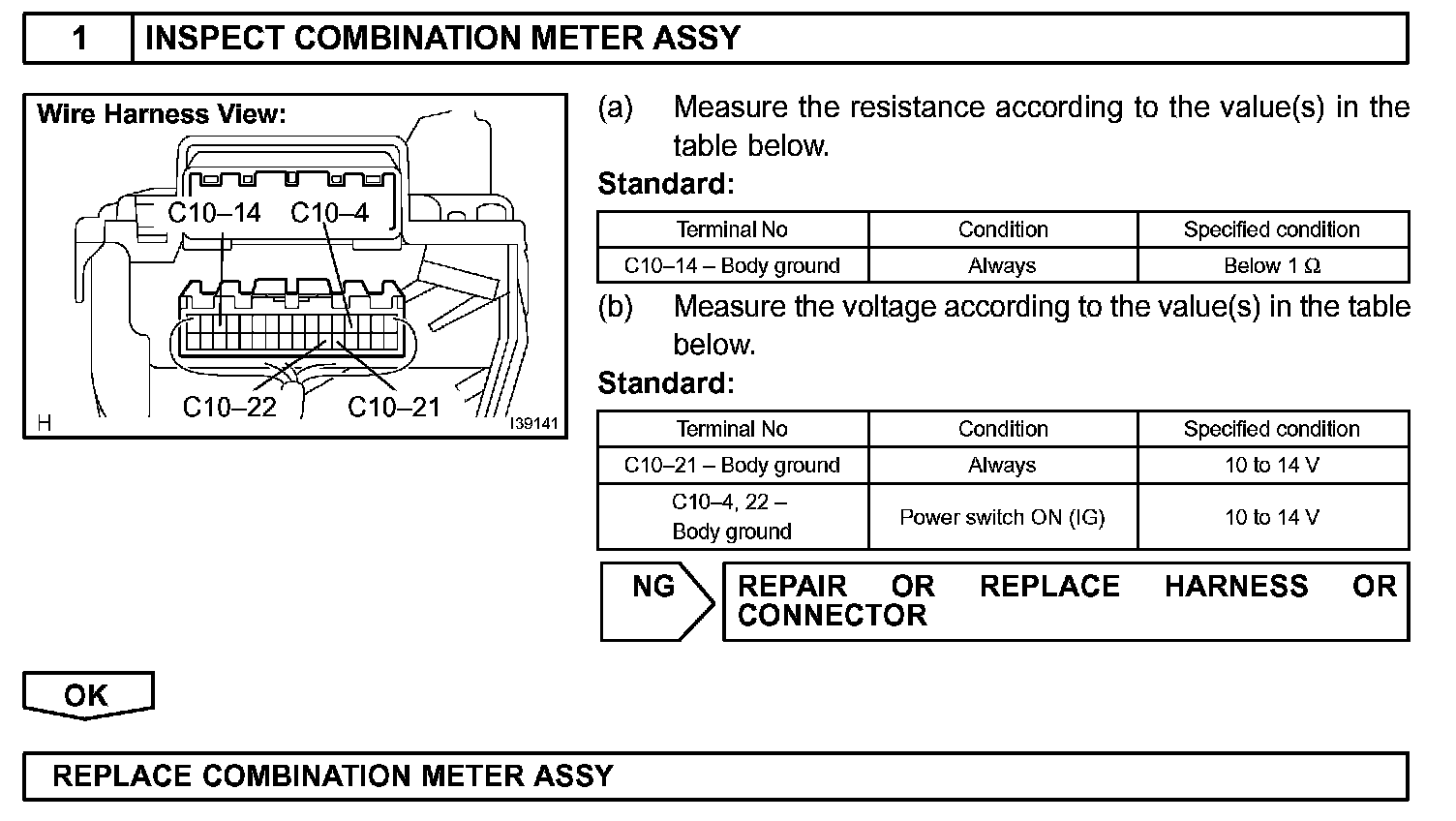

Step 1:
INSPECTION PROCEDURE
