Malfunction In ODO/Trip SW
Malfunction In ODO/Trip SW
MALFUNCTION IN ODO/TRIP SW

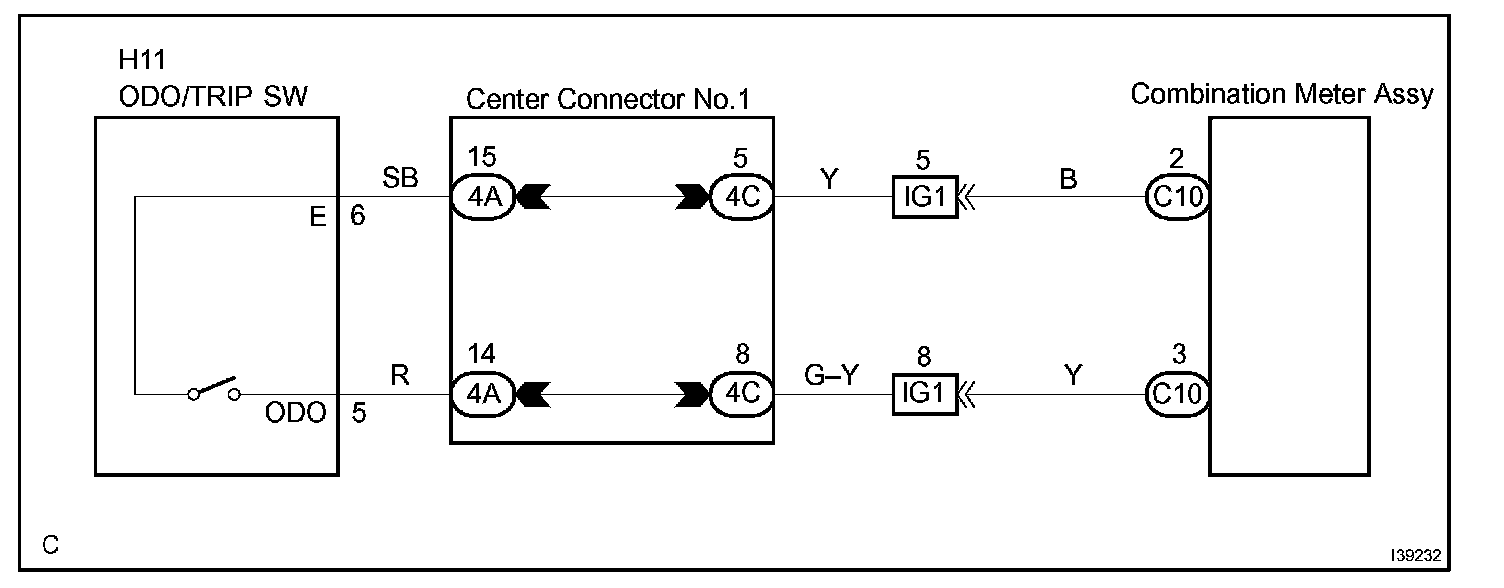

Wiring Diagram:

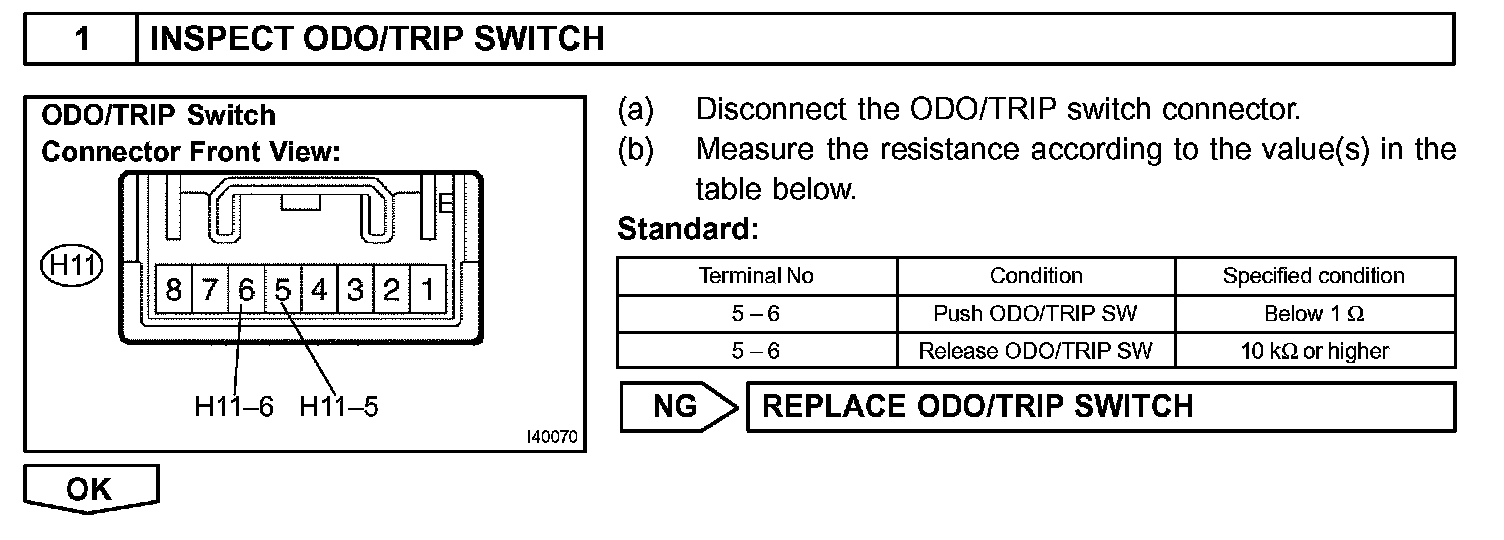

Step 1:
Step 2:
INSPECTION PROCEDURE
