Malfunction In Speedometer

MALFUNCTION IN SPEEDOMETER

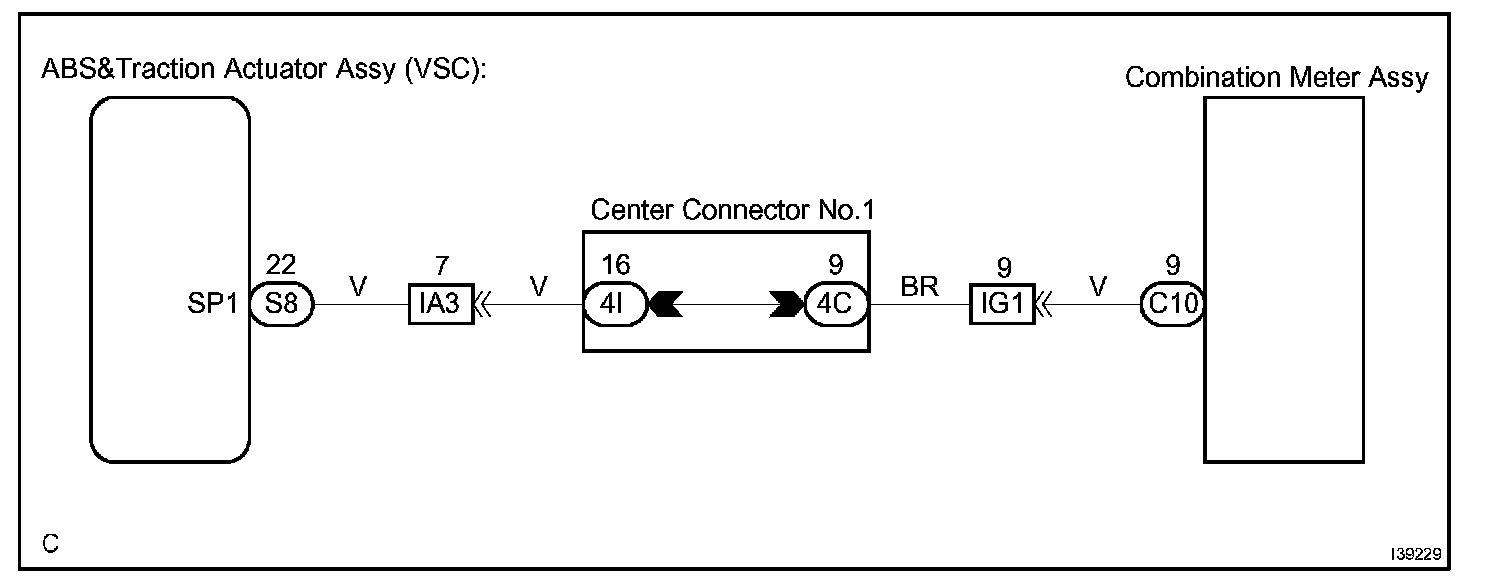

Wiring Diagram:

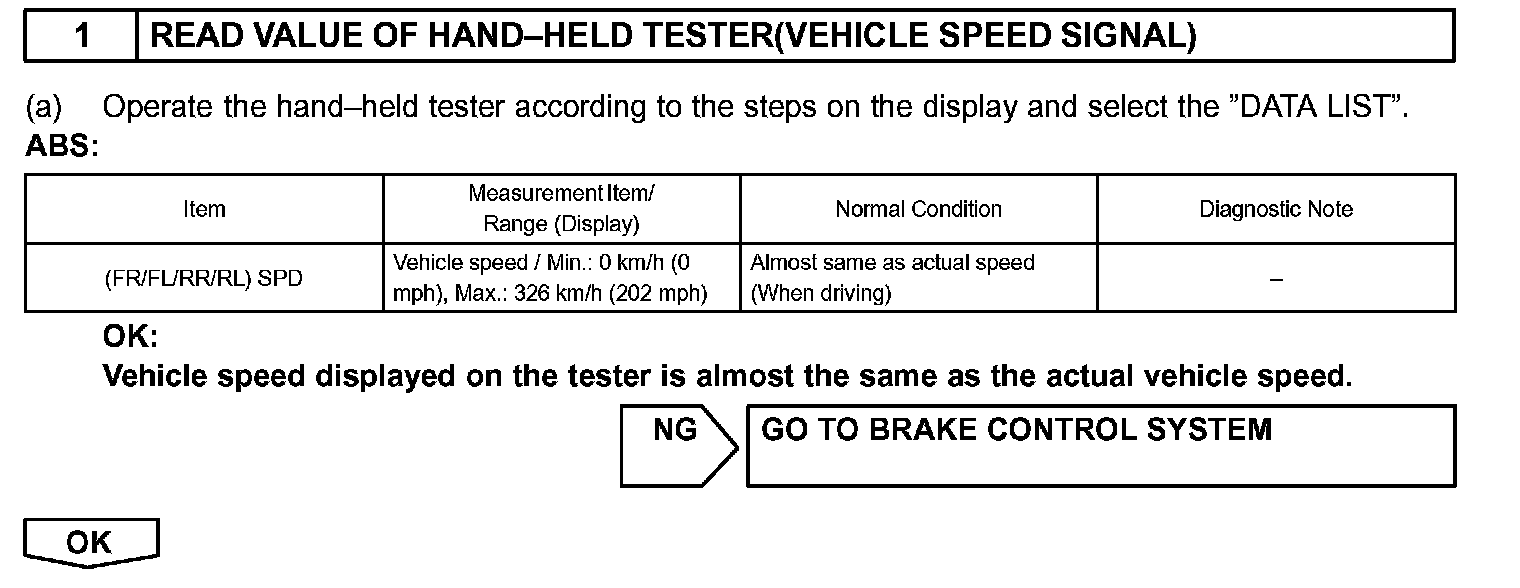

Step 1:

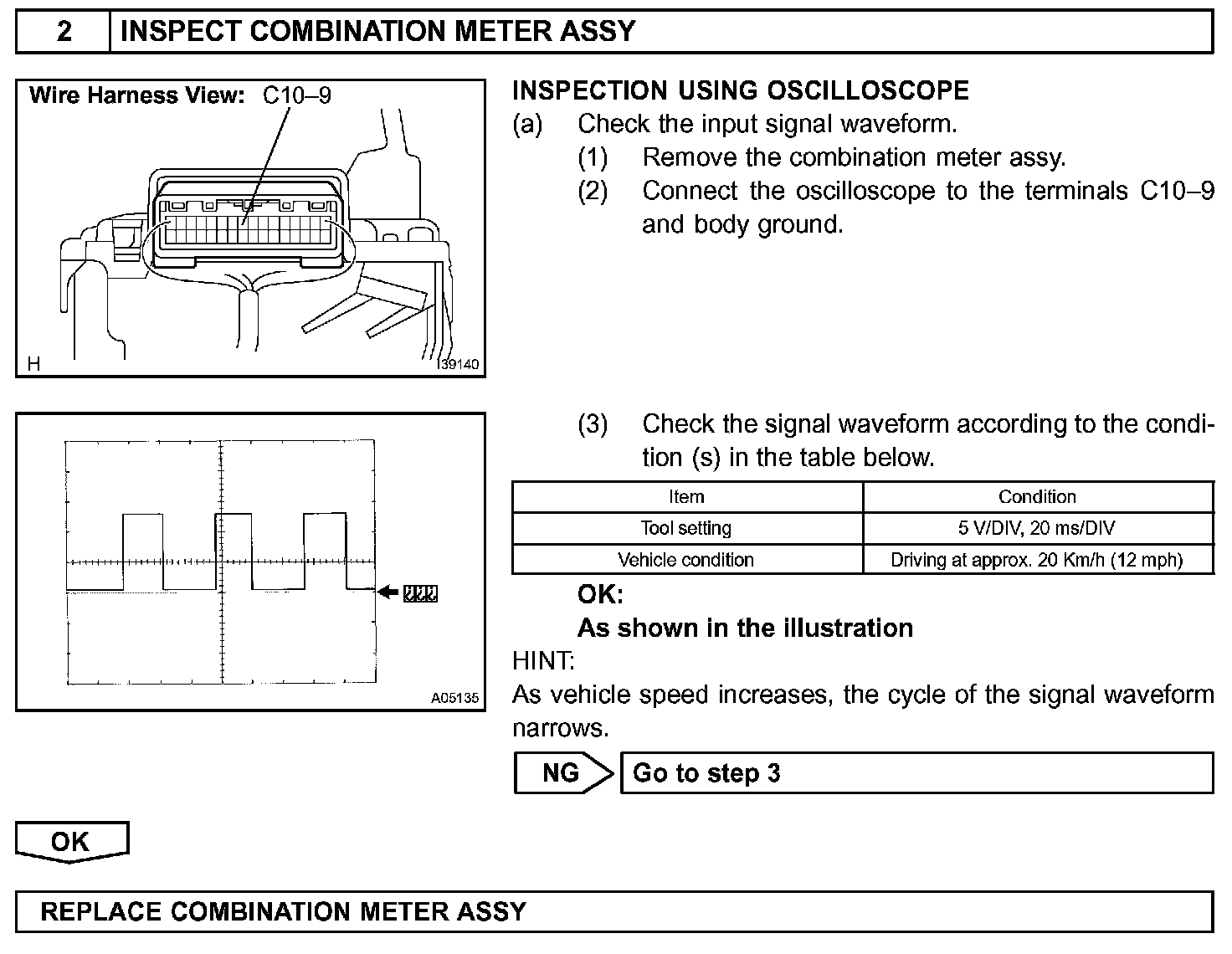

Step 2:

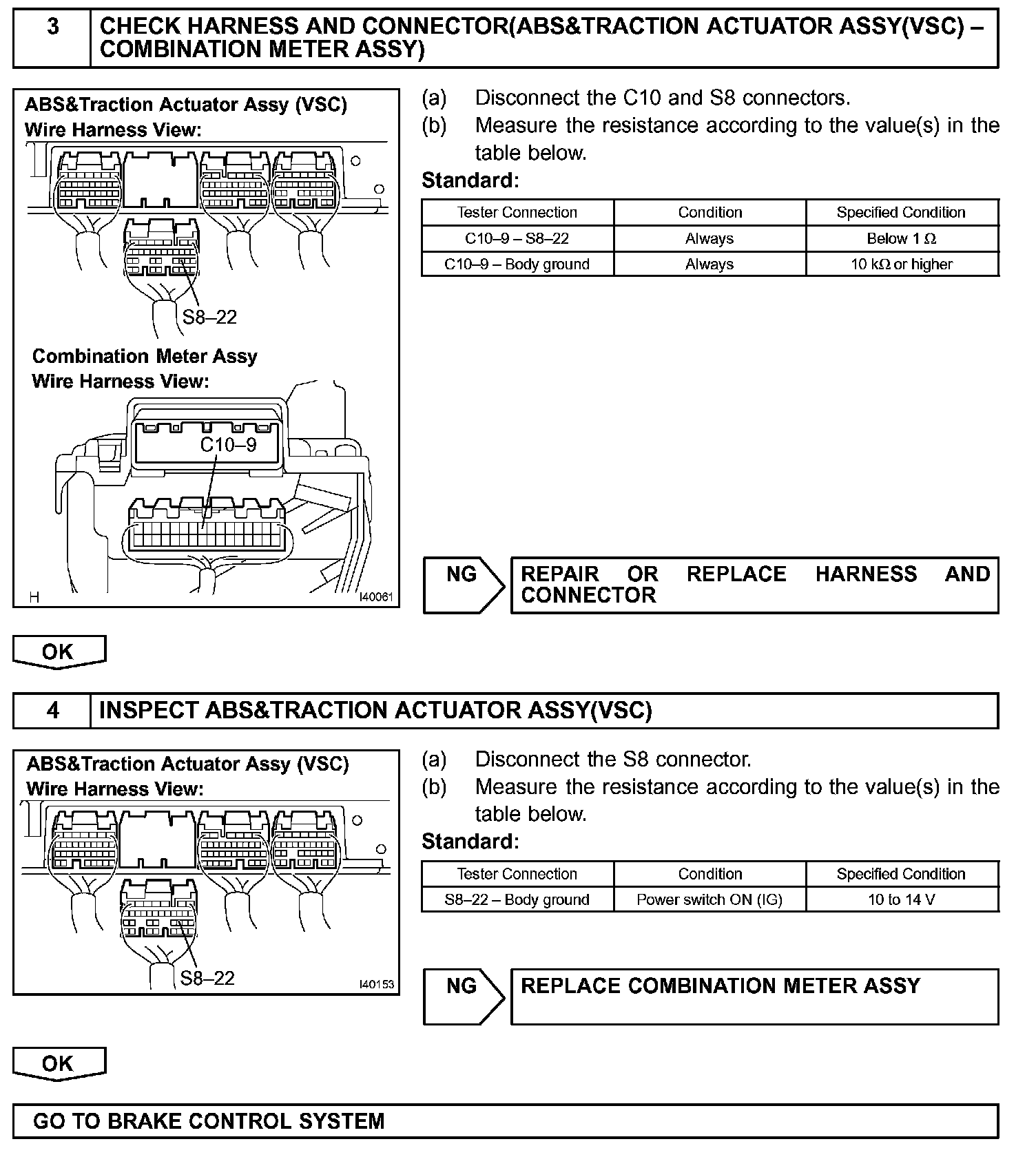

Step 3 - 4:




INSPECTION PROCEDURE
