Operating Light Control Rheostat Does Not Change Light Brightness

OPERATING LIGHT CONTROL RHEOSTAT DOES NOT CHANGE LIGHT BRIGHTNESS

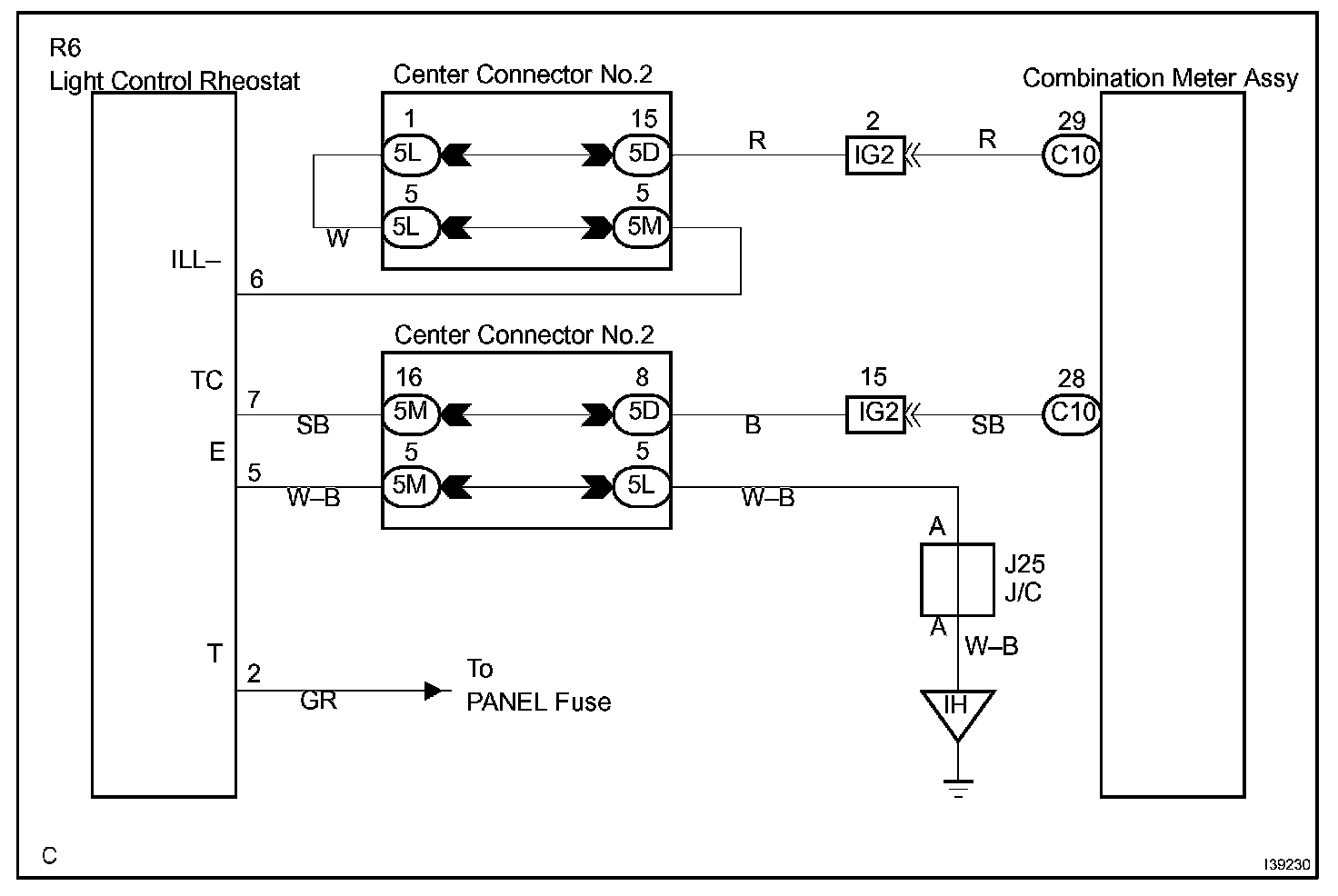

Wiring Diagram:

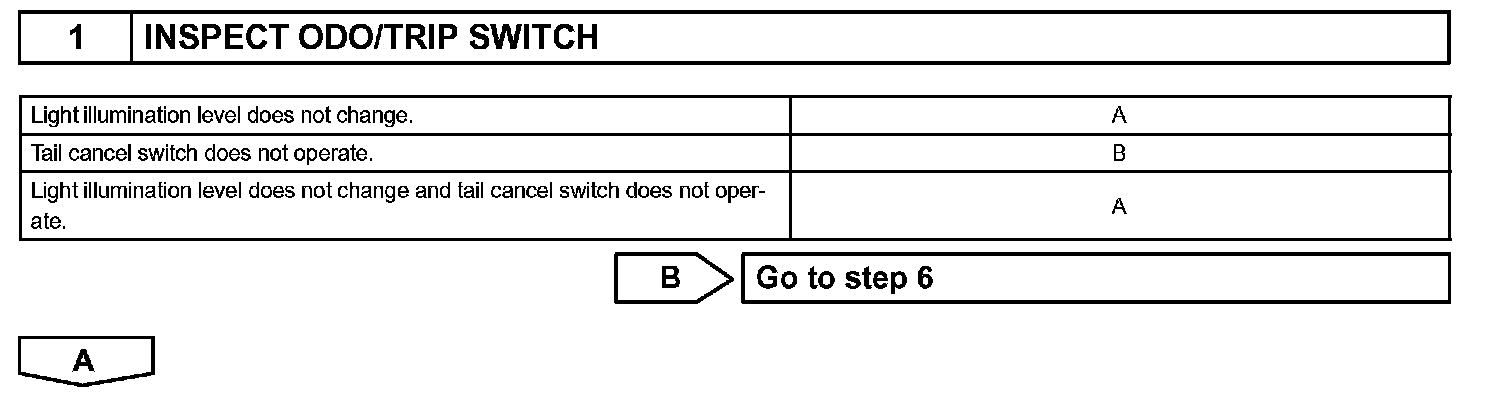

Step 1:

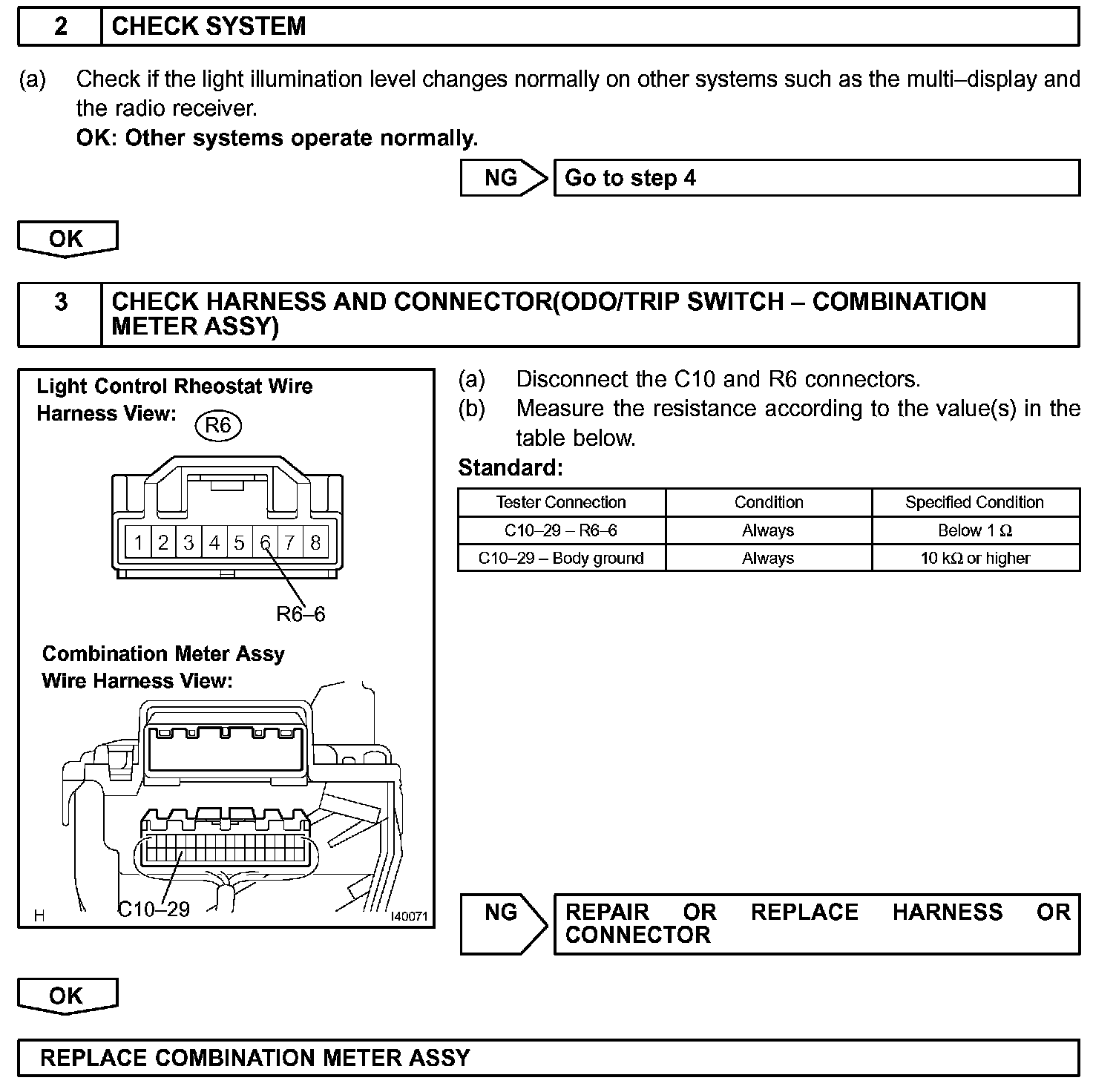

Step 2 - 3:

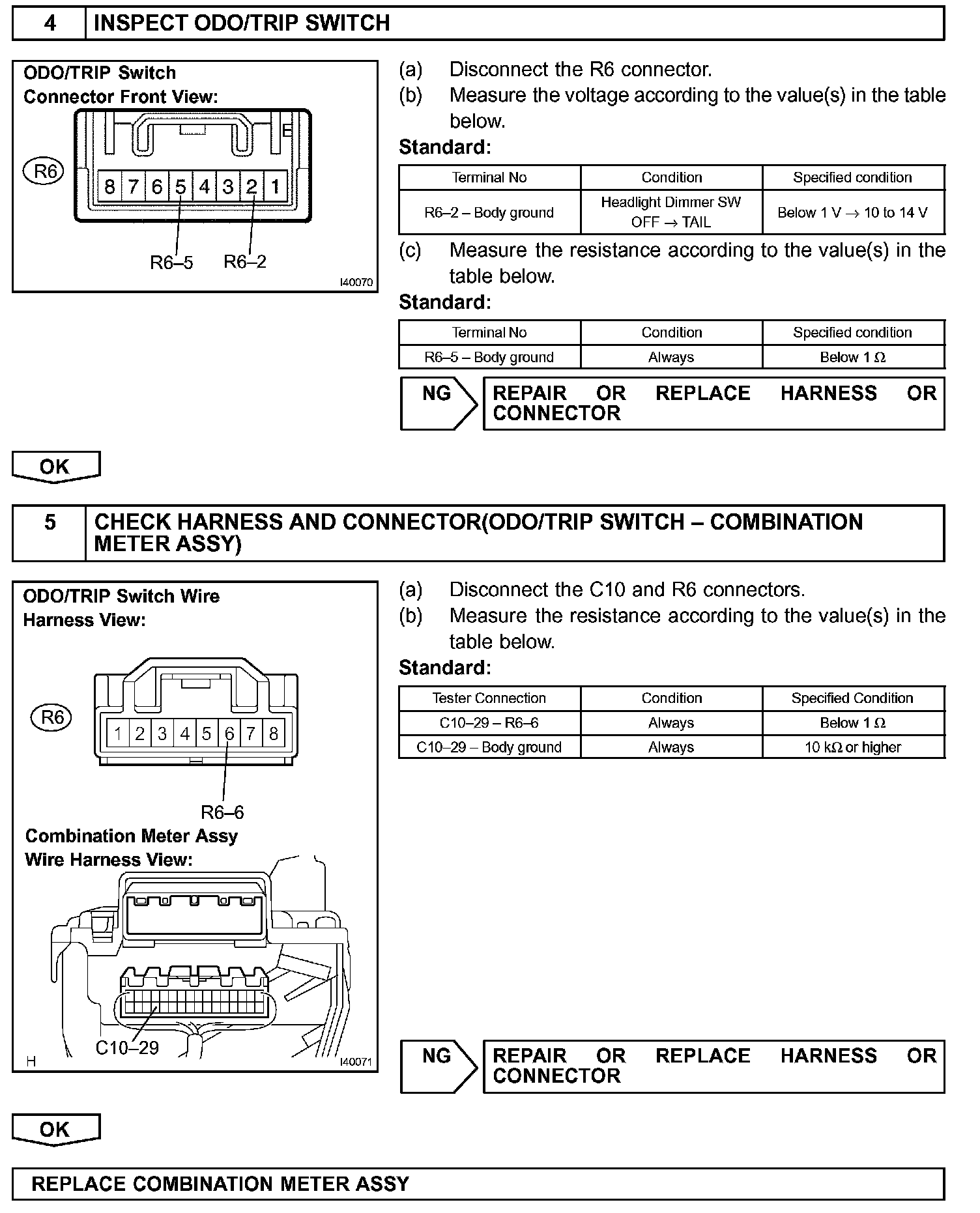

Step 4 - 5:

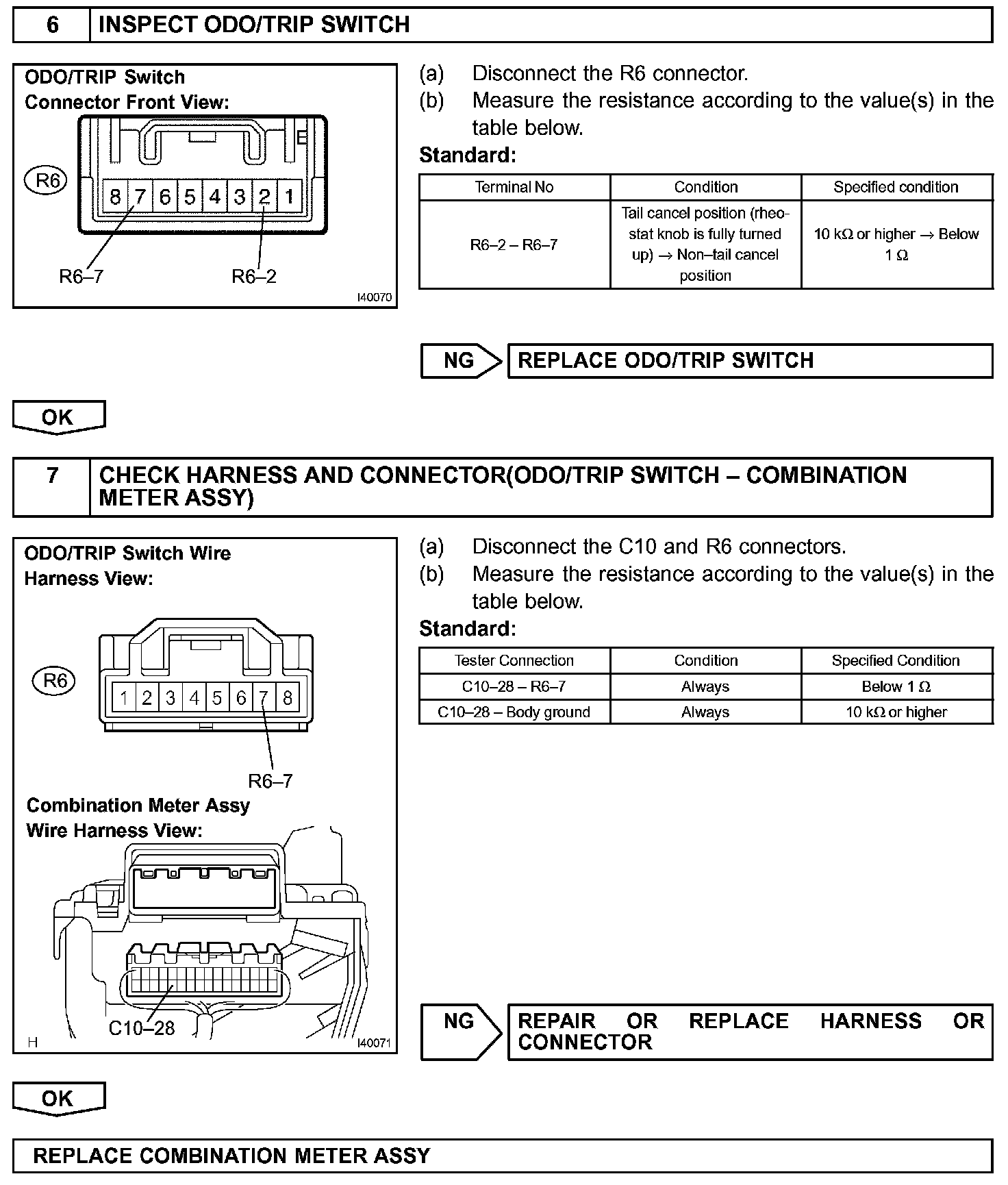

Step 6 - 7:




INSPECTION PROCEDURE
