Seat Belt Warning Lamp For Front Passenger Seat Does Not Operate
Seat Belt Warning Lamp For Front Passenger Seat Does Not Operate
SEAT BELT WARNING LAMP FOR PASSENGER'S SEAT DOES NOT OPERATE

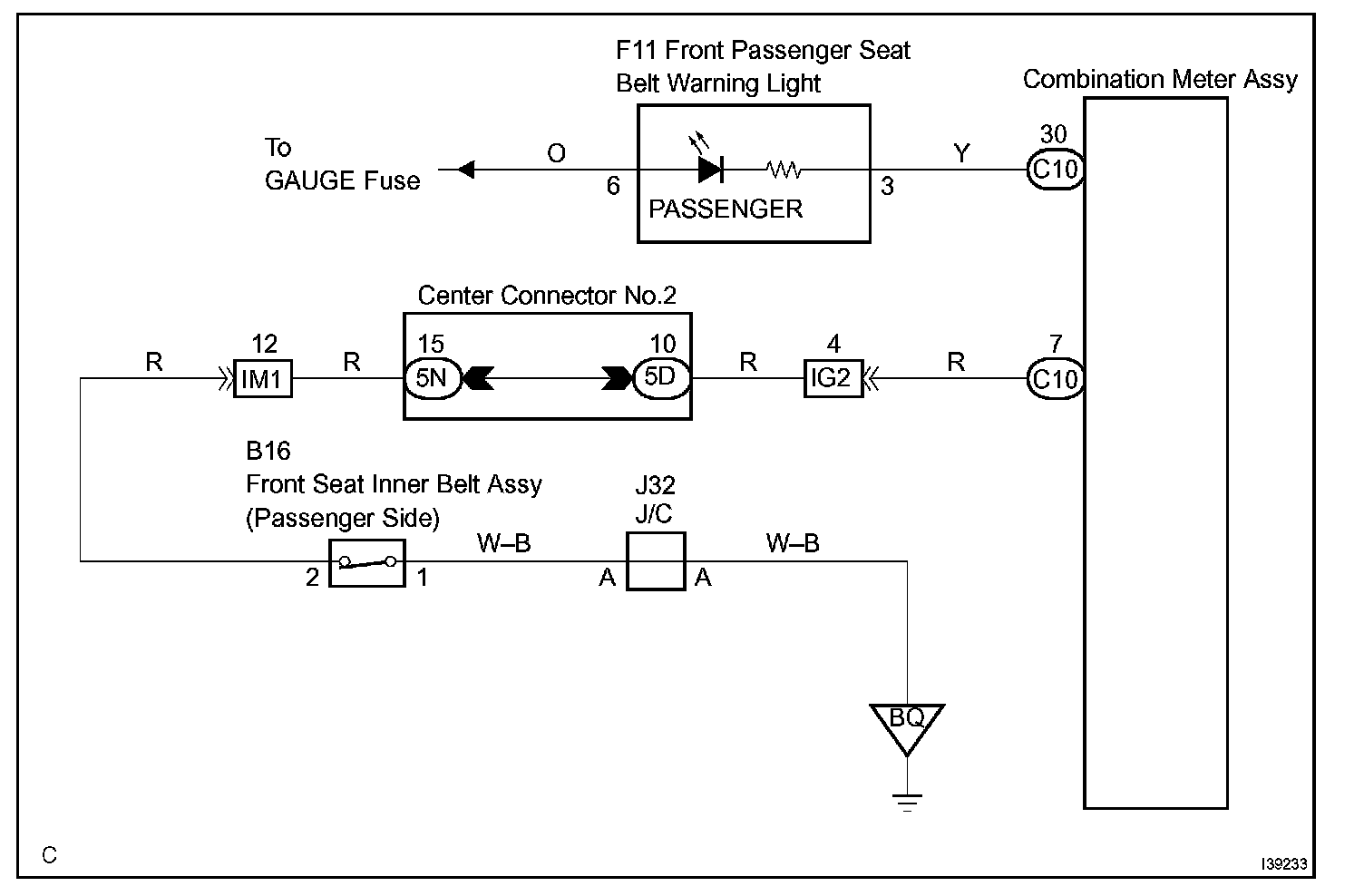

Wiring Diagram:

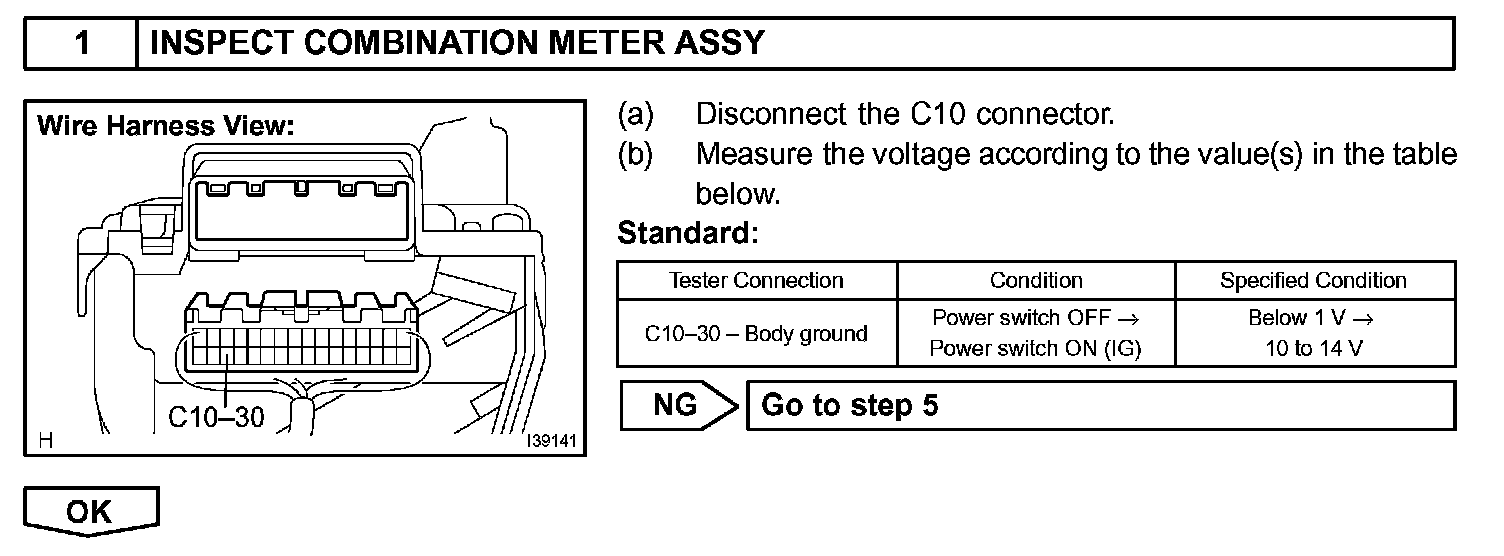

Step 1:

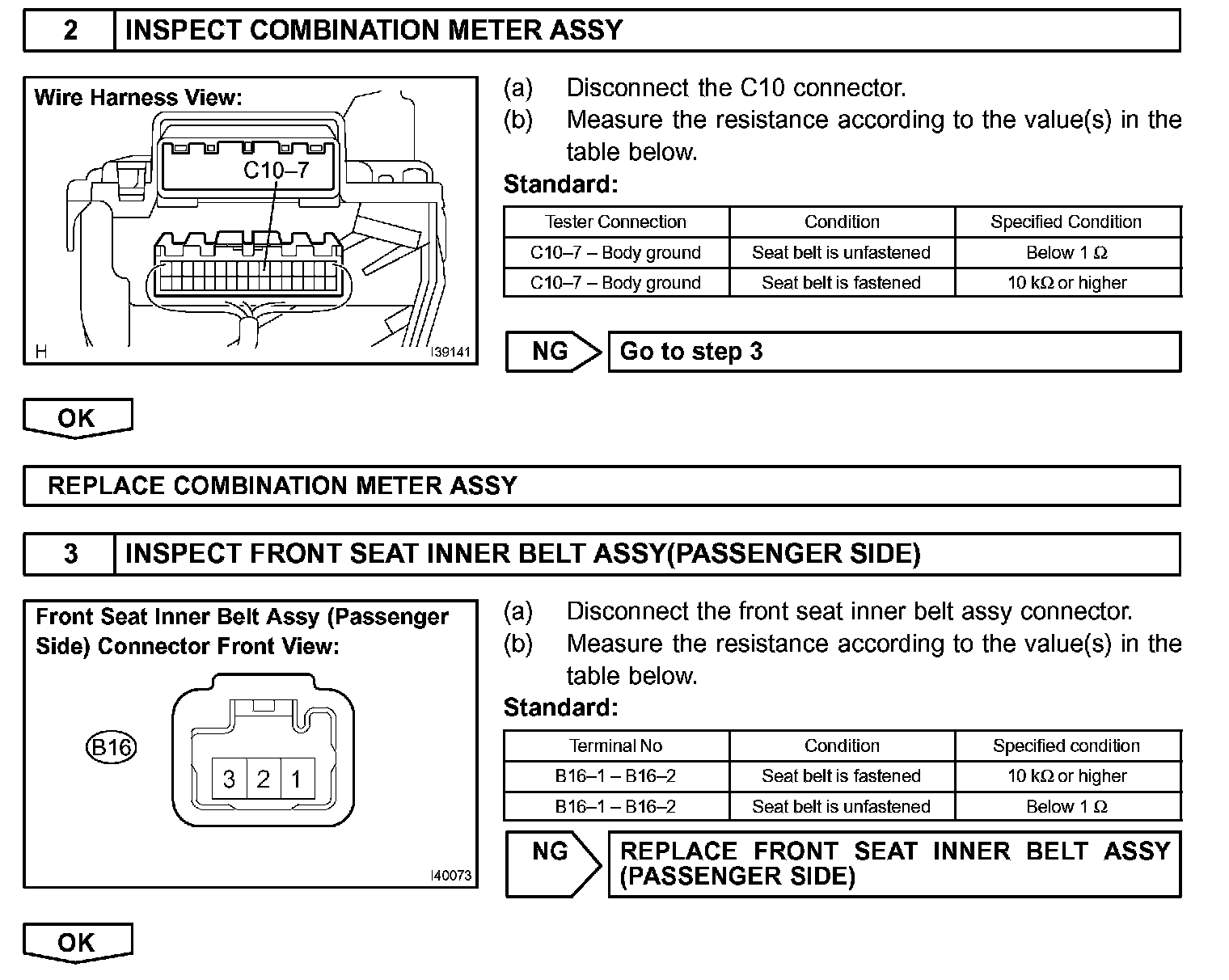

Step 2 - 3:
Step 4 - 5:
INSPECTION PROCEDURE
