Symptom Index

PROBLEM SYMPTOMS TABLE

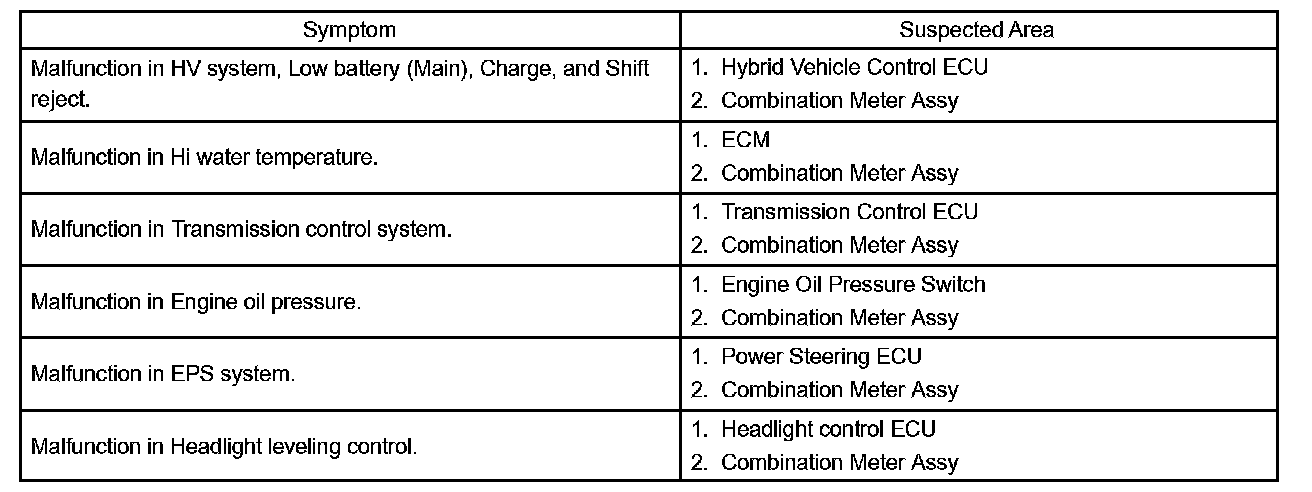

Problem Symptoms Table - Malfunction System:

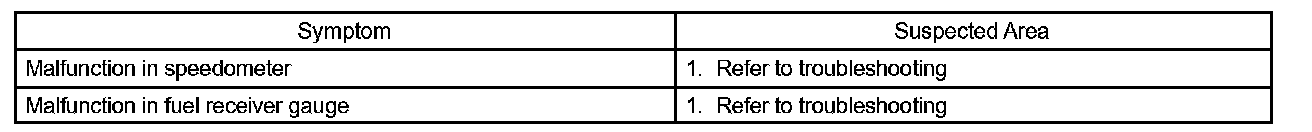

Problem Symptoms Table - Meter Gauges:

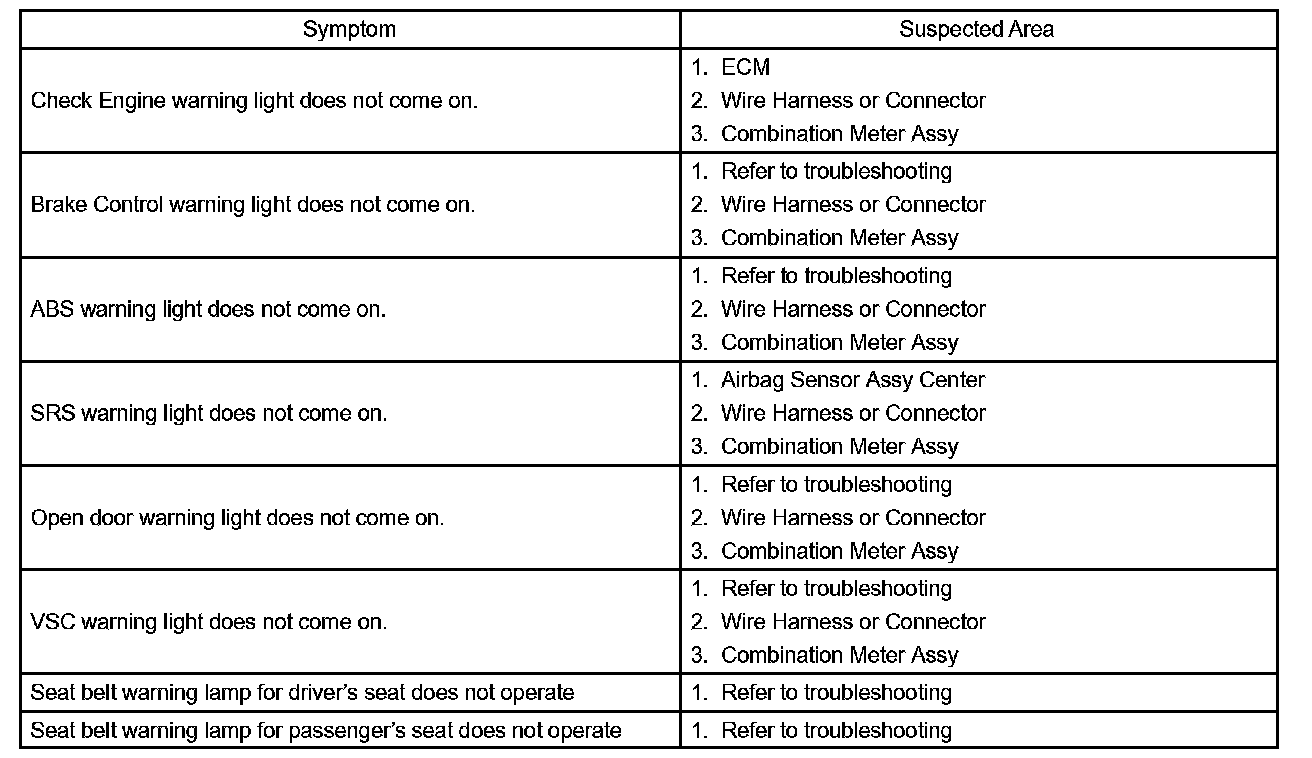

Problem Symptoms Table - Warning Lights:

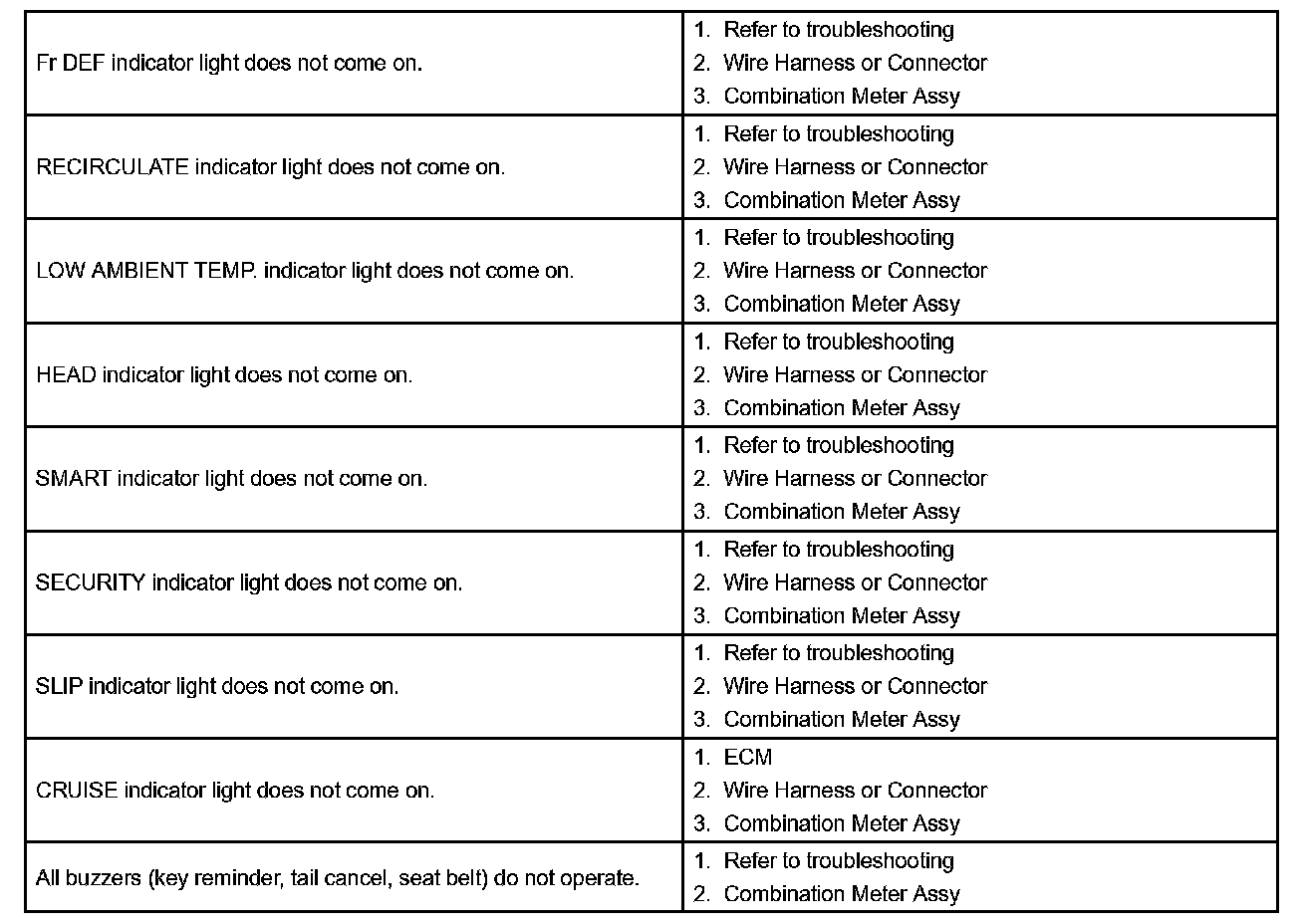

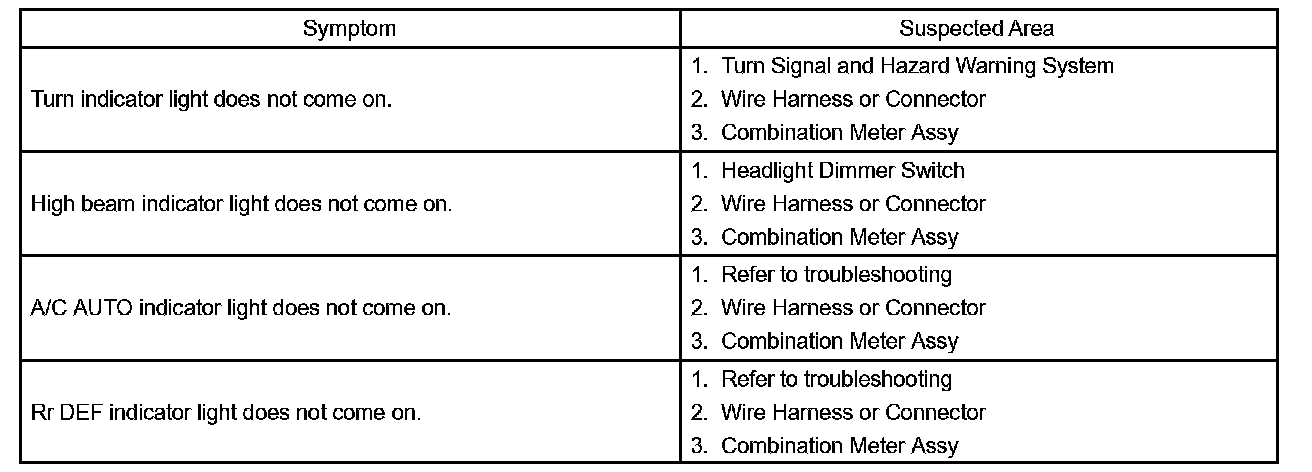

Problem Symptoms Table - Indicator Lights Part 1:

Problem Symptoms Table - Indicator Lights Part 2:

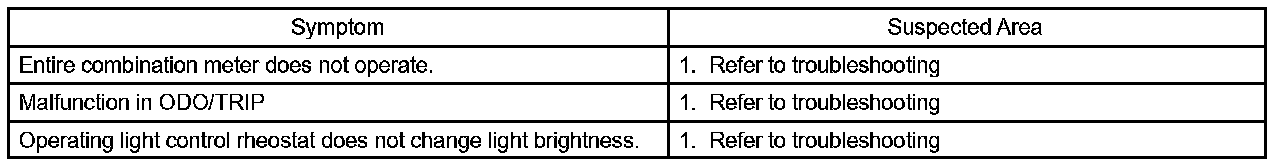

Problem Symptoms Table - Display Warning:

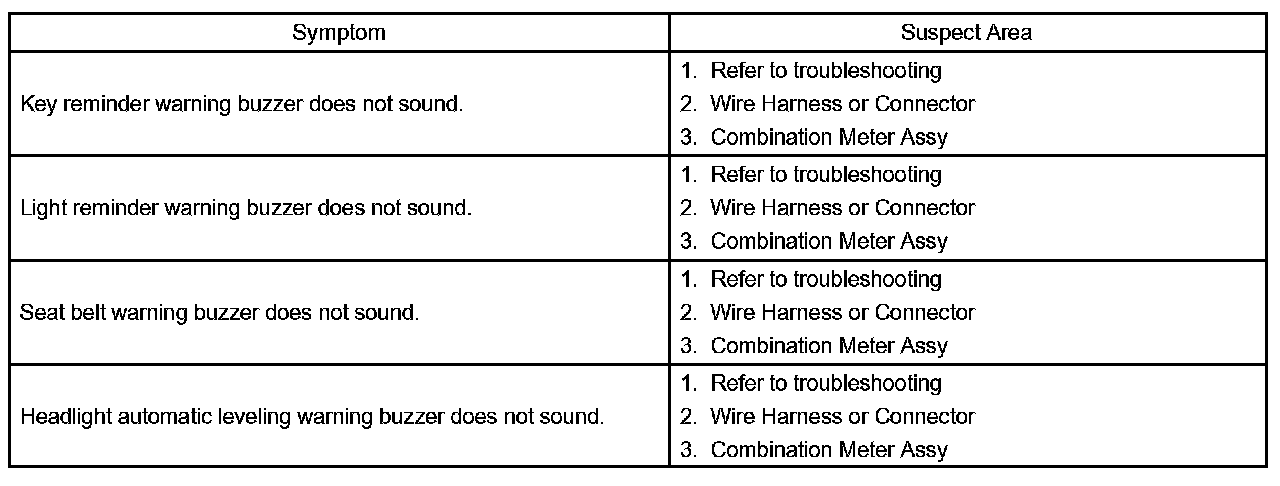

Problem Symptoms Table - Buzzer Part 1:

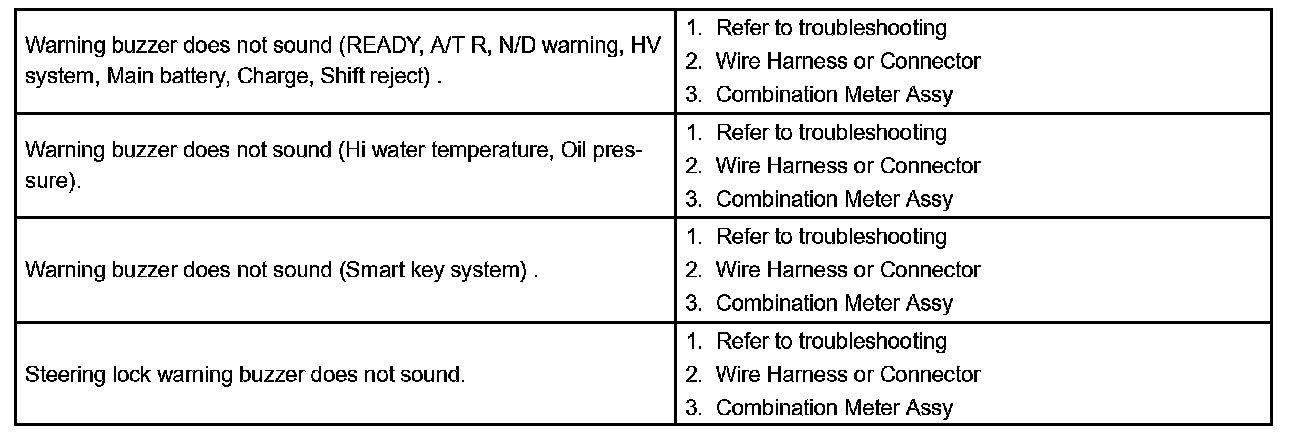

Problem Symptoms Table - Buzzer Part 2:

HINT:
- Inspect the related "Fuse" and "Relay" before confirming the suspected area as shown in the charts.
- The upper panel (instrument panel) must be removed to inspect the meter connector. The prius has a sub wire harness connector installed in a different position from the meter connector to shorten labor time. Work on the combination meter can also be done through this sub wire harness connector.

HINT: Refer to On-vehicle inspection in combination meter.
