Fog/Driving Lamp: Service and Repair

FOG LAMP UNIT

REPLACEMENT

HINT: Parts are shown for the LH side only. The LH and RH side are symmetrical.

1. REMOVE FRONT FENDER LINER LH
2. REMOVE FRONT FENDER LINER RH
3. REMOVE FRONT BUMPER COVER
4. REMOVE RADIATOR GRILLE LOWER LH




5. REMOVE FOG LAMP UNIT

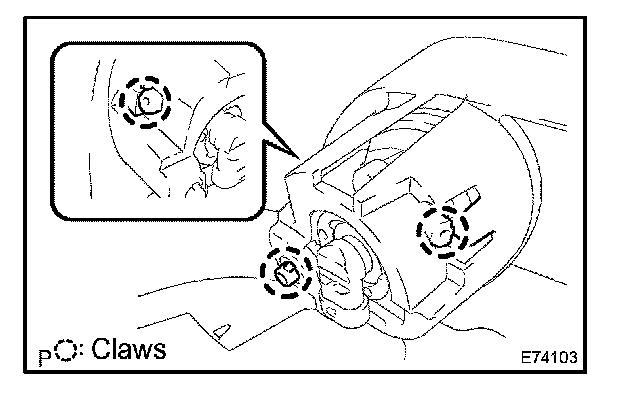

a. Disengage the 3 claws and push the fog lamp unit towards the front of the vehicle.
b. Remove the fog lamp bulb and the fog lamp unit.

6. CHECK FOG LIGHT AIM
