Headlamp Control Module: Service and Repair

HEADLAMP LEVELING ECU ASSY

REPLACEMENT

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE GLOVE COMPARTMENT DOOR ASSY
3. REMOVE ECM

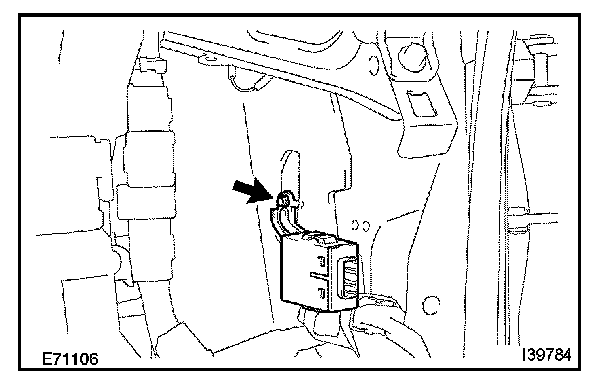

4. REMOVE HEADLAMP LEVELING ECU ASSY
a. Disconnect the connector.
b. Remove the bolt and the headlamp leveling ECU assy.

5. INSTALL ECM
6. CONNECT BATTERY NEGATIVE TERMINAL
7. PERFORM INITIALIZATION
