License Plate Lamp: Service and Repair

LICENSE PLATE LAMP LENS

REPLACEMENT

HINT: Parts are shown for the LH side only. The LH and RH side are symmetrical.

1. REMOVE BACK DOOR TRIM BOARD ASSY
2. REMOVE BACK DOOR GARNISH SUB-ASSY OUTSIDE




3. REMOVE LICENSE PLATE LAMP LENS

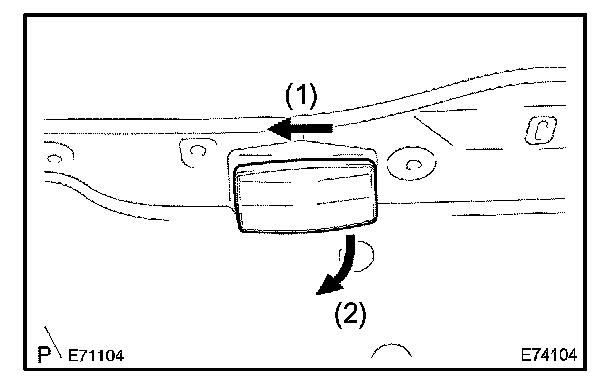

a. Push the license plate lamp assy in the direction indicated by the arrow in the illustration and remove it.
b. Disconnect the license plate lamp socket & wire and bulb. Remove the license plate lamp lens.
