Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Lighting and Horns >> Locations

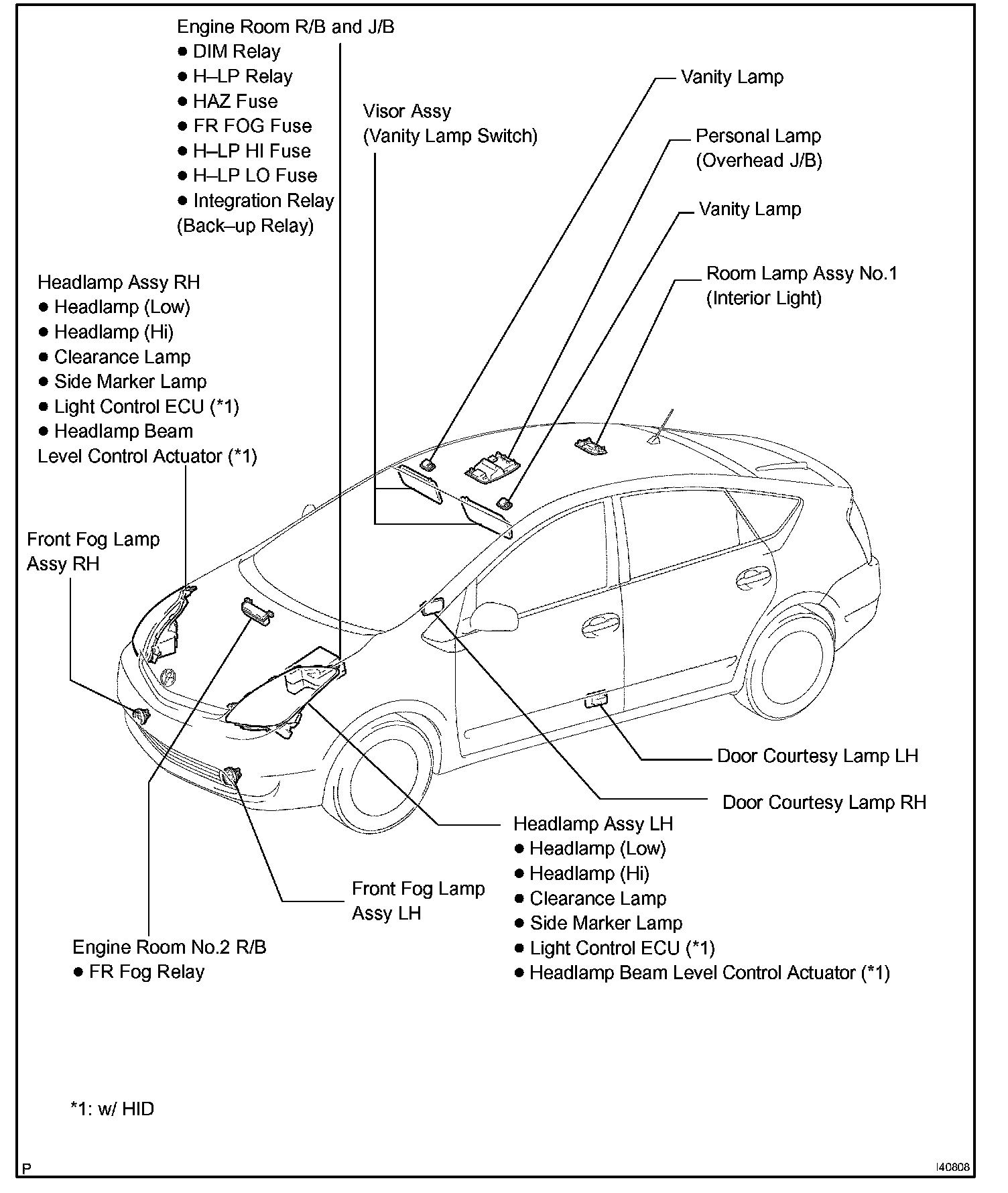

Lighting and Horns: Locations

Lighting System:
