Door Courtesy Switch Circuit

DOOR COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The multiplex network body ECU detects the condition of the door courtesy switch assy.

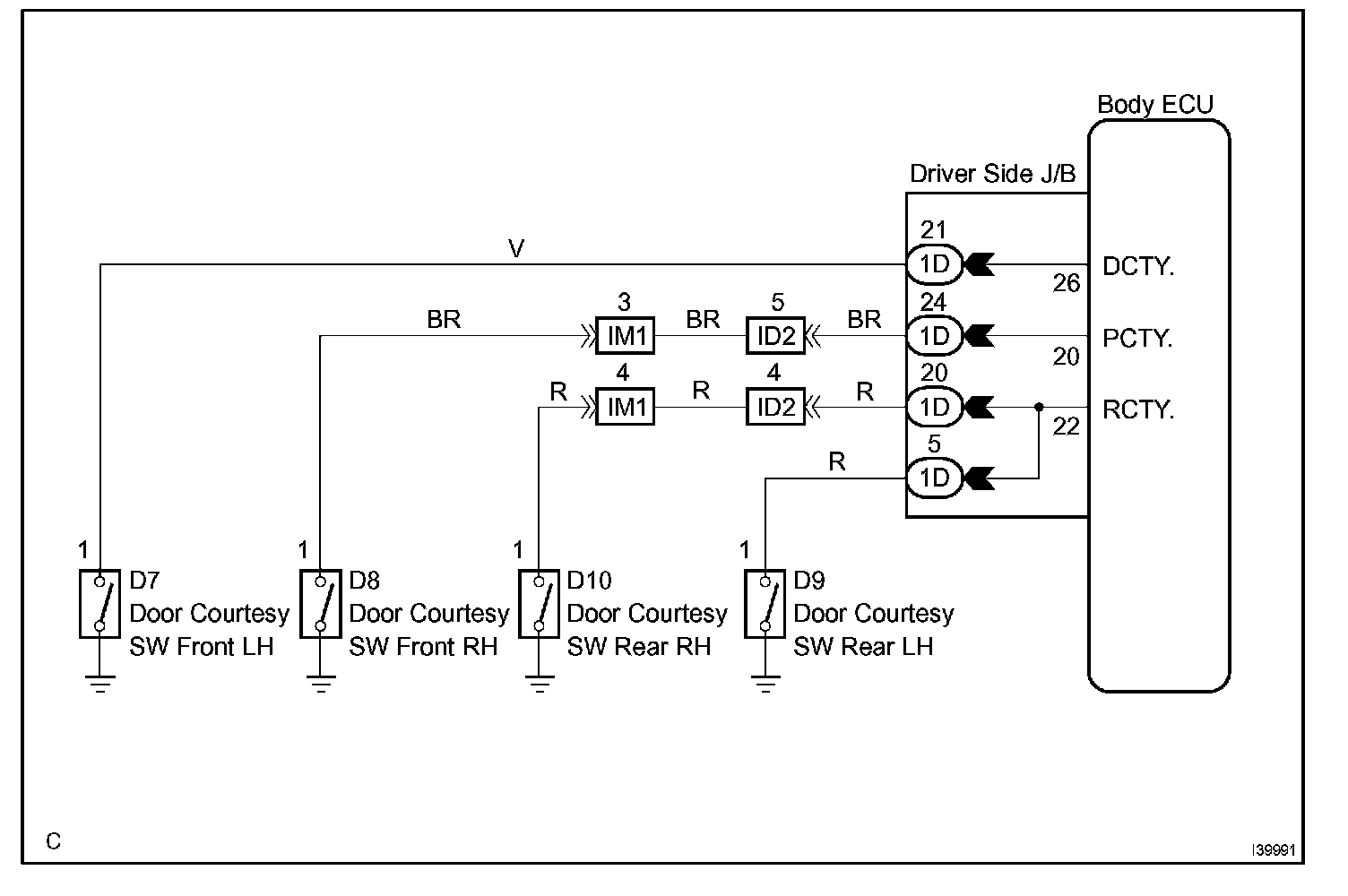

Wiring Diagram:

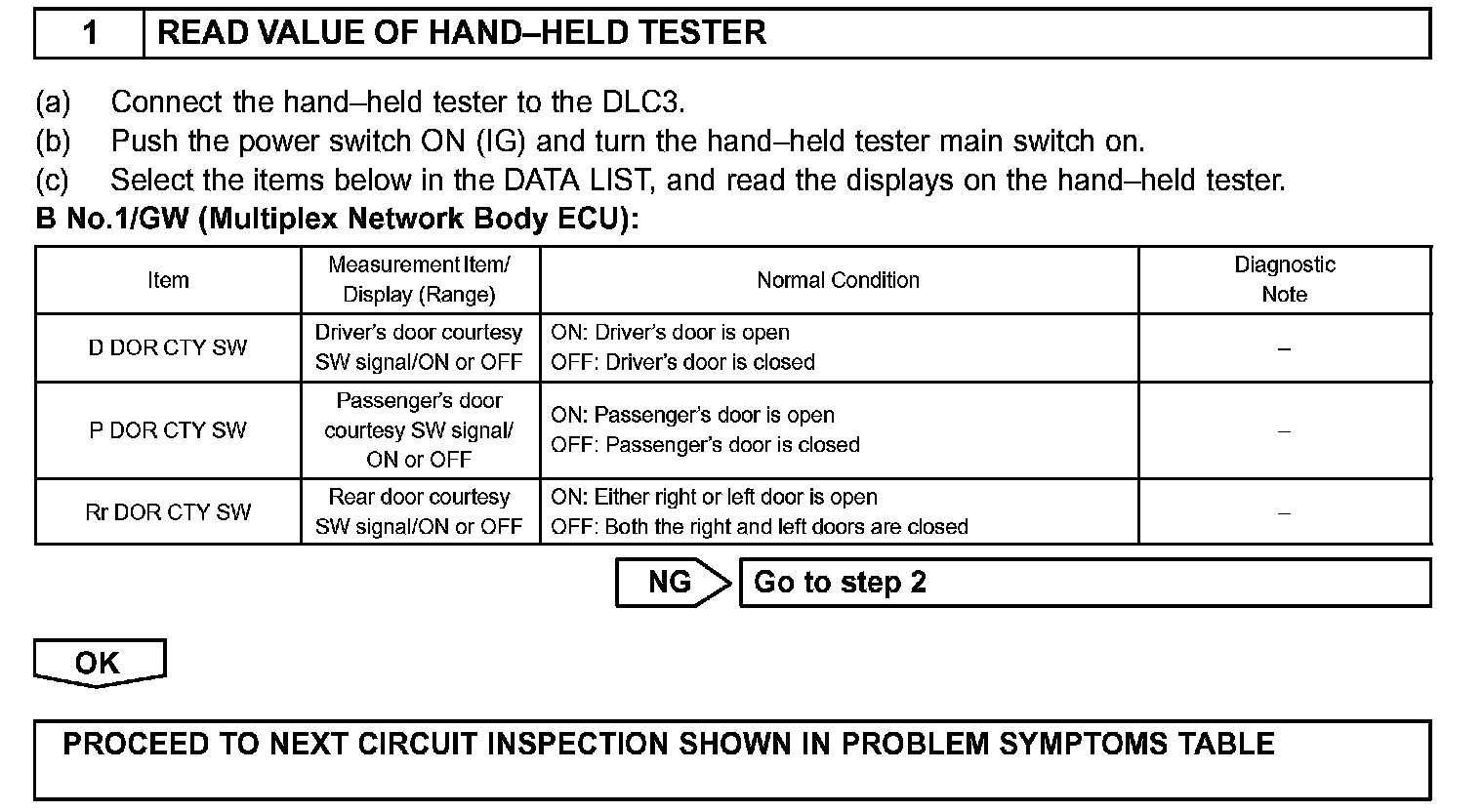

Step 1:

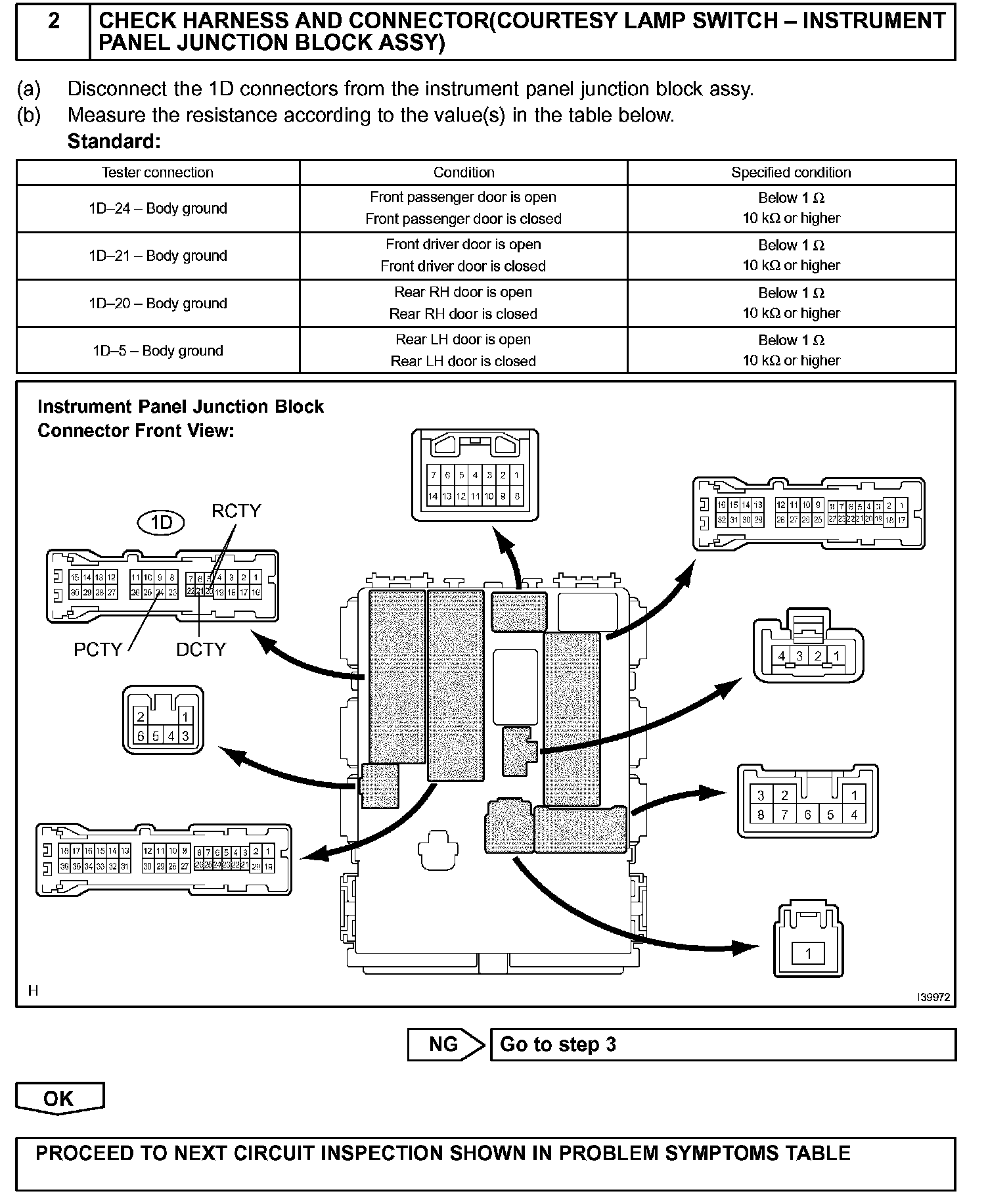

Step 2:

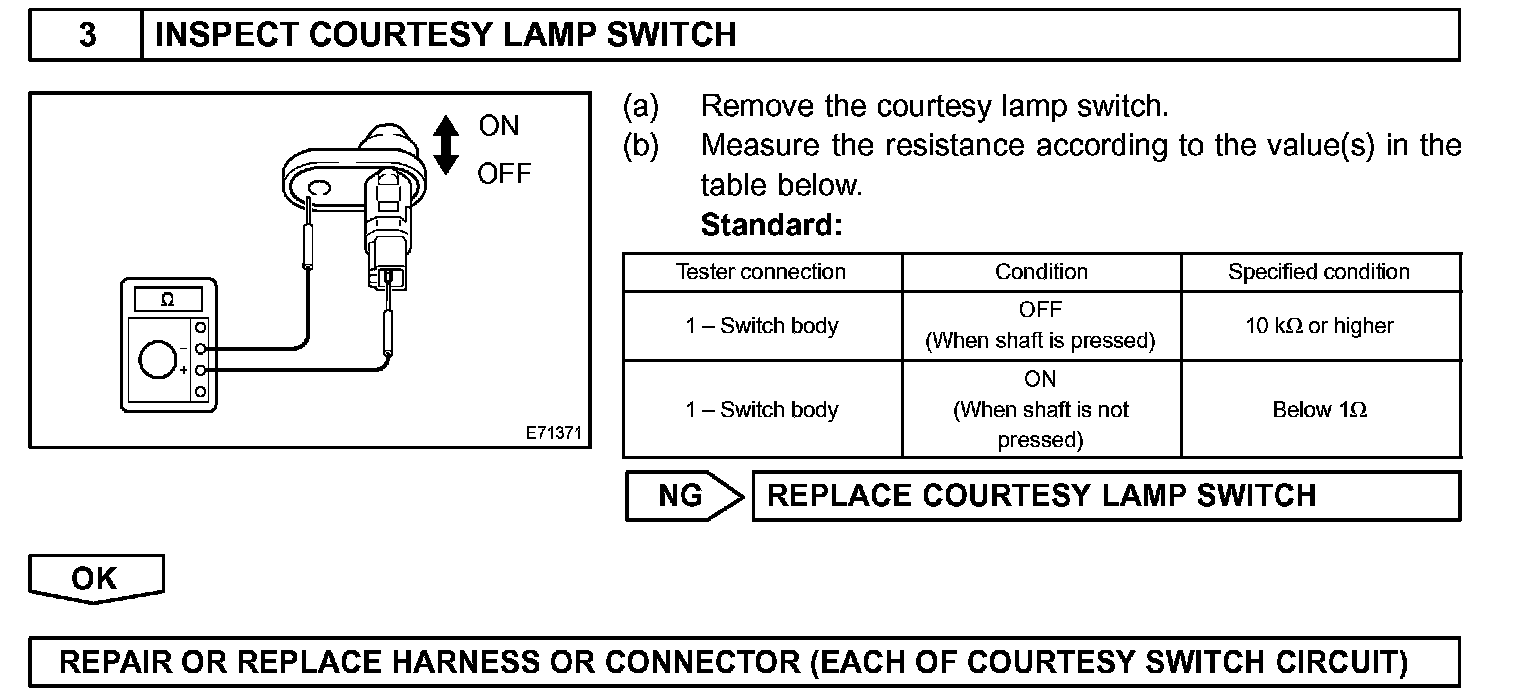

Step 3:

INSPECTION PROCEDURE

HINT: Each door courtesy switch circuit is same procedure. First, inspect the suspected door courtesy switch circuit.
