Door Lock Position Circuit

DOOR LOCK POSITION CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the state of the door lock detection sensor and send it to the multiplex network body ECU.

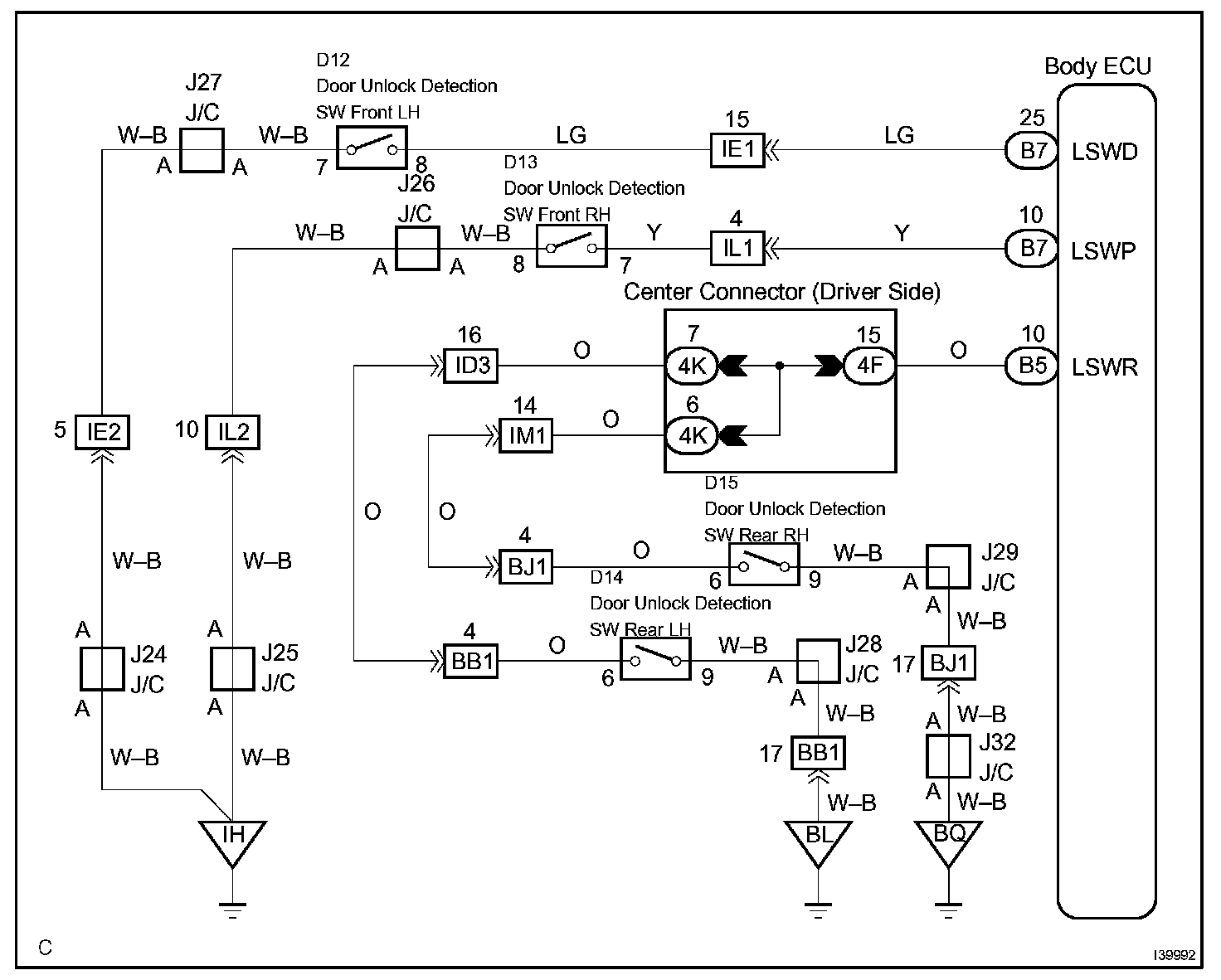

Wiring Diagram:

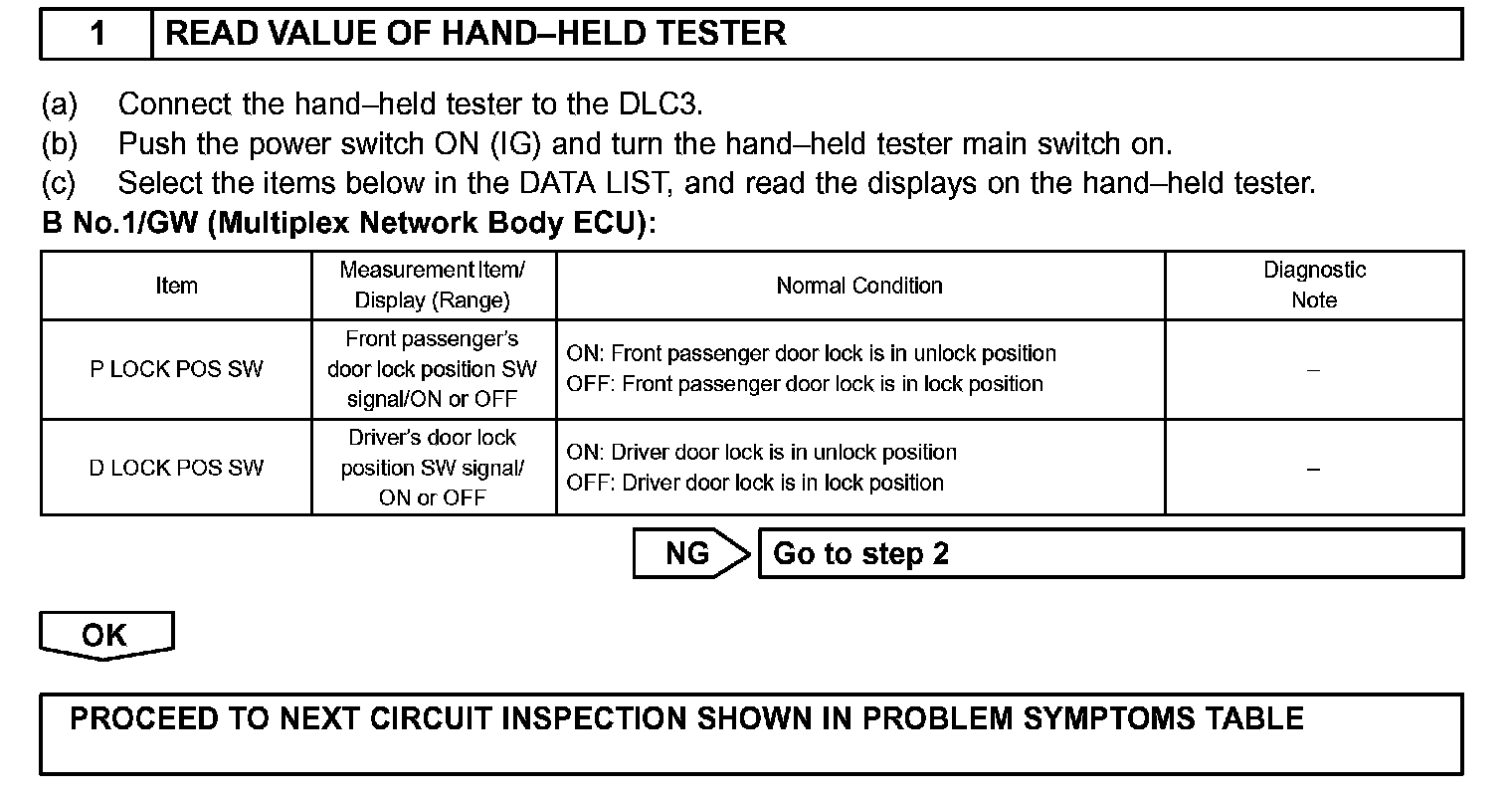

Step 1:

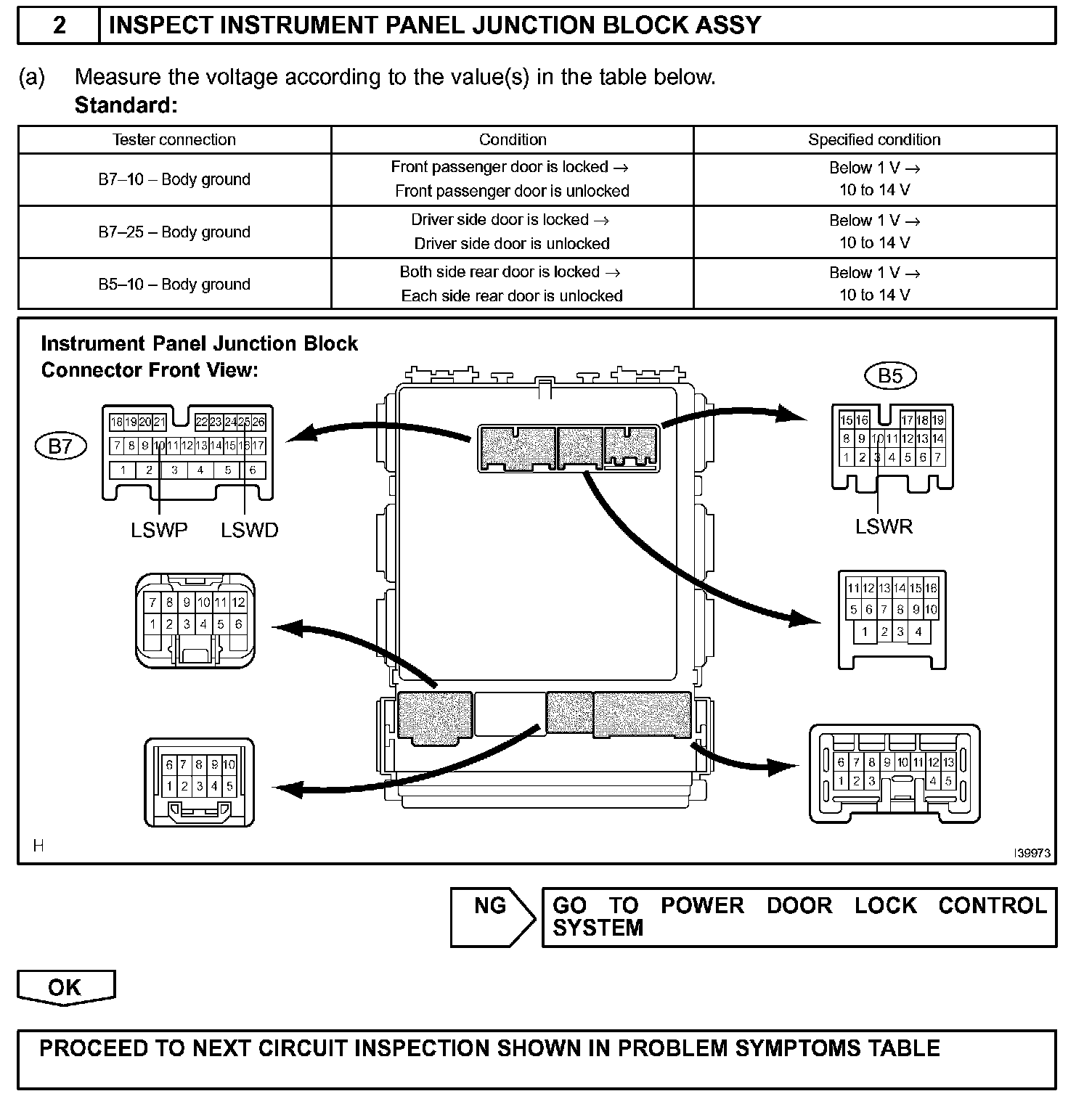

Step 2:

INSPECTION PROCEDURE

HINT:
- Before this procedure, check if the wireless door lock system operation is normal.
- Each door lock position circuit is same procedure. First, inspect the suspected door lock position circuit.
