Headlight Beam Level Control ECU Power Source Circuit

HEADLIGHT BEAM LEVEL CONTROL ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the headlamp leveling ECU assy.

Wiring Diagram:

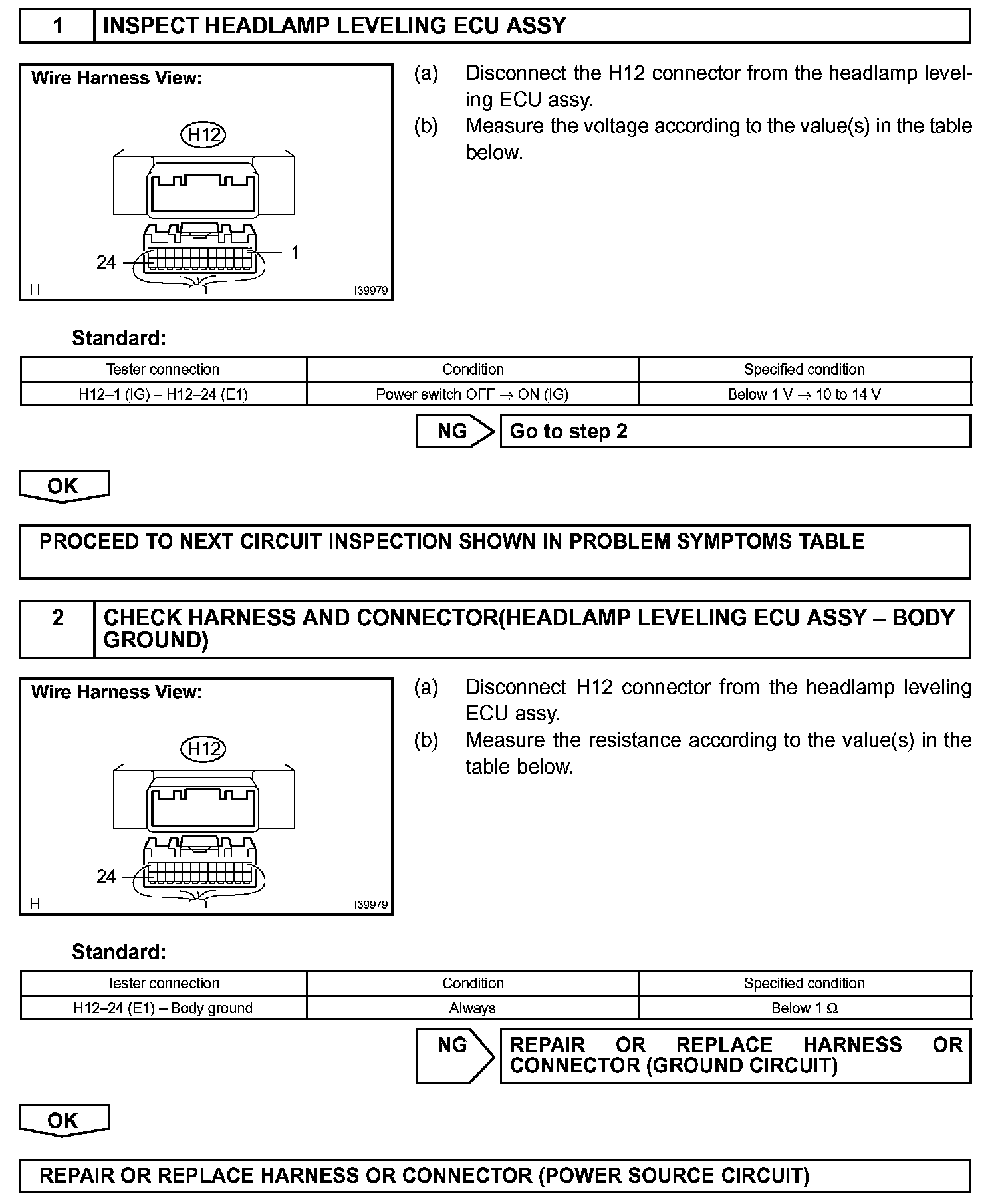

Step 1 - 2:




INSPECTION PROCEDURE
