Headlight Signal Circuit

HEADLIGHT SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

Headlamp leveling ECU assy receives the HEAD relay operation signal from HEAD signal.

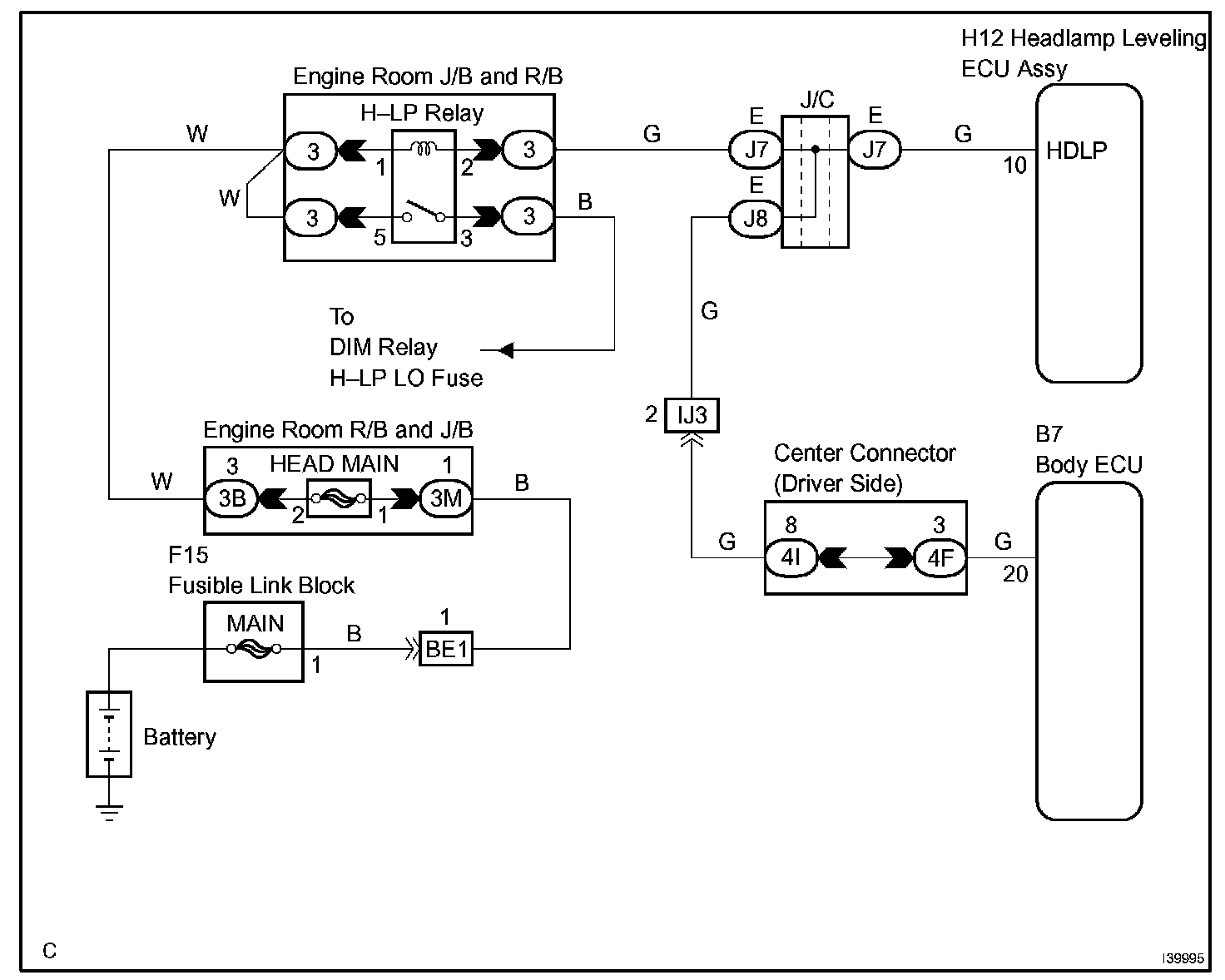

Wiring Diagram:

Step 1:

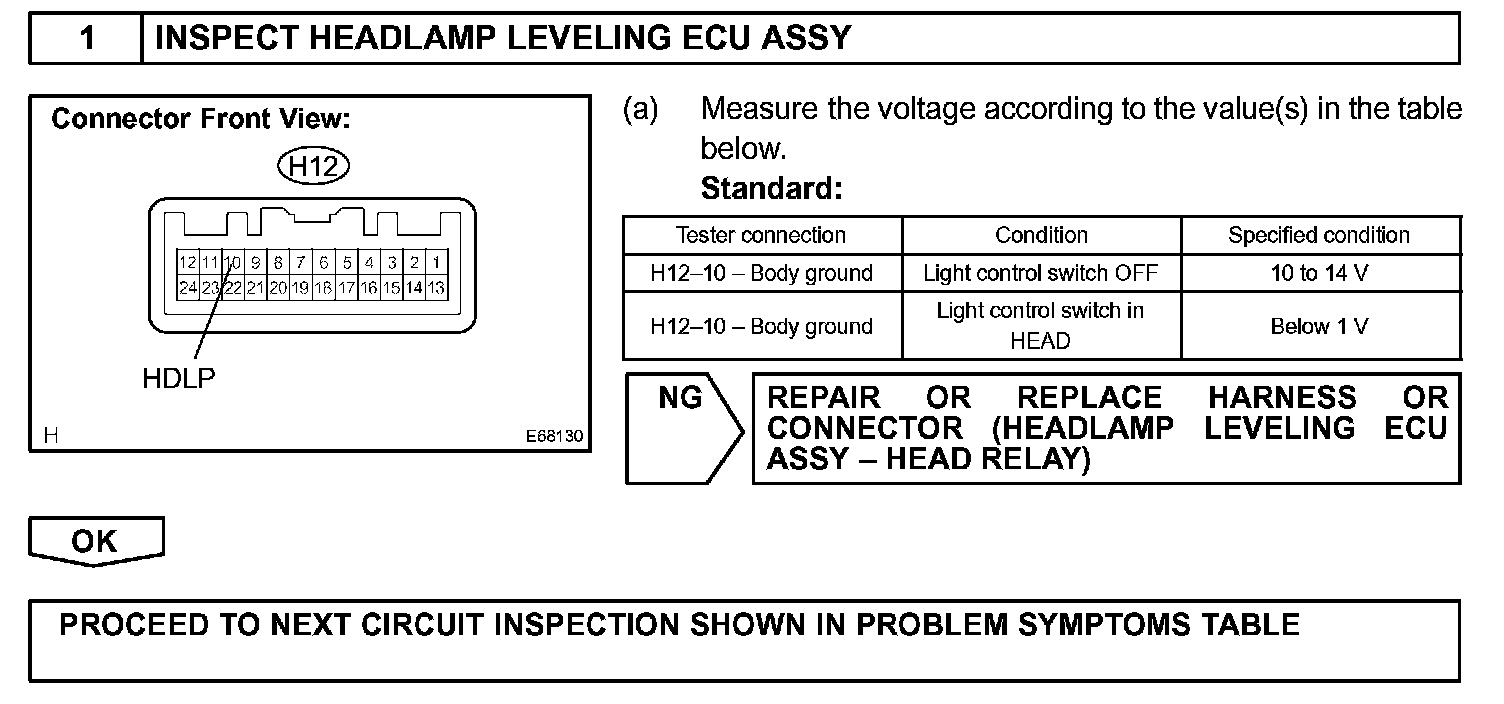

INSPECTION PROCEDURE

HINT: First, check if the headlamp operation is normal before performing the following procedure.
