Light Control Switch Circuit

LIGHT CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the state of the headlamp dimmer switch.

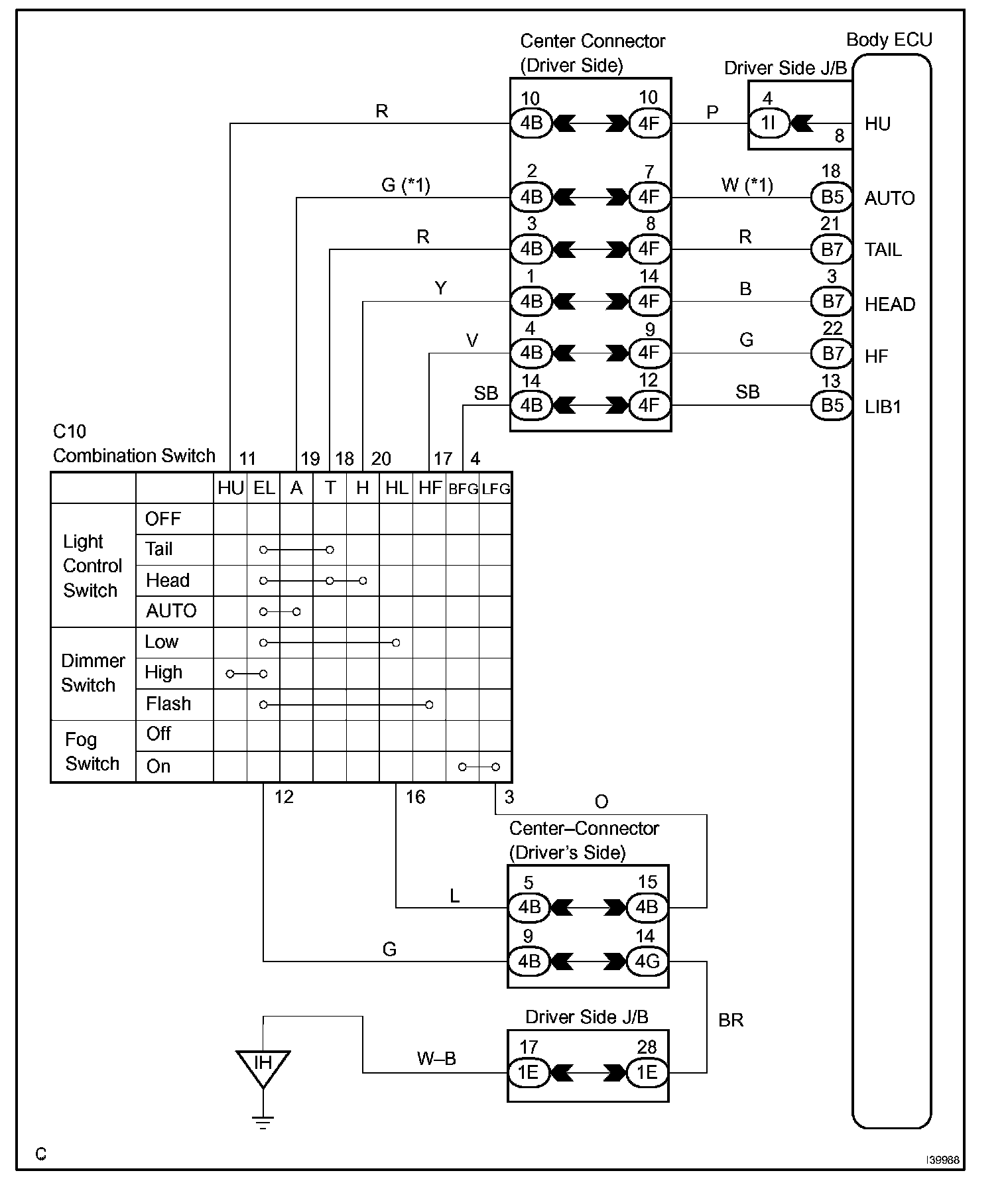

Wiring Diagram:

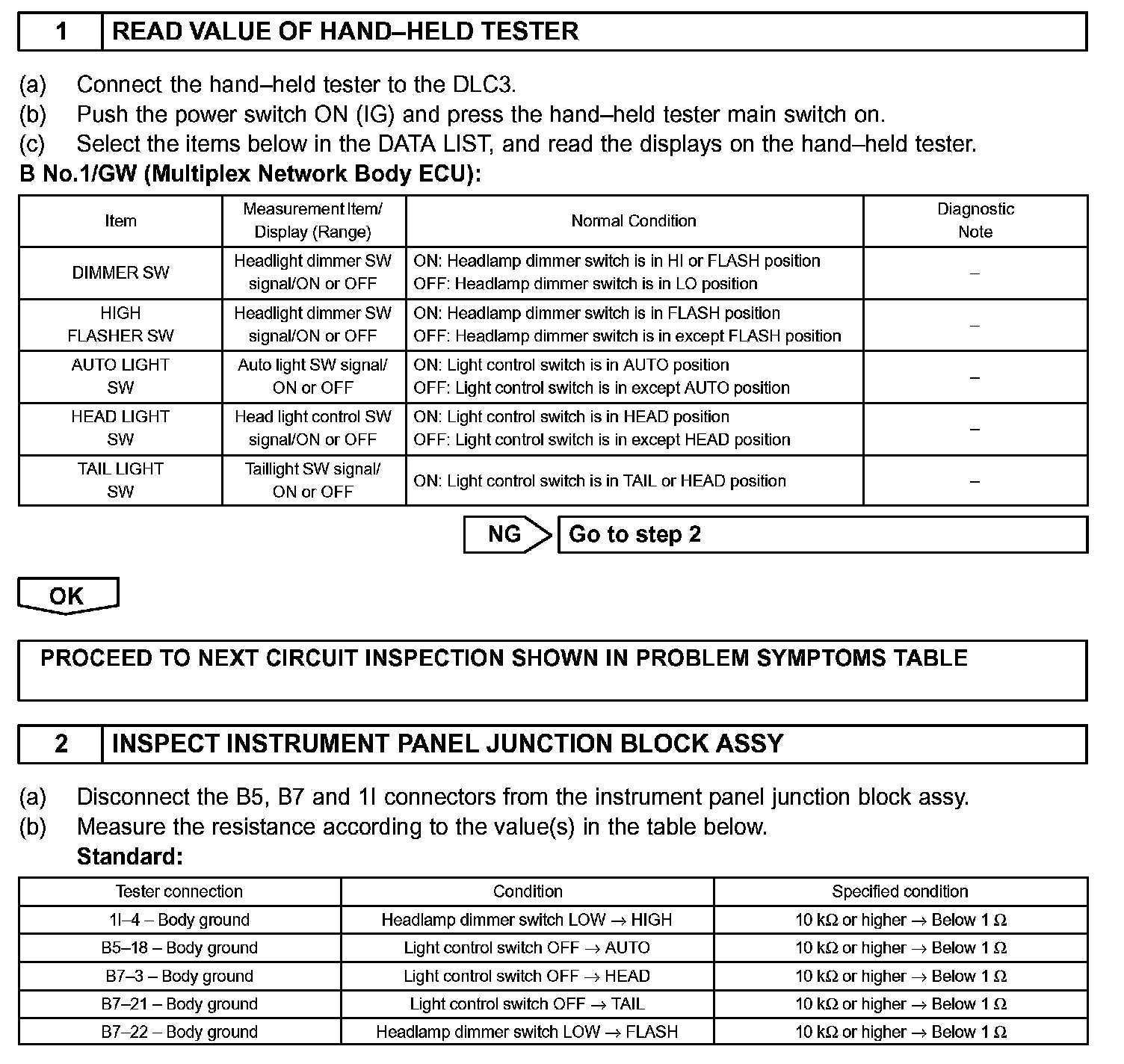

Step 1 - 2:

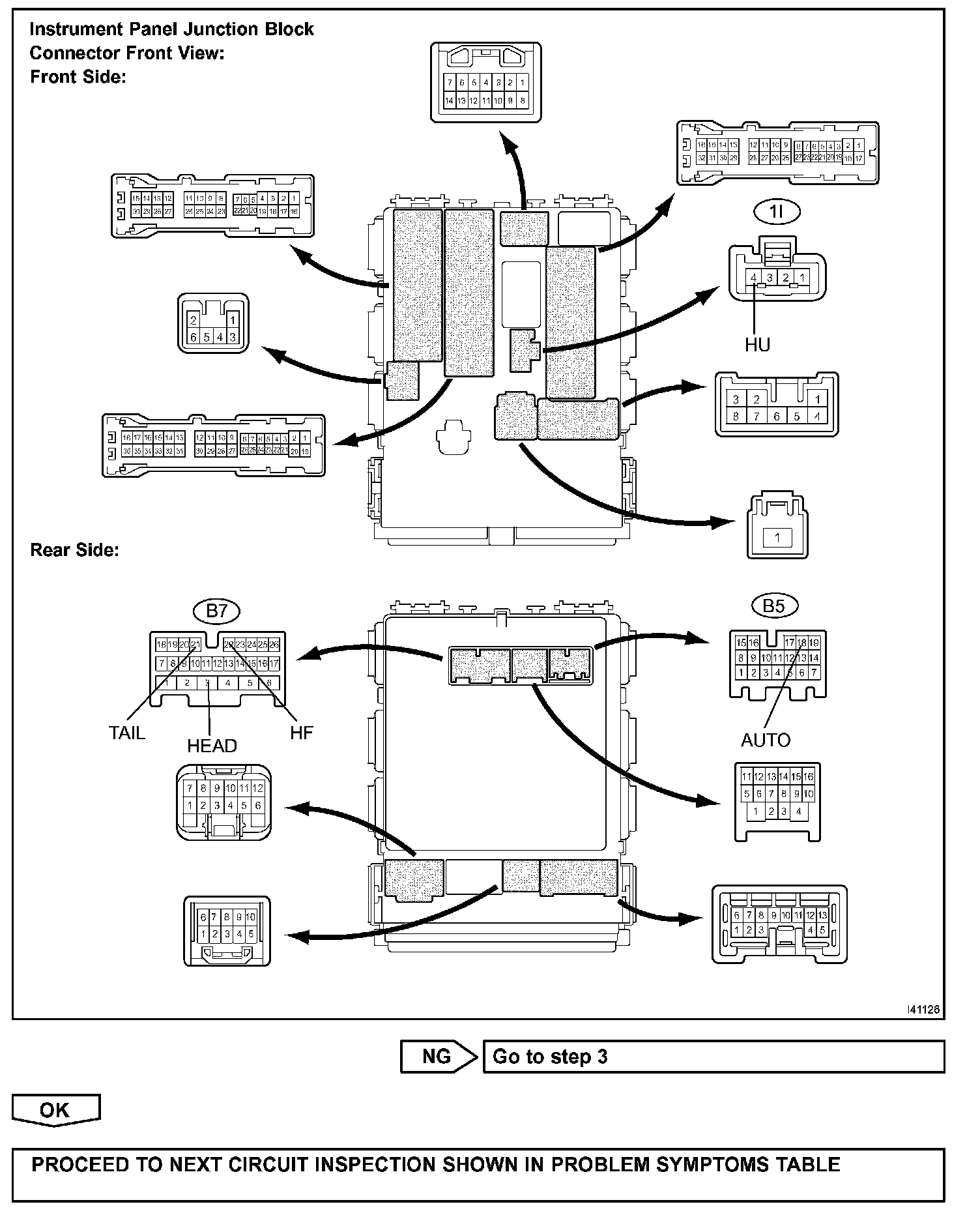

Step 2 (Continued):

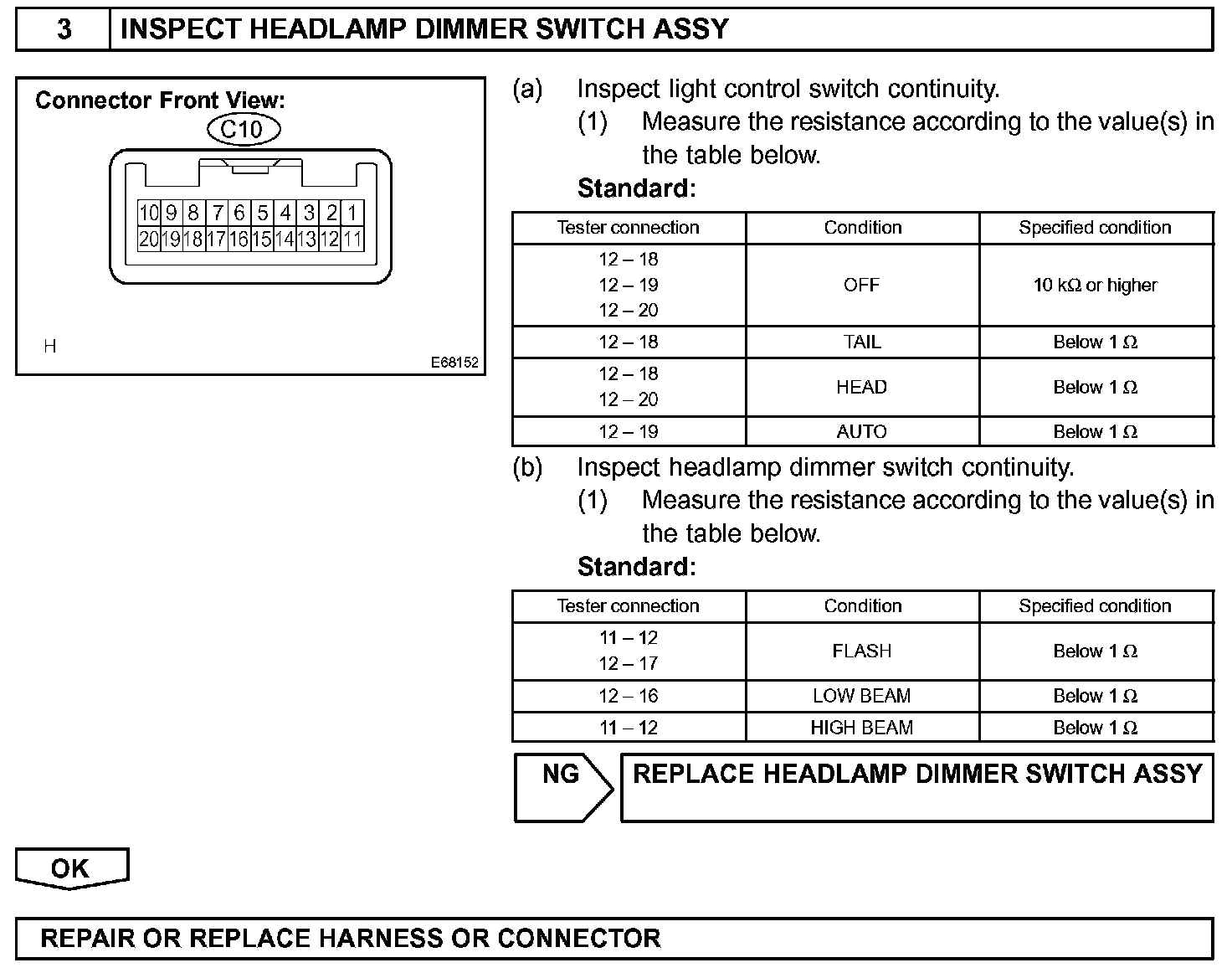

Step 3:

INSPECTION PROCEDURE
