On-Vehicle Inspection

LIGHTING SYSTEM

ON-VEHICLE INSPECTION




1. INSPECT TURN SIGNAL FLASHER OPERATION
a. Power source circuit and ground circuit inspection.
1. Remove the turn signal flasher relay from the instrument panel junction block assy.

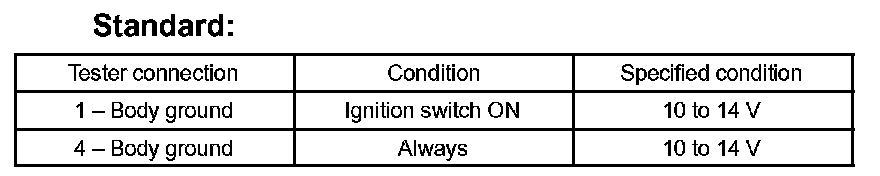

2. Measure the voltage according to the value(s) in the table.

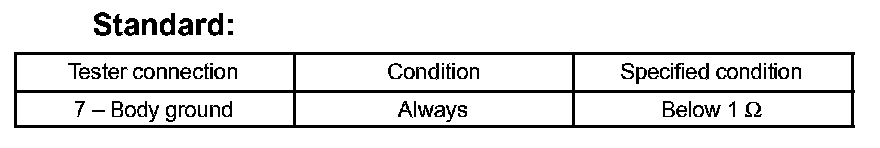

3. Measure the resistance according to the value(s) in the table.

b. Output operation signal inspection.

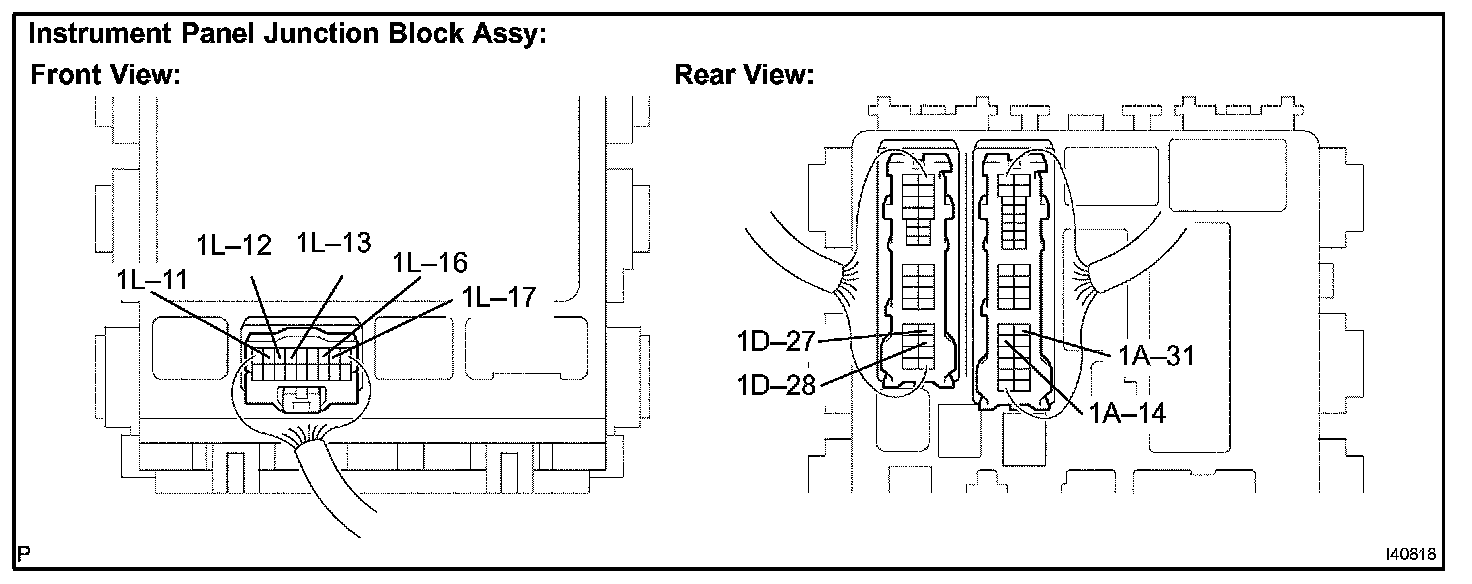

1. Install the turn signal flasher relay to the instrument panel junction block assy.

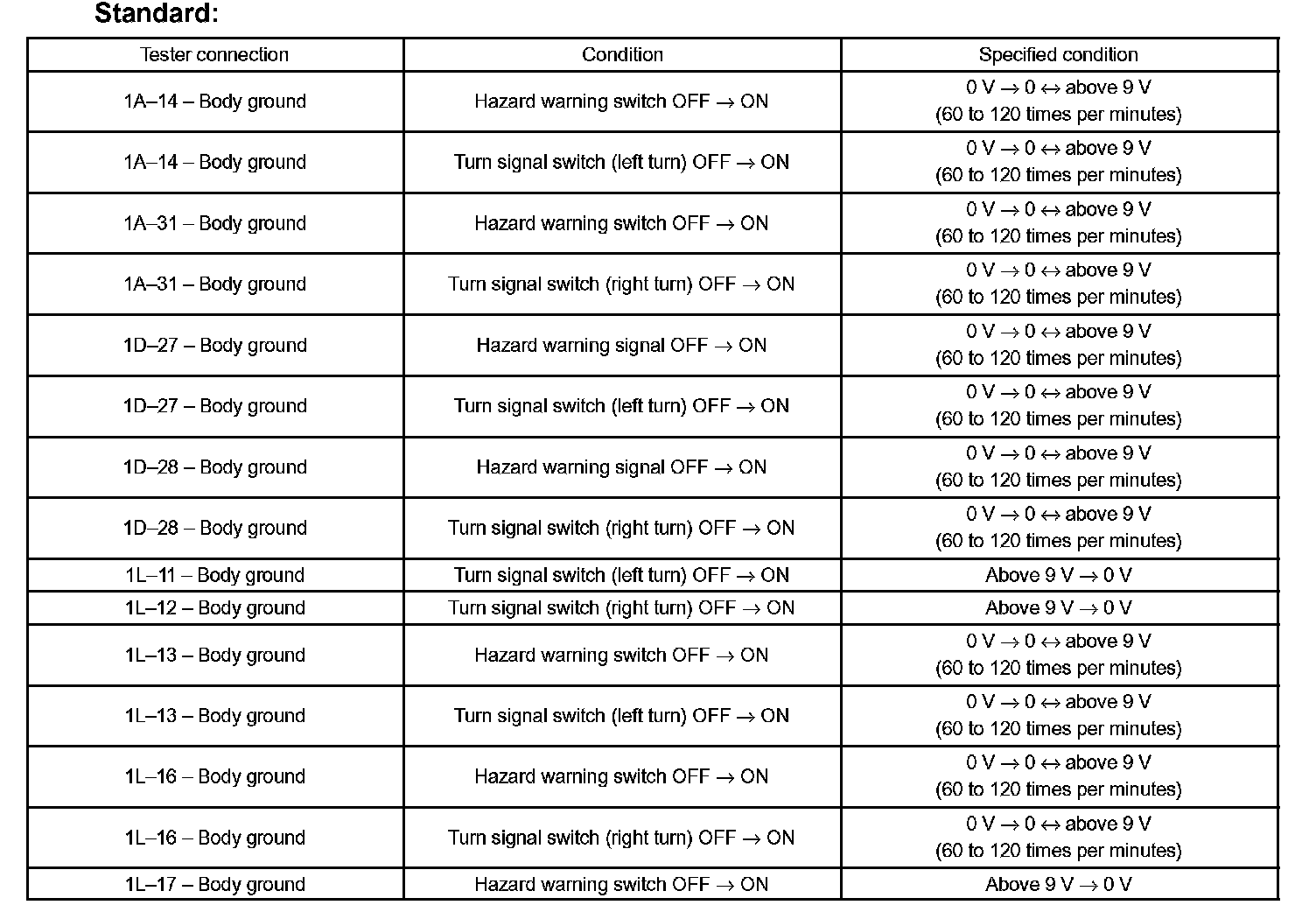

2. Measure the voltage according to the value(s) in the table.

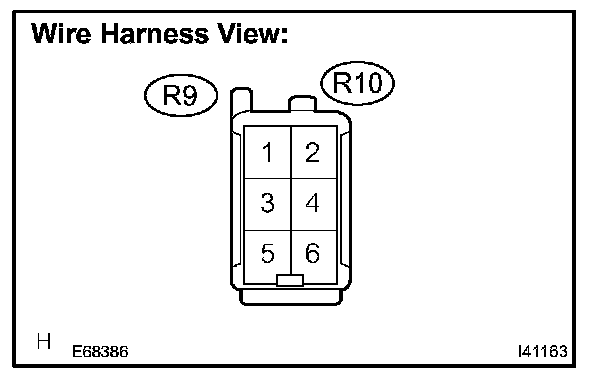

2. REAR COMBINATION LAMP

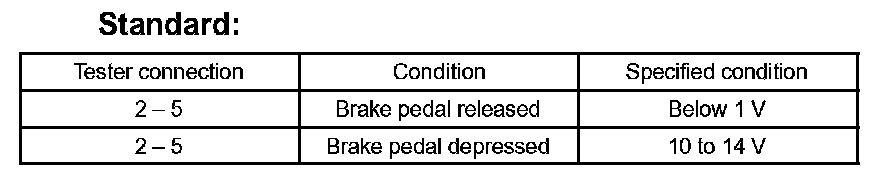

a. Measure the voltage according to the value(s) in the table.

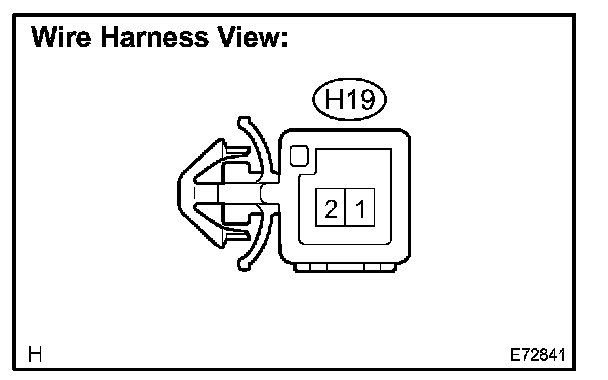

3. HIGH MOUNTED STOP LAMP

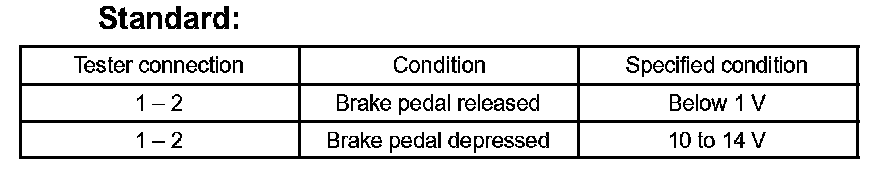

a. Measure the voltage according to the value(s) in the table.
