Vehicle Speed Signal Circuit

VEHICLE SPEED SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

Headlamp beam level control ECU receives the vehicle speed signal from the combination meter.

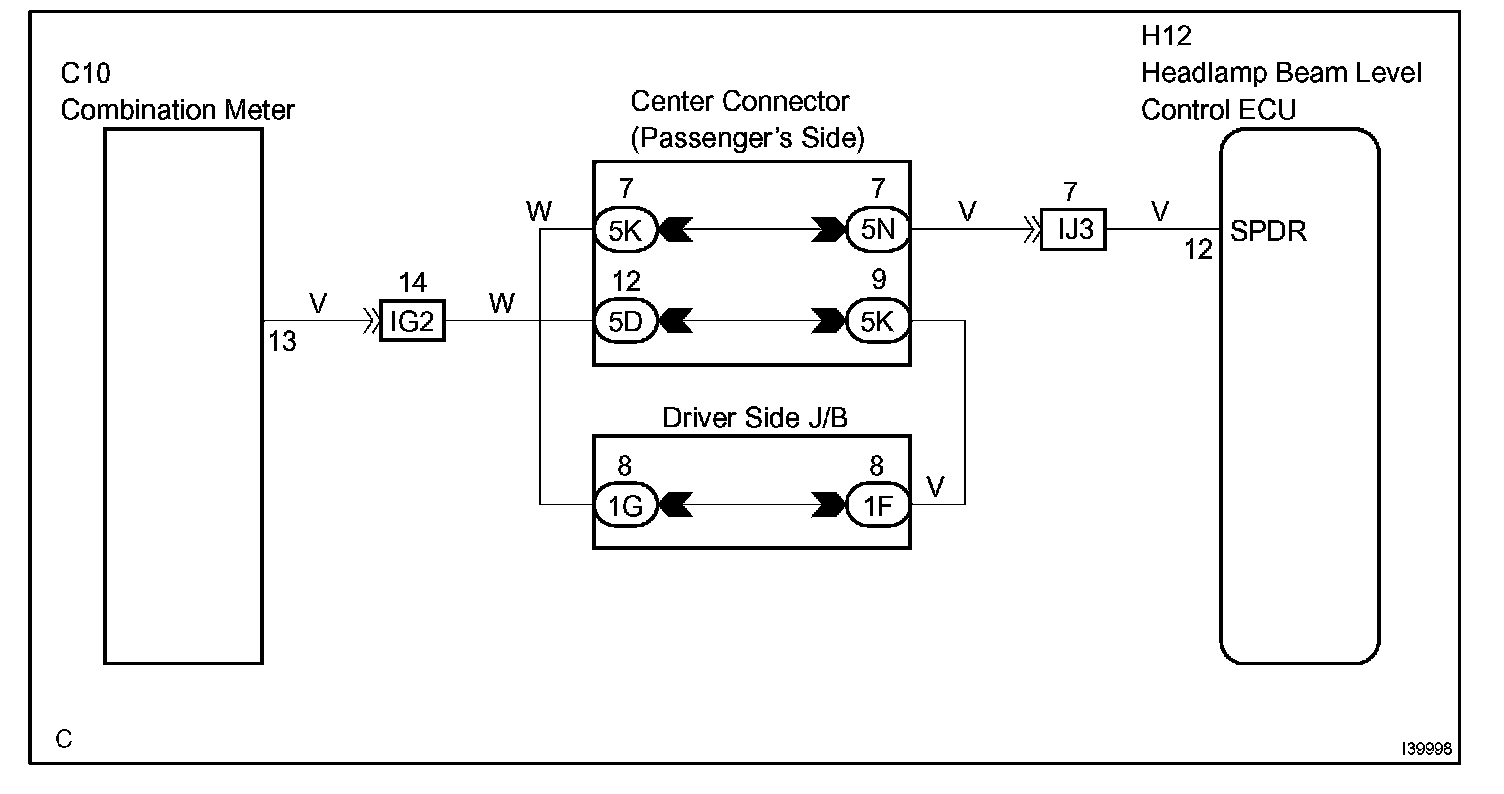

Wiring Diagram:

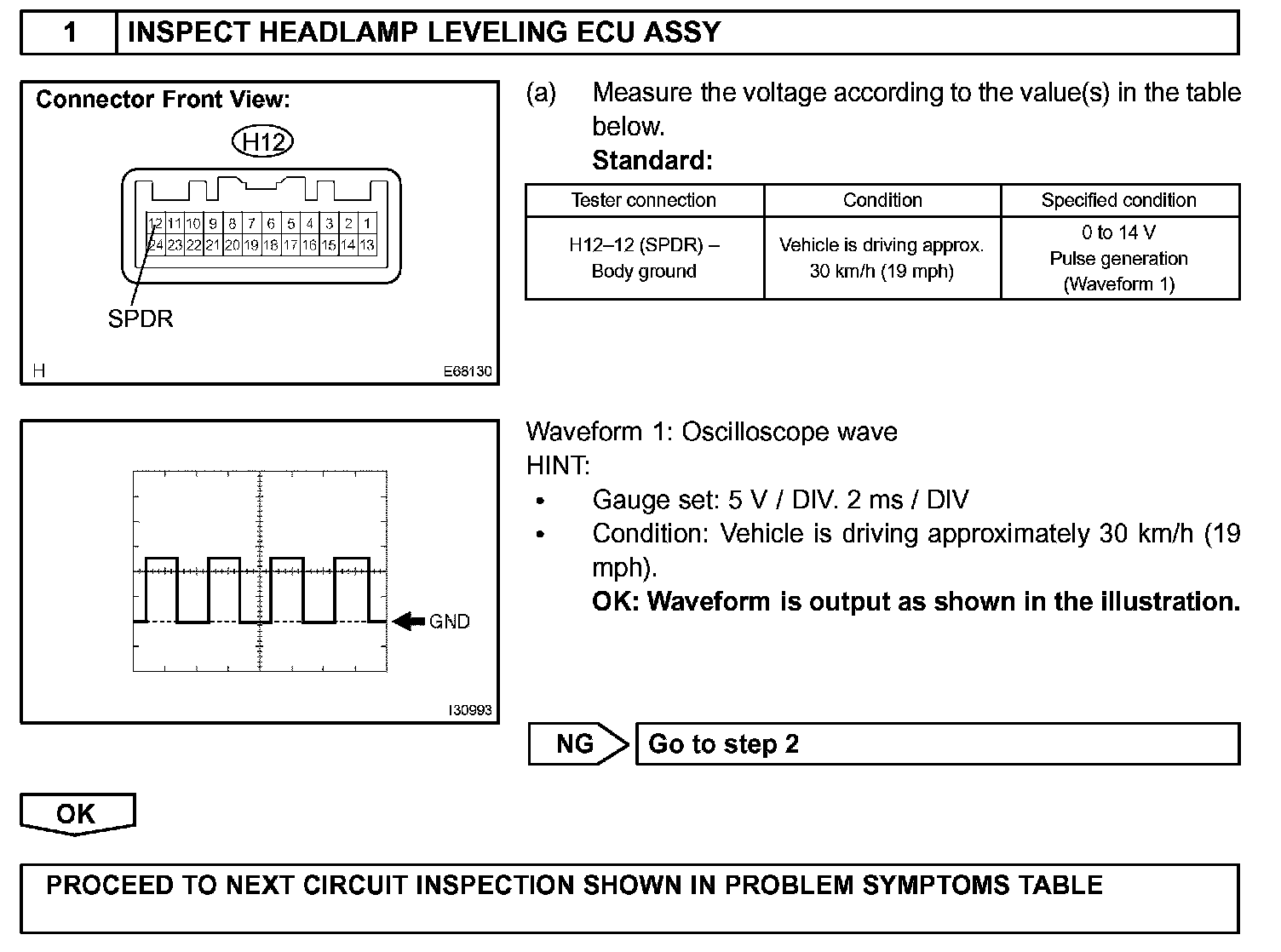

Step 1:

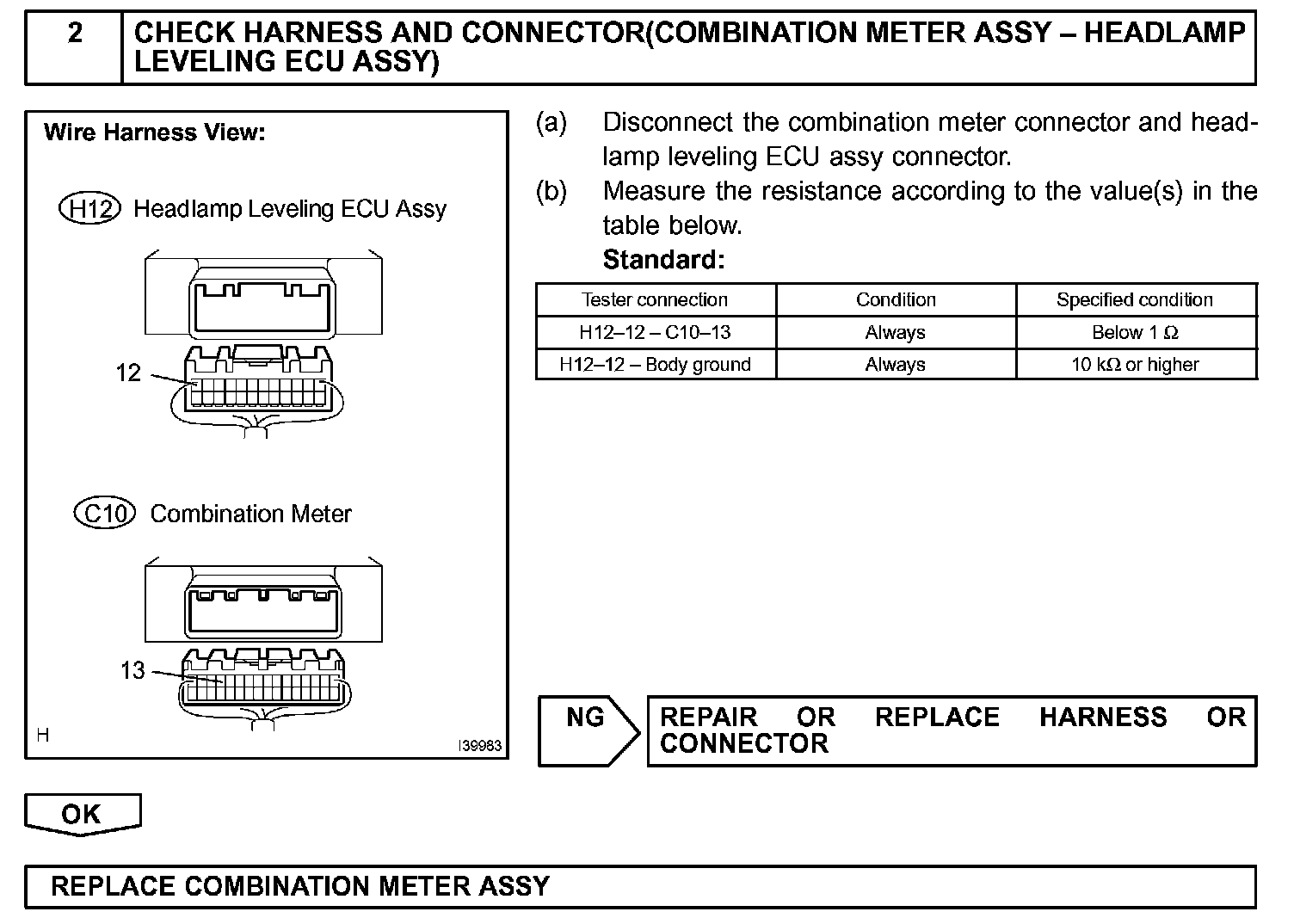

Step 2:

INSPECTION PROCEDURE

HINT: Check if the combination meter operation is normal before performing the following procedure.
