Warning Light Circuit

WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION

Headlamp beam level control ECU sends the warning signal to the combination meter.

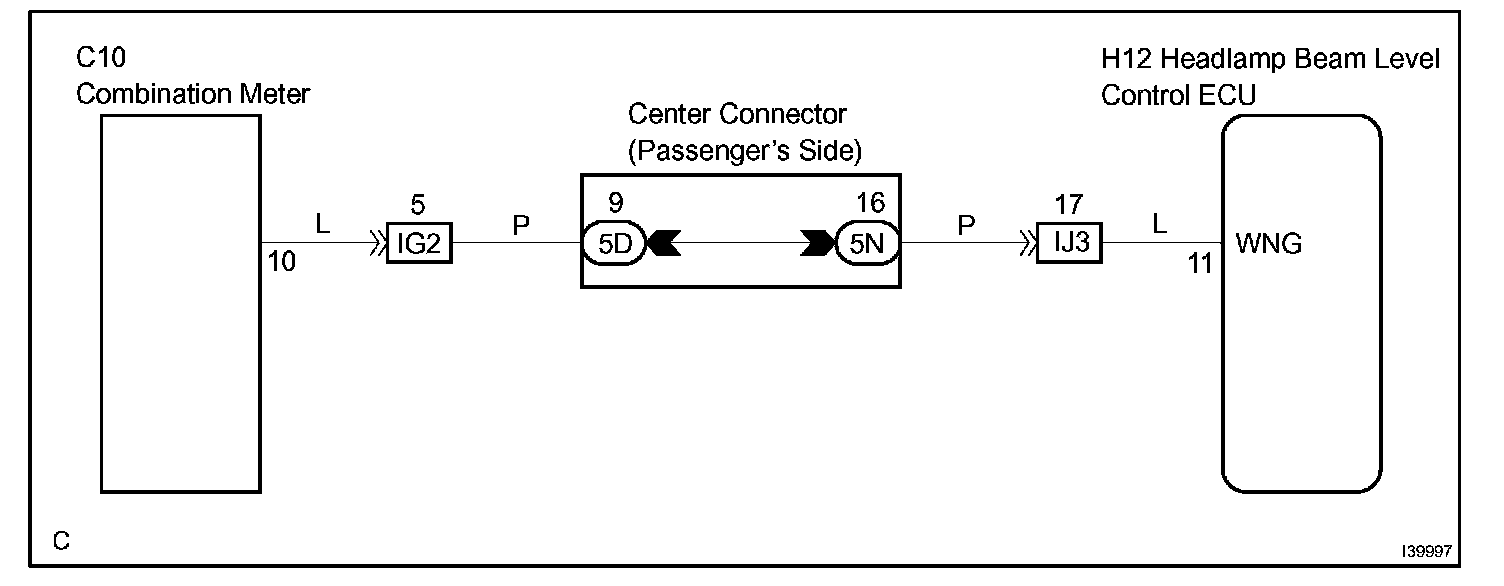

Wiring Diagram:

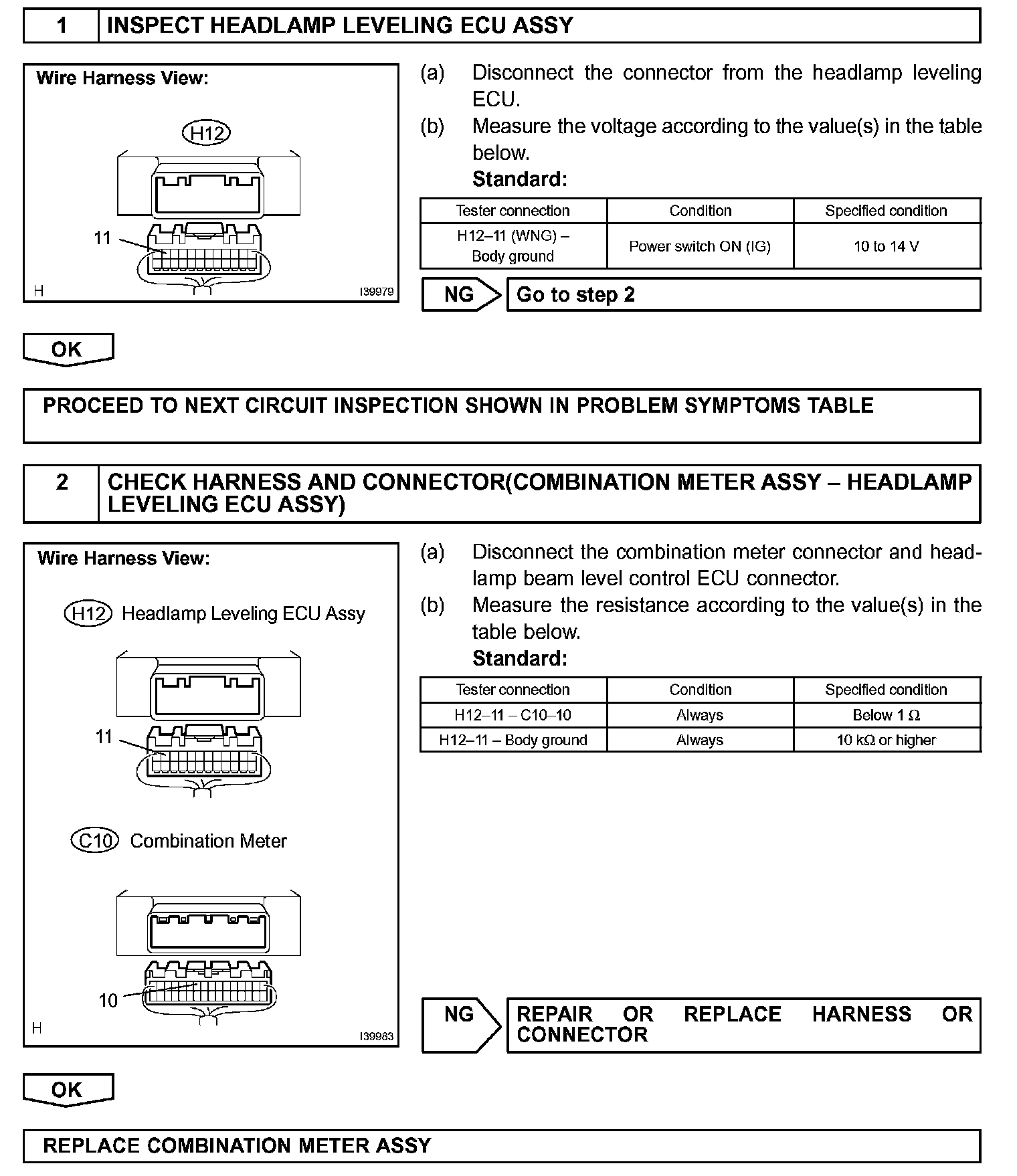

Step 1 - 2:

INSPECTION PROCEDURE

HINT: Check if the combination meter operation is normal before performing the following procedure.
